KITAMURA

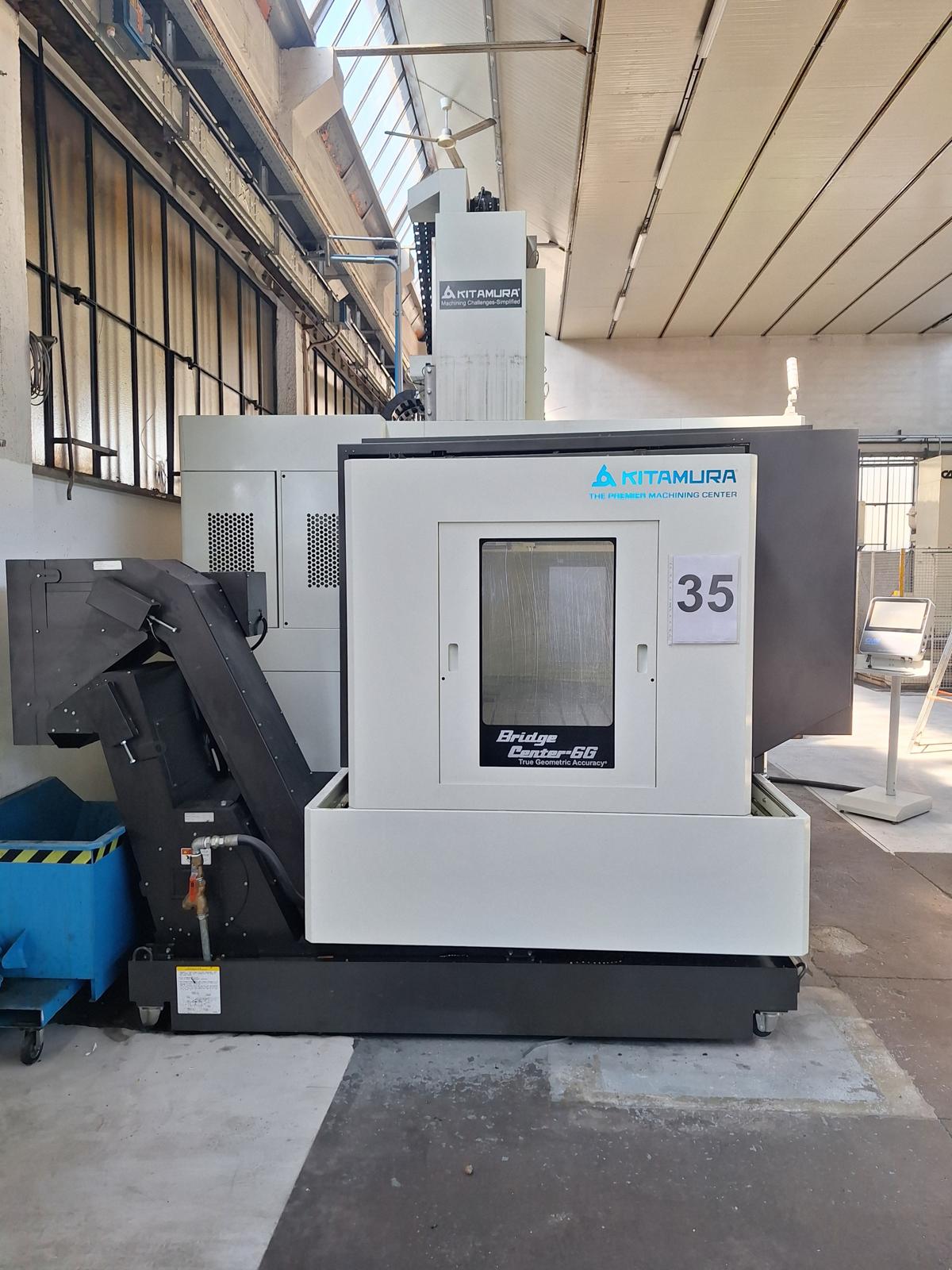

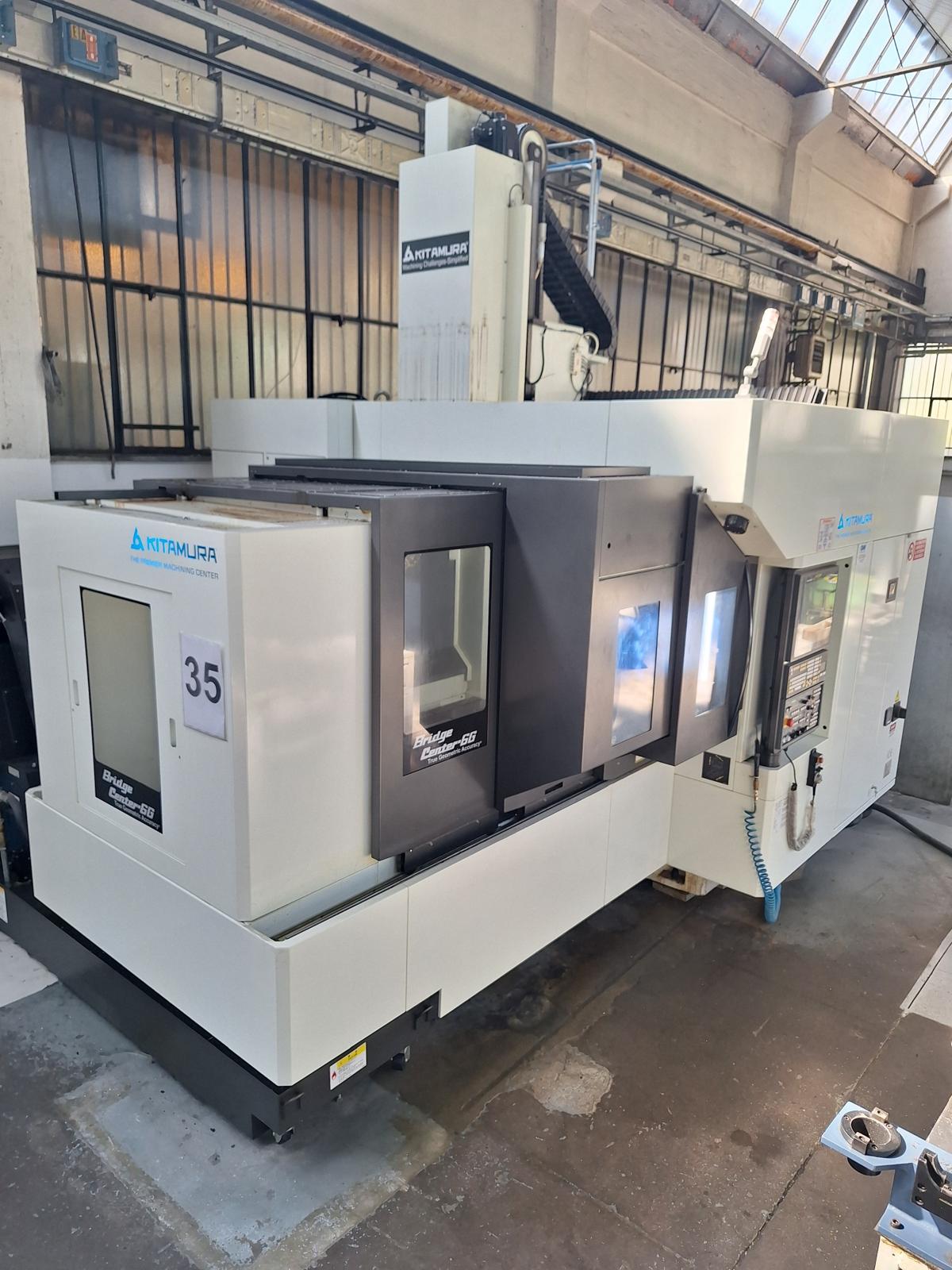

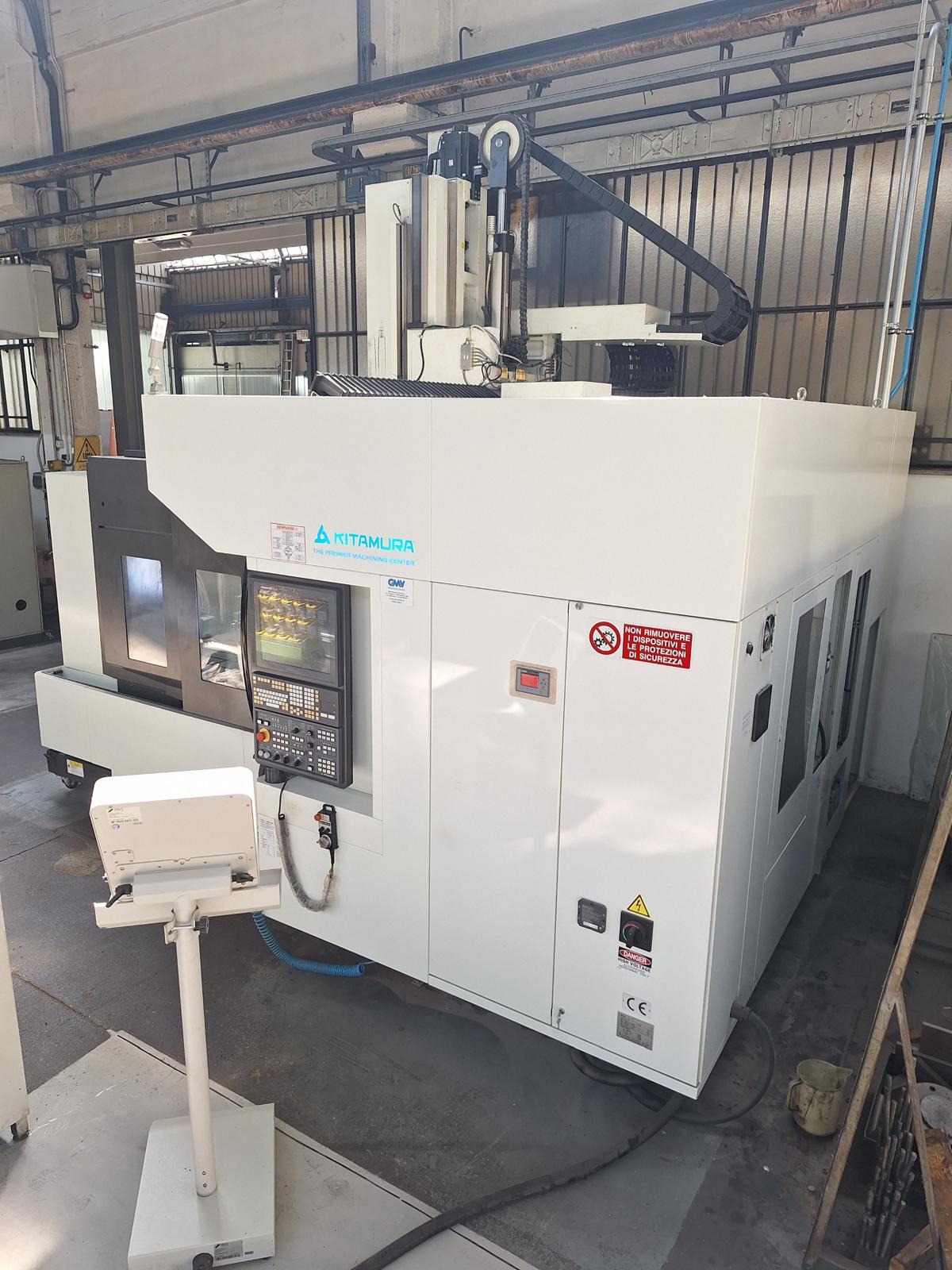

BRIDGECENTER 6G#50

Type: Vertical machining center Gantry

Brand: KITAMURA

Model: BRIDGECENTER 6G#50

Year: 2022

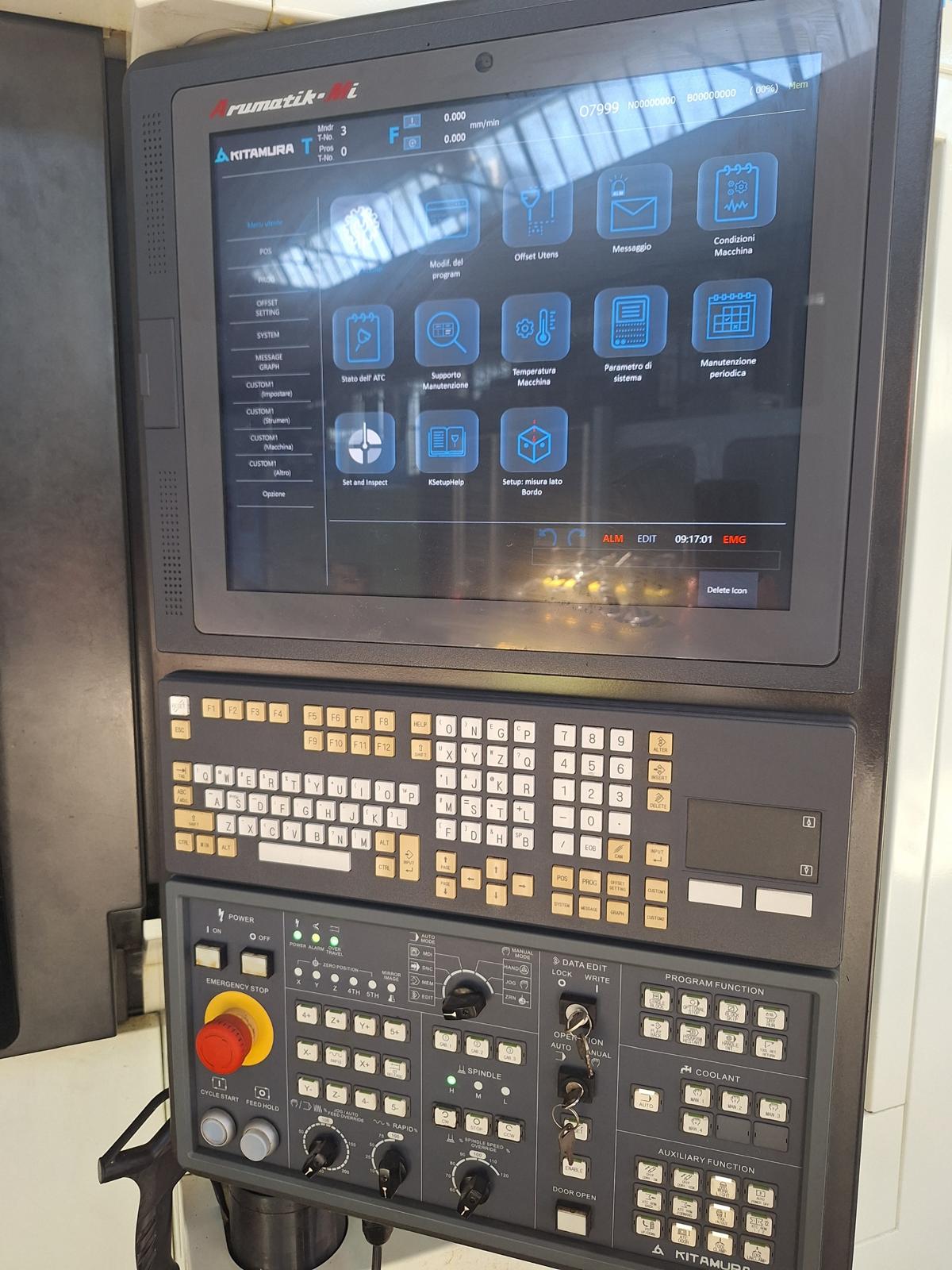

C.N.C: Arumatik Mi

Request a quote

BRIDGECENTER 6G#50

BRIDGECENTER 6G#50

BRIDGECENTER 6G#50

BRIDGECENTER 6G#50

BRIDGECENTER 6G#50

BRIDGECENTER 6G#50

BRIDGECENTER 6G#50

Technical information

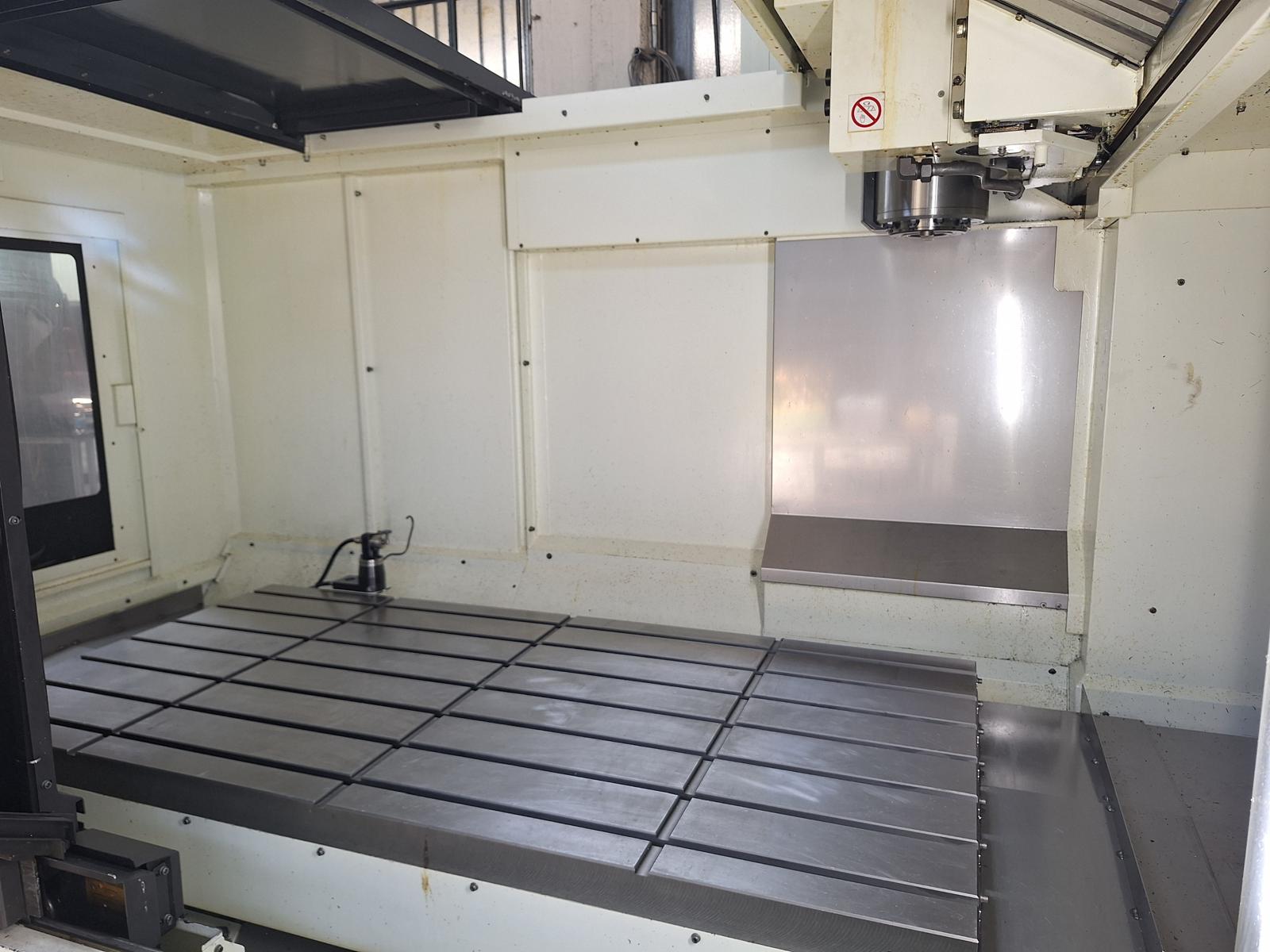

Table

Table dimensions: 900x1800 mm
T-slot/pitch size: 18x7 mm
Max weight allowed: 3000 kg

Capacity

Longitudinal X-travel: 1530 mm
Cross Y-travel: 1095 mm
Vertical Z-travel: 710 mm

Spindle

Spindle nose: 50 ISO
Spindle speed: 12000 rpm.
Motor power: 40 Kw

Advances

Rapid X,Y,Z axis: 24.000 mm/min

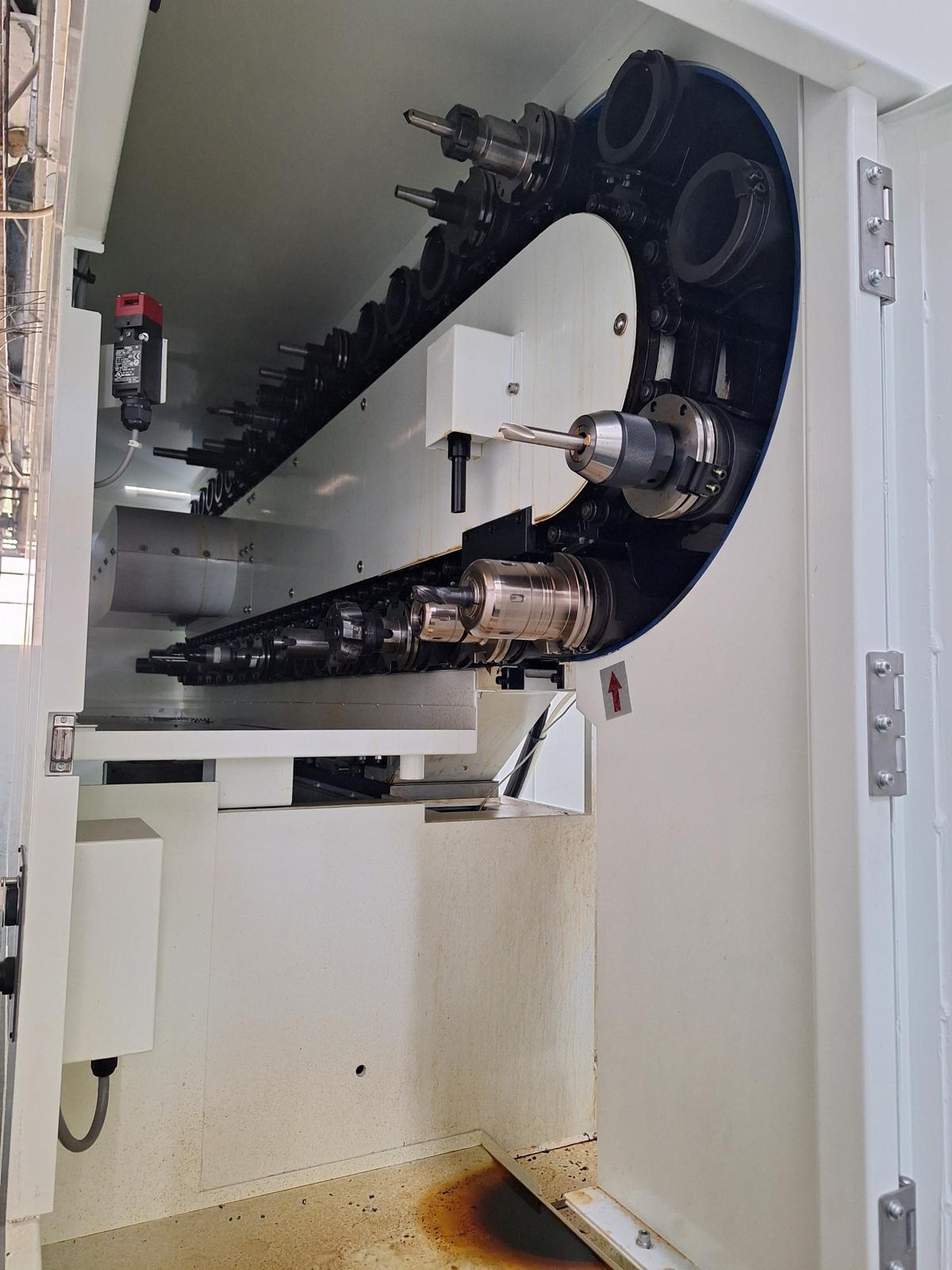

Tool Warehouse

Tool Stations: 40 no.

Table mm. : 900x1800

X,Y,Z strokes mm. : 1530x1095x710

RPM : 12.000

Power Kw : 40

ISO : 50

Tools : 40
