PALMARY
OCD 3235/ 3265 A

Type: Cylindrical grinder

Brand: PALMARY

Model: OCD 3235/ 3265 A

C.N.C: Fanuc Oi - TF

Request a quote

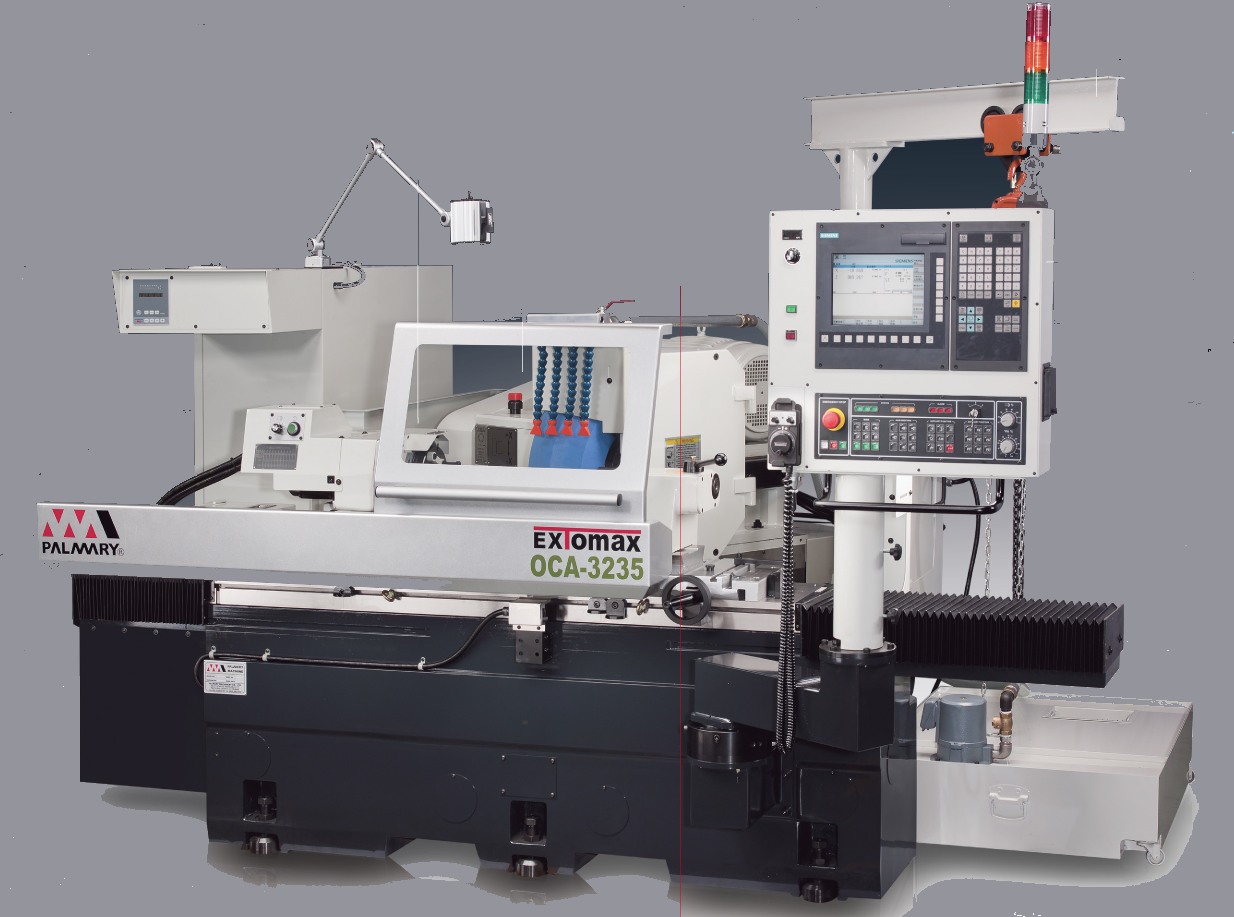

Cylindrical grinder PALMARY OCD 3235/ 3265 A

Cylindrical grinder PALMARY OCD 3235/ 3265 A

Cylindrical grinder PALMARY OCD 3235/ 3265 A

Technical information

CAPACITY

Distance between centers: 350 / 650 mm
Center height: 160 mm
Maximum grinding diameter: 300 /400 mm
Maximum weight between centers: 150 Kg
Wheel dimensions: Ø455 x 75 x 152.4 mm
Wheel motor power: 7.5 Kw

MACHINE DIMENSIONS

Weight: 5000/ 6000 Kg

Distance between centers : 350 /650 mm

Center height : 160 mm

Max job weight : 150 Kg

Wheel dimensions : Ø455 x 75 x 152.4 mm

Weight : 5000/ 6000 Kg
