ARES SEIKI
A5X403

Type: Vertical machining center 5-Axis Drilling & Tapping Center

Brand: ARES SEIKI

Model: A5X403

C.N.C: Mitsubishi e Fanuc

Request a quote

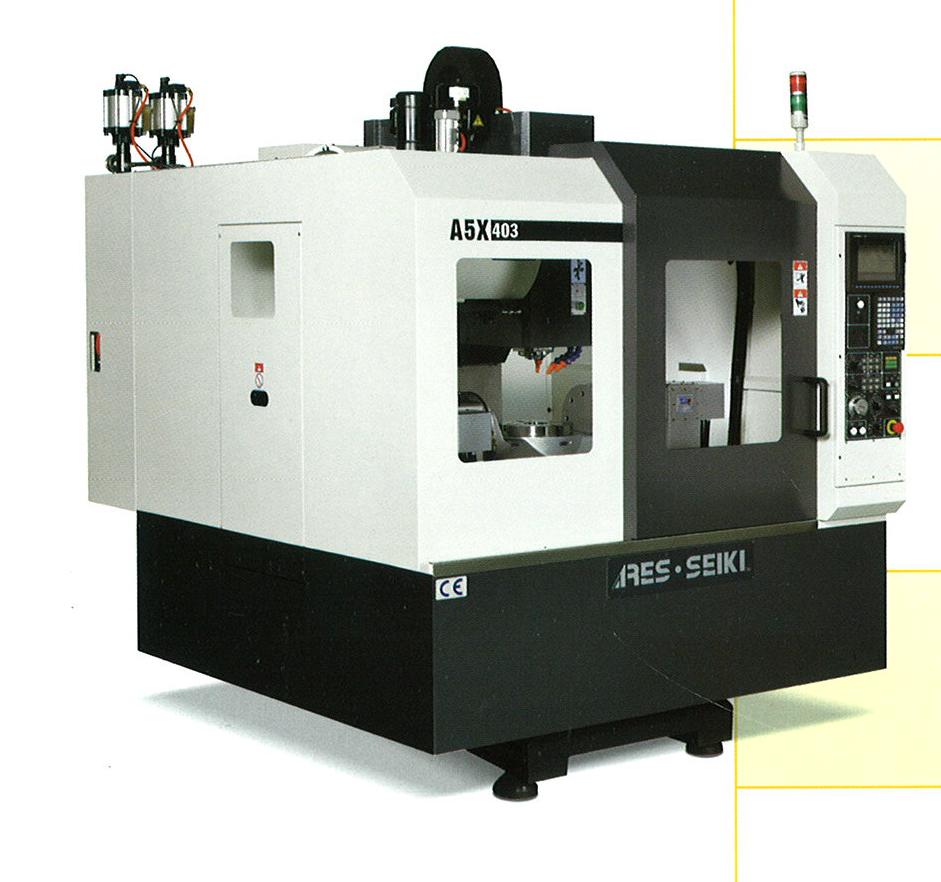

Vertical machining center ARES SEIKI A5X403

Technical information

Table

Table dimensions: Ø255 mm
Max table load: 50 kg

Turning capacity

Longitudinal X-travel: 400 mm
Cross Y-travel: 500 mm
Vertical Z-travel: 400 mm

Spindle

Spindle taper: 30 ISO
RPM: 10.000 giri/min.
Motor power: 3.7/5.5 Kw

Tool magazine

Tools holder: 20 nr.

Specific properties

Max. workpiece dimension: Ø360x250 mm

Table mm. : Ø255

X,Y,Z travels mm. : 400x500x400

Rpm : 10.000

Motor power Kw : 3.7/5.5

ISO : 30

Tools : 20
