NIKKEI
MCX-5

Type: Vertical machining center 5 axes

Brand: NIKKEI

Model: MCX-5

C.N.C: Heidenhain / Fanuc

Request a quote

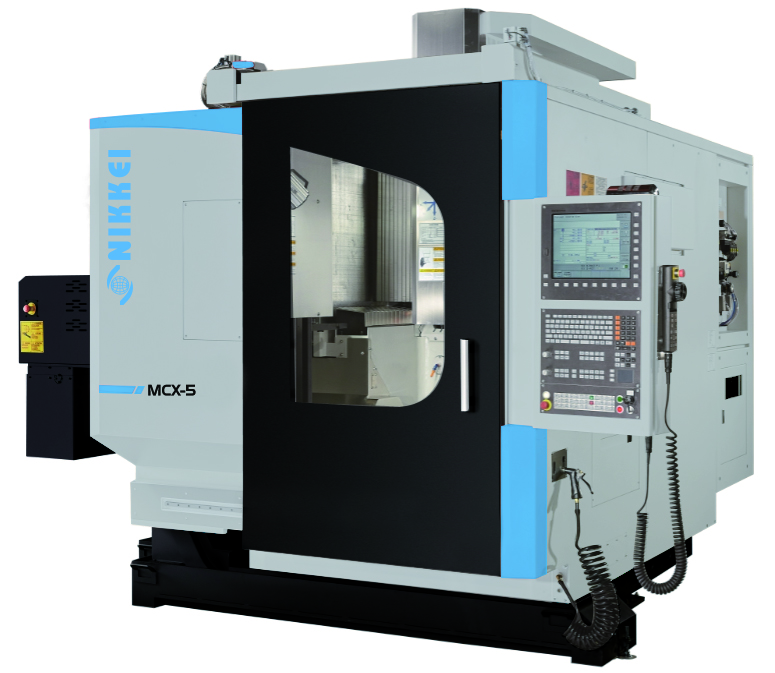

NIKKEI MCX-5 Vertical Machining Center

NIKKEI MCX-5 Vertical Machining Center

NIKKEI MCX-5 Vertical Machining Center

Technical information

Table

Table dimensions: Ø 600 mm
Max weight allowed: 600 kg

Capacity

Longitudinal X-travel: 600 mm
Cross Y-travel: 600 mm
Vertical Z-travel: 500 mm

Spindle

Spindle nose: 40 ISO
Spindle speed: 15000 rpm.
Motor power: 15/18/25 Kw

Advances

Rapid X,Y,Z axis: 36.000 mm/min

Tool Warehouse

Tool Stations: 32/60/90 no.

Table mm. : Ø 600

X,Y,Z strokes mm. : 600x600x500

RPM : 15000

Power Kw : 15/18/25

ISO : 40

Tools : 32/60/90
