WELE
CV650/CV1060/CV1260

Type: Vertical machining center With rail guides

Brand: WELE

Model: CV650/CV1060/CV1260

C.N.C: Fanuc 0iMD

Request a quote

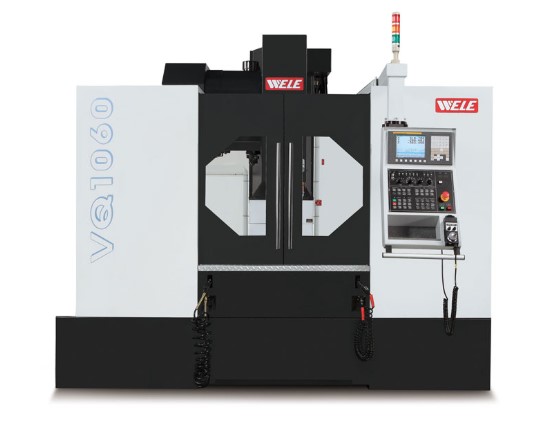

Vertical machining center WELE CV650/CV1060/CV1260

Vertical machining center WELE CV650/CV1060/CV1260

Vertical machining center WELE CV650/CV1060/CV1260

Vertical machining center WELE CV650/CV1060/CV1260

Technical information

Table

Table dimensions: 800x500/1150x600/1300x600 mm
T-slot/pitch size: 18x125 mm
Max weight allowed: 700/700/1000 kg

Capacity

Longitudinal X-travel: 650/ 1020/ 1200 mm
Cross Y-travel: 510/ 600 mm
Vertical Z-travel: 510/ 600 mm

Spindle

Spindle nose: BT 40 ISO
Spindle speed: 10000 rpm.
Motor power: 7.5 - 11/ 7.5 - 11/ 11 - 15 Kw

Advances

Rapid X,Y,Z axis: 36000 - 30000 mm/min

Tool Warehouse

Tool Stations: 24 no.

Table mm. : 800x500/1150x600/1300x600

X,Y,Z strokes mm. : 650x510x510/1020x600x600/1200x600x600

RPM : 10000

Power Kw : 7.5 - 11/ 7.5 - 11/ 11 - 15

ISO : BT 40

Tools : 24
