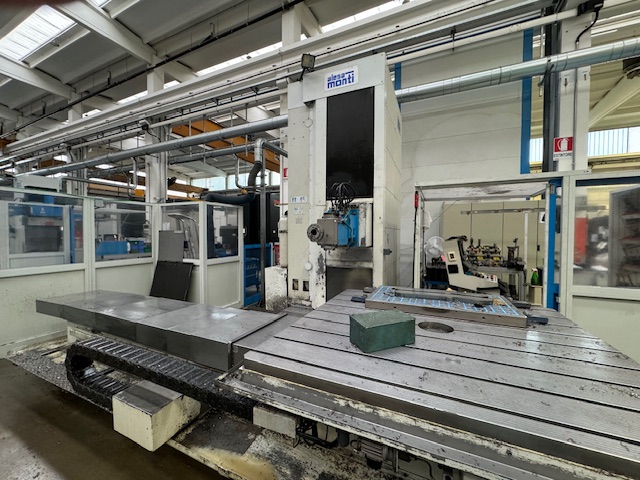

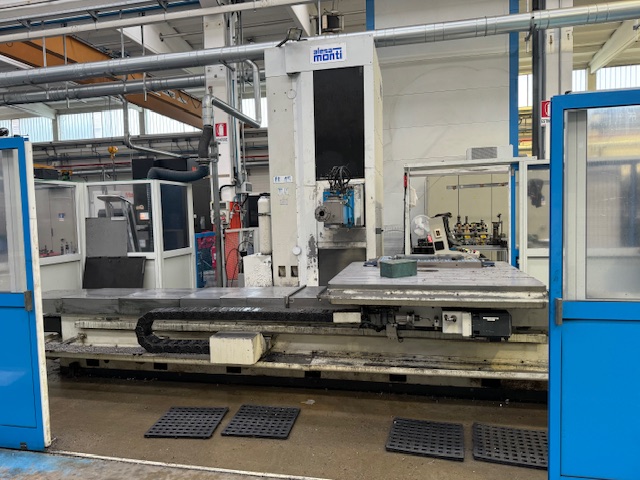

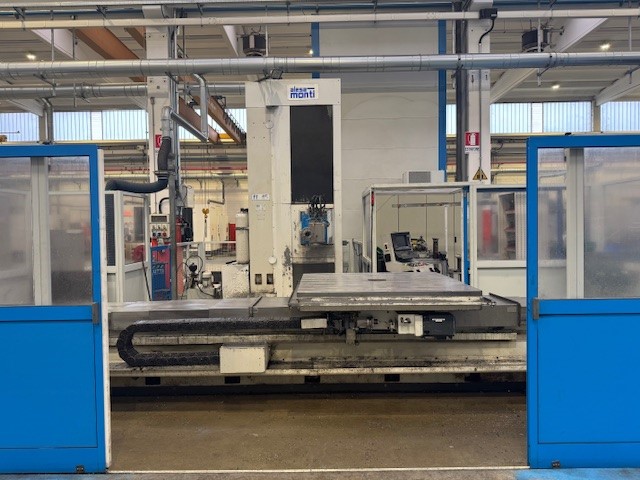

Type: Boring machine Boring machine
Brand: ALESAMONTI
Model: FT45TG
Year: 2001
C.N.C: SELCA 4045D
Serial number: 4040201
Specifications
COMPLETE WITH SPINDLES AND VARIOUS ACCESSORIES

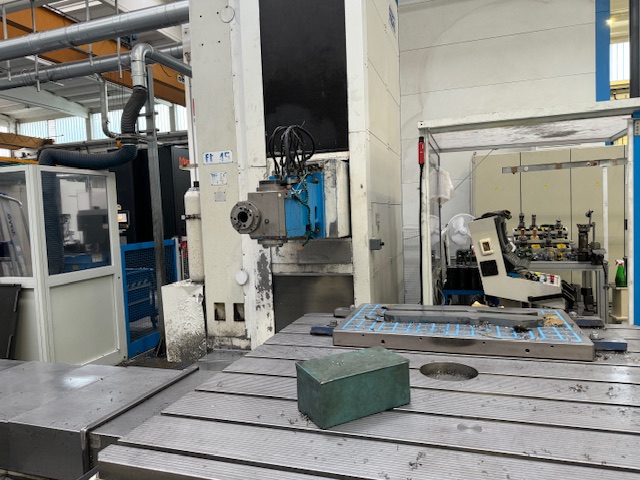

Fixed dual-spindle head, equipped with automatic tool clamping.
Coolant system for tool cooling through the spindle bore.
Spindle
Specific properties
SPINDLE:
ISO 50 taper
Milling spindle diameter: 128.57 mm
Continuously variable spindle speed in 2 ranges: up to 3000 RPM
TRAVELS:
Table transverse travel (X-axis): 4000 mm
Column longitudinal travel (Z-axis): 1500 mm
Head vertical travel (Y-axis): 2000 mm
Head longitudinal travel (W-axis): 800 mm

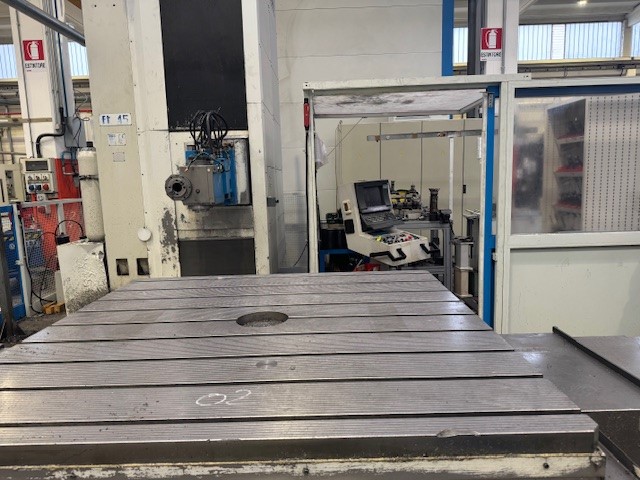

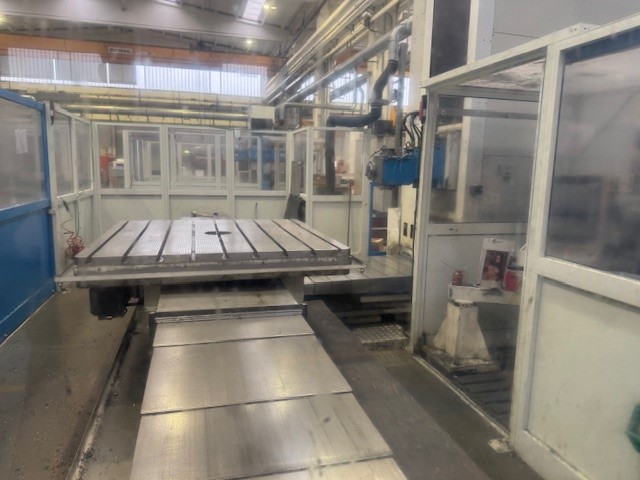

ROTARY TABLE (B-AXIS):
Dimensions: 1600×1700 mm
9 T-slots, spacing 180 mm
Maximum load capacity: 5000 kg
FEED RATES:
Working feed rate for XYZM axes: 0-15,000 mm/min
Rapid feed rate for XYZW axes: 15,000 mm/min
Table mm. : 1600x1700
X,Y,Z travels mm. : 4000x1500x1200
Ø quill :
Tools :
Rpm : 3000
Potenza KW : 22
