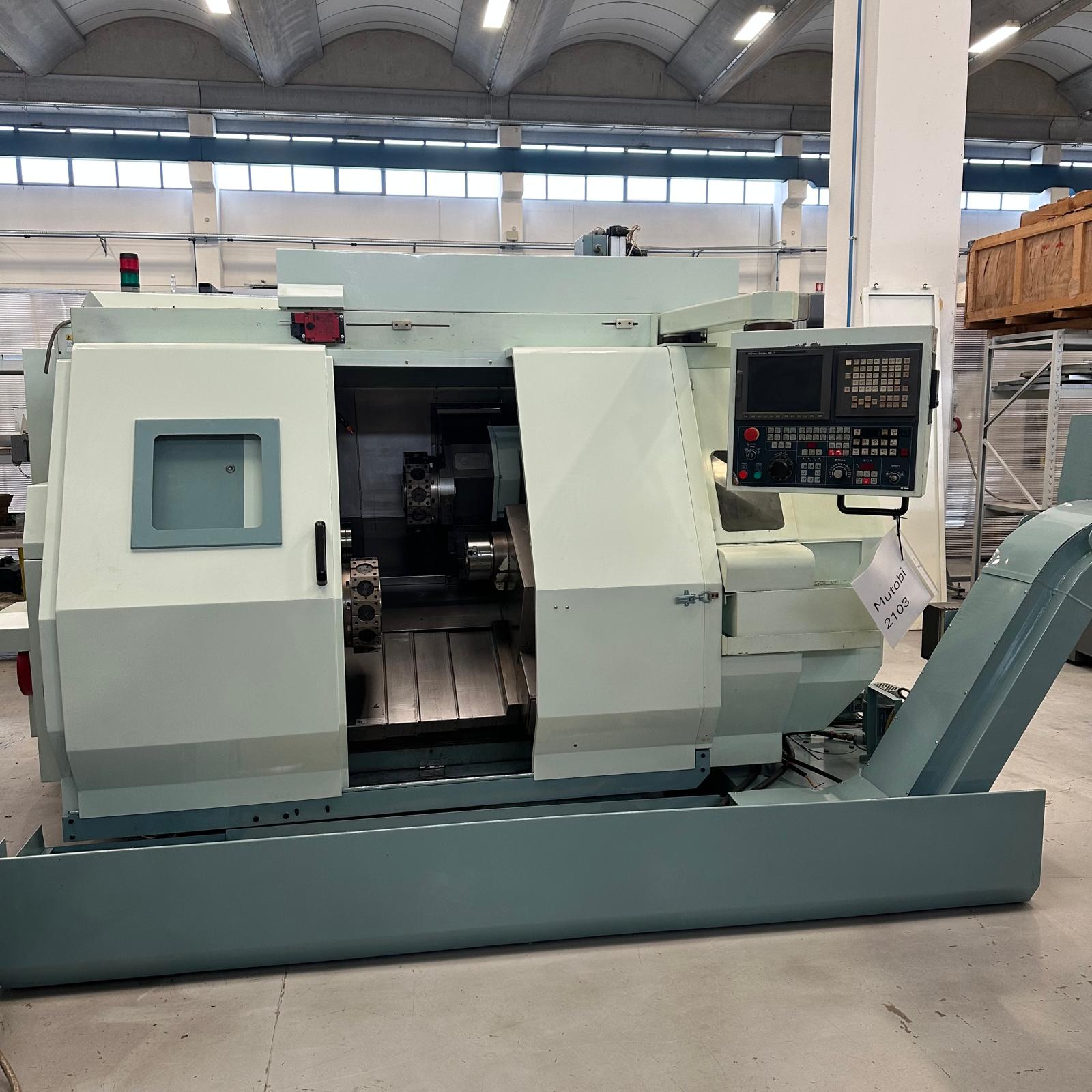

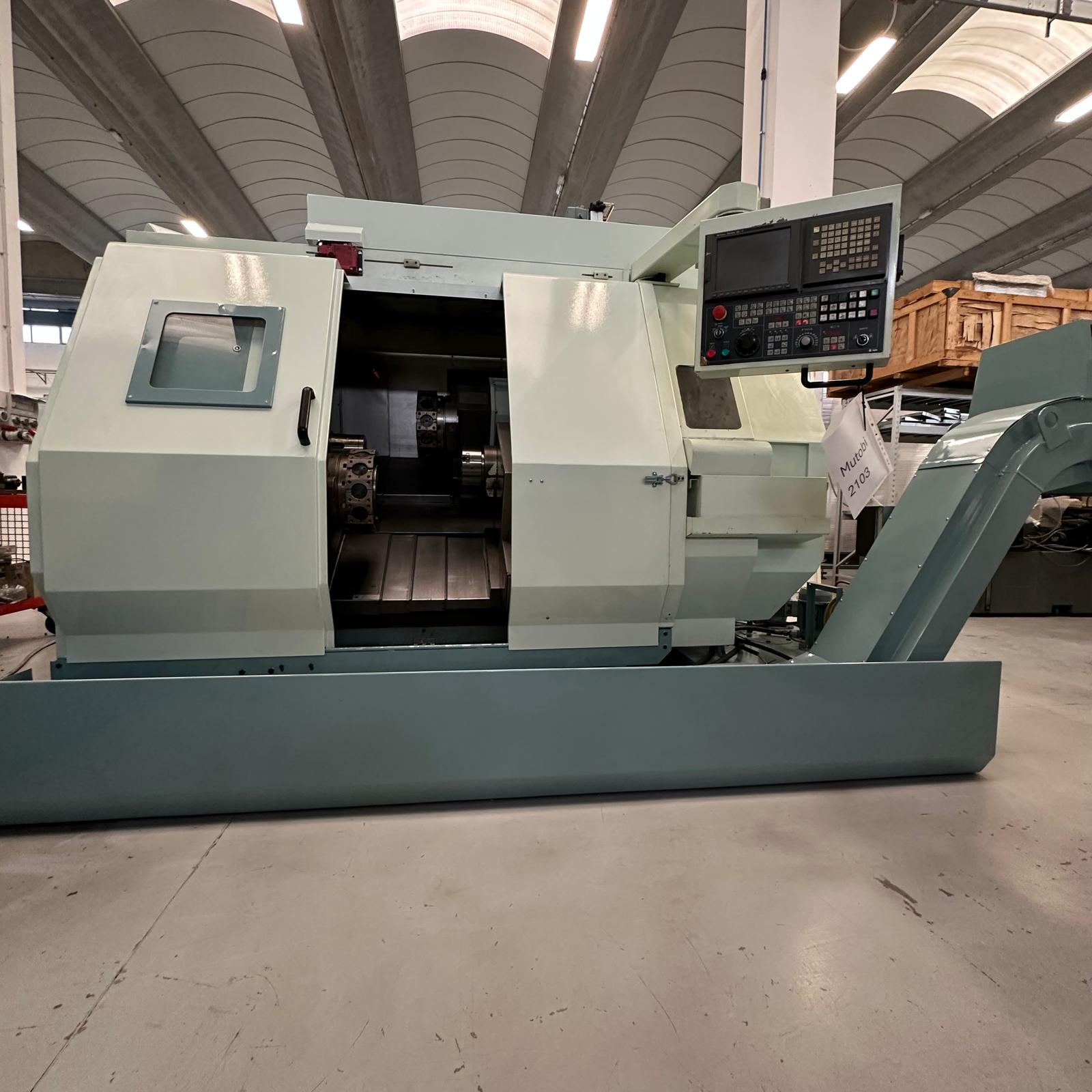

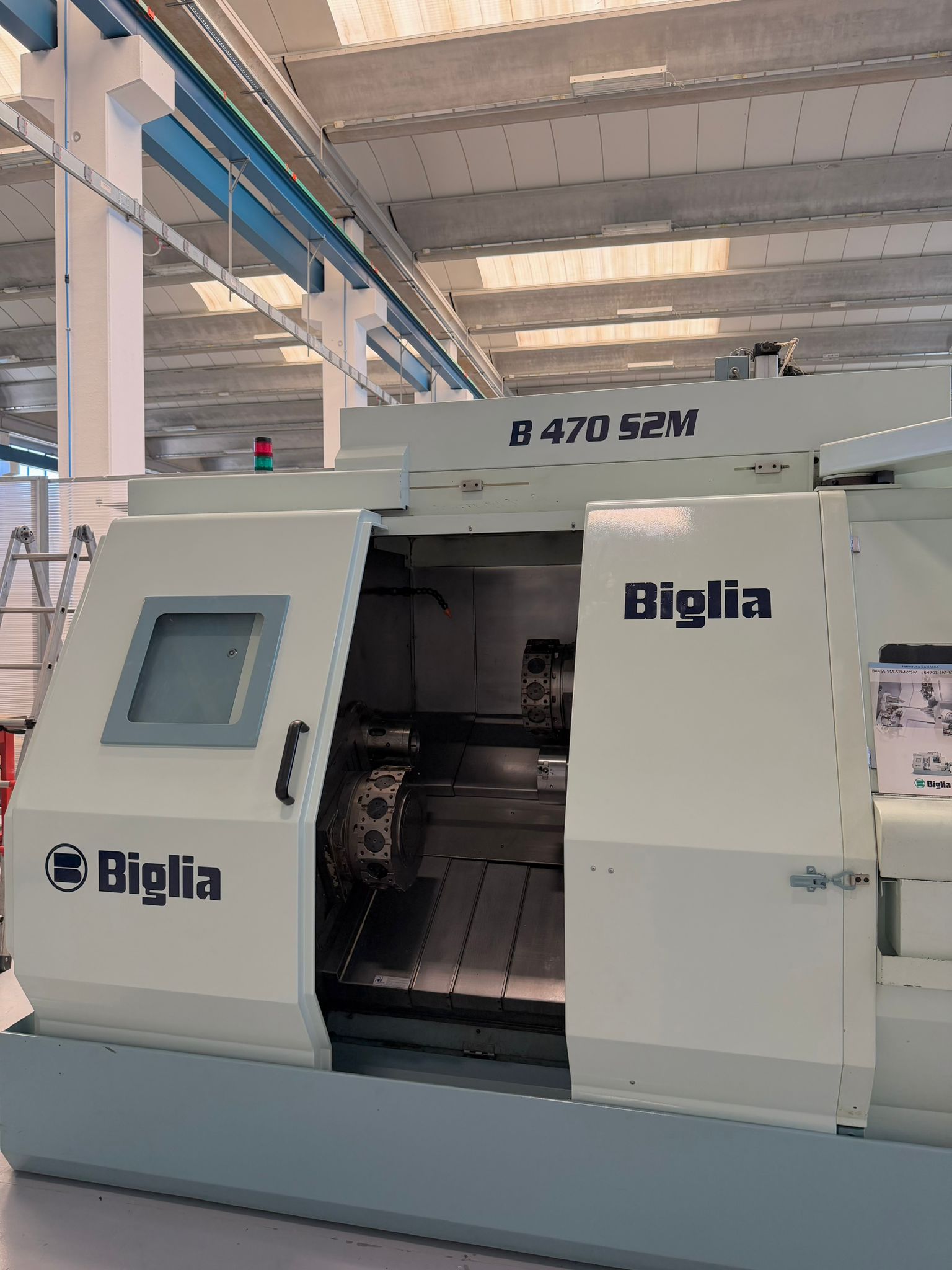

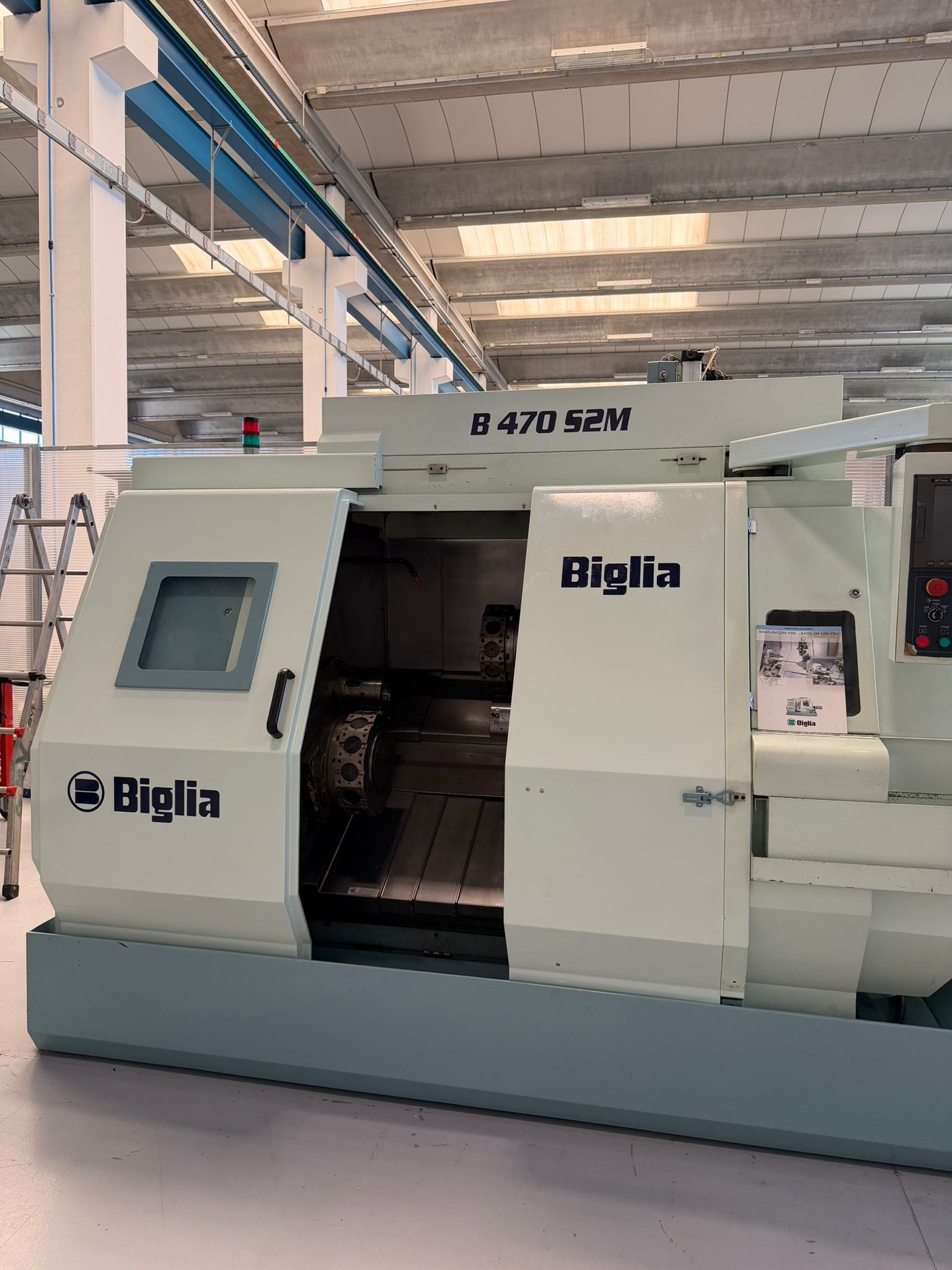

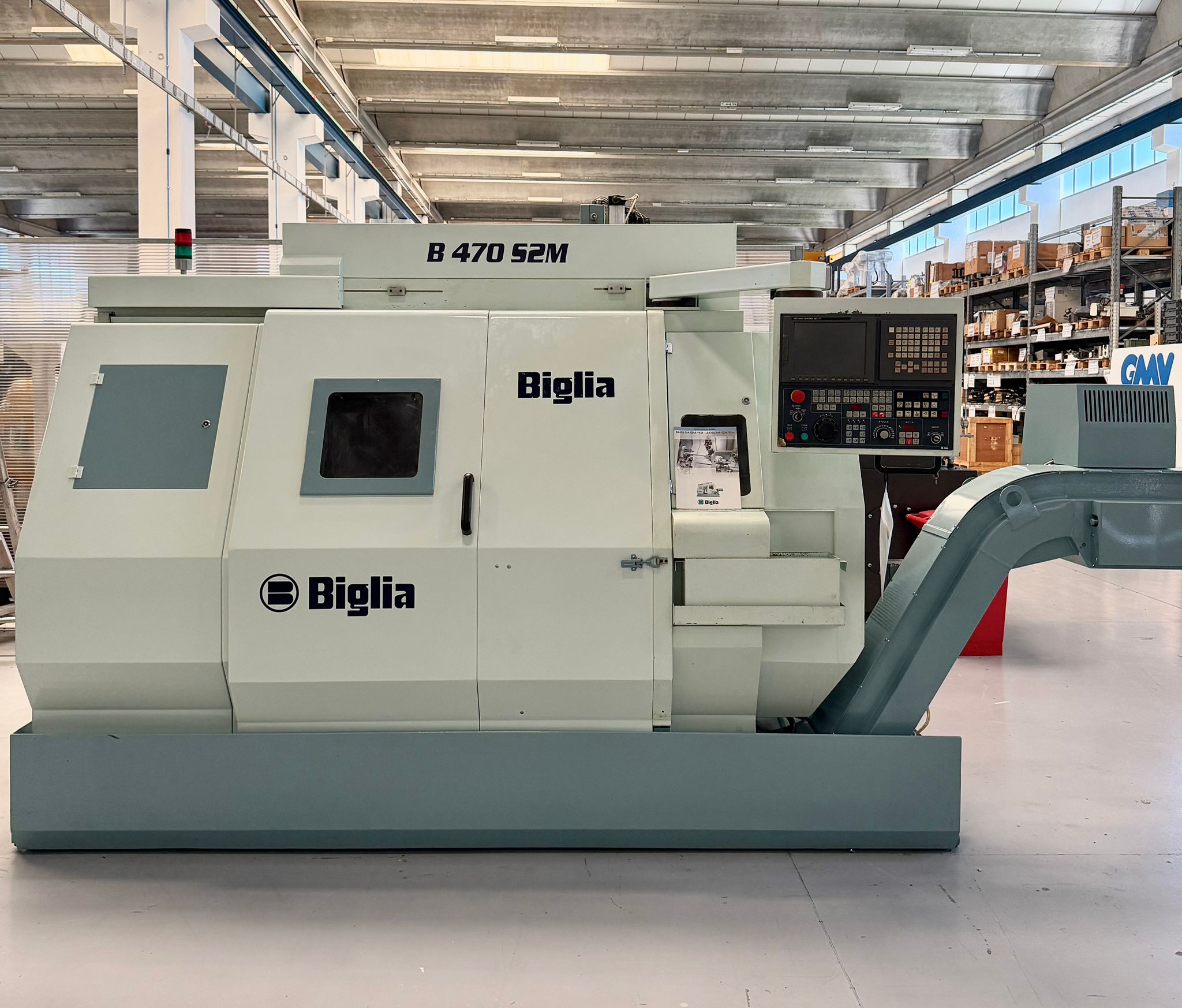

BIGLIA
B 470 S2M
Type: Cnc lathe With subspindle
Brand: BIGLIA
Model: B 470 S2M
Year: 2000
C.N.C: FANUC 18iT
Serial number: 6821
Technical information
Specifications

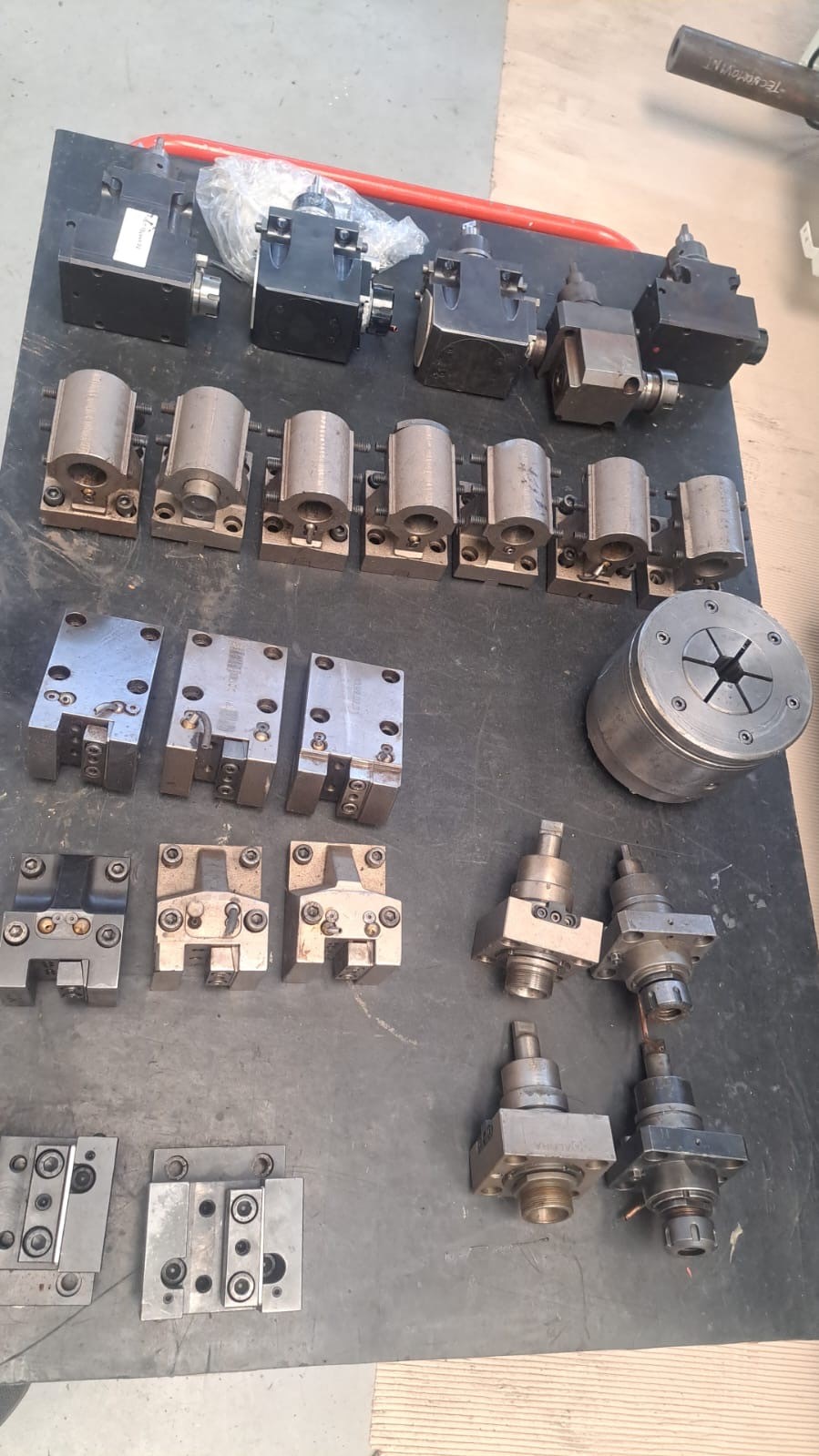

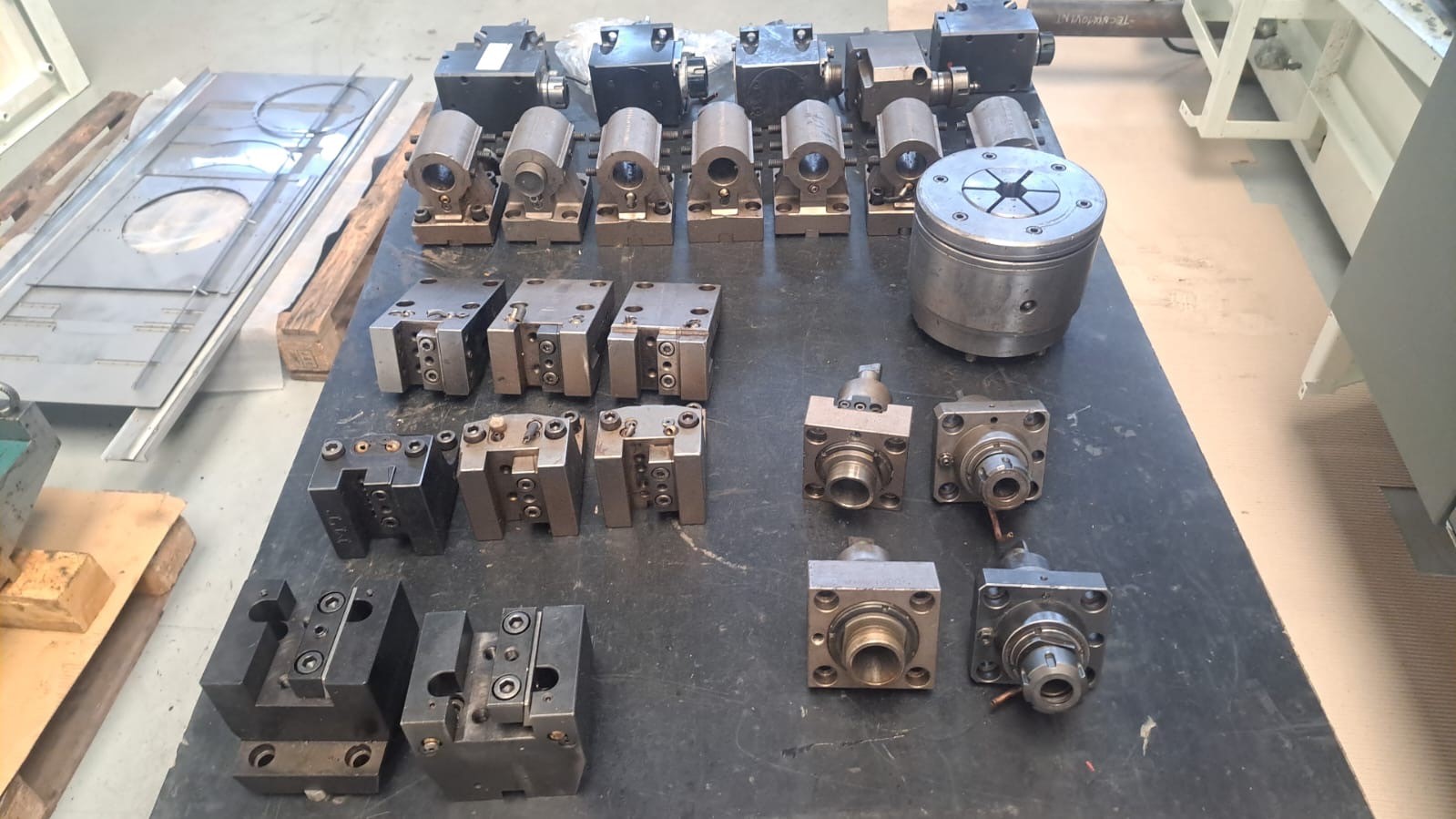

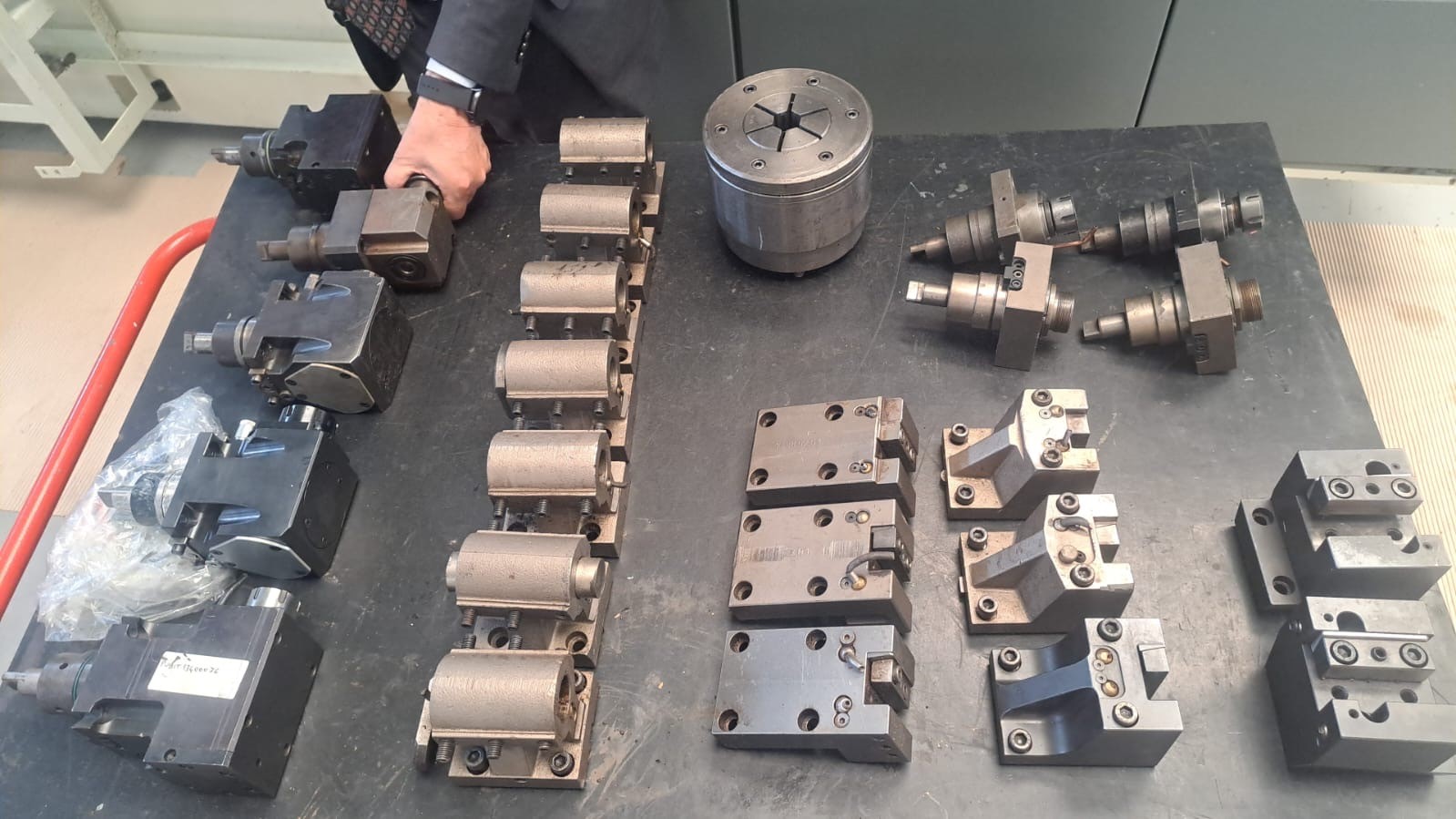

With chuck, chip conveyor, toolholer and driven tools.
The machine has been retrofitted in the following parts:
Spindle line and subspindle line, roller guide, screws of the subturret of X and Z axis. Retrofit of the two turrets.
Roller of the subspindle. The machine has been totally checked and it is in very good working condition.
Capacity
- Turning Ø: 200 mm
- Turning length: 250 mm
1st Spindle
- Spindle nose: 5 ASA
- Bar capacity: 68 mm
- Spindle speed: 4000 rpm
- Motor power: 26 Kw
- C axis: 0,001 degrees
2nd Spindle
- Spindle nose: 5 ASA
- Bar capacity: 43 mm
- Spindle speed: 4000 rpm
- Motor power: 7,5 Kw
1st Turret
- Tool Stations: 12
- Power turret: 12
II Turret
- Tool Stations: 12
- Power turret: 12
Turning Ø mm. : 200
Length. turnable mm. : 250
RPM. : 4000
Power kw. : 26
Capac.bar Ø : 68
Diameter Rotation :
Distance between centers :
Spindle speed I and II spindle : 4000
