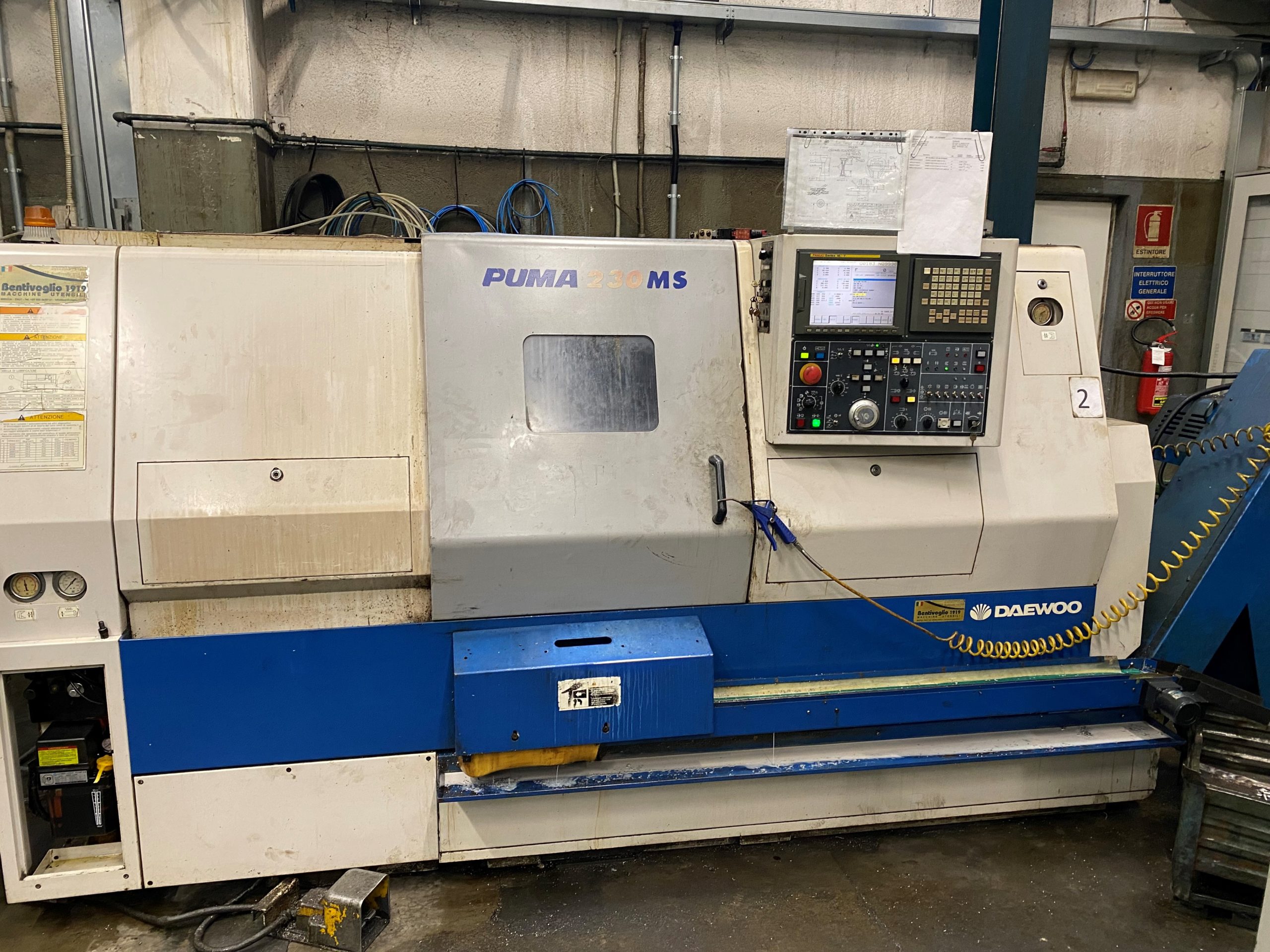

DAEWOO
PUMA 230 MSB
Sold
Type: Cnc lathe With subspindle
Brand: DAEWOO
Model: PUMA 230 MSB
Year: 2000
C.N.C: FANUC 18iT

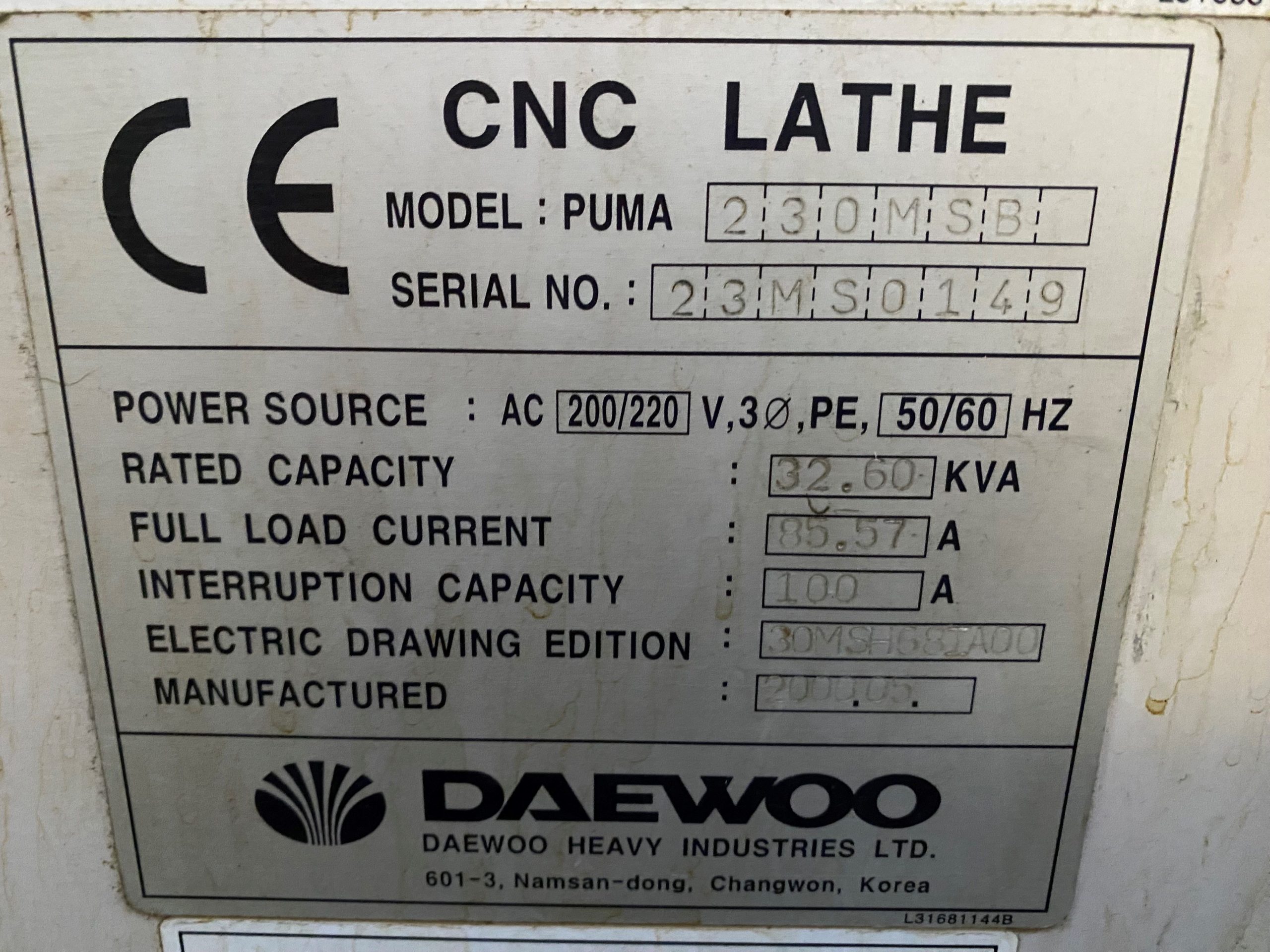

Serial number: 23MS0149
Technical information
Capacity
- Turning Ø: 290 mm
- Turning length: 429 mm
1st Spindle
- Spindle nose: A2-6 ASA
- Bar capacity: 66 mm
- Spindle speed: 45-4500 rpm
- Motor power: 11/15 Kw
- C axis: 360 degrees
2nd Spindle
- Bar capacity: 45 mm
- Spindle speed: 60-6000 rpm
- Motor power: 3,7-5,5 Kw
1st Turret
- Motorized turret: 12
Turning Ø mm. : 290
Length. turnable mm. : 492
RPM. : 4500
Power kw. : 11/15
Capac.bar Ø :
Diameter Rotation :
Distance between centers :
Spindle speed I and II spindle :
