SPINNER
TC77 SMCY
Sold

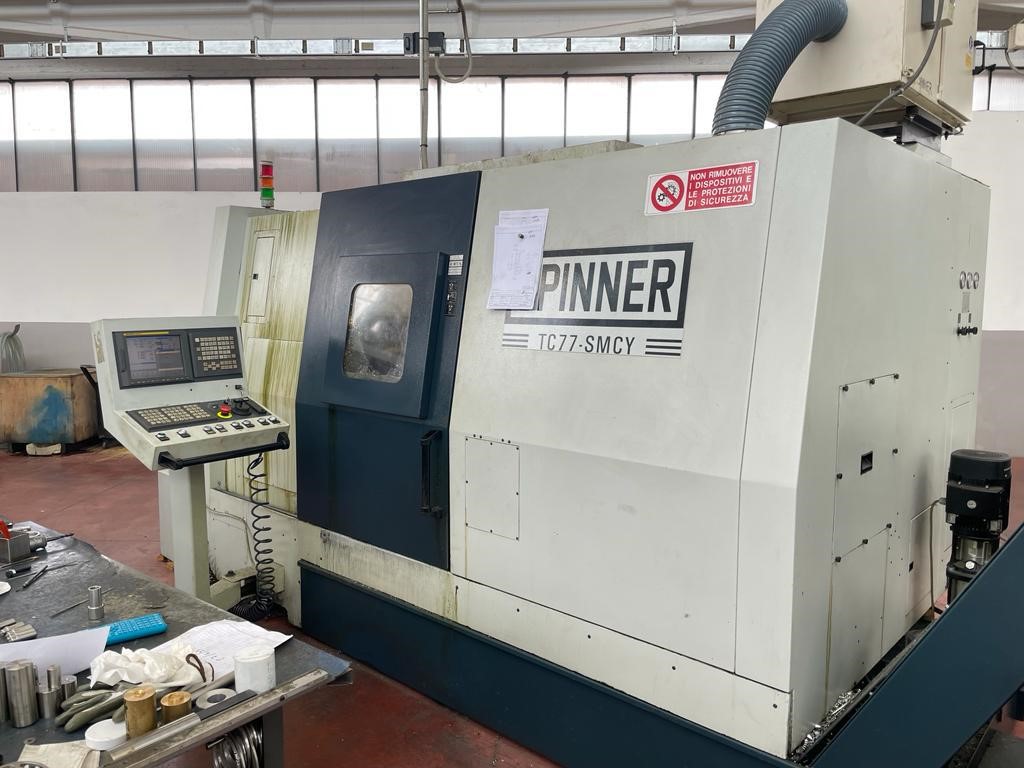

Type: Cnc lathe With subspindle
Brand: SPINNER
Model: TC77 SMCY
Year: 2006

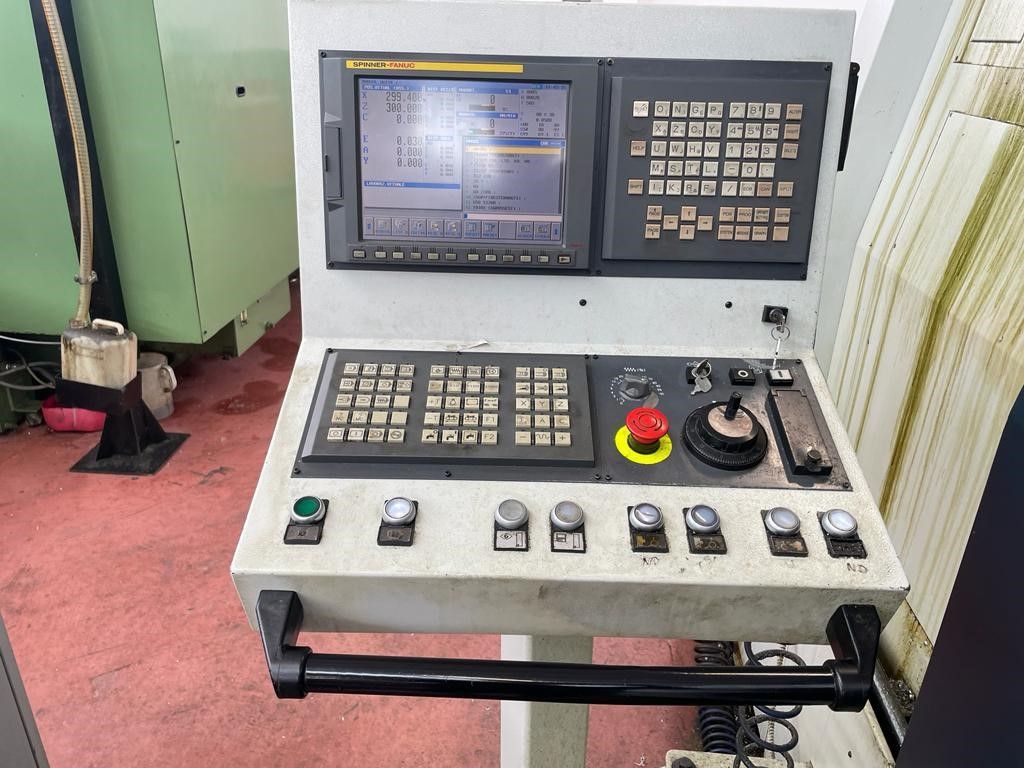

C.N.C: Fanuc Spinner
Serial number: AP0128
Technical information
Specifications

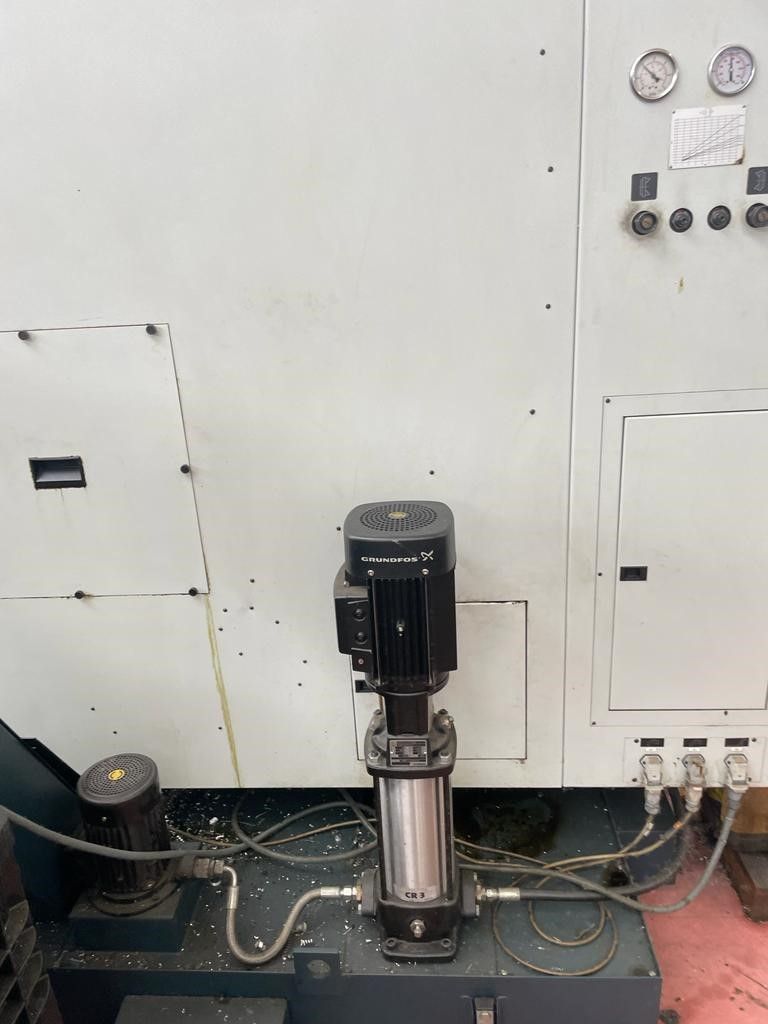

with 10 bars pump
The spindle line and subspindle has been retrofitted.
Capacity
- Turning Ø: 500 mm
- Turning length: 800 mm
- Rotation diameter: 680 mm
- Distance between centers: 980 mm

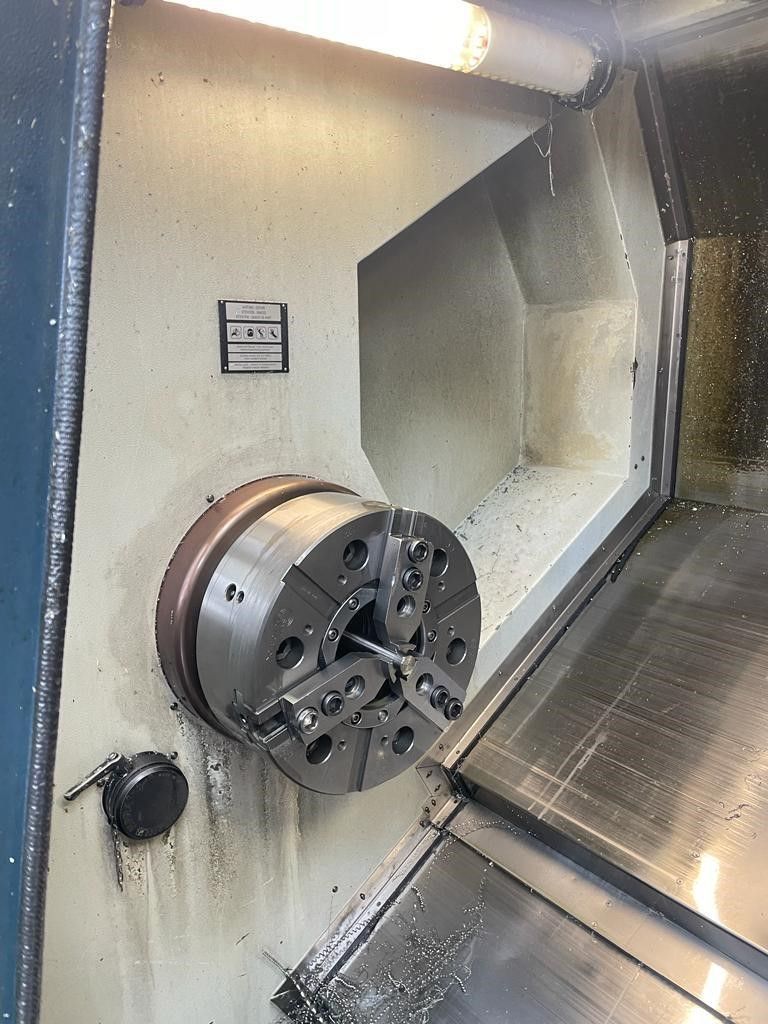

1st Spindle
- Spindle nose: 8 ASA
- Bar capacity: 77 mm
- Spindle speed: 3200 rpm
- Motor power: 22/26 Kw
- C axis: 360.000 degrees

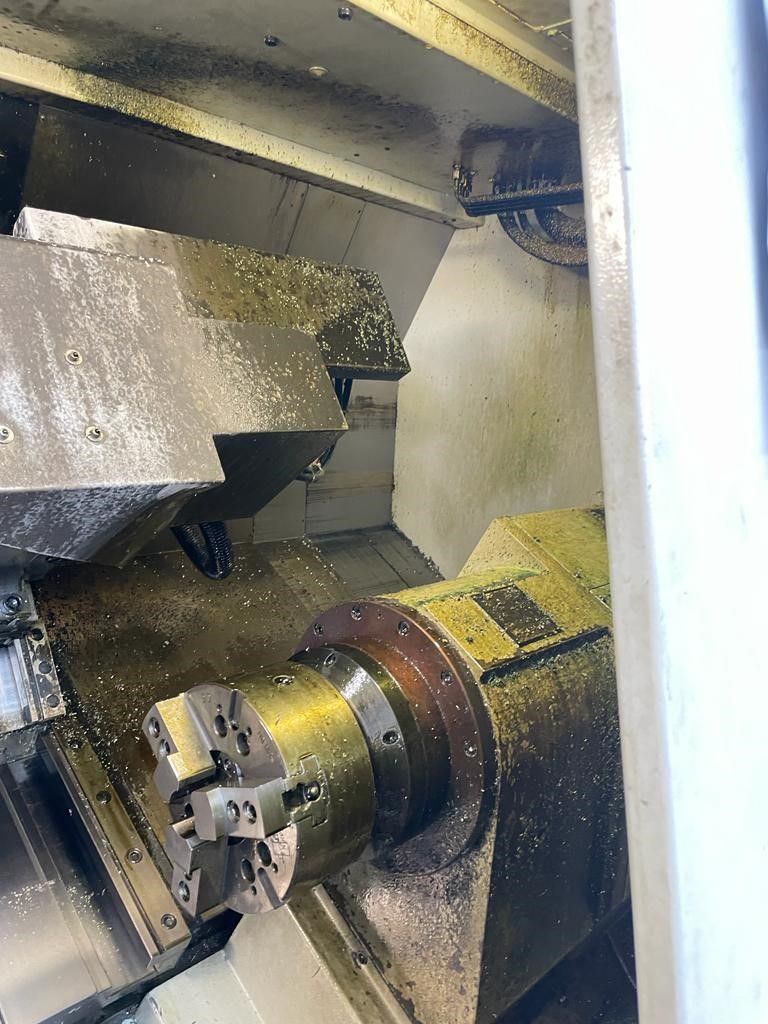

2nd Spindle
- Spindle nose: 6 ASA
- Bar capacity: 52 mm
- Spindle speed: 4000 rpm
- Motor power: 11/15 Kw
- C axis: 360.000 degrees

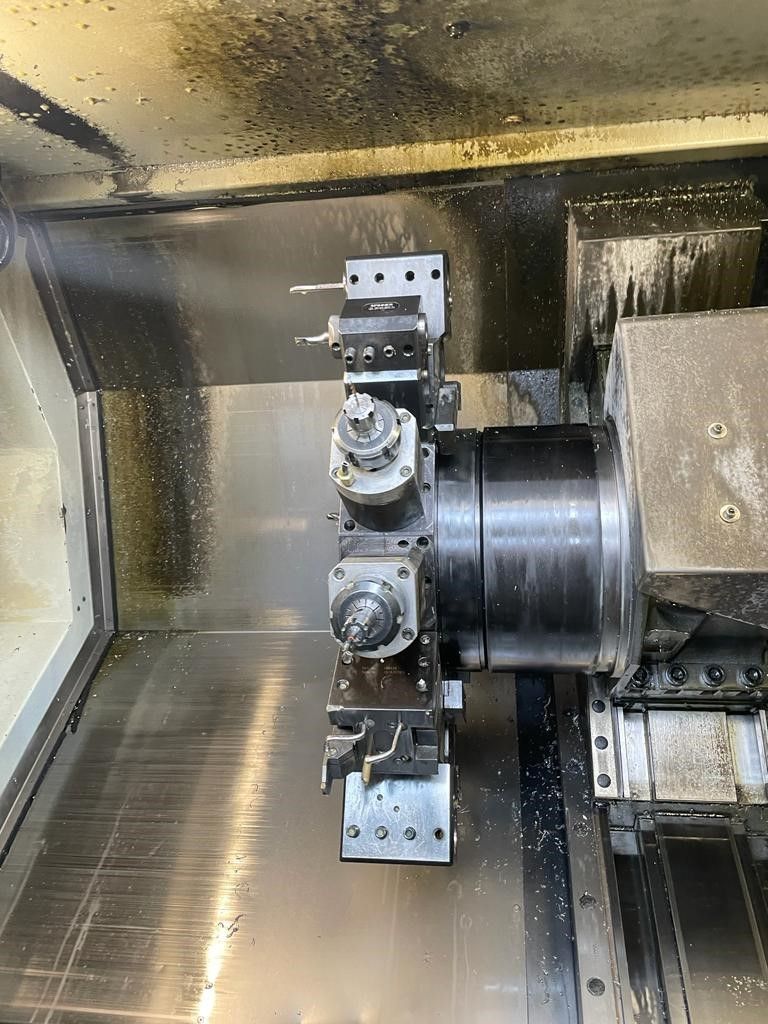

1st Turret
- Motorized turret: 12
- Motorized tools:: 12
Turning Ø mm. : 500
Length. turnable mm. : 800
RPM. : 4000
Power kw. :
Capac.bar Ø :
Diameter Rotation :
Distance between centers :
Spindle speed I and II spindle :
