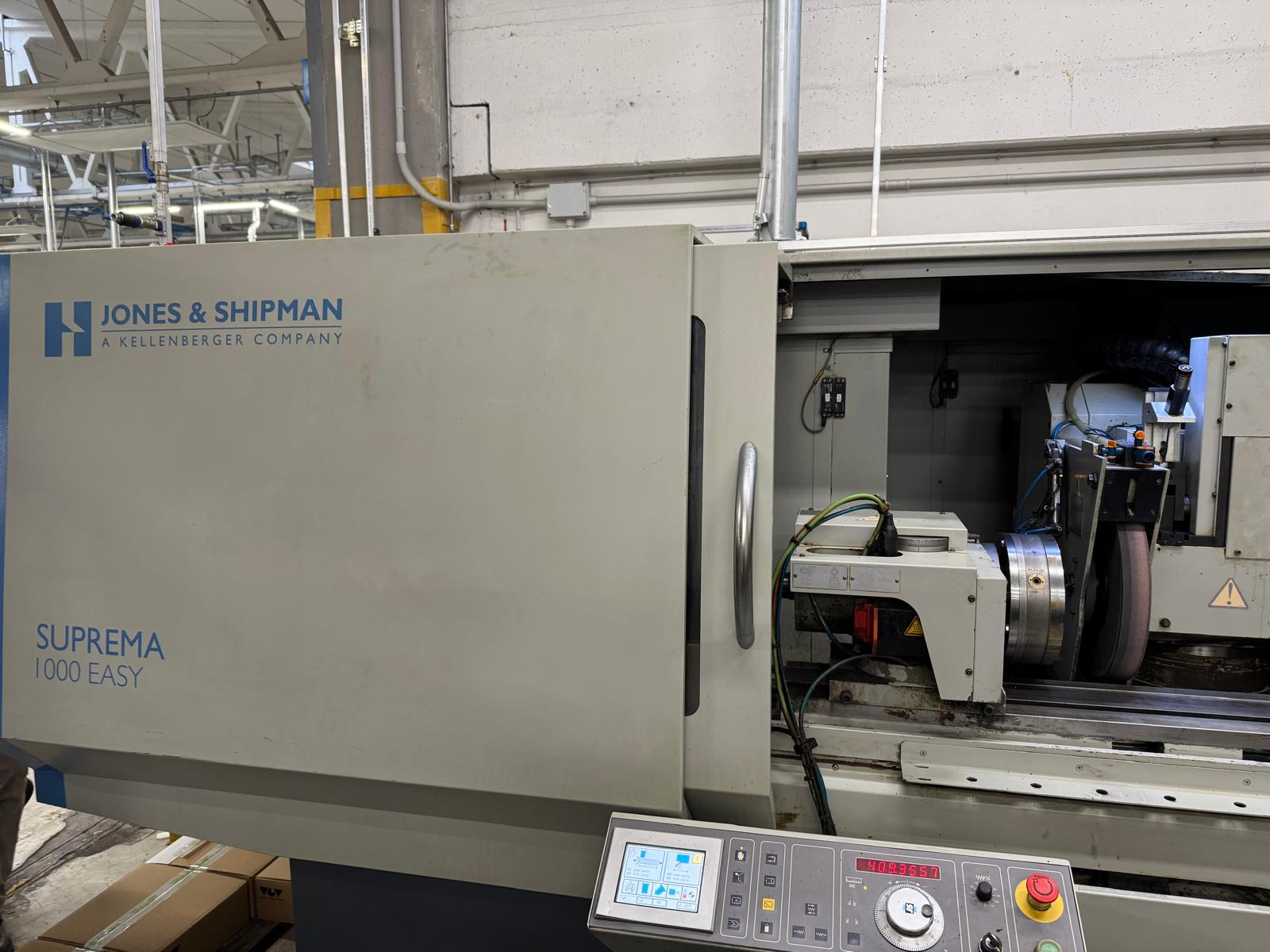

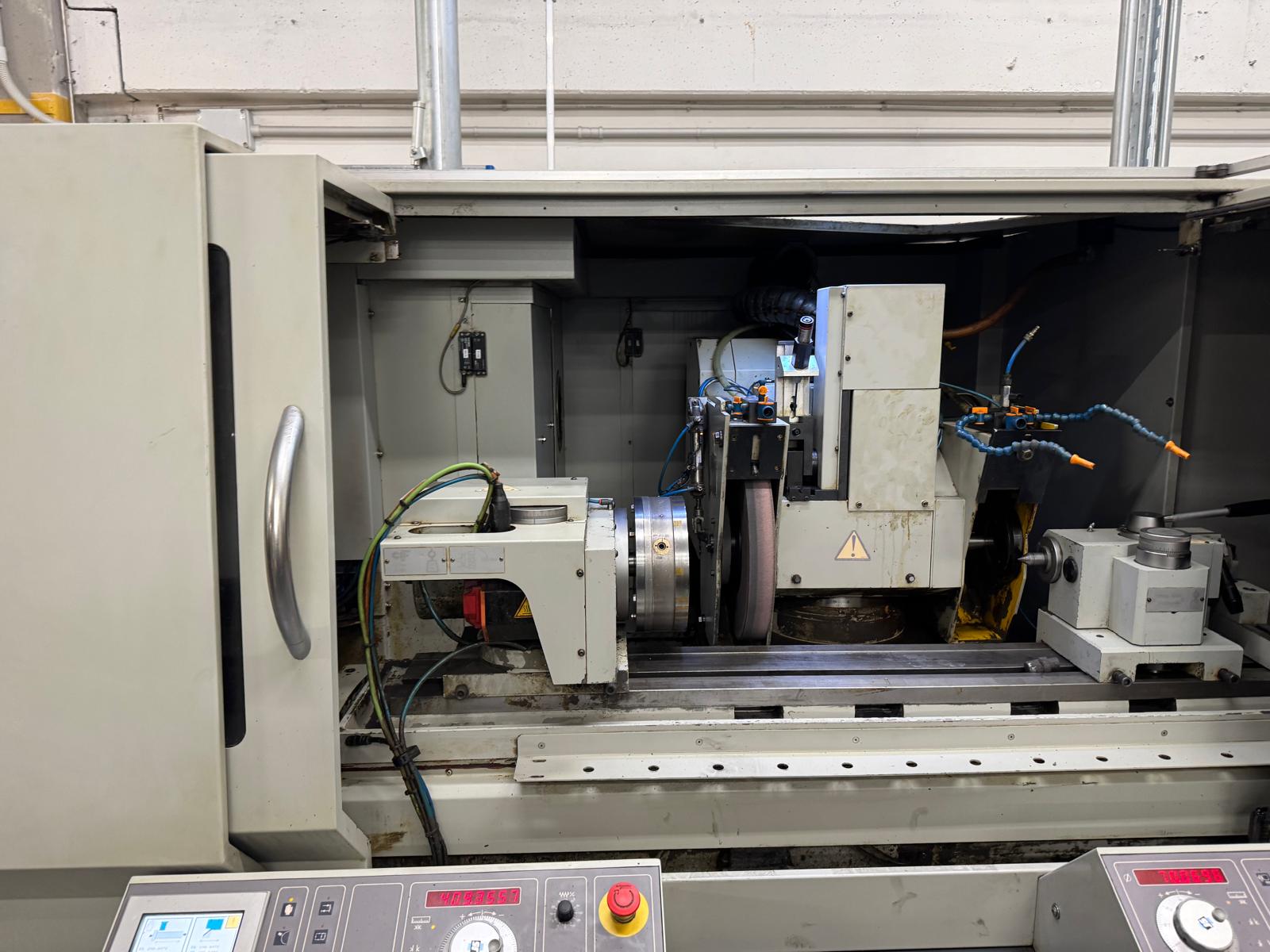

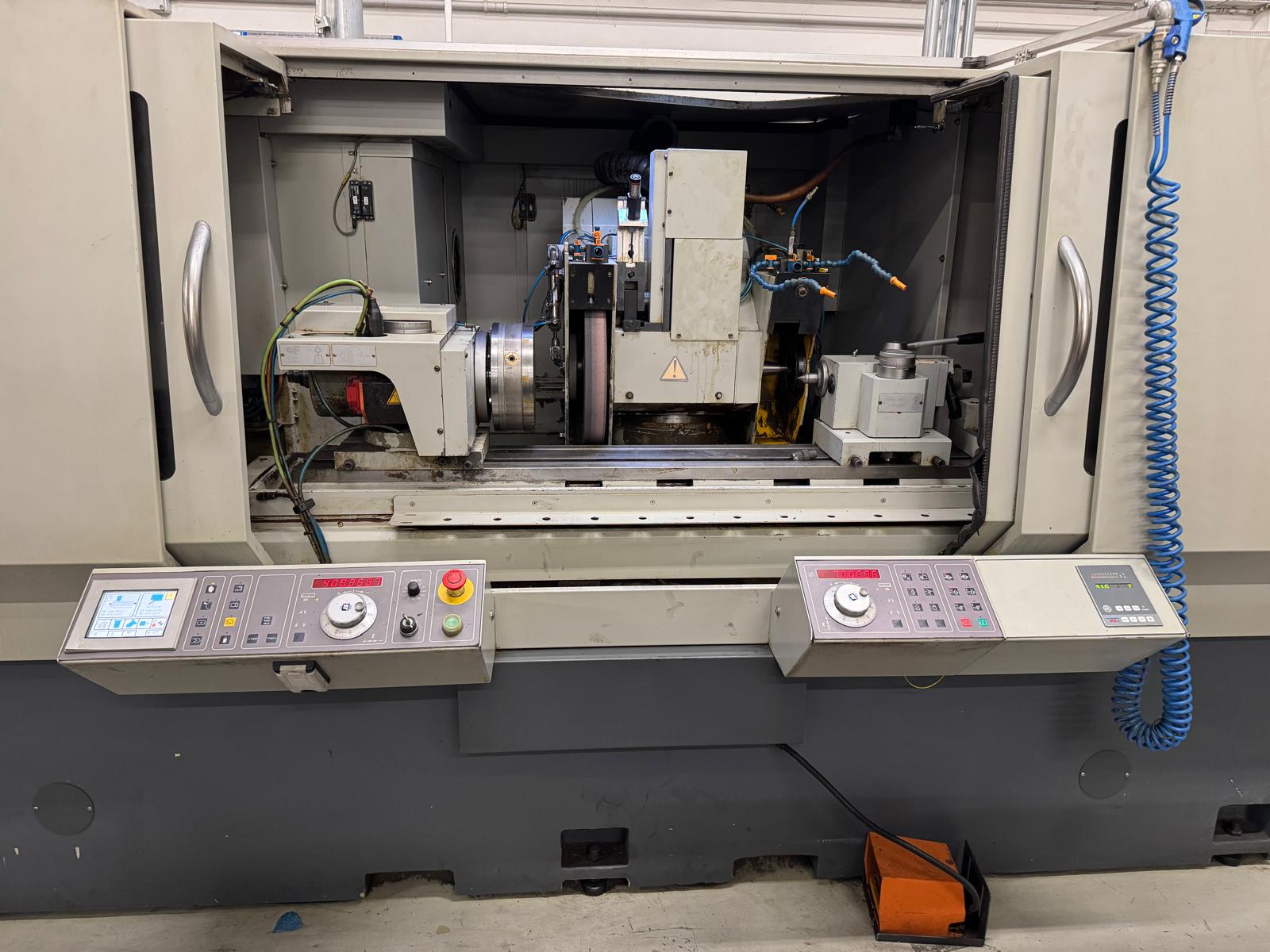

JONES & SHIPMAN
SUPREMA 1000

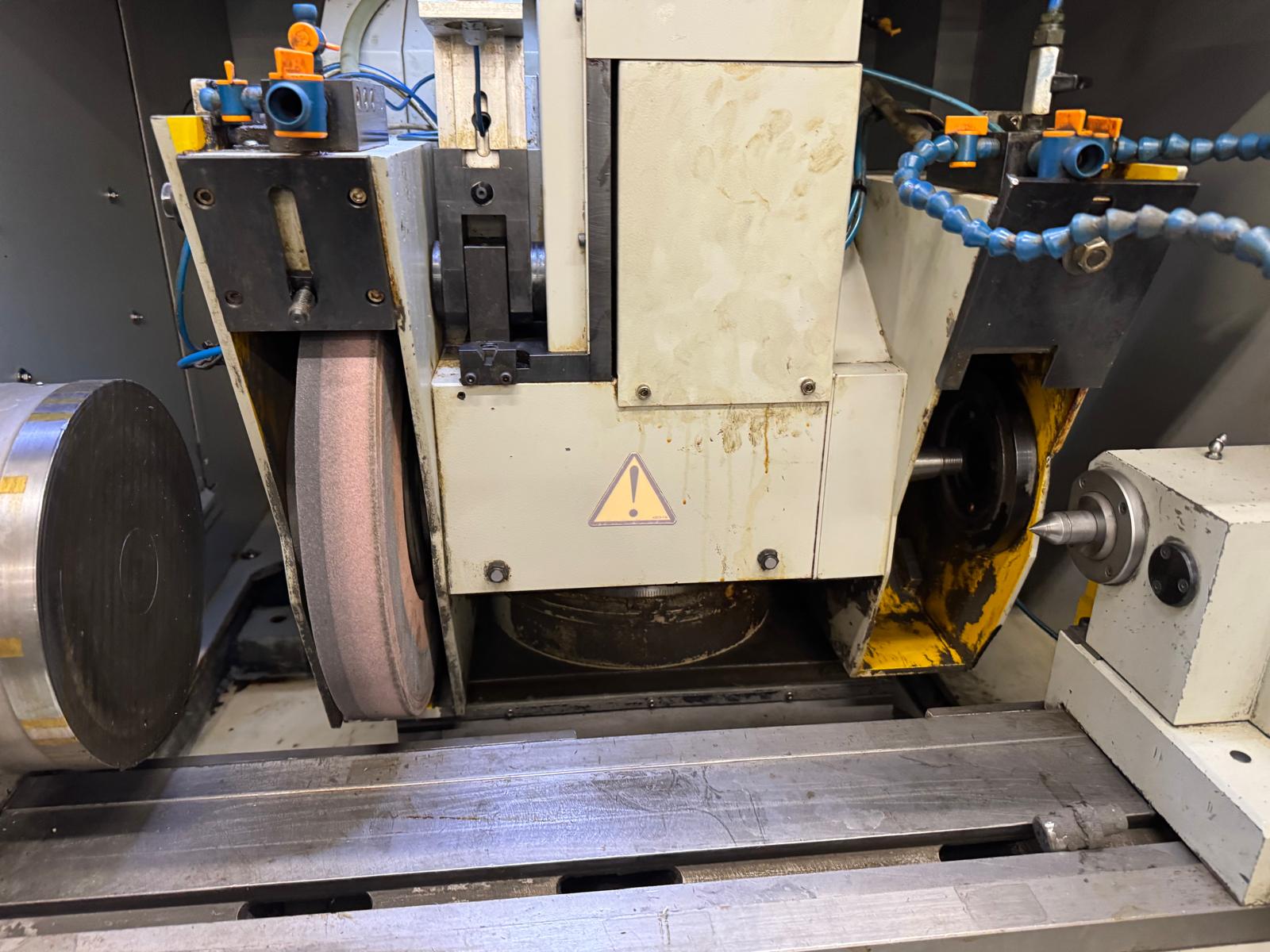

Grinding Wheel Head (X Axis)
Total feed: 260 mm
Maximum speed: 6 m/min
Minimum programmable increment: 0.001 mm

Grinding Wheel Head (E Axis)
Grinding wheel: 457 × 50 × 203.2 mm
Spindle speed: 2174 rpm – 7.5 kW motor

Grinding Wheel Head M
Clockwise / Counter-clockwise rotation limits: 190° / 45°
Total feed: 260 mm
Max. speed: 6 m/min

External Grinding Wheels
Left wheel: 350 × 50 × 127 mm
Right wheel: 300 × 25 × 127 mm

Table – Z Axis
Maximum stroke length: 1150 mm
Maximum grinding length: 1000 mm

Workhead
Variable speed: 1 – 660 rpm
Maximum weight between centers: 100 kg

Tailstock
Taper: MT3
