Home Used Drilling machine CHETO IX2000

CHETO
IX2000

Type: Drilling machine Deep hole drilling

Brand: CHETO

Model: IX2000

Year: 2017

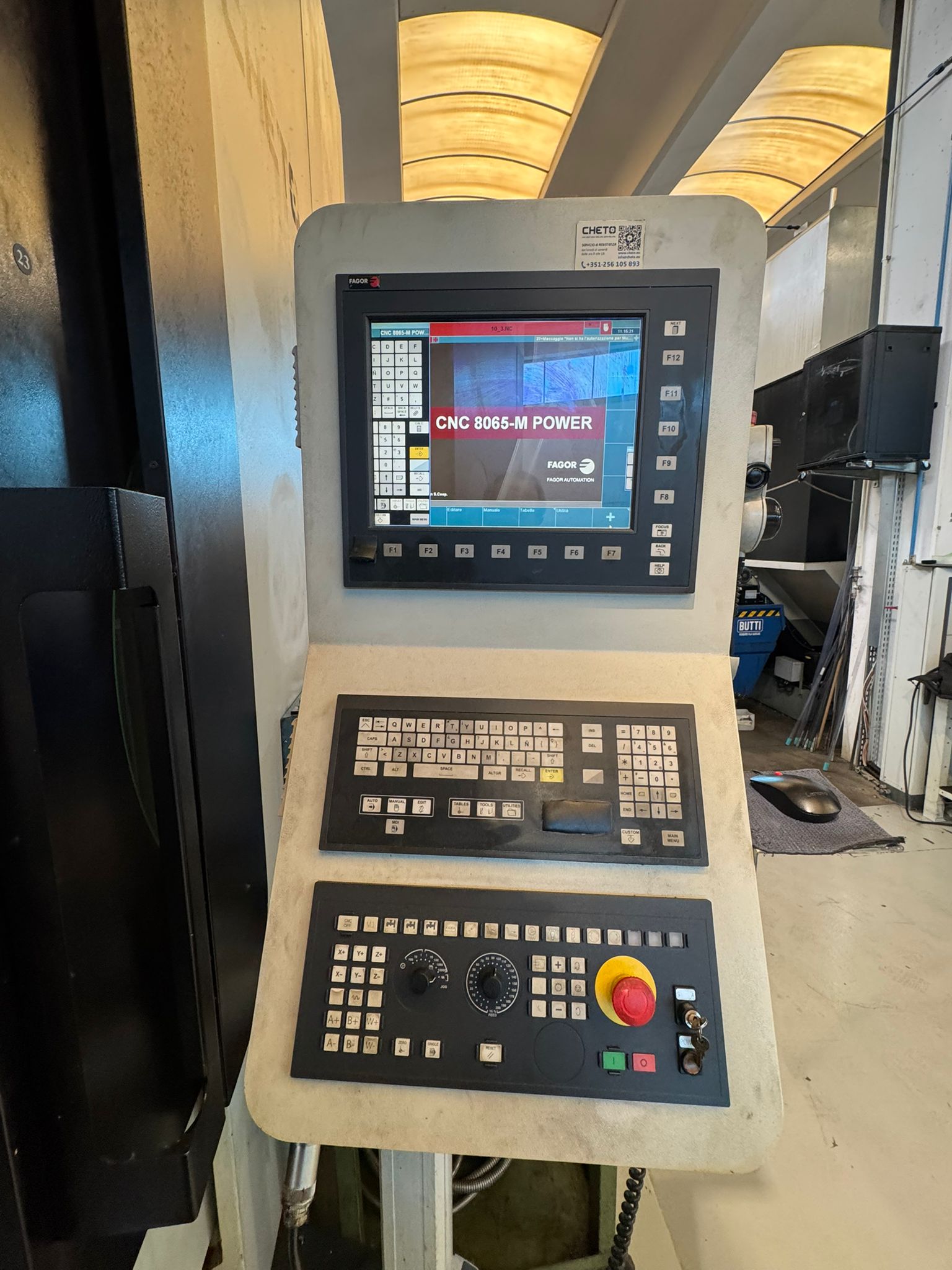

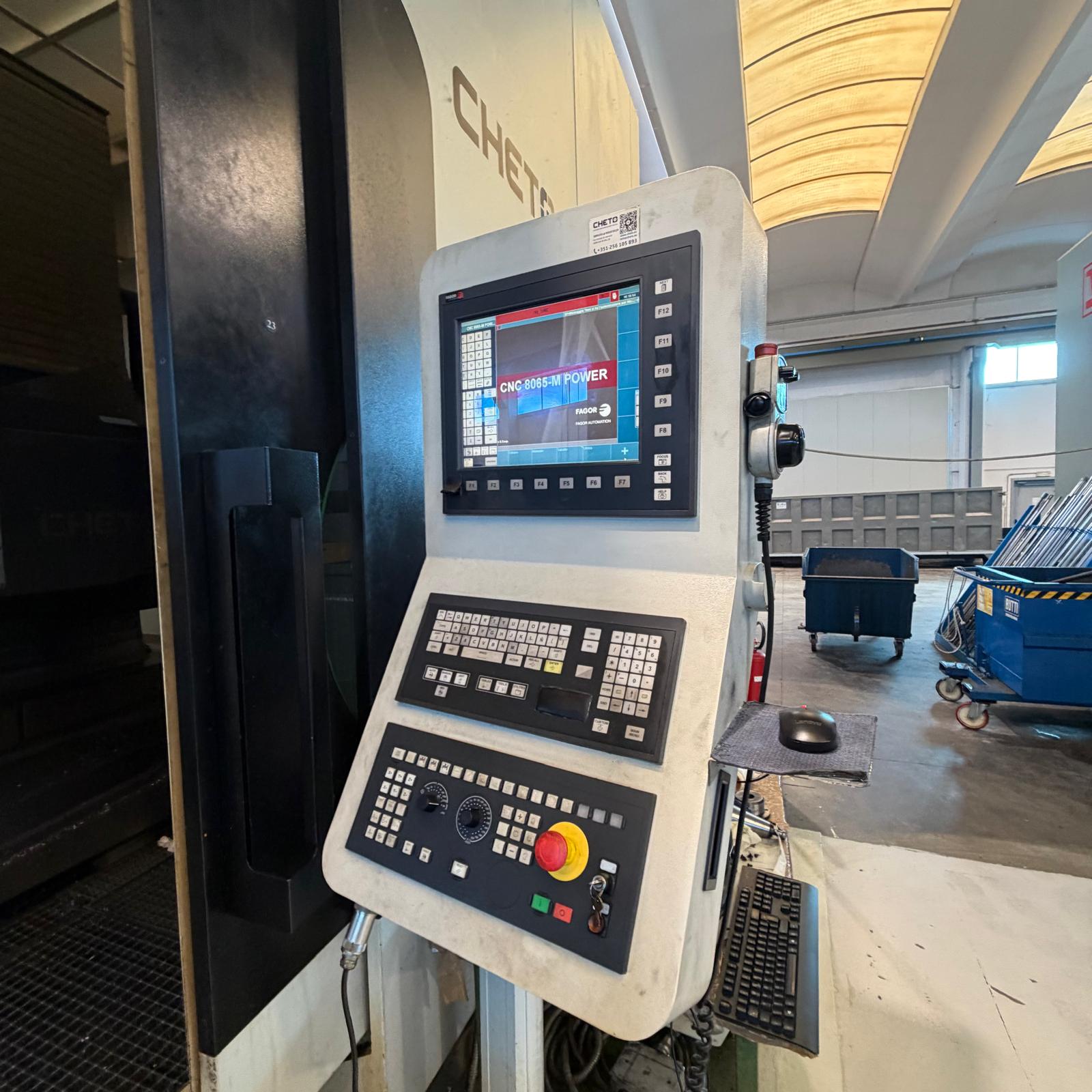

C.N.C: FAGOR 8065

Serial number: 02019E017

Watch the video

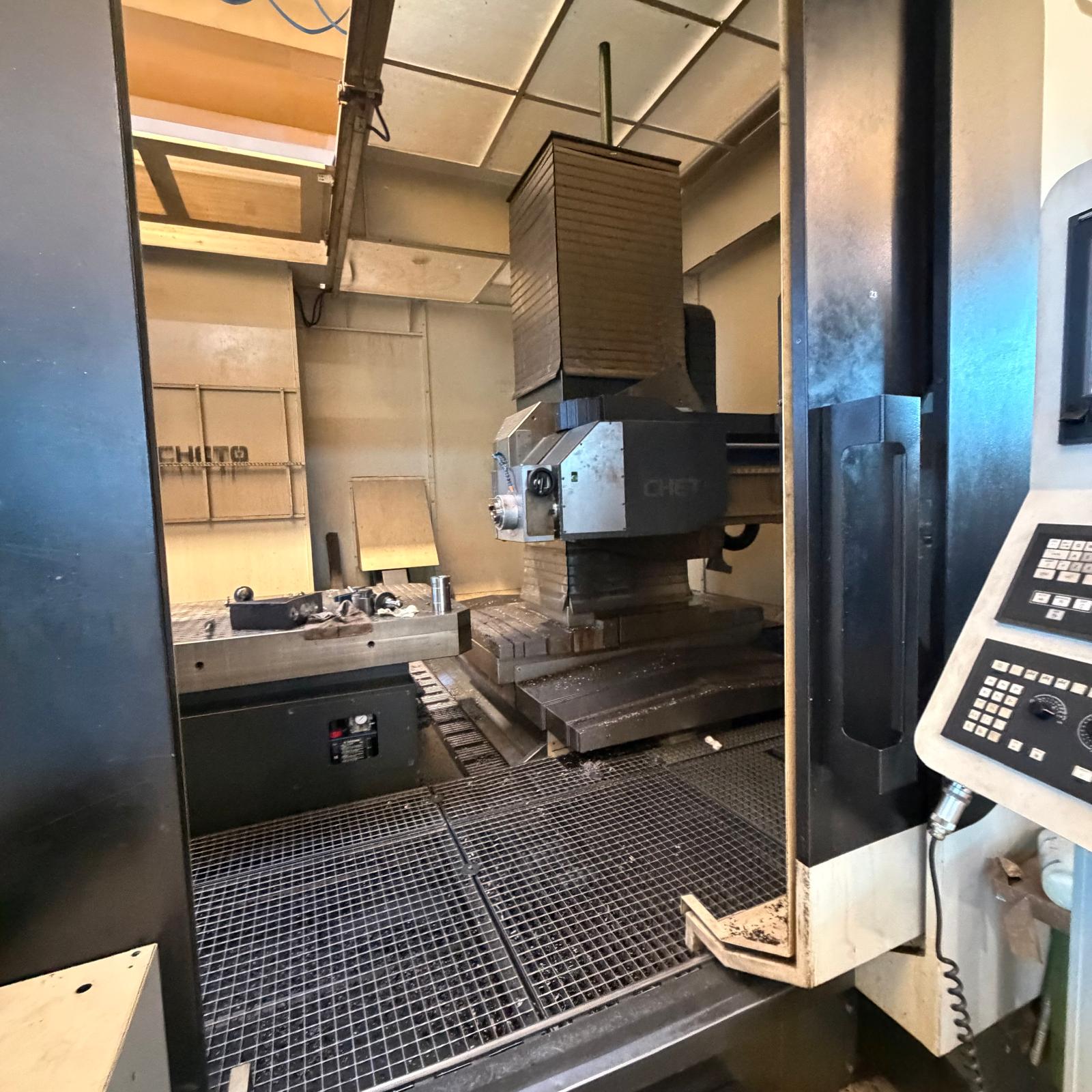

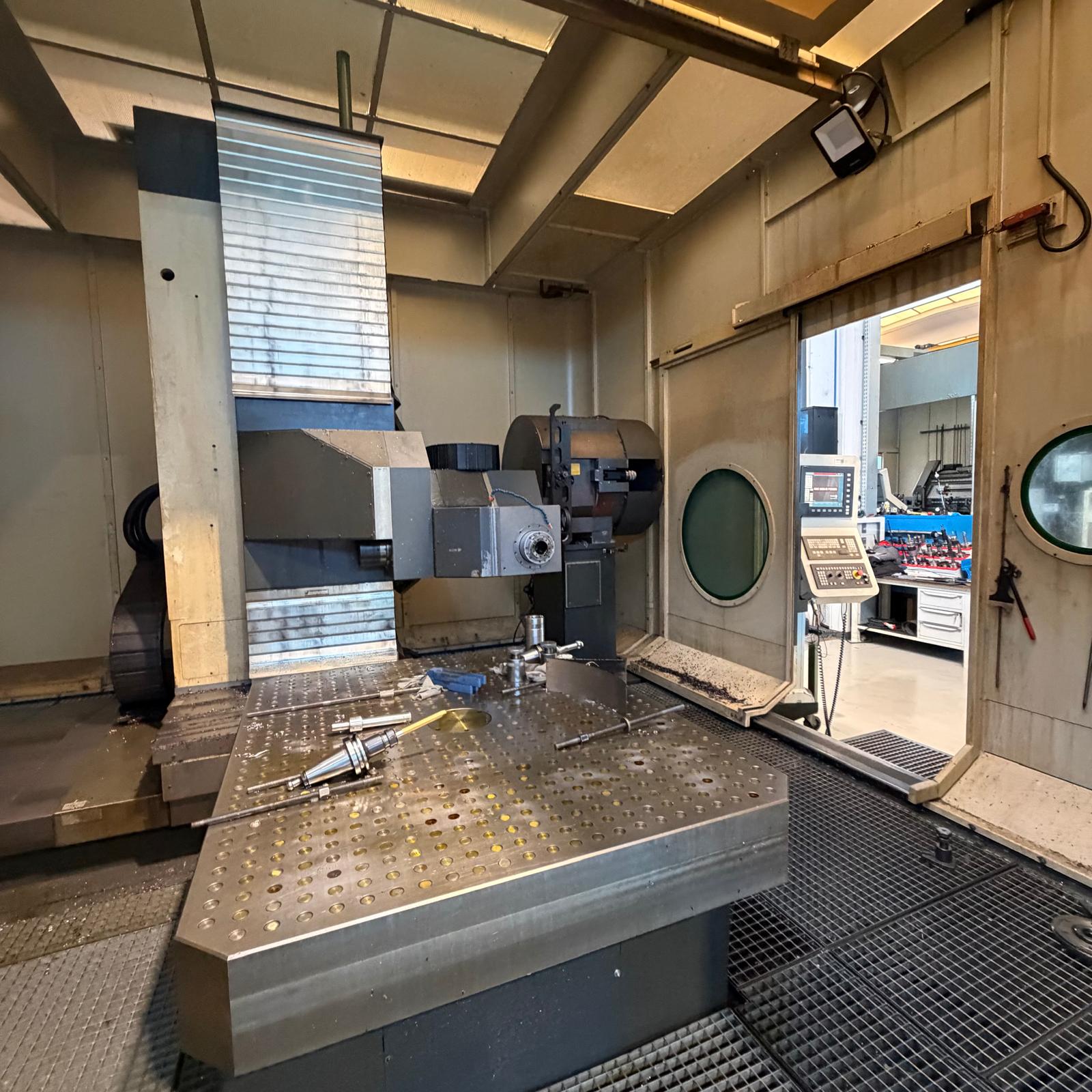

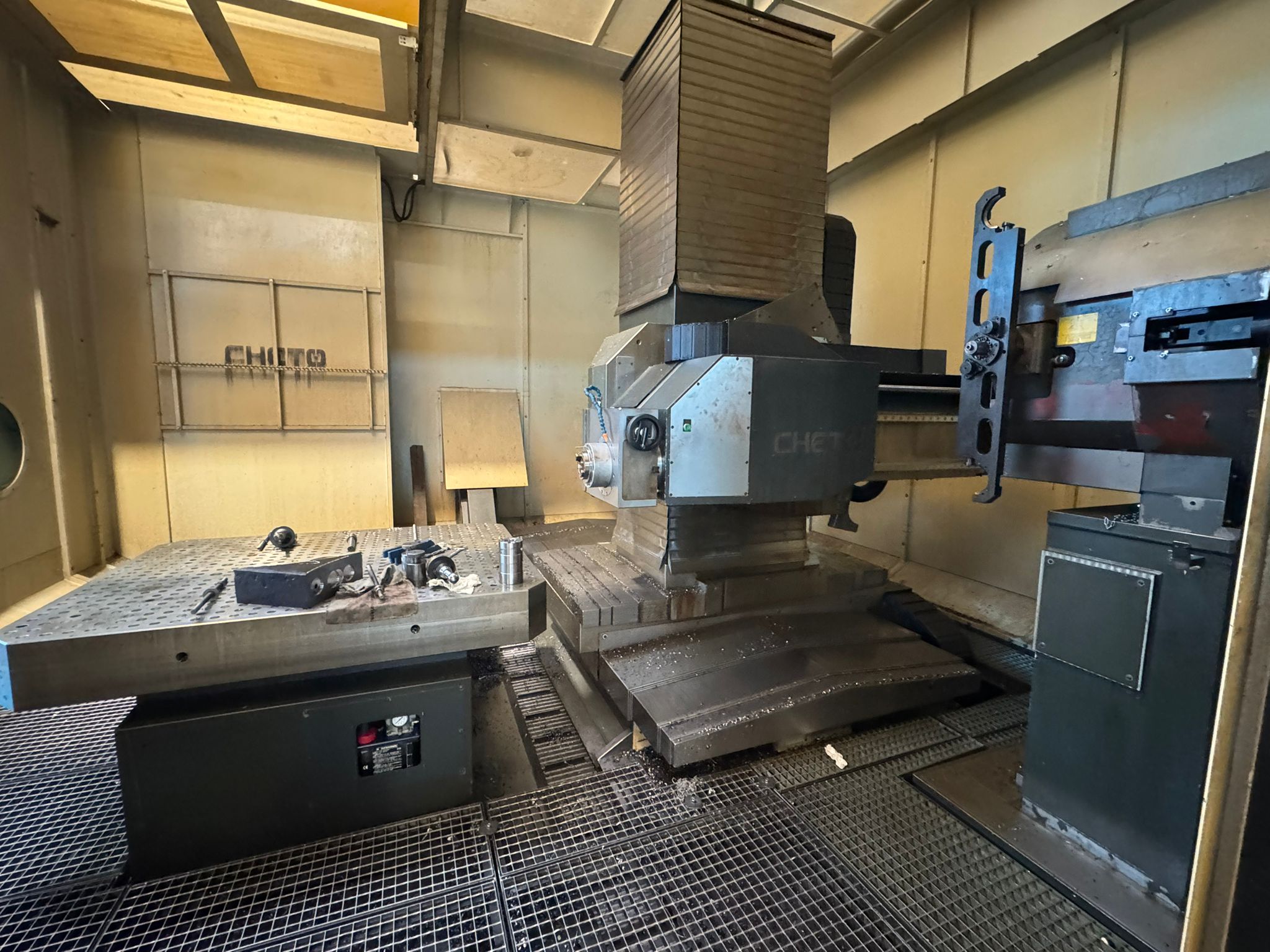

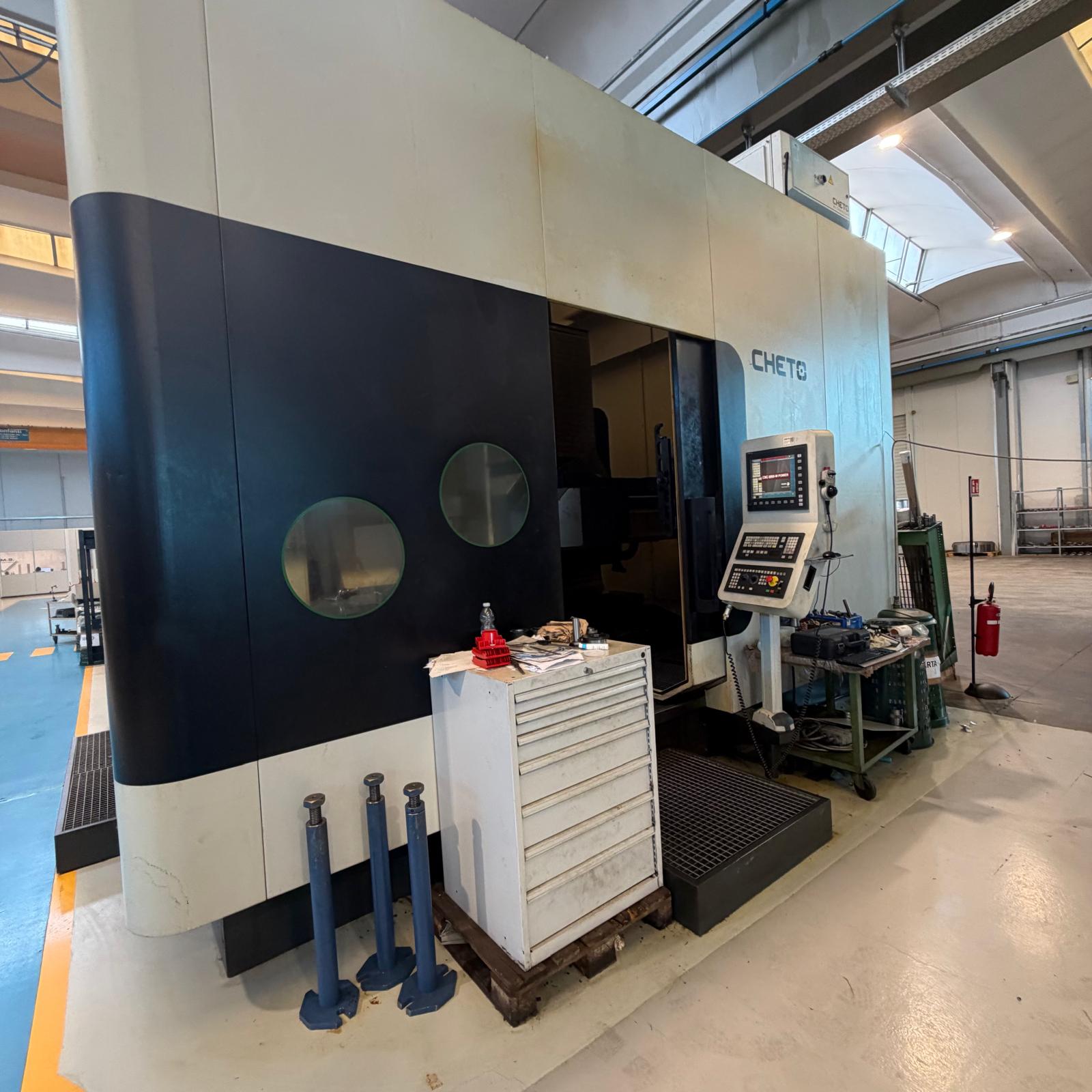

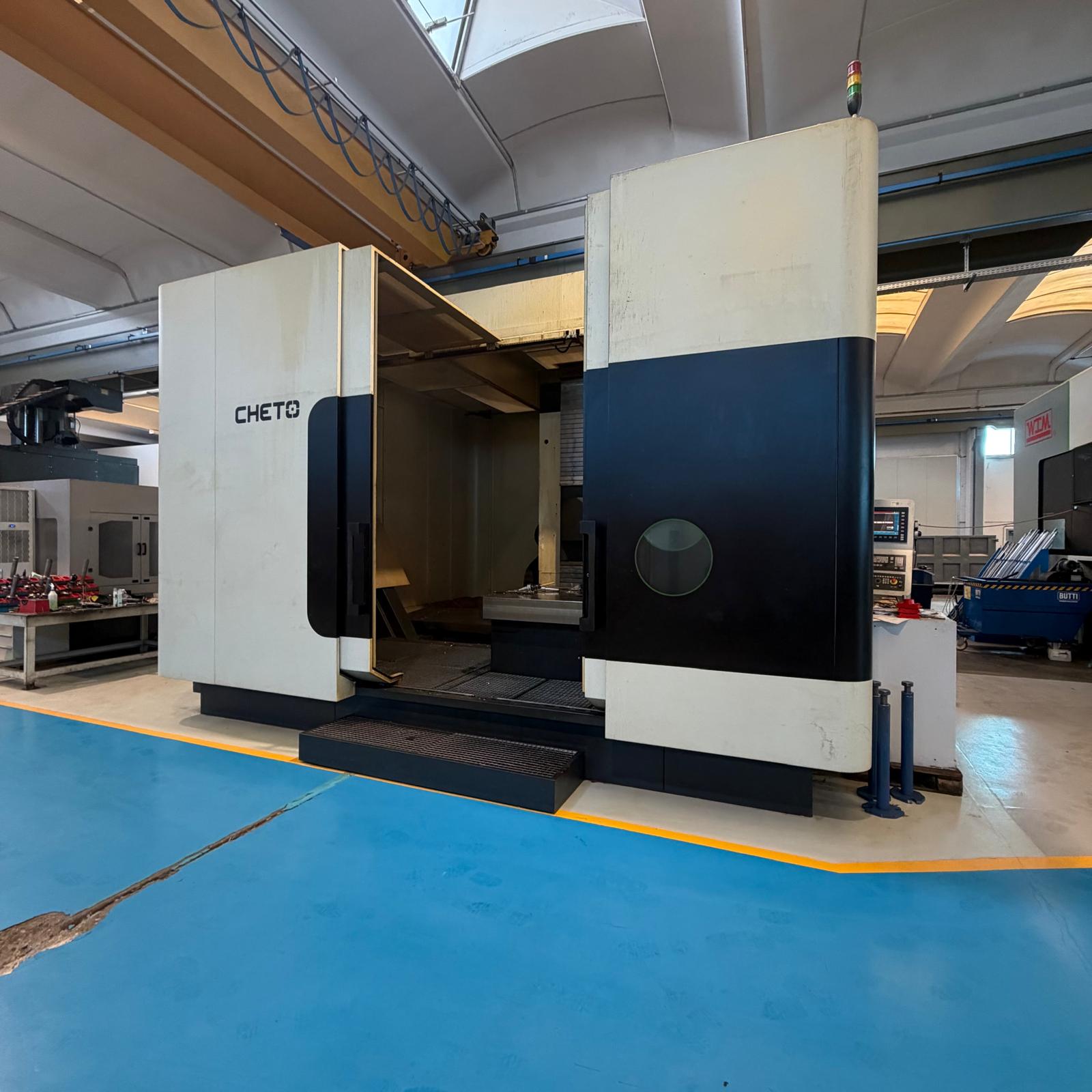

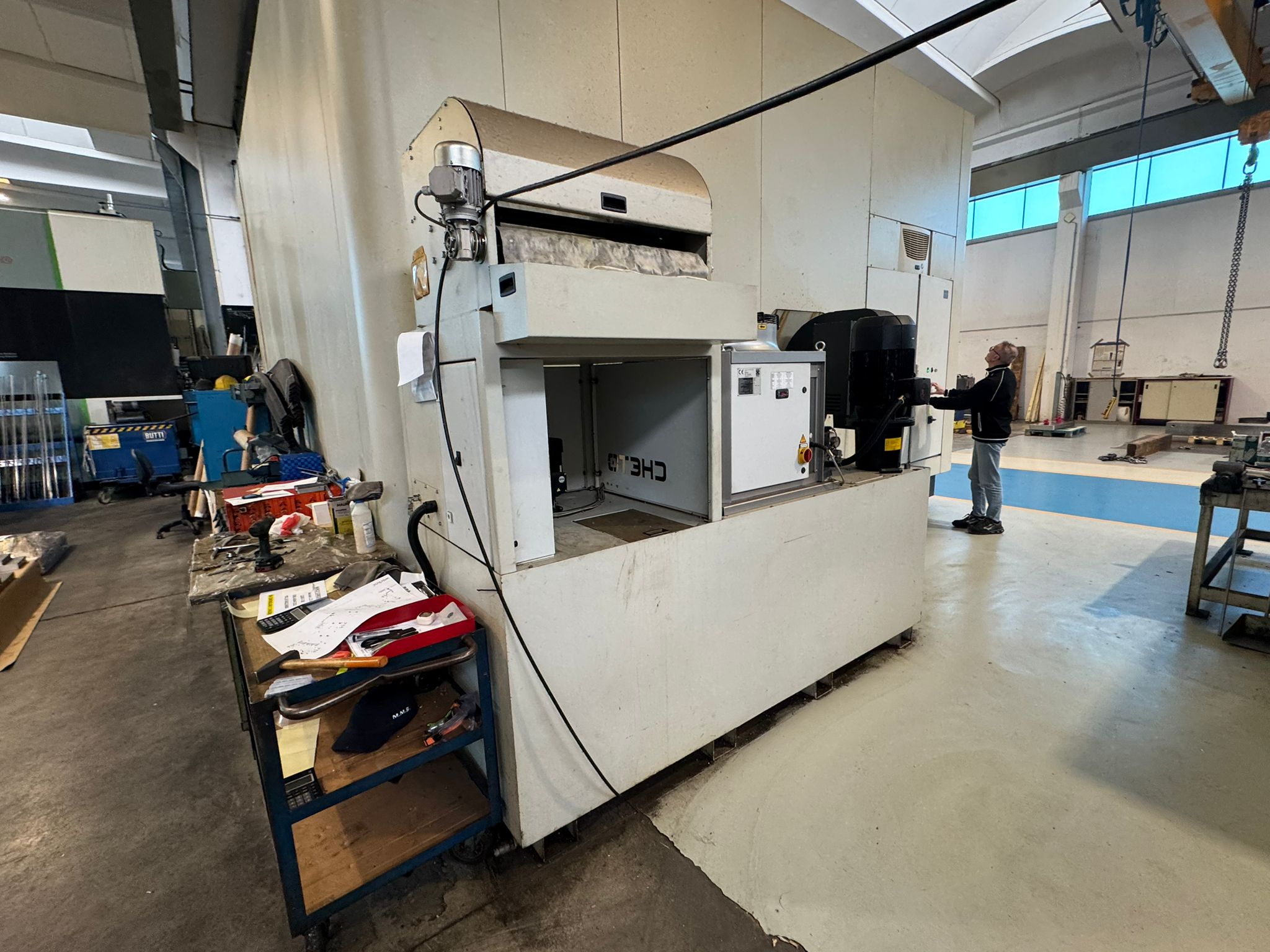

Drilling machine CHETO IX2000

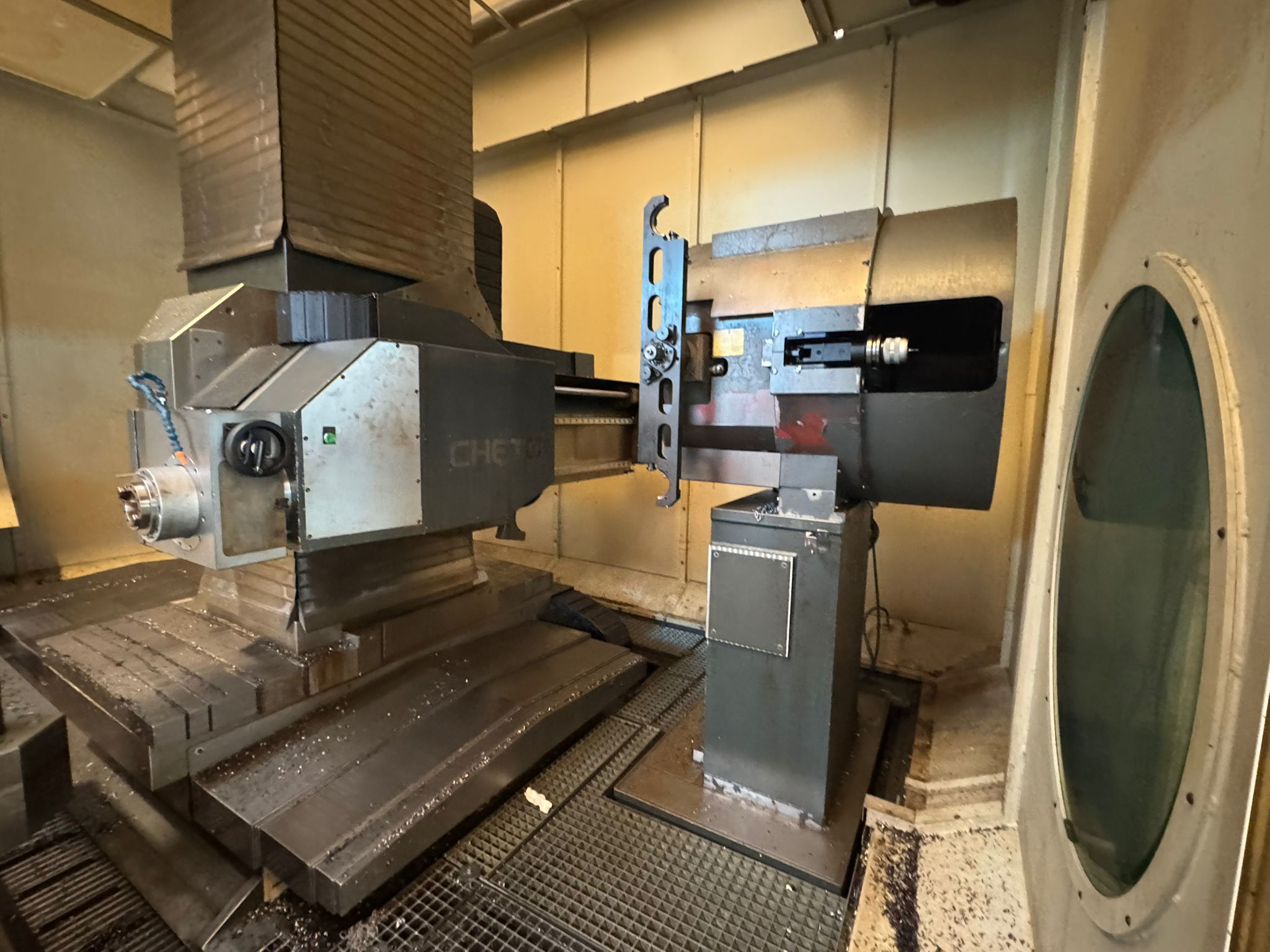

Drilling machine CHETO IX2000
Drilling machine CHETO IX2000
Drilling machine CHETO IX2000
Drilling machine CHETO IX2000
Drilling machine CHETO IX2000
Drilling machine CHETO IX2000
Drilling machine CHETO IX2000
Drilling machine CHETO IX2000
Drilling machine CHETO IX2000
Drilling machine CHETO IX2000
Drilling machine CHETO IX2000
Drilling machine CHETO IX2000
Drilling machine CHETO IX2000

Technical information

Specifications

Deep Hole Drilling, Milling and Tapping Machine, 5 linear axes X, Y, Y1, Z, W
Rotary table axis B, Equipped with 3D CAD simulation, WISE PLUS system, electrical cabinet cooling, and fume extraction system.



Turning capacity

  • Drilling capacity: 40 mm
  • X axis travel table: 2000 mm
  • Ram- Y axis travel: 1500 mm
  • Z axis stroke upright: 700 mm
  • Spindle bore taper: 50-DIN 69871 iso
  • Motor power: 22/33 Kw
  • Table dimension: 1600x1300 mm

Specific properties

Drilling diameter range: Ø 5 – Ø 40 mm
Maximum drilling depth: 2250 mm
Milling capacity with cutting tools up to: Ø 60 mm
Drilling axis inclination: W -15° / +25°
Milling capacity: 400 cm³/min

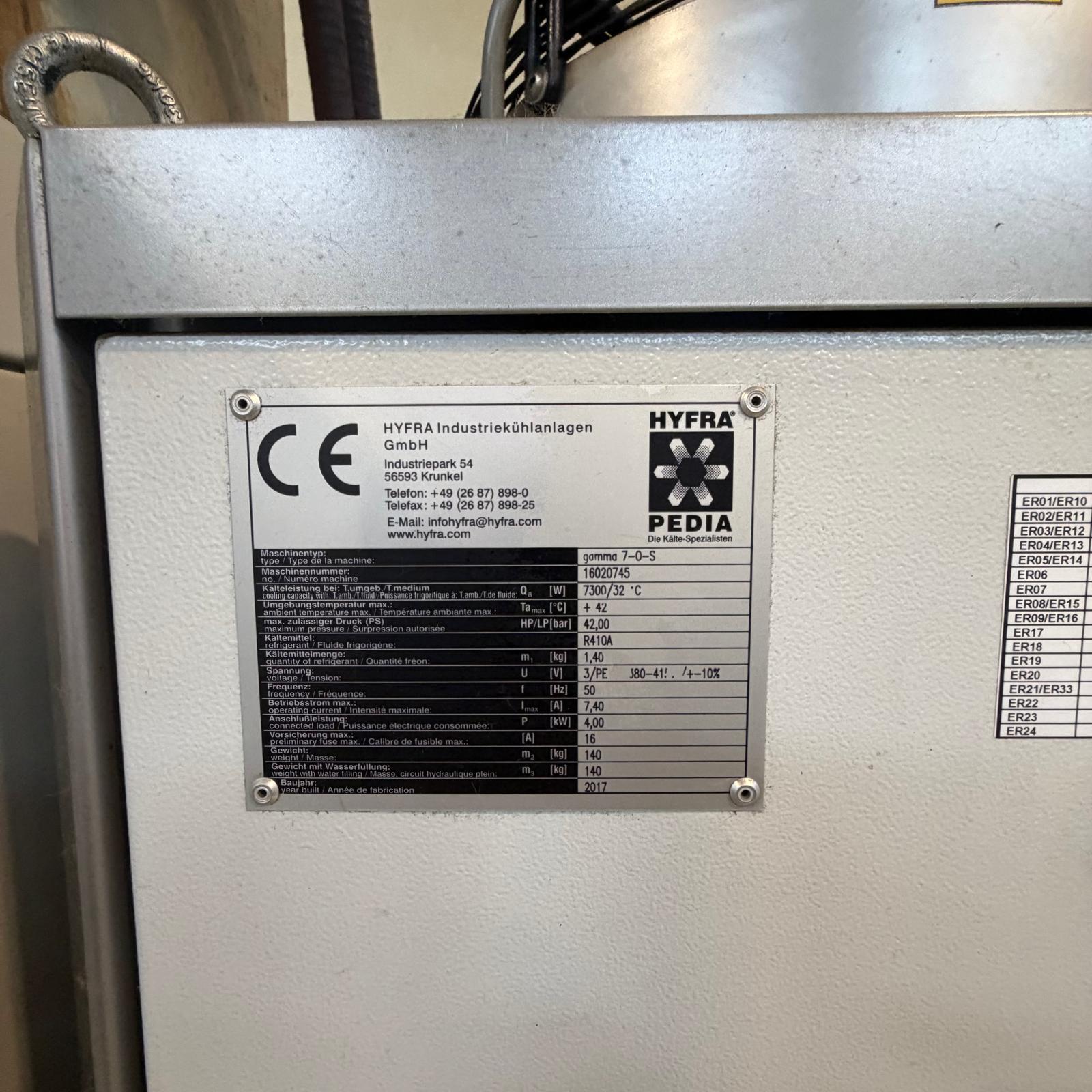

Filtration and cooling system tank capacity: 2000 L
Maximum pressure: 80 bar

Direct gun drilling with guide bushings: up to Ø 20 mm

Rotary table load capacity: 20,000 kg
Positioning: 360,000 positions

9 T-slots 18 H12 P=140
Positioning accuracy: ± 0.2 sec

Linear Axes
X: 2000 mm
Y: 1500 mm
Z: 700 mm
W: 1630 mm

Drilling capacity : Ø 40 mm

X,Y,Z axis travel : 2000x1500x700

Ram Tilting angle :
