MORARA
EMATIC 1500 E44

Capacity between centers: 1525 mm

Center height: 255 mm

Maximum grinding length between centers: 1500 mm

Maximum internal grinding length: 200 mm

Maximum swing diameter: 505 mm

Maximum internal grinding diameter: 200 mm

Maximum workpiece weight between centers: 600 kg

Maximum overhung load on workhead spindle: 220 kg

Grinding wheel dimensions: 508 × 127 × 100 mm

Grinding wheel peripheral speed: 45 m/s

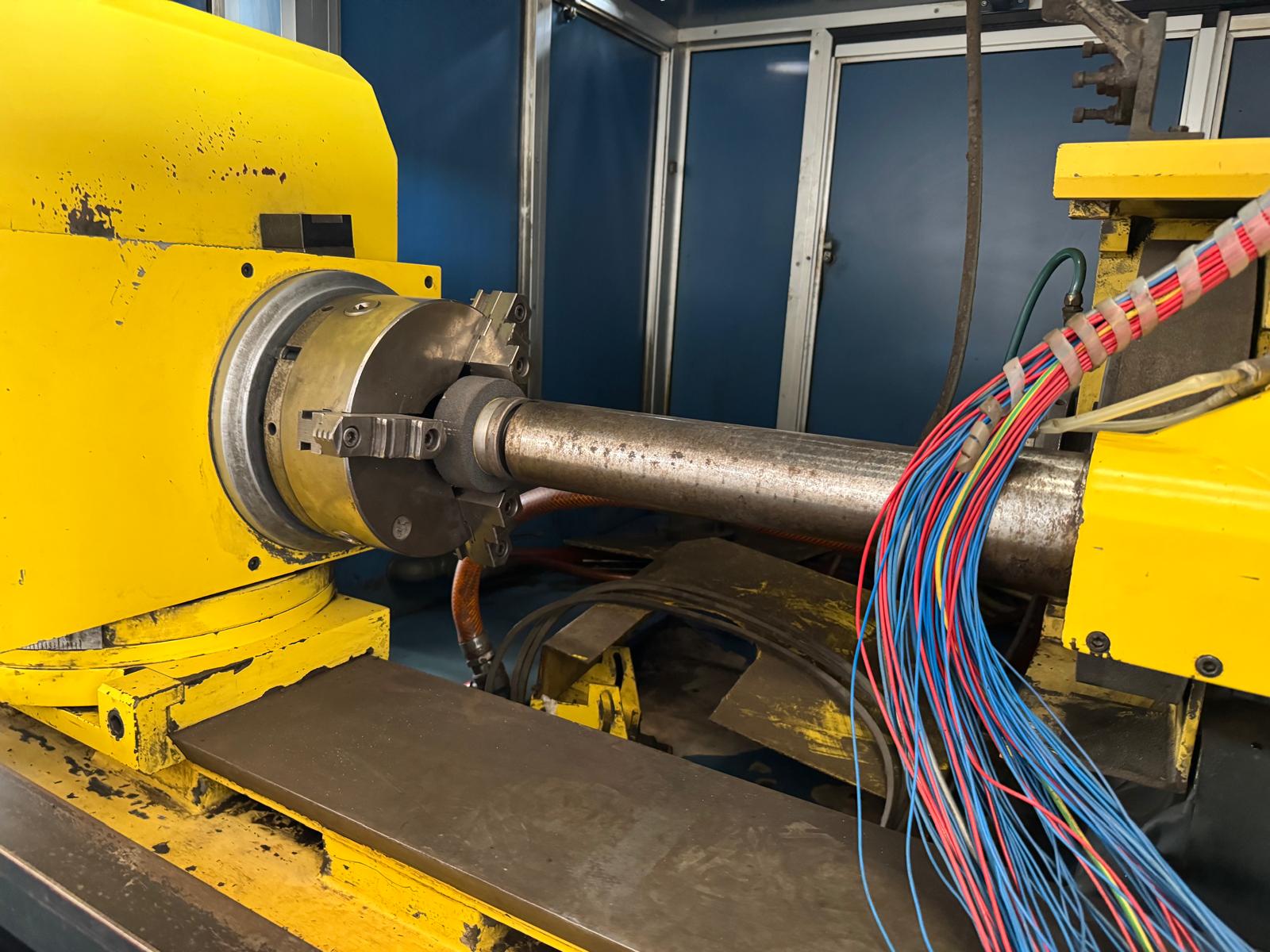

Manual chuck, diameter: 250 mm

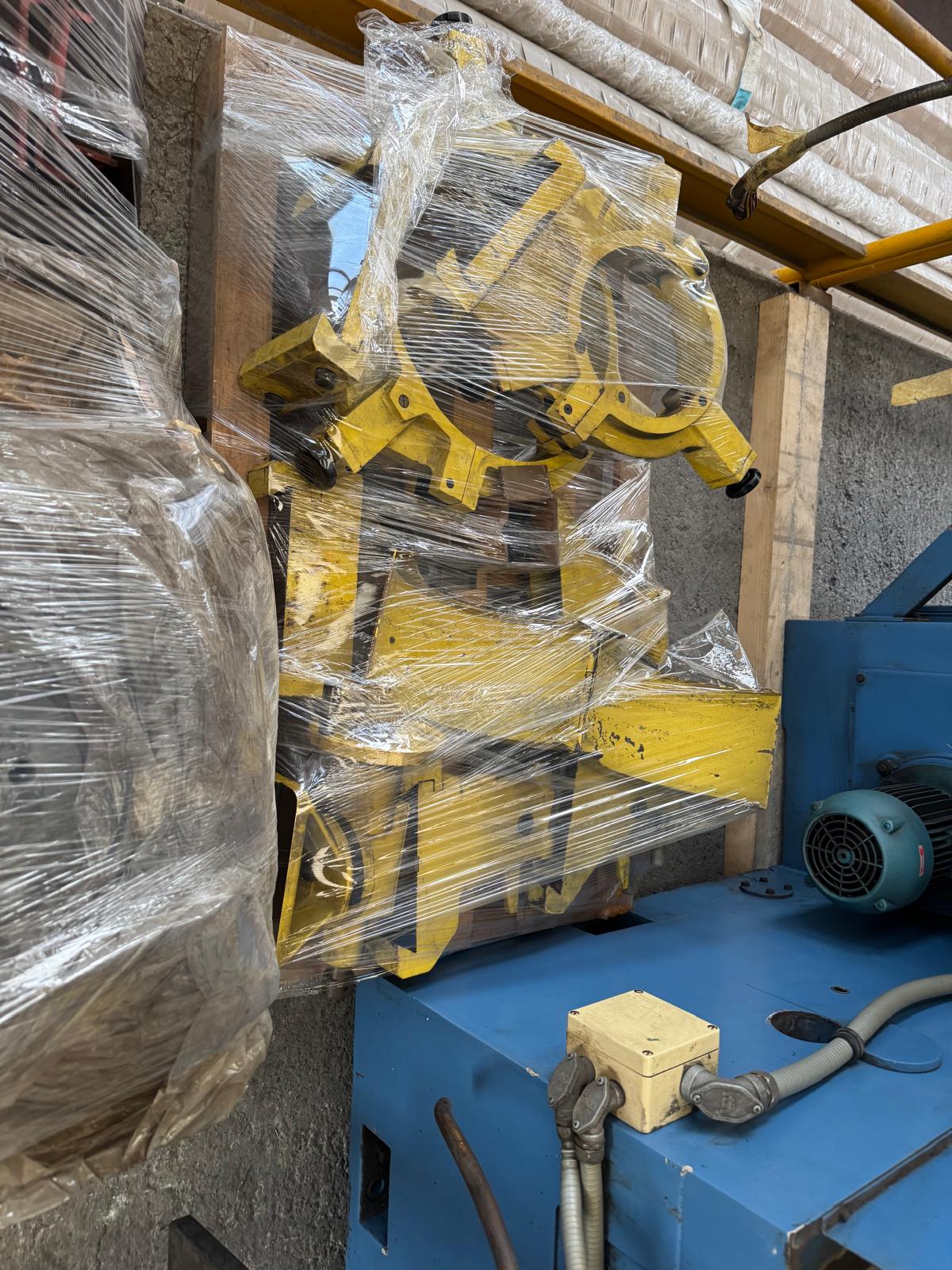

Closed steady rest for diameters: 50–230 mm

Closed steady rest for diameters: 230–400 mm

Open steady rest for diameters: 15–90 mm

Magnetic and paper filter separator complete with pump and tank

Hydraulic-operated tailstock
