KITAMURA
HX 630i

Sold

Type: Horizontal machining center Pallet changer

Brand: KITAMURA

Model: HX 630i

Year: 2004

C.N.C: FANUC 16IM

Serial number: 45124

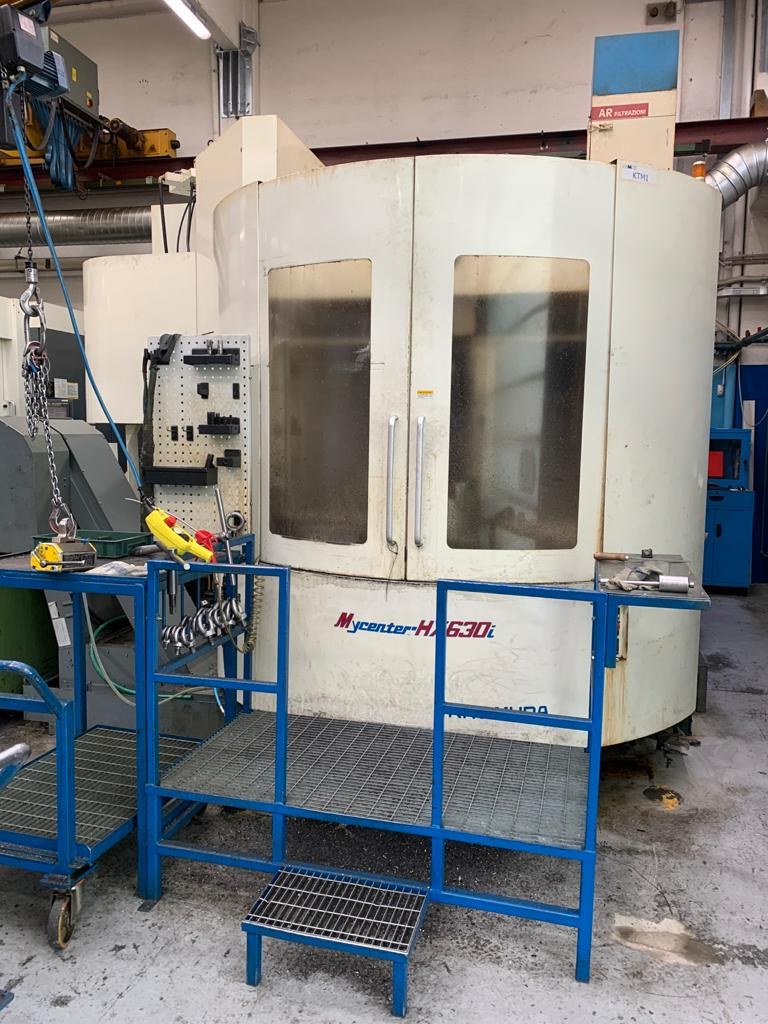

Horizontal machining center KITAMURA HX 630i

Technical information

Specifications

Macchina completa di magazzino a 150 posti.

Table

Pallet dimensions: 630x630 mm
No. pallets: 2 nr.
Table rotation: 0,001-360 gradi

Turning capacity

Longitudinal X-travel: 1000 mm
Vertical y-travel: 800 mm
Cross z-travel: 820 mm
Rapid feedrates: 50 mt./min.

Spindle

Spindle nose: 50 ISO
Spindle speed: 35-12.000 giri/min.
Motor power: AC26 Kw

Tool magazine

Tools holder: 150 nr.

Pallet mm. : 630x630

X,Y,Z travels mm. : 1000x800x820

Rpm : 35-12000

Motor power Kw : AC 26

ISO : 50

Tools : 150
