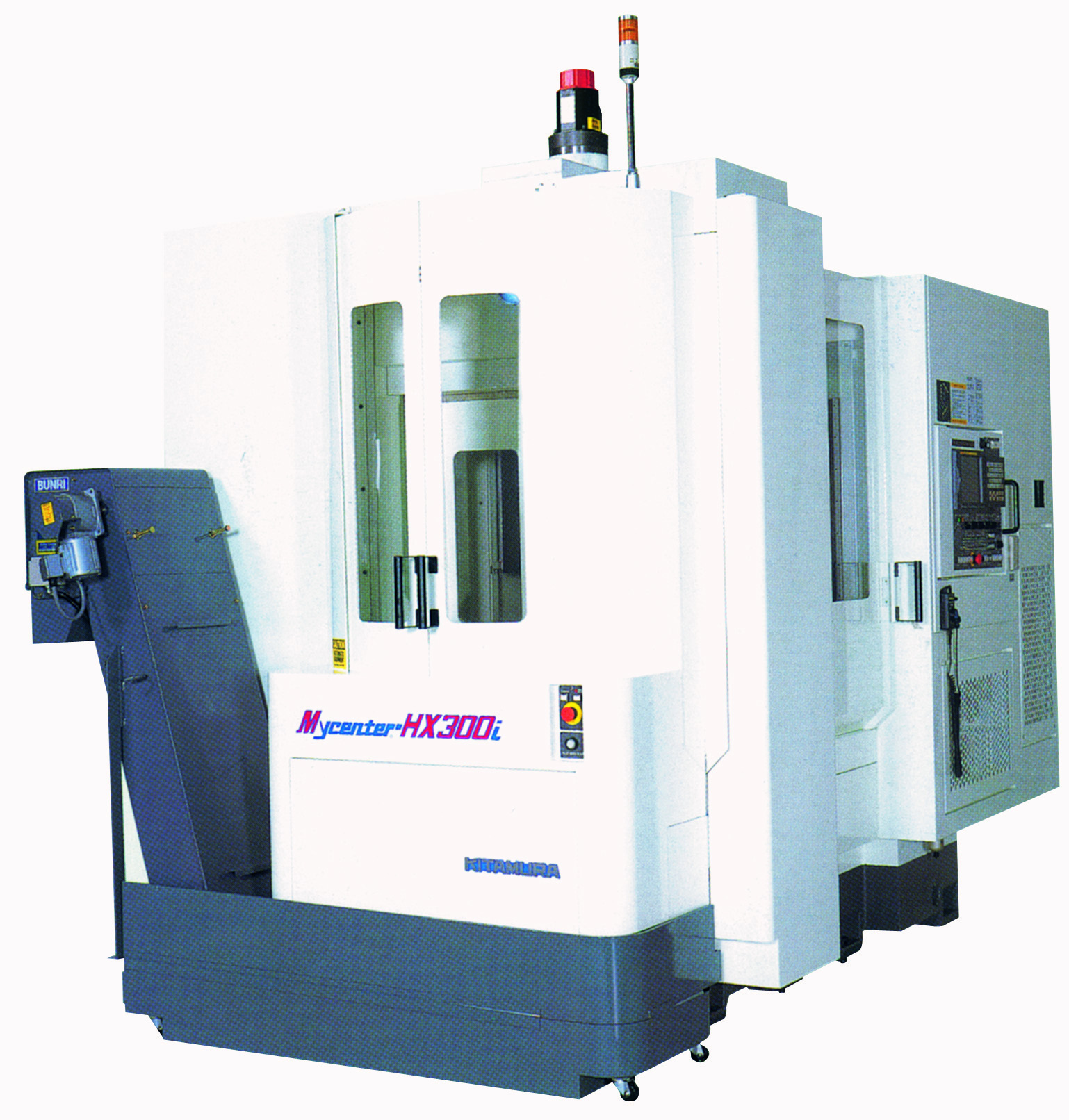

KITAMURA
HX300i
Type: Horizontal machining center Pallet changer
Brand: KITAMURA
Model: HX300i
C.N.C: FANUC 16iM
Serial number: 49754
Technical information
Specifications
Retrofitted as new.
With high pressure equipment 50 bars.
Optional accessories:
Hydraulic unit 210 bar, hydraulic controls, Tool magazine with expansion till 140 tools.
Table
- Pallet dimensions: 305x305 mm
- No. pallets: 2 nr.
- Table rotation: 0.001 gradi
Turning capacity
- Longitudinal X-travel: 510 mm
- Vertical y-travel: 510 mm
- Cross z-travel: 400 mm
- Rapid feedrates: 50 mt./min.
Spindle
- Spindle nose: 40 ISO
- Spindle speed: 15000 giri/min.
- Motor power: 11-7,5 Kw
Tool magazine
- Tools holder: 140 nr.
Pallet mm. : 305x305
X,Y,Z travels mm. : 510x510x400
Rpm : 15000
Motor power Kw : 11/7,5
ISO : 40
Tools : 140
