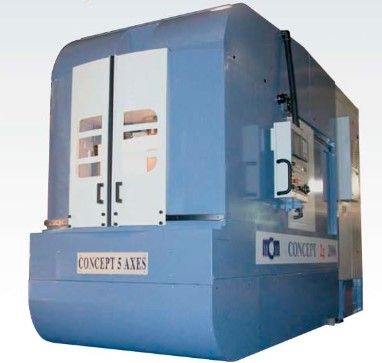

MCM
CONCEPT
Sold

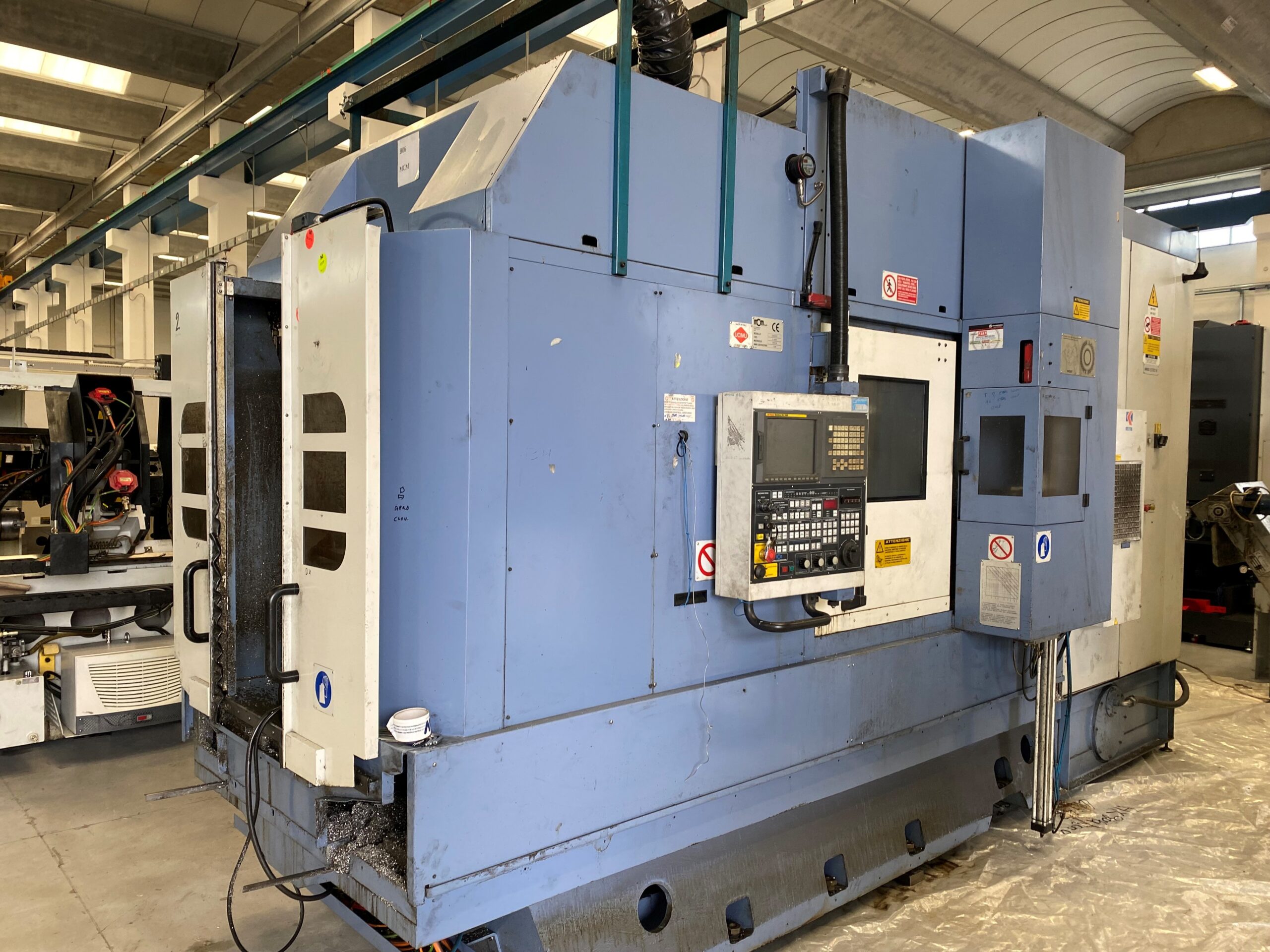

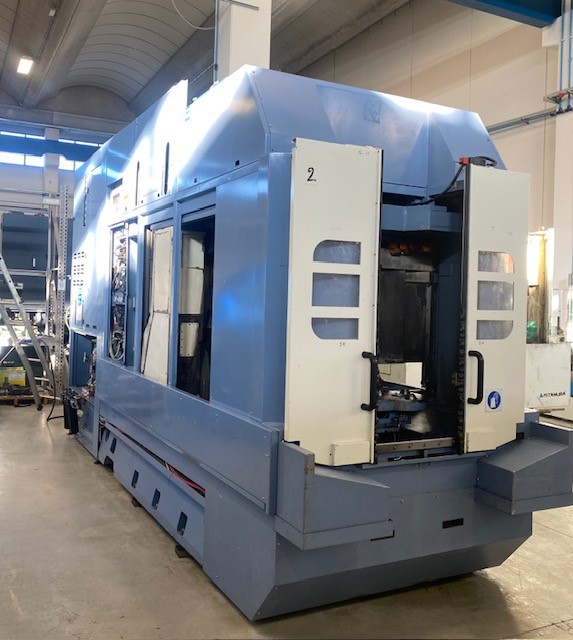

Type: Horizontal machining center 5- Axis machining center
Brand: MCM
Model: CONCEPT
Year: 2008

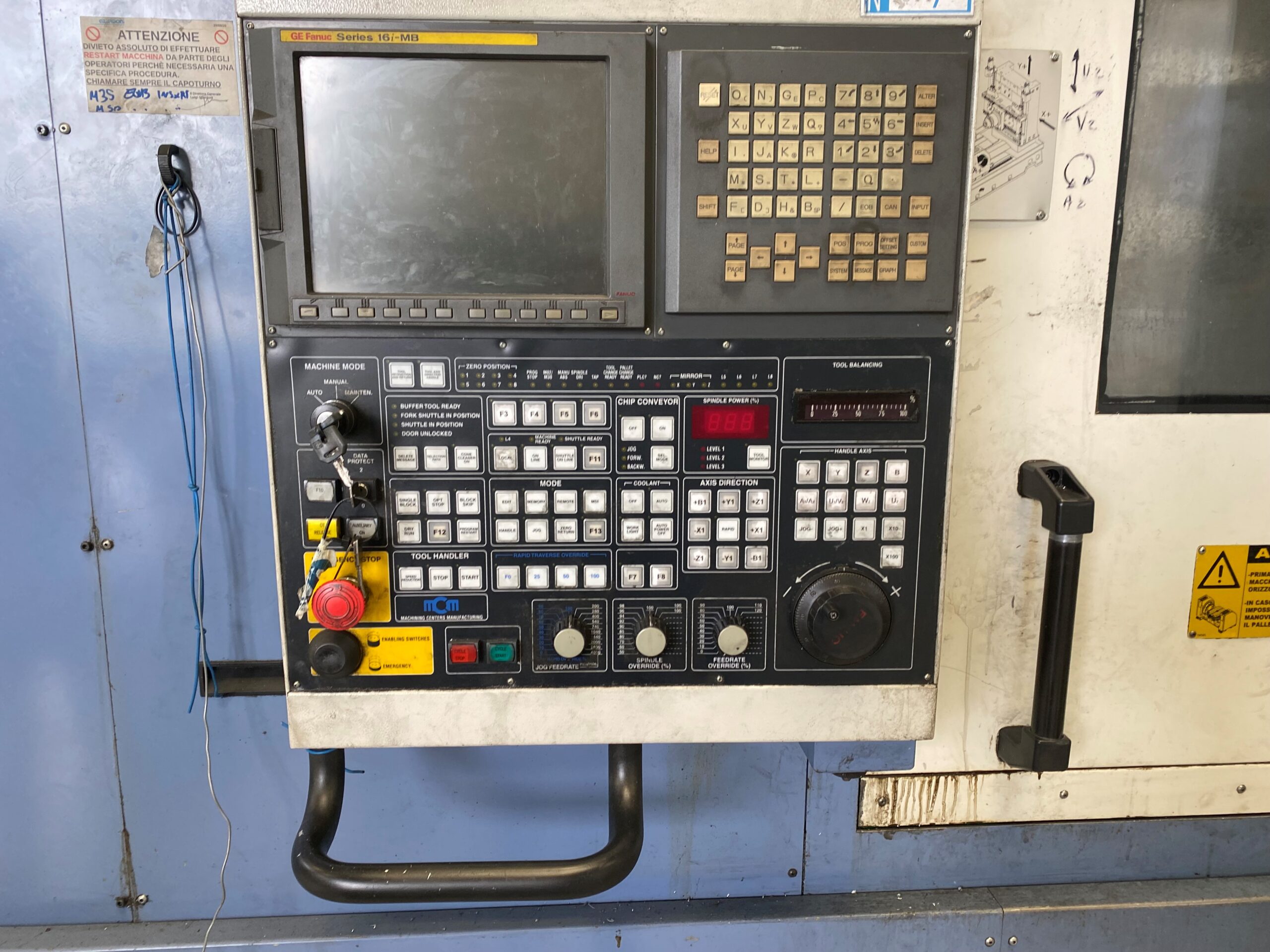

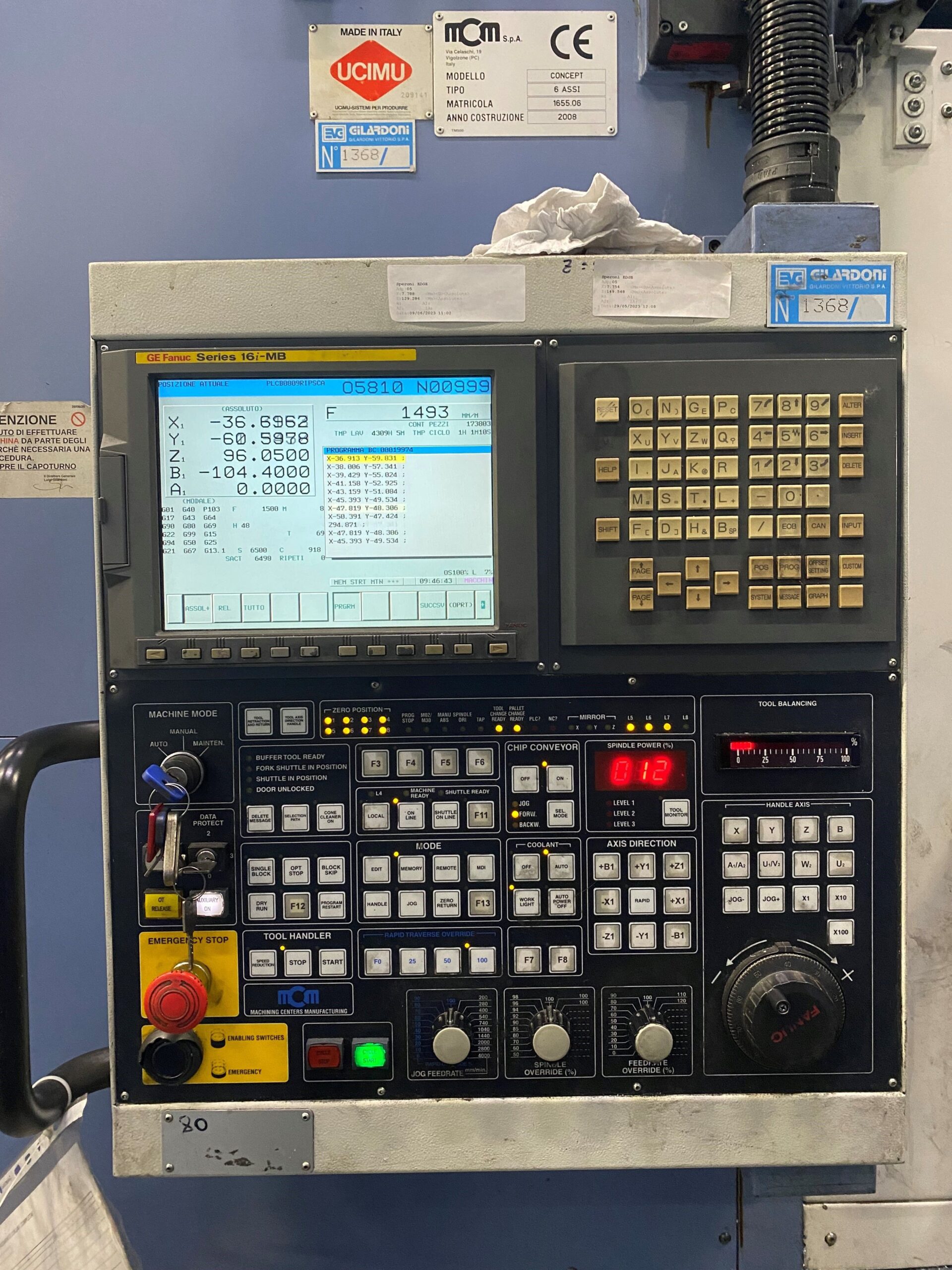

C.N.C: Fanuc 16iMB
Serial number: 1757.08
Technical information
Specifications

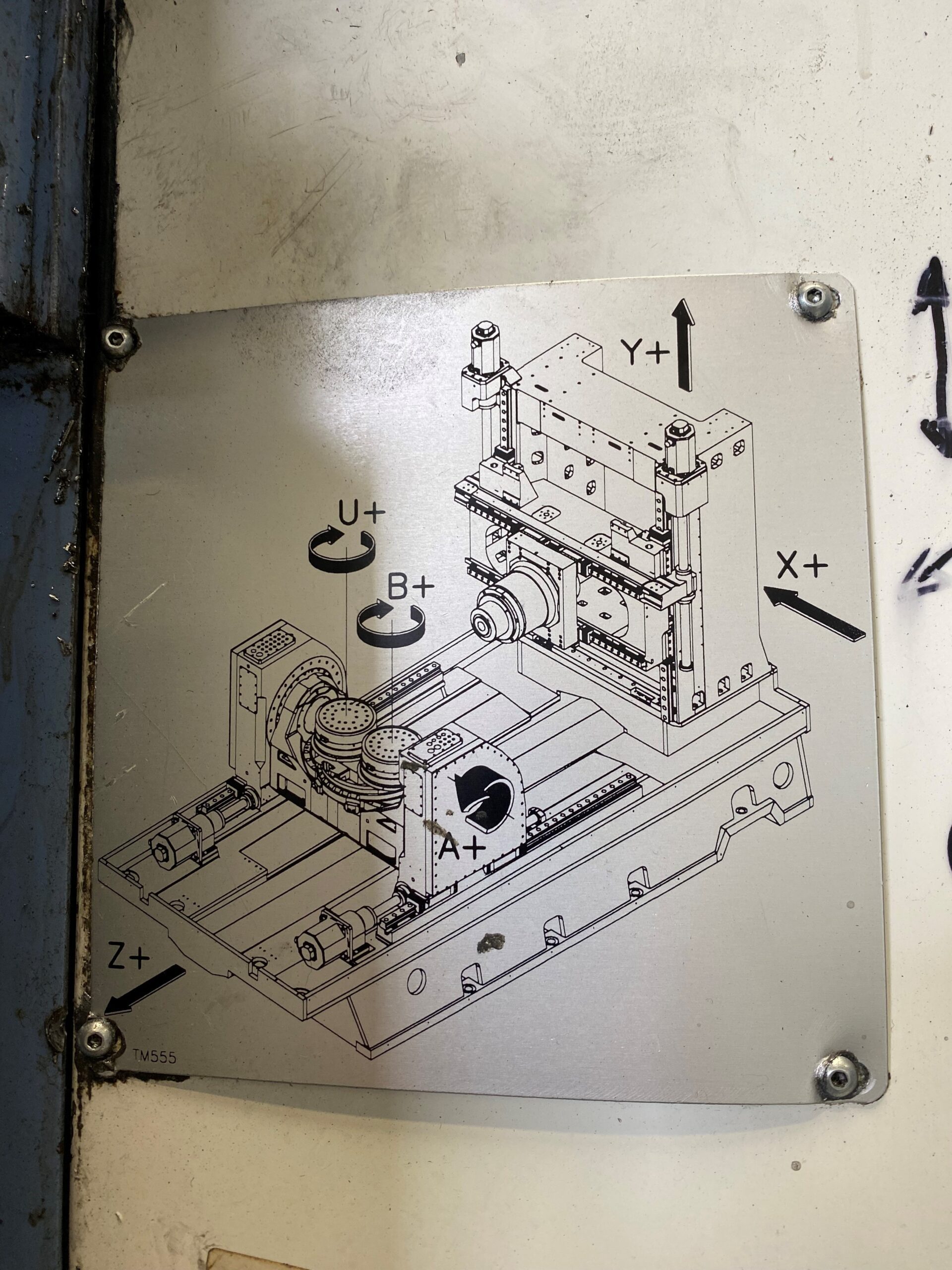

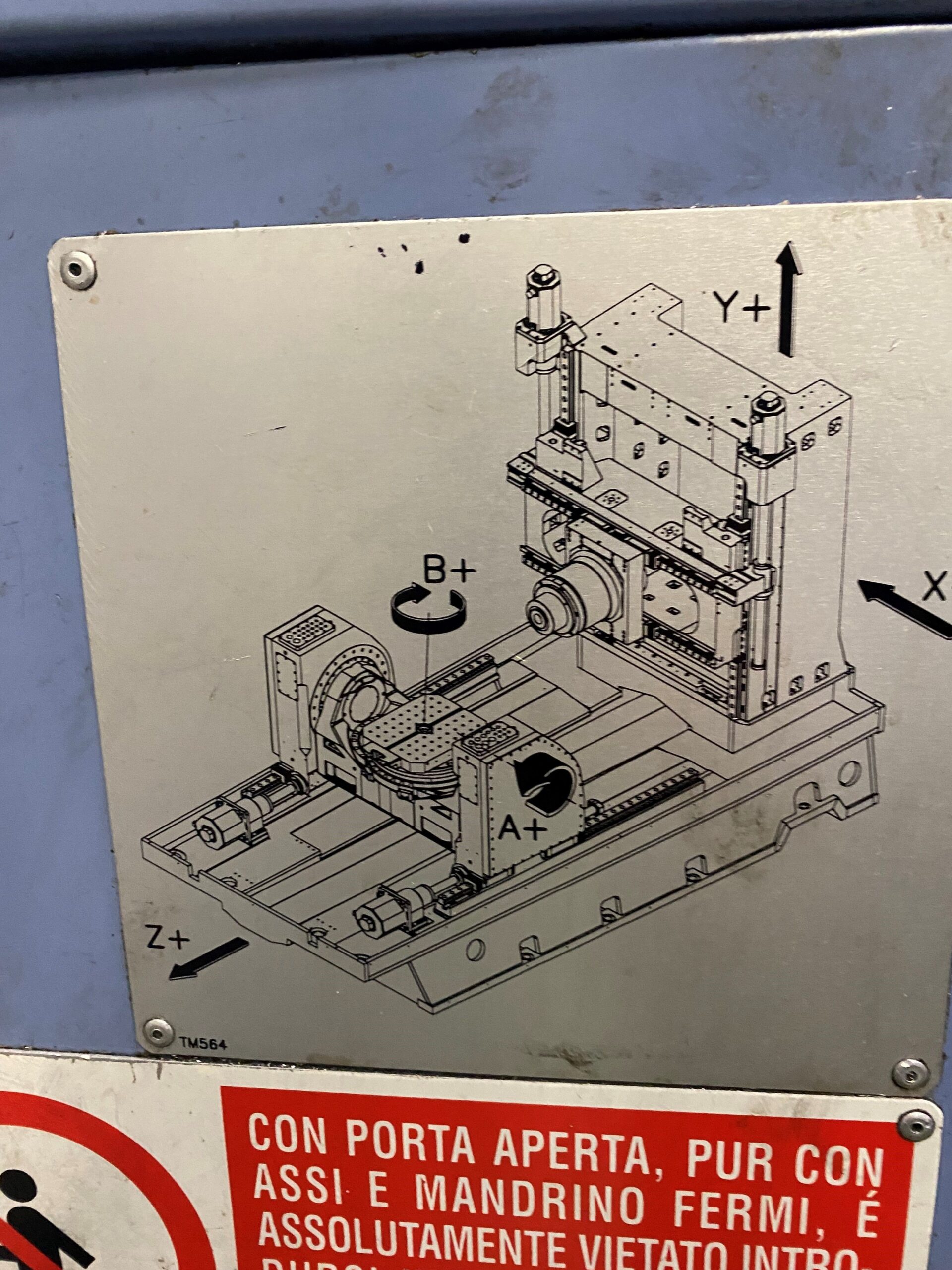

6 AXIS

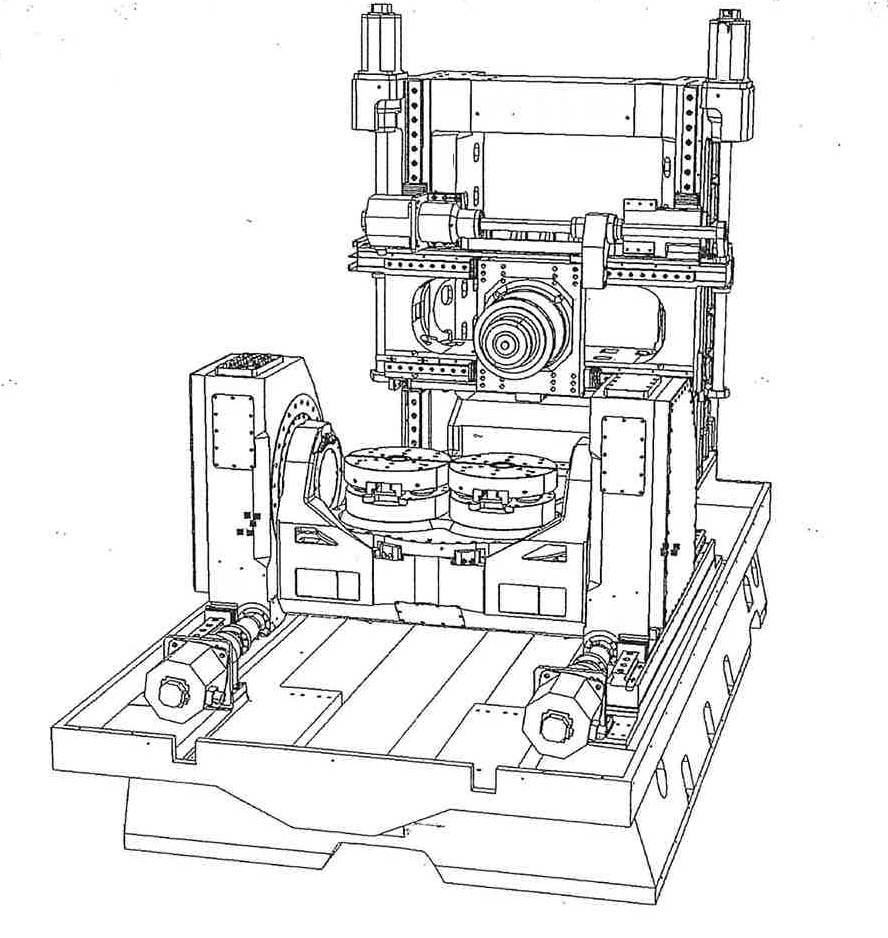

With two round pallet table diam Ø 328 placed side by side on a Rotating balancing table.
With a carousel with 2 pallet for load and unload outside of the machine.
Equipment dimension Ø 328 x 400 H
Table
- Pallet dimensions: Ø 328 x 2 mm
- No. pallets: 2 nr.
- Table rotation: +35-105 gradi
Turning capacity

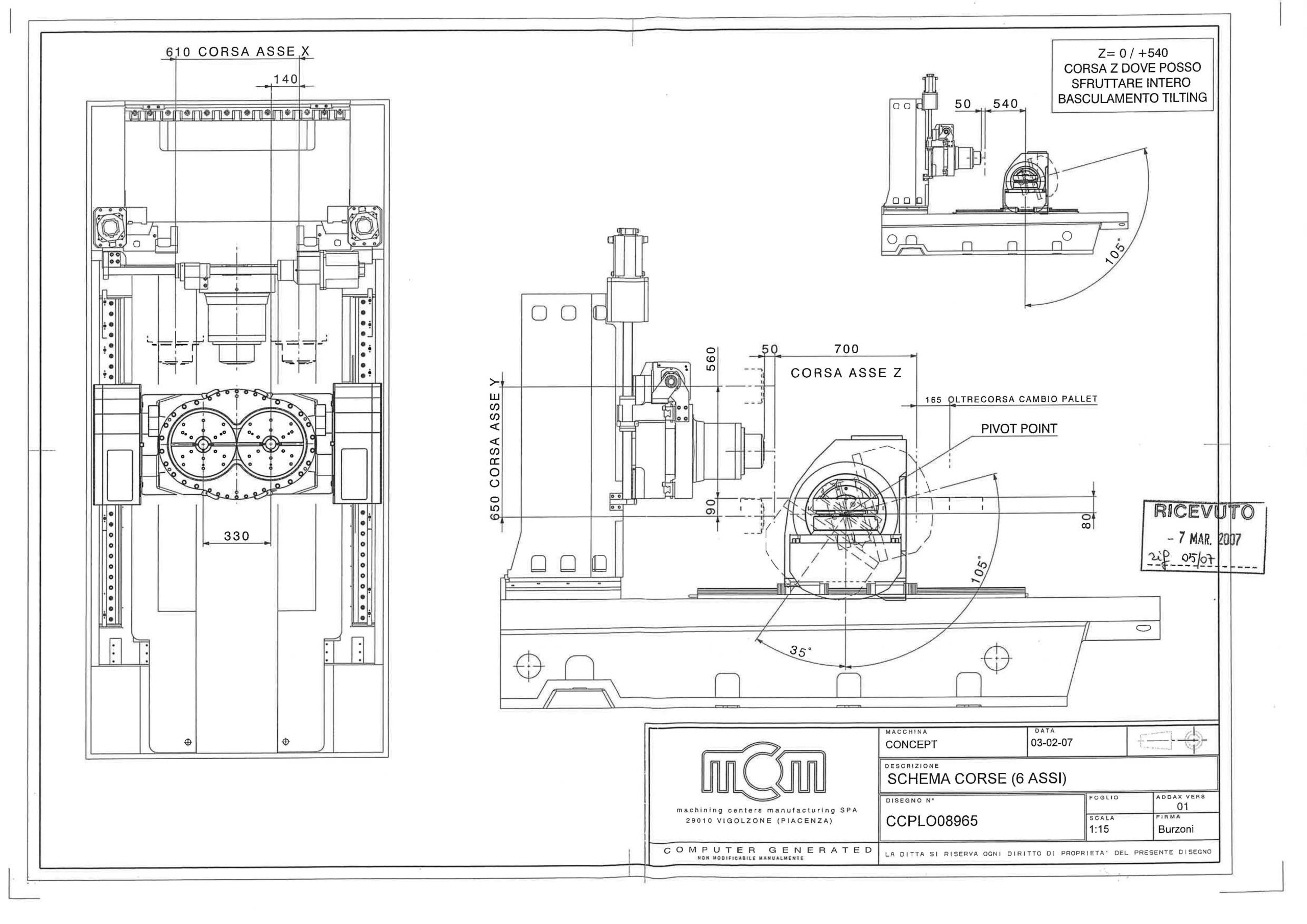

- Longitudinal X-travel: 610 mm
- Vertical y-travel: 650 mm
- Cross z-travel: 700 mm
- Rapid feedrates: 75 mt./min.
Spindle
- Spindle nose: HSK A-63 ISO
- Spindle speed: 20.000 elettr giri/min.
- Motor power: 25/33 Kw

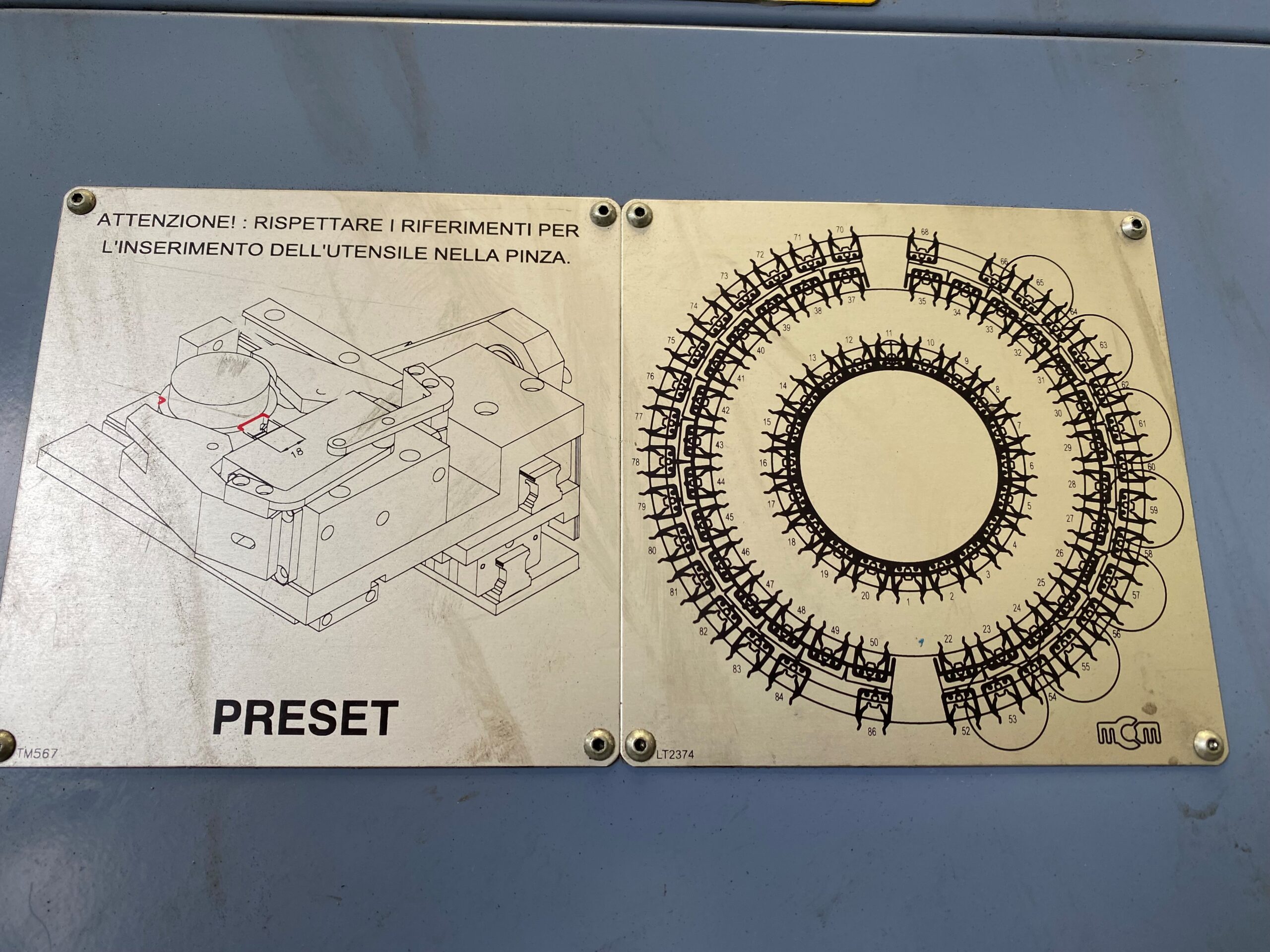

Tool magazine
- Tools holder: 34 nr.
Pallet mm. : Ø 328 x 2
X,Y,Z travels mm. : 610x650x700
Rpm : 20.000 elett.
Motor power Kw : 25/33
ISO : HSK-A63
Tools : 34
