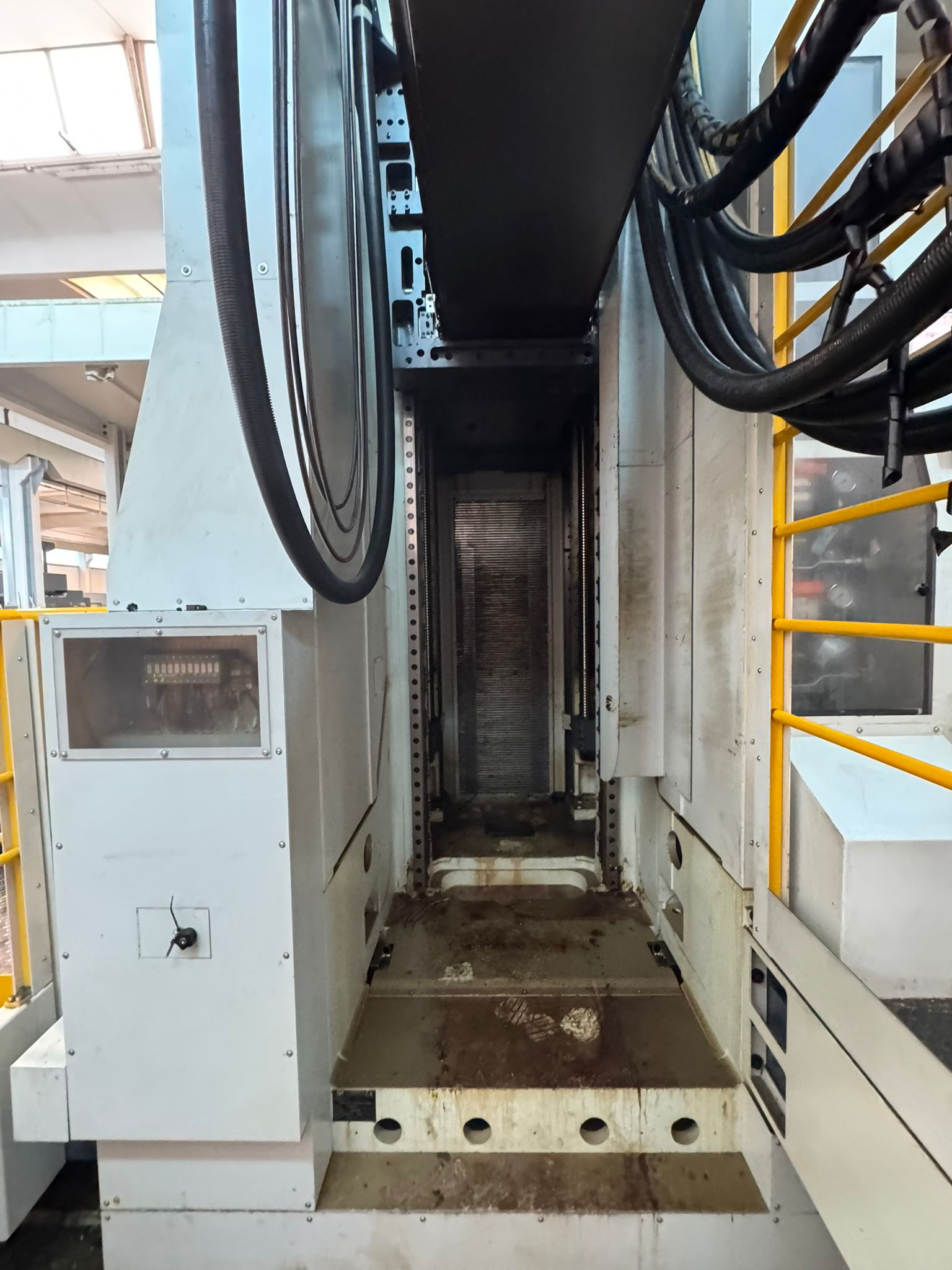

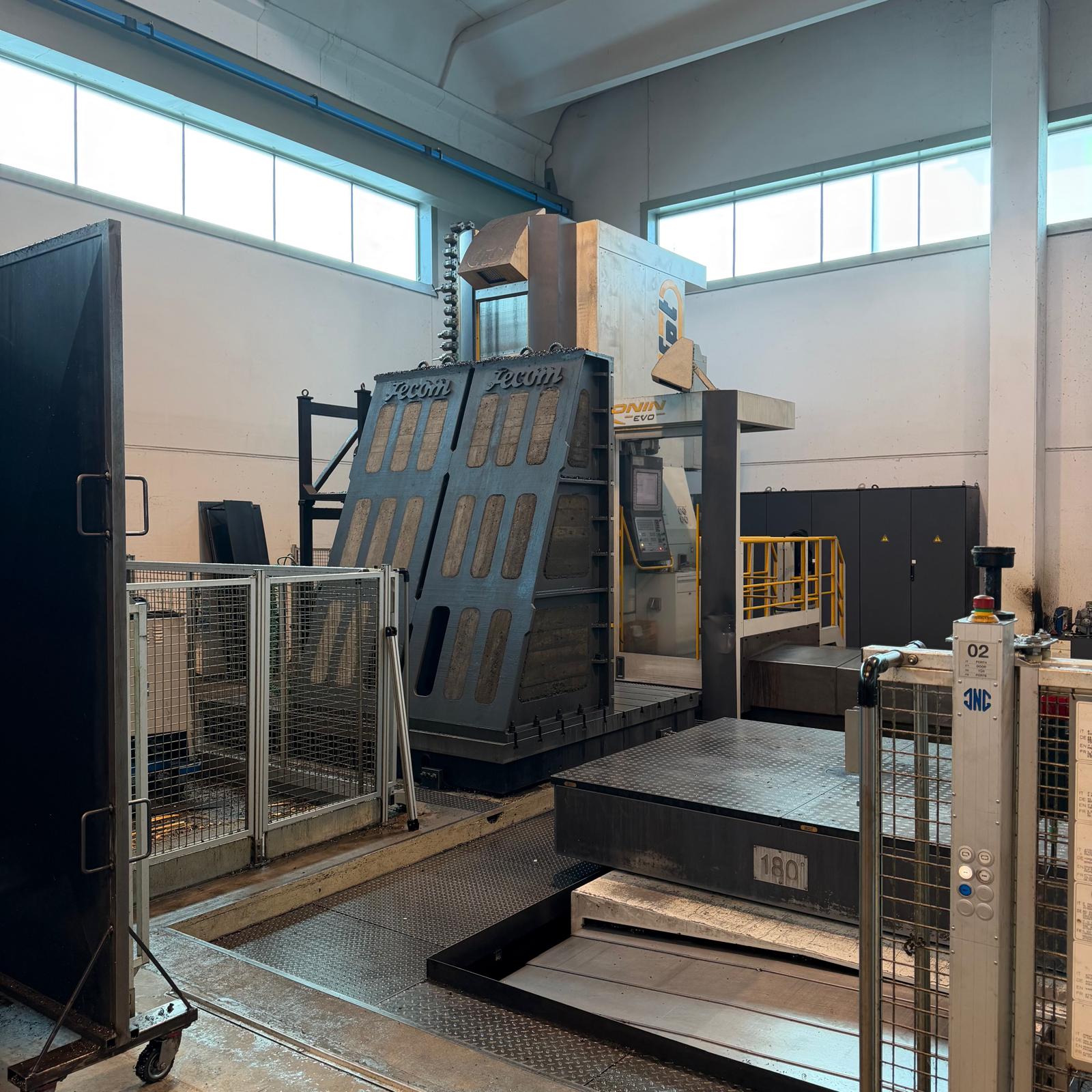

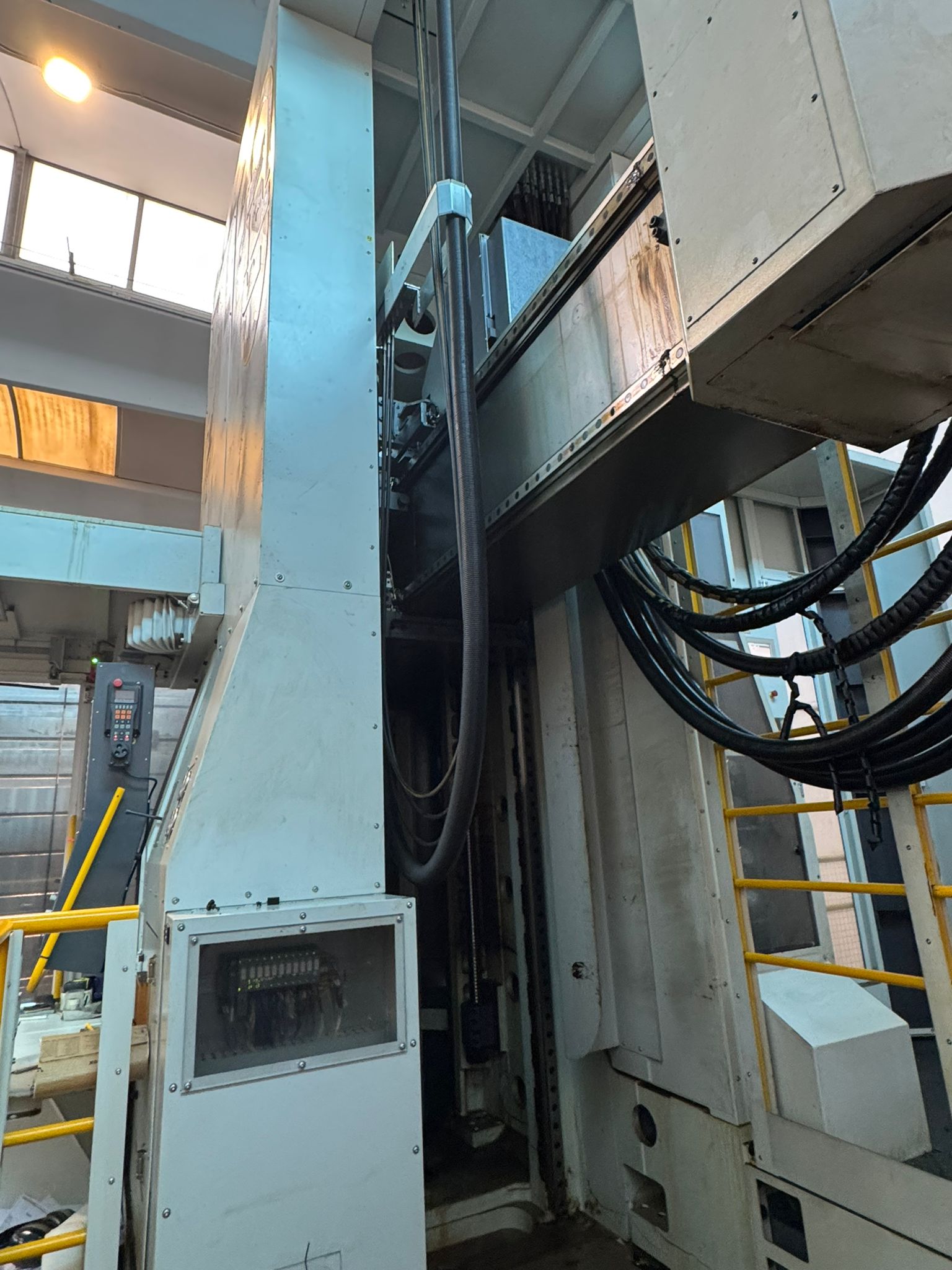

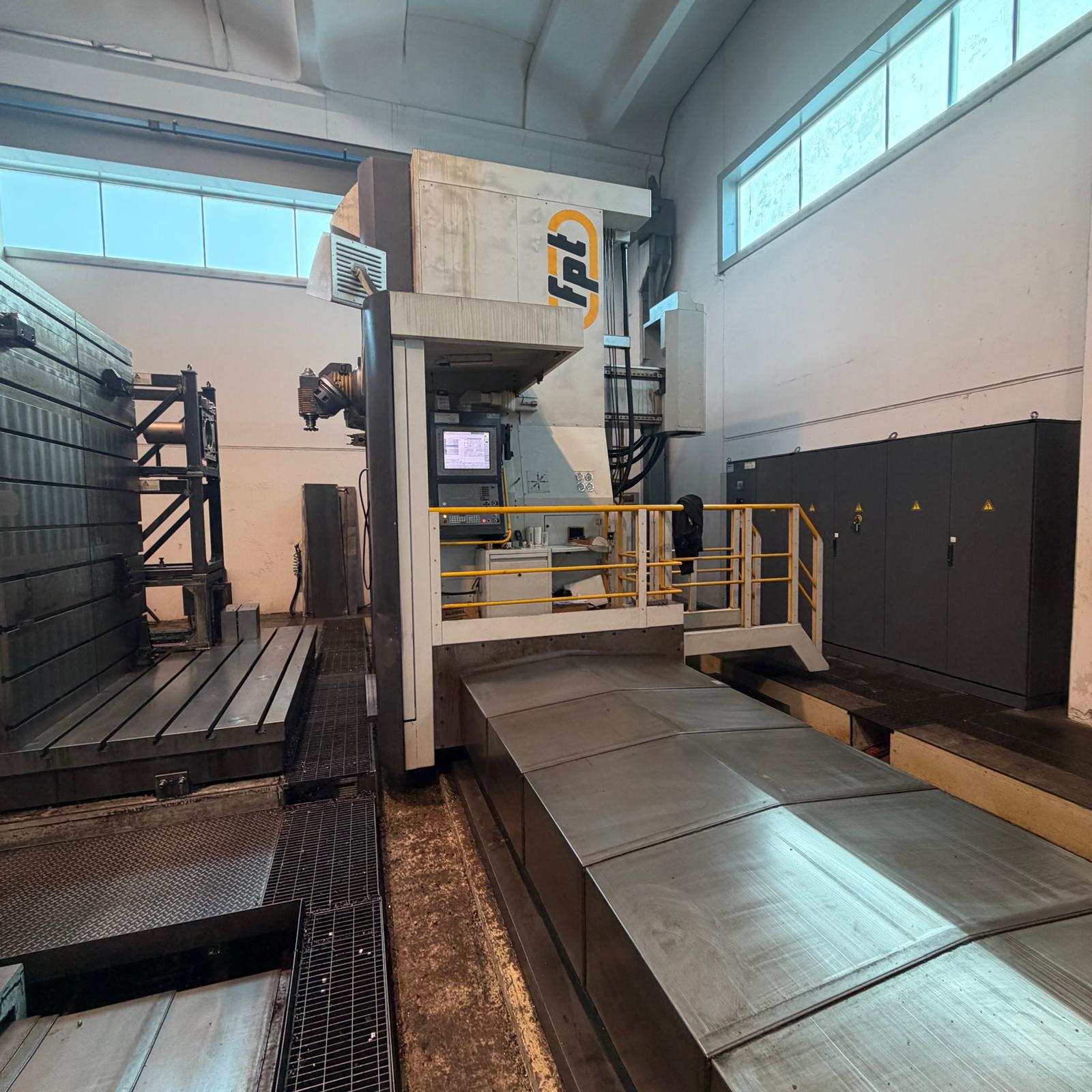

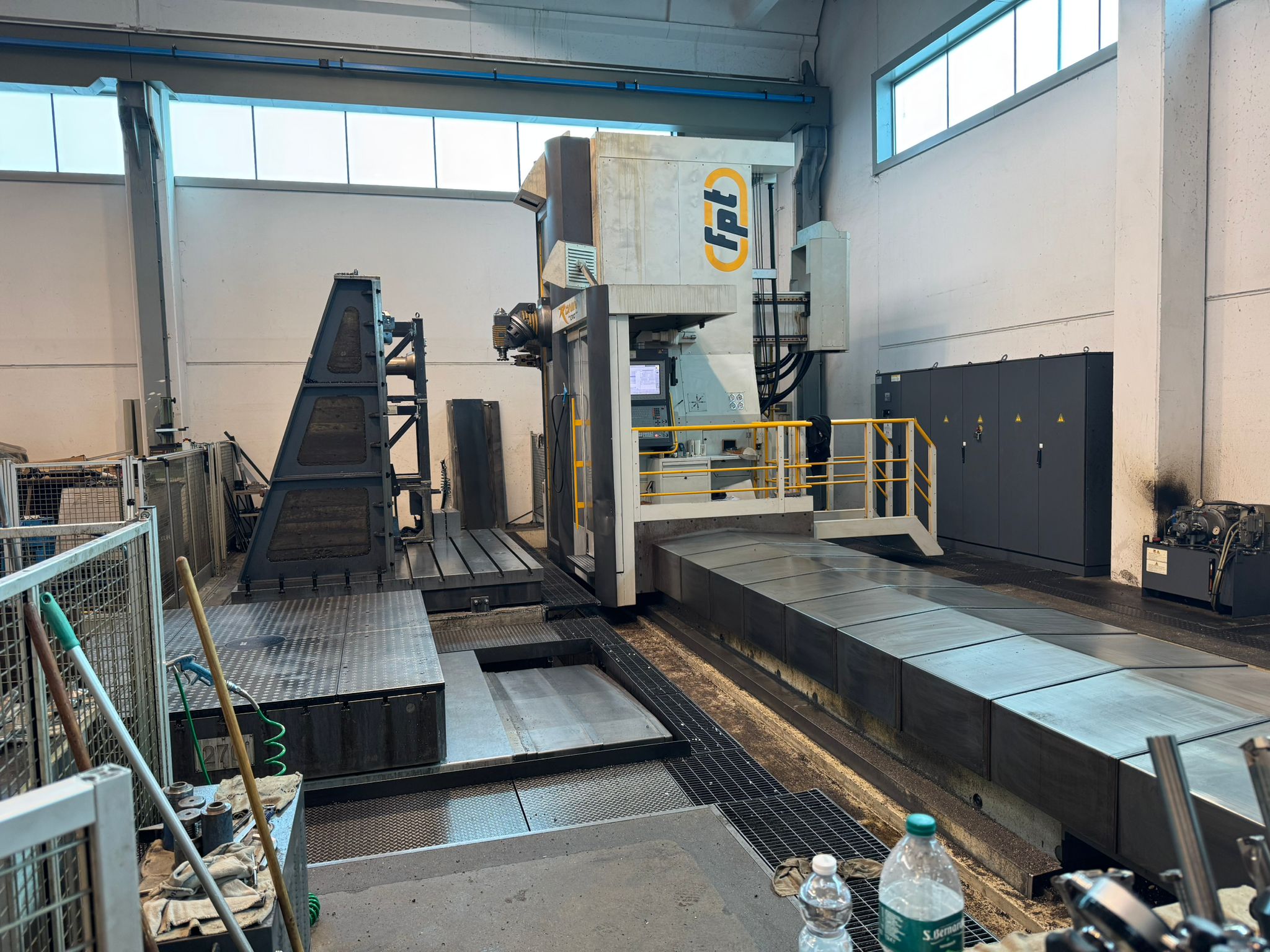

Type: Milling machine Moving column
Brand: FPT
Model: RONIN EVO
Year: 2019
C.N.C: HEIDENHAIN TNC640

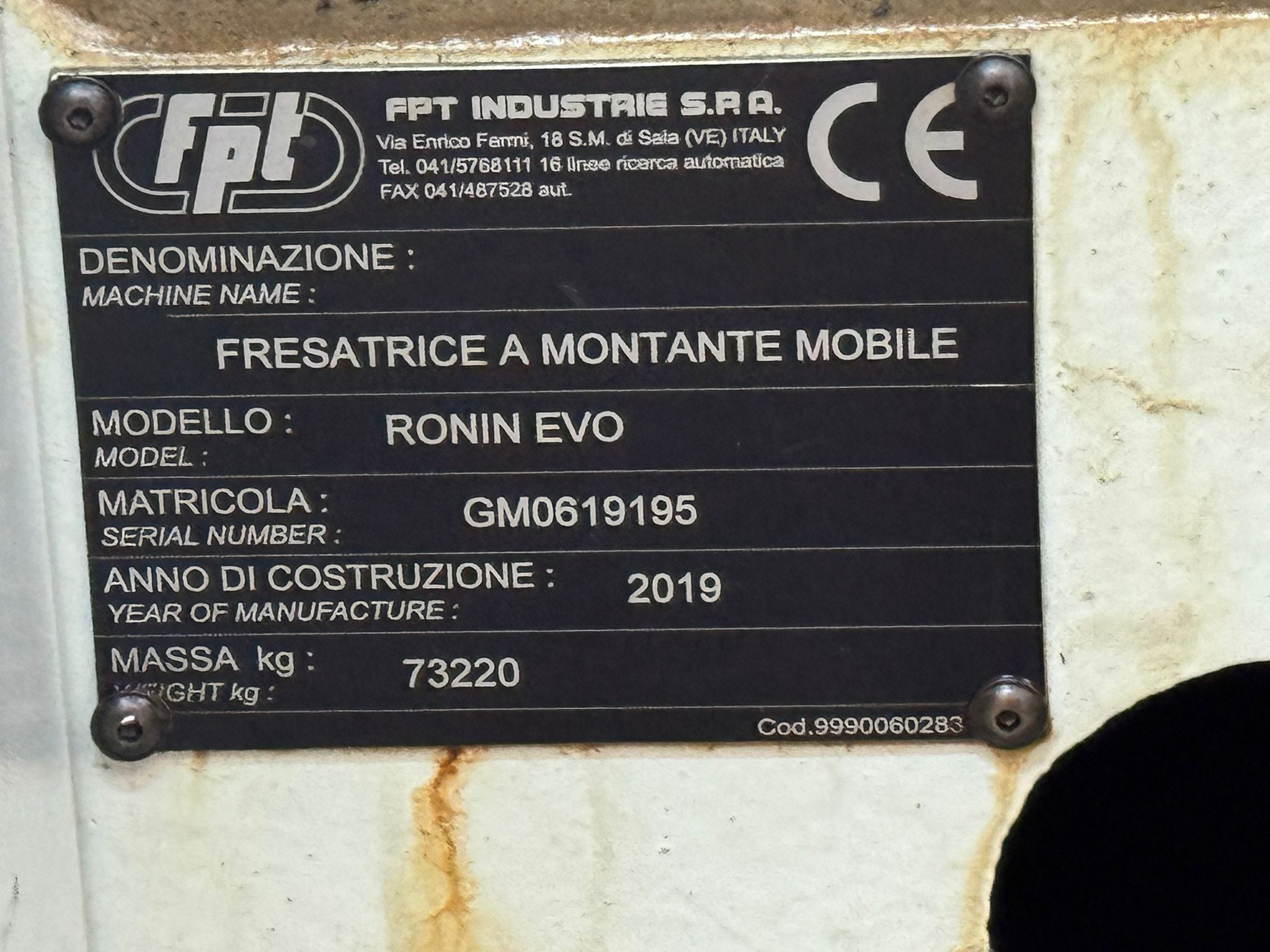

Serial number: GM0619195
Specifications

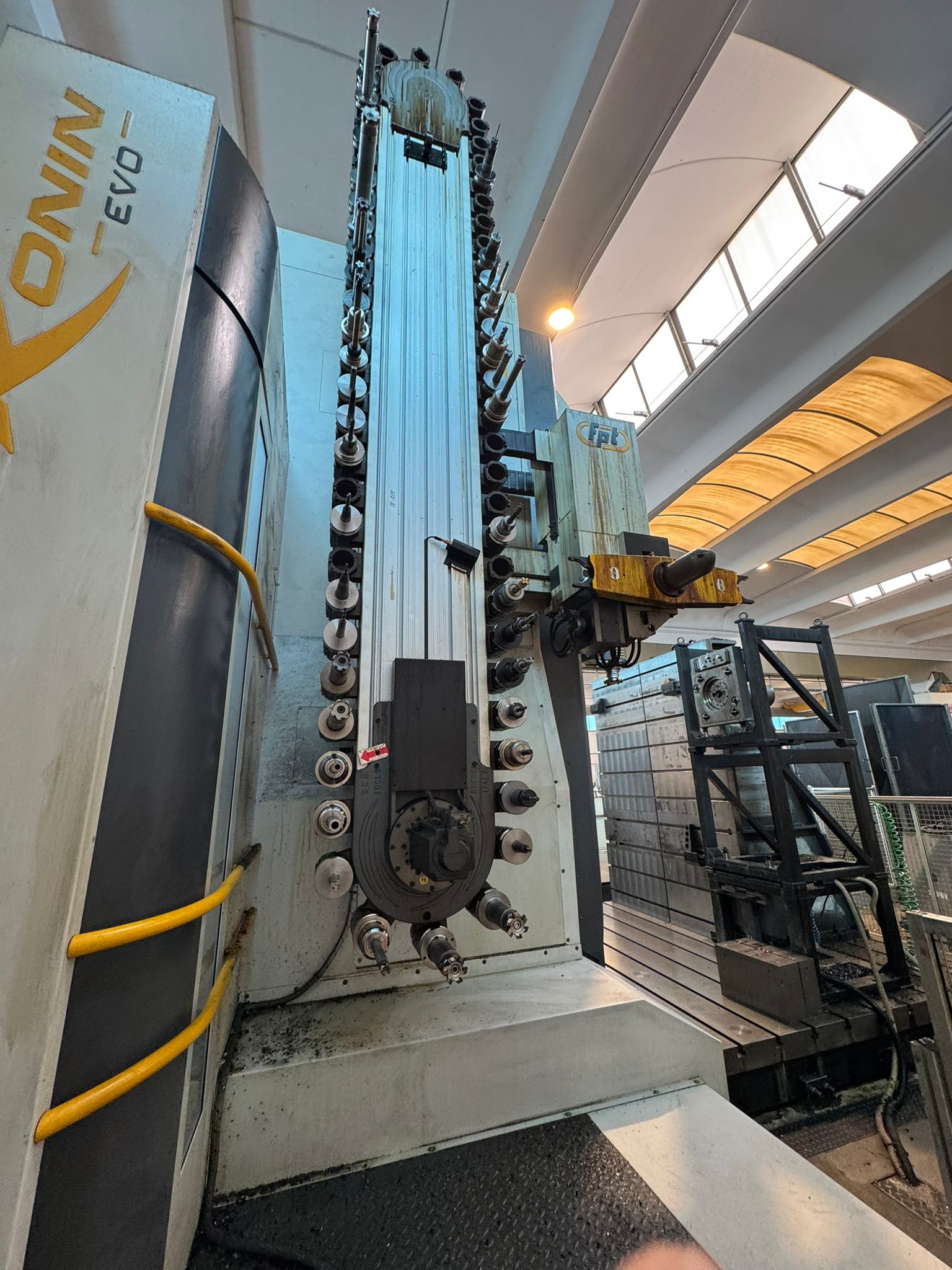

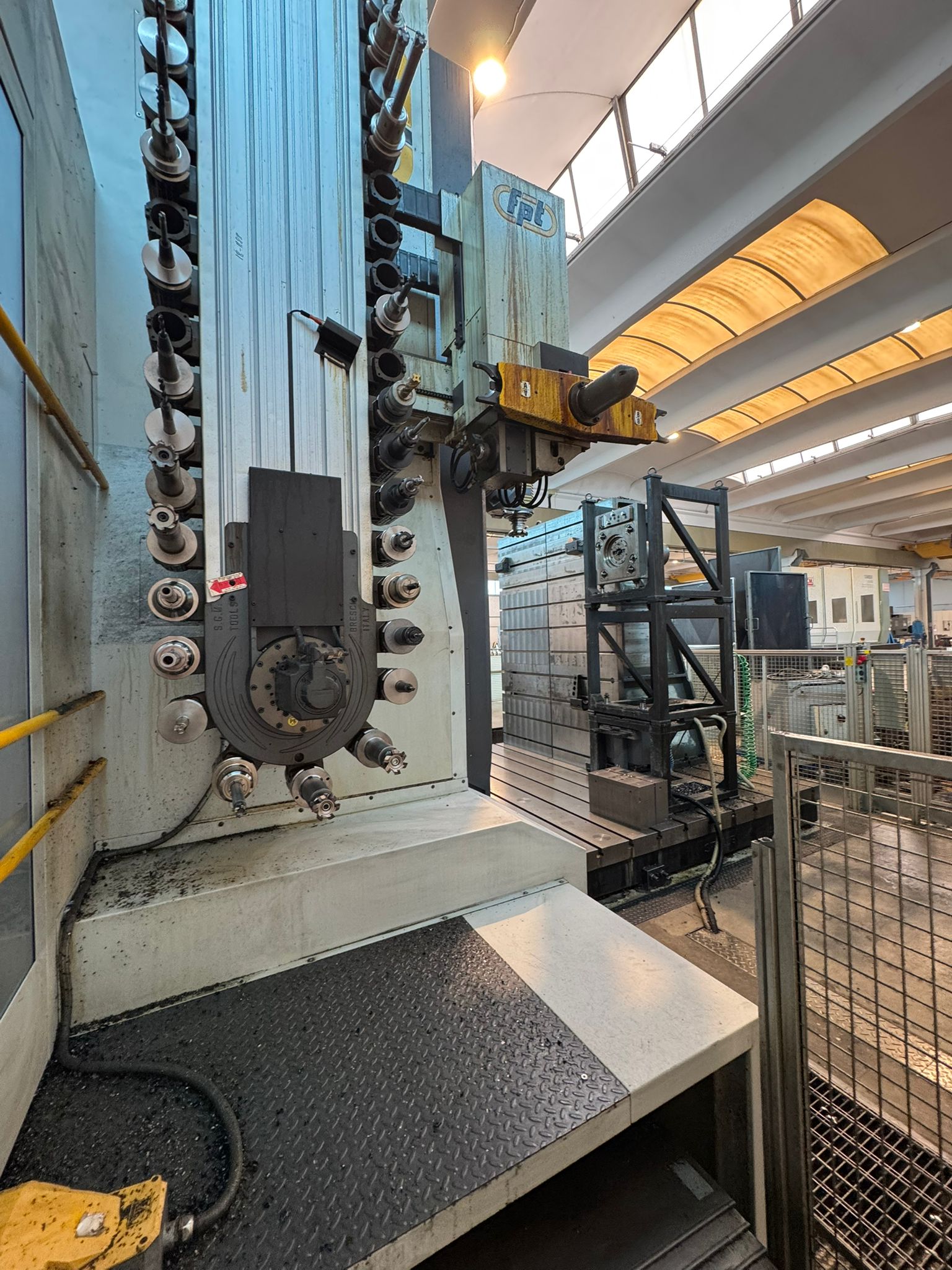

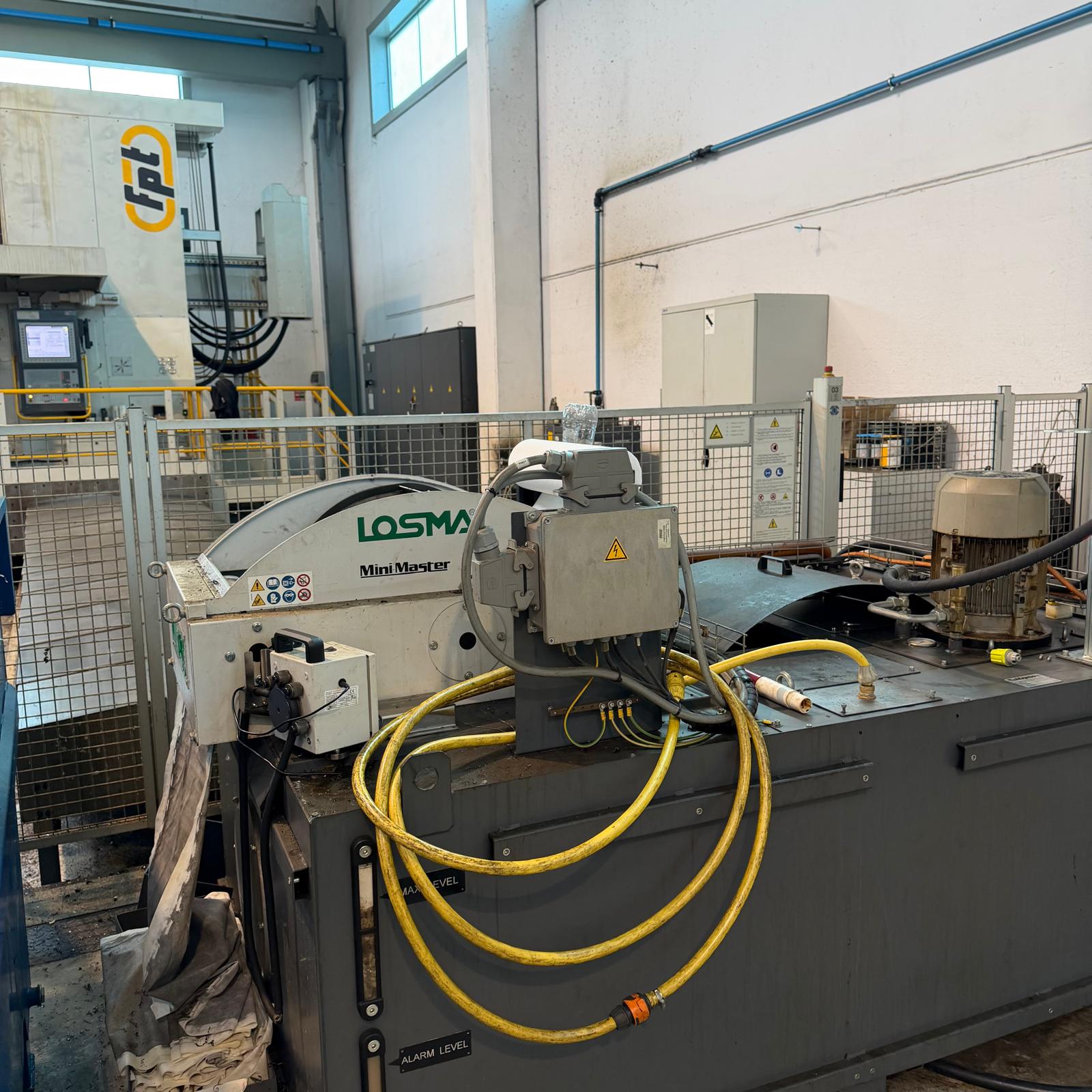

Rotary-translating table 2000 × 2500 mm, load capacity 30,000 kg, Chain-type tool magazine, 60 tools, ISO 50, Laser tool integrity probe, workpiece alignment measuring probe, Coolant system, Chip conveyor

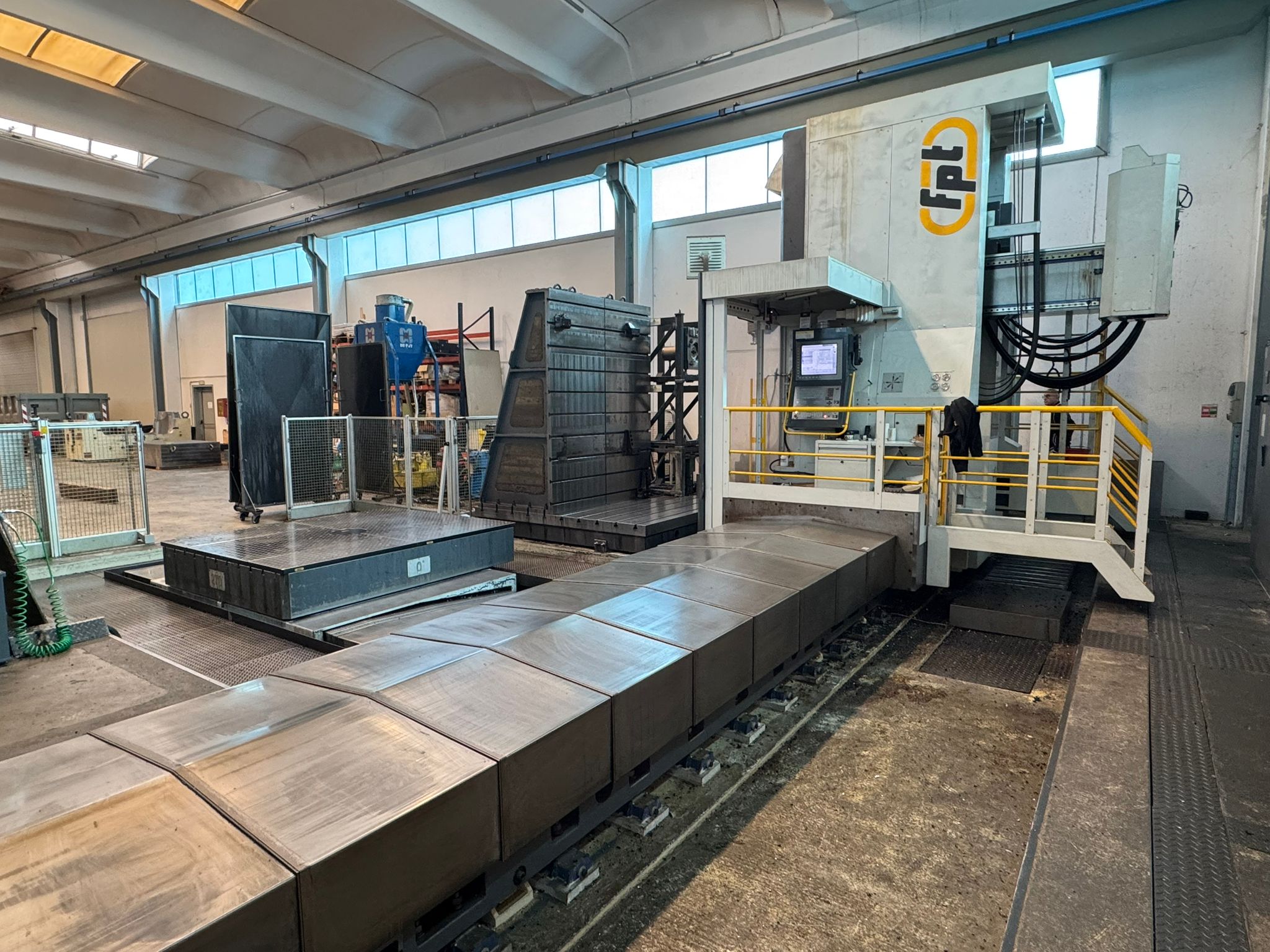

Anchoring and leveling equipment for X axis 6000 mm, Vibration detection sensor, Double cradle for loading/unloading two milling heads, with dedicated software.
Table
Turning capacity
Head
Specific properties
Worktable 2500 × 2500 mm, height 300 mm
Spindle motor for mechanical heads: 42 kW, torque 1180 Nm, 5000 rpm

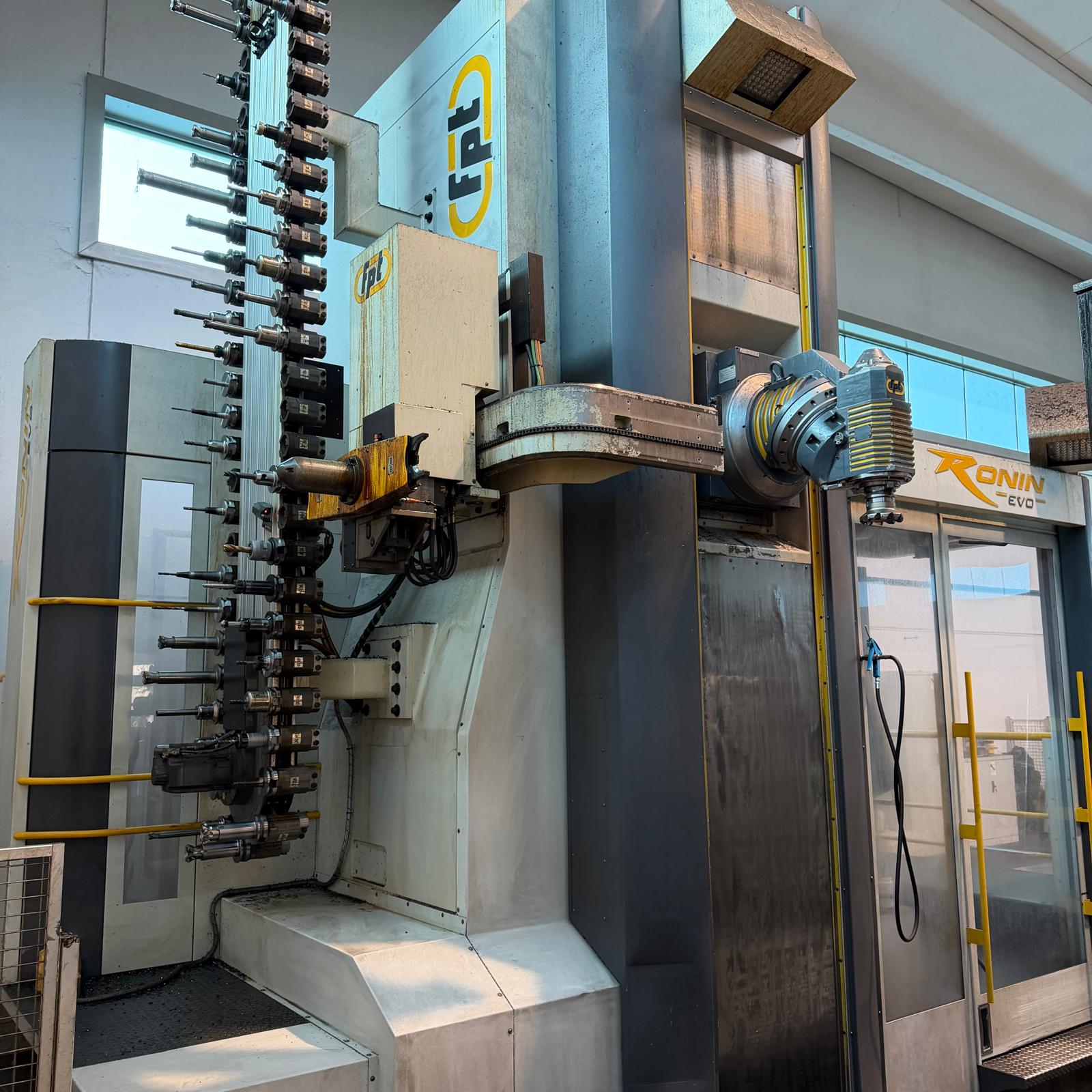

Automatic head clamping system for mechanical heads + electrospindle heads

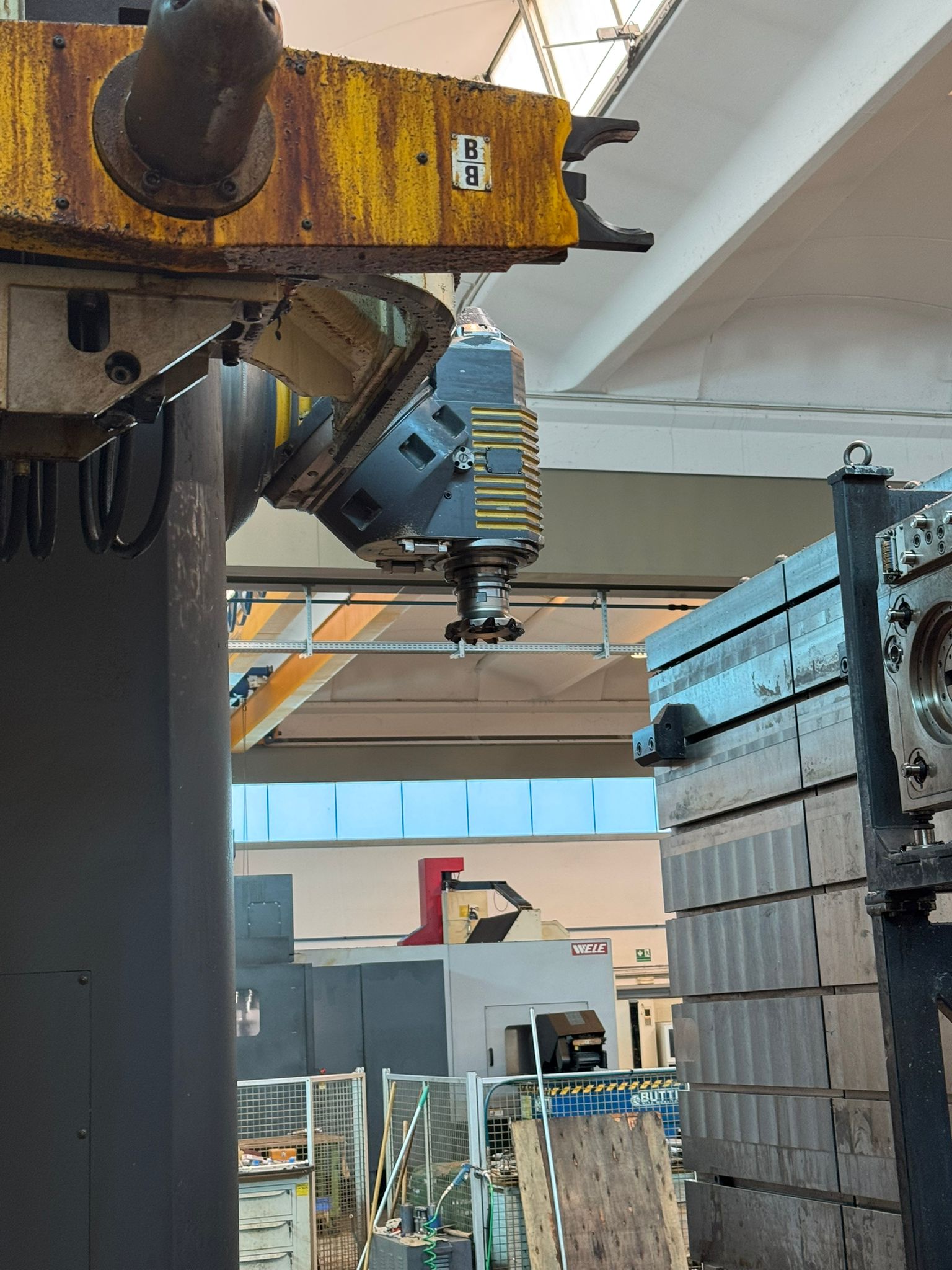

Universal head with thousandth-degree positioning, 37 kW
No. 2 mechanical spindles ISO 50
Spindle extension Ø 200 mm, length 400 mm, 42 kW, 5000 rpm
Rigid tapping for mechanical heads (x2)
AUTOCAL software for automatic calibration

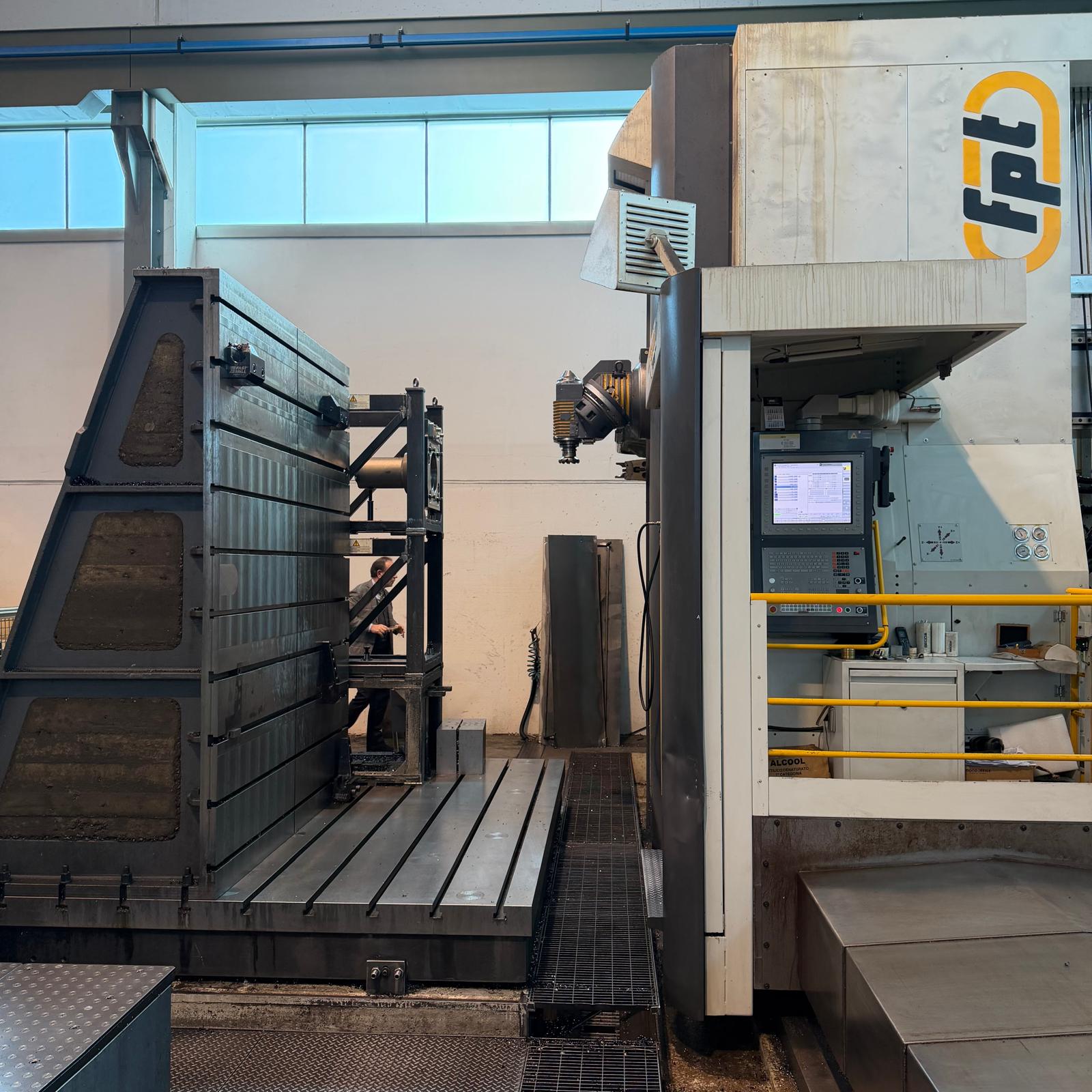

Rotary-translating table with table surface
Table size: 2000 × 2500 mm
Table load capacity: 30,000 kg
Table mm. : 2000X2500
X,Y,Z Travels : 6000x1500x2500
ISO :
Tools : 60
Spindle speed :
Motor power :
