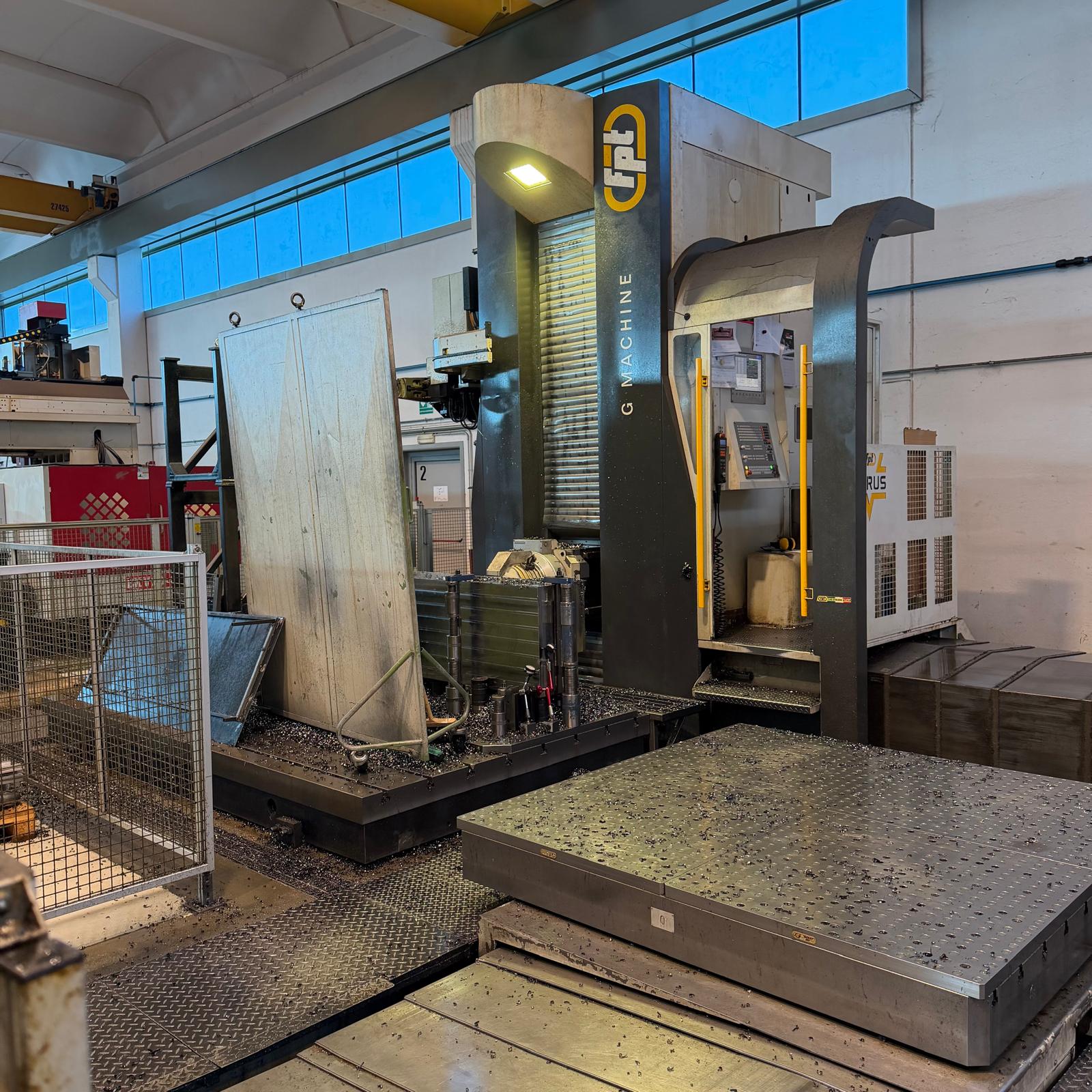

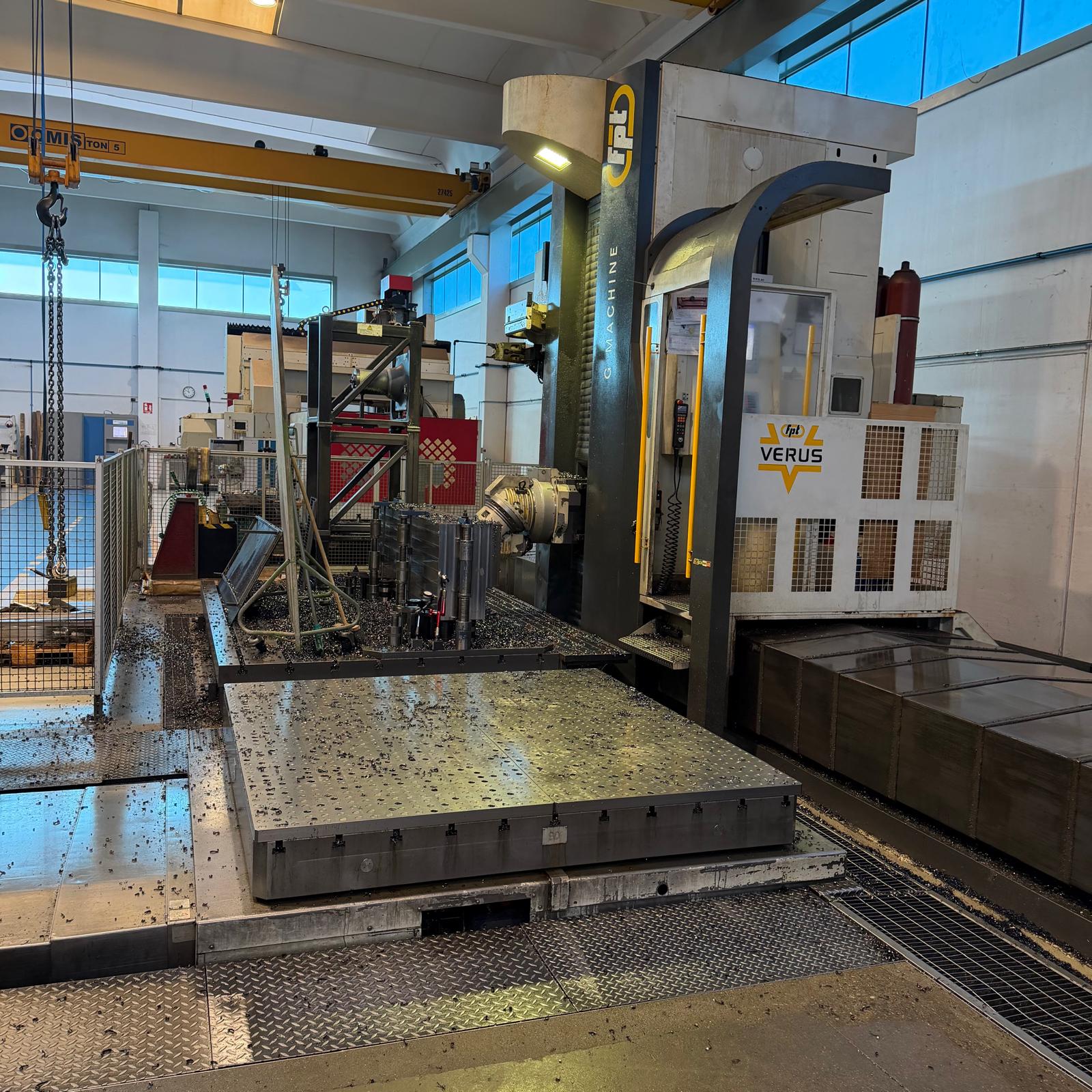

Type: Milling machine Moving column
Brand: FPT
Model: VERUS
Year: 2016
C.N.C: HEIDENHAIN ITNC530 HSCI
Specifications
Rigid tapping for mechanical heads, AUTOCAL software for automatic calibration, 3D workpiece alignment measuring probe.
Table
Turning capacity
Specific properties
Semi-automatic accessory change
Spindle motor power: 34 kW
Constant power speed range: 400 – 5000 rpm
Maximum torque: 830 Nm
Maximum feed rate: 35,000 mm/min
Acceleration: 1.5 m/s²
Maximum spindle speed: 5000 rpm

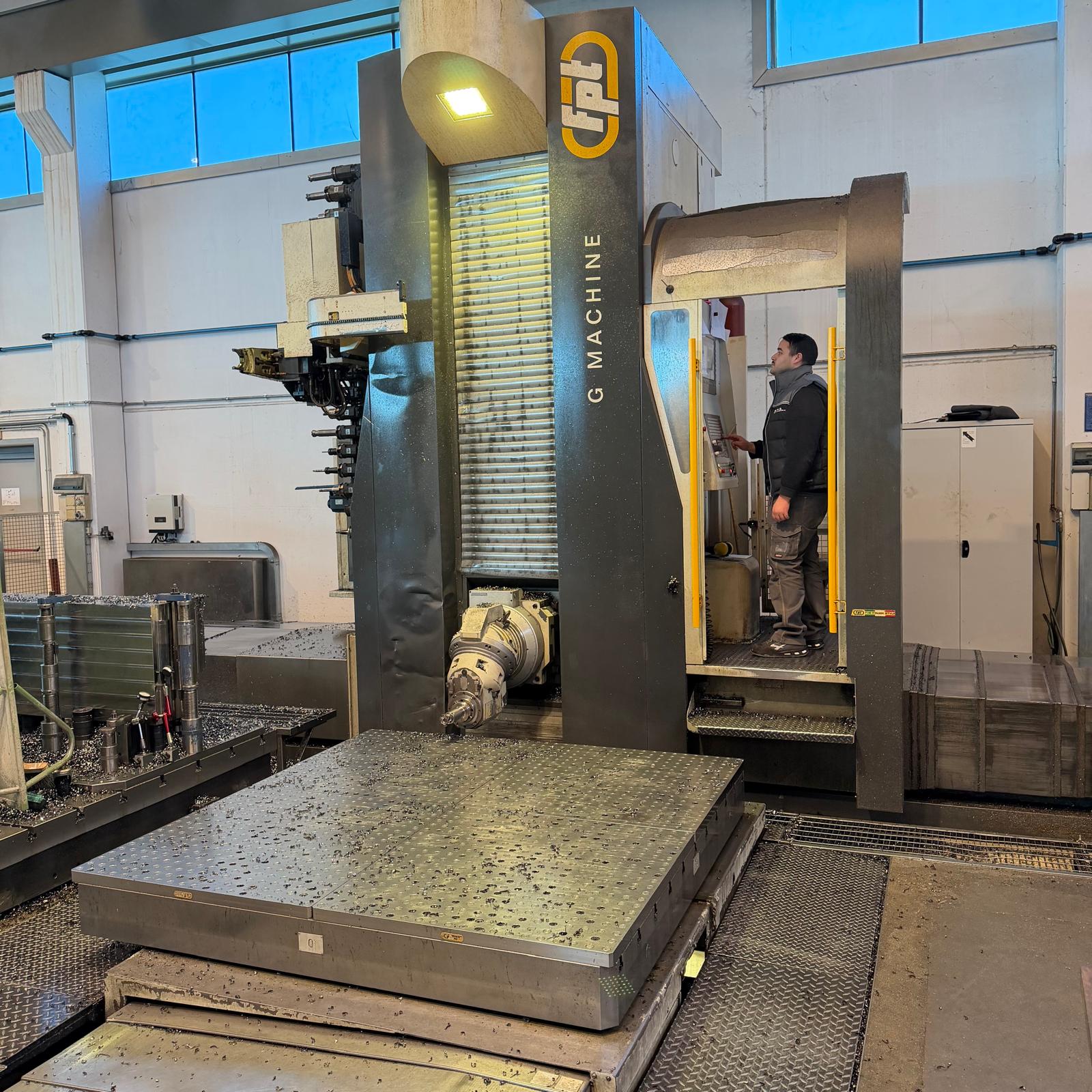

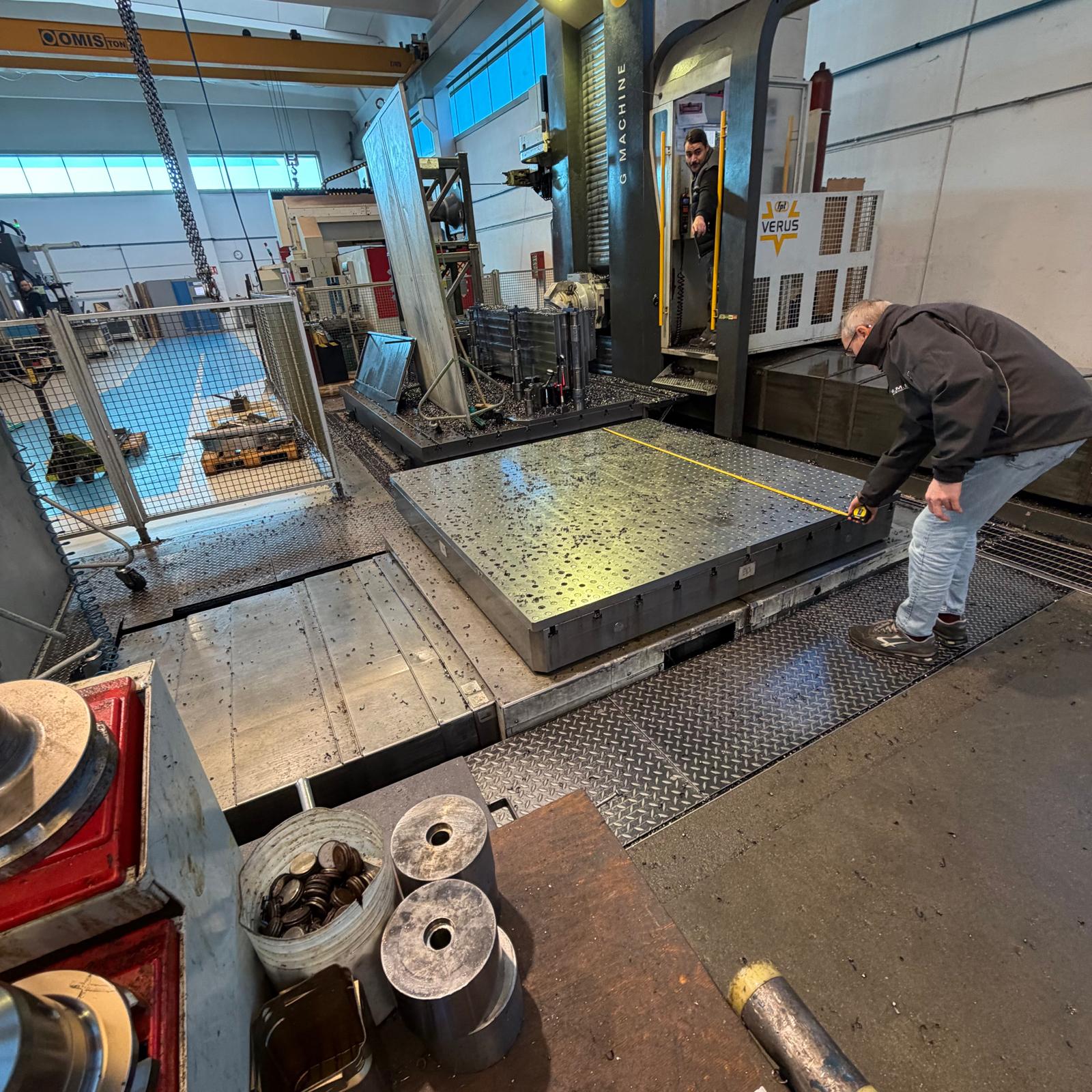

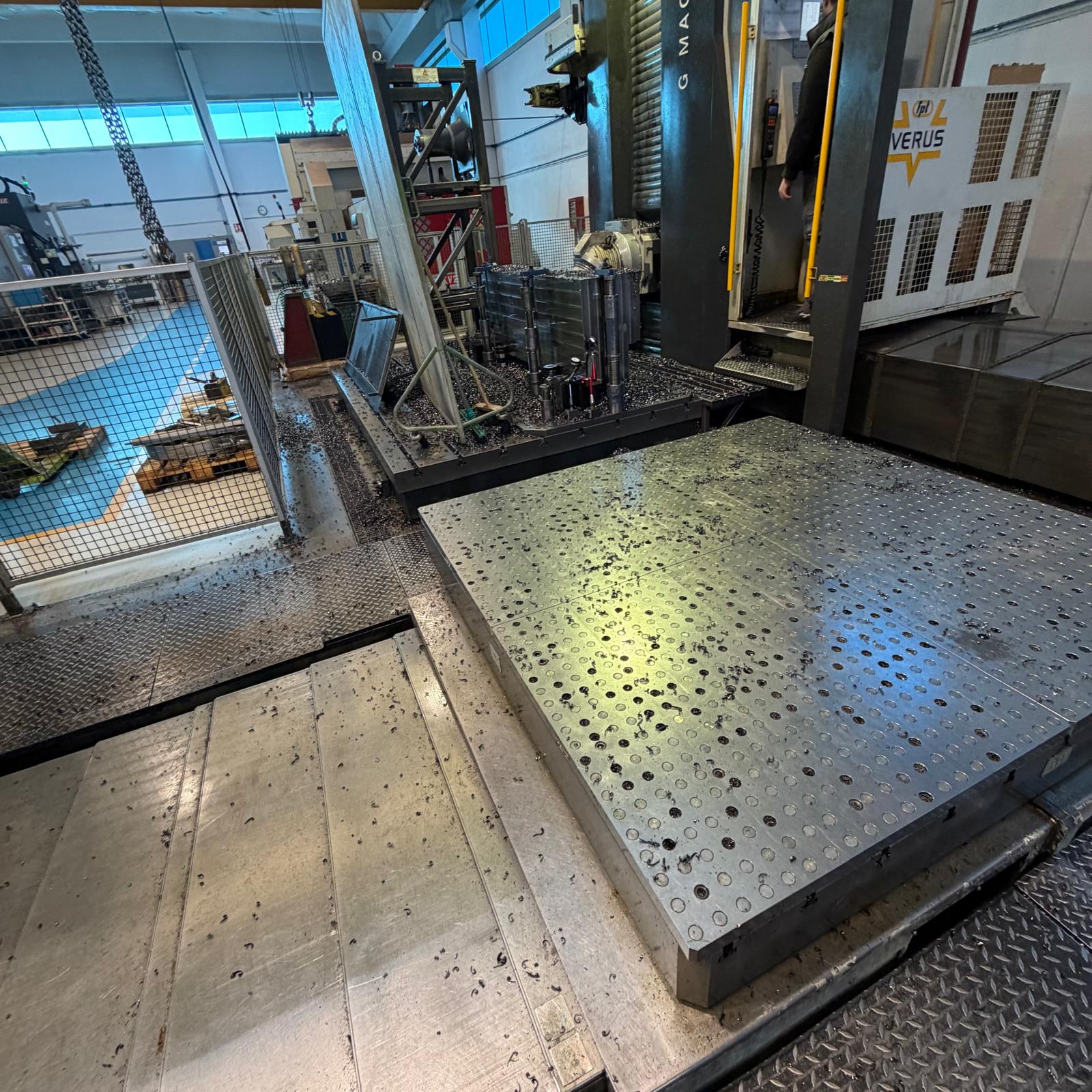

Hydrostatic rotary-translating table TRT15
Table size: 2000 × 2000 mm
Universal bi-rotary head with thousandth-degree positioning
Taper: BT 50

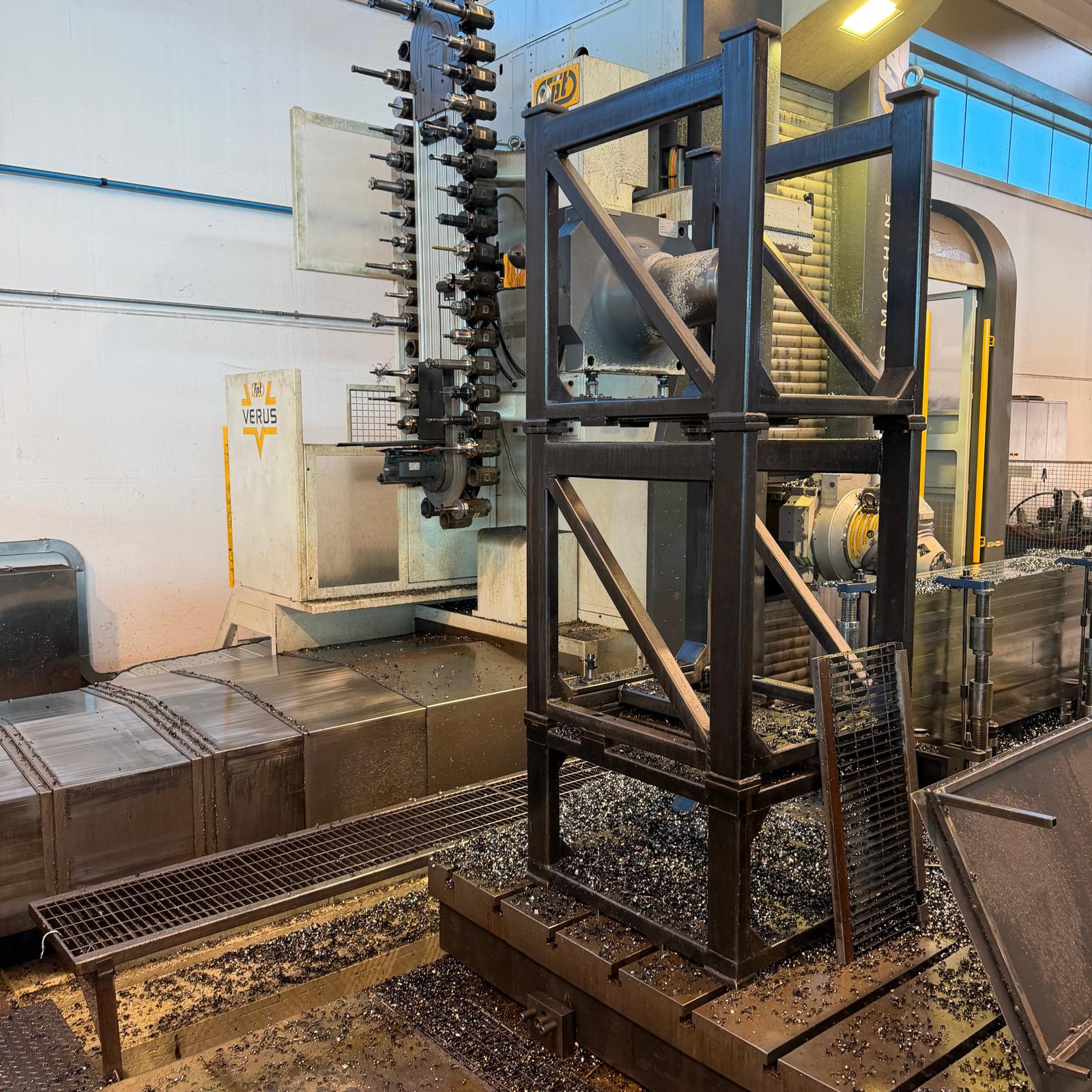

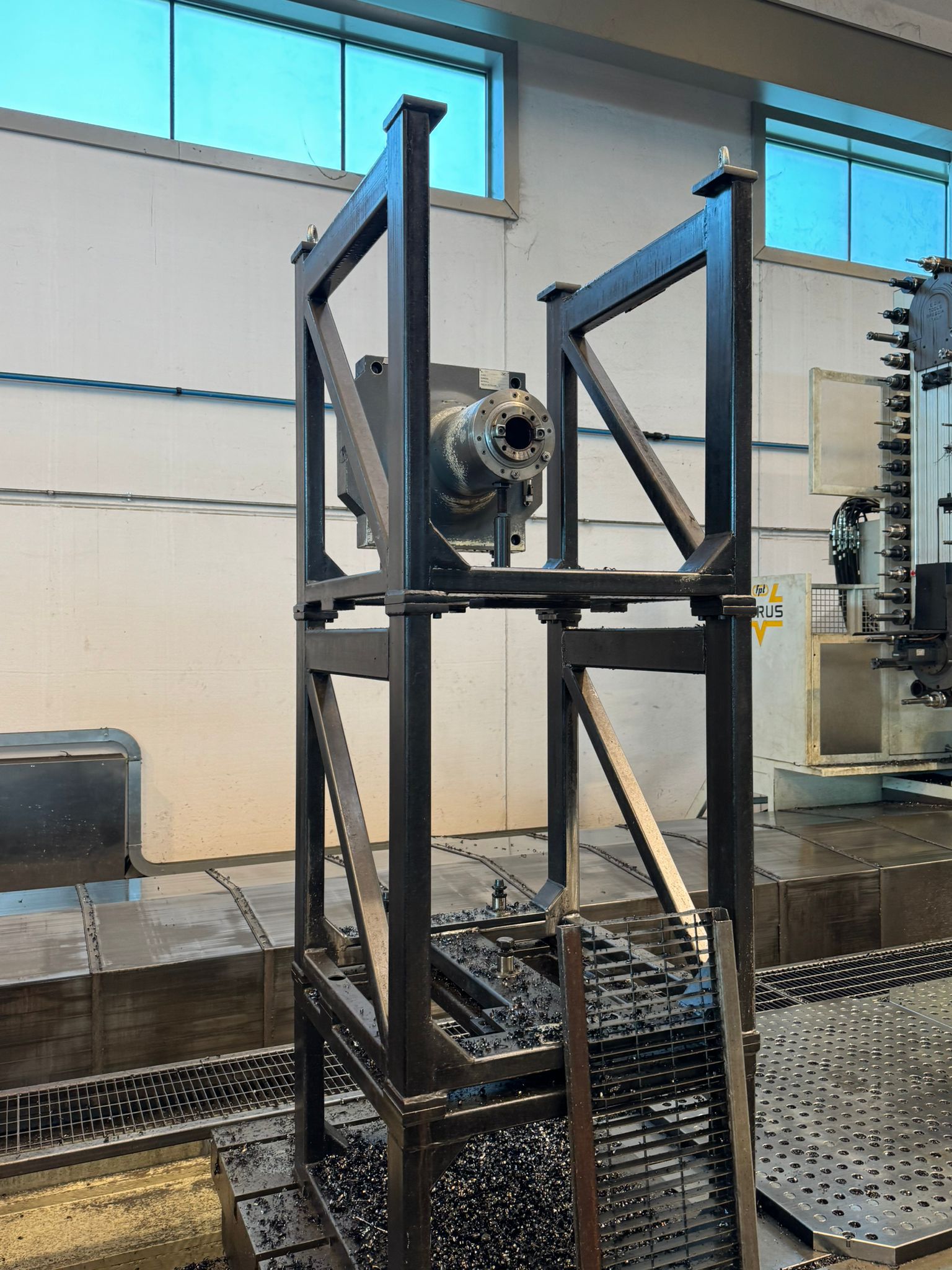

Double cradle for loading/unloading two milling heads, with dedicated management software

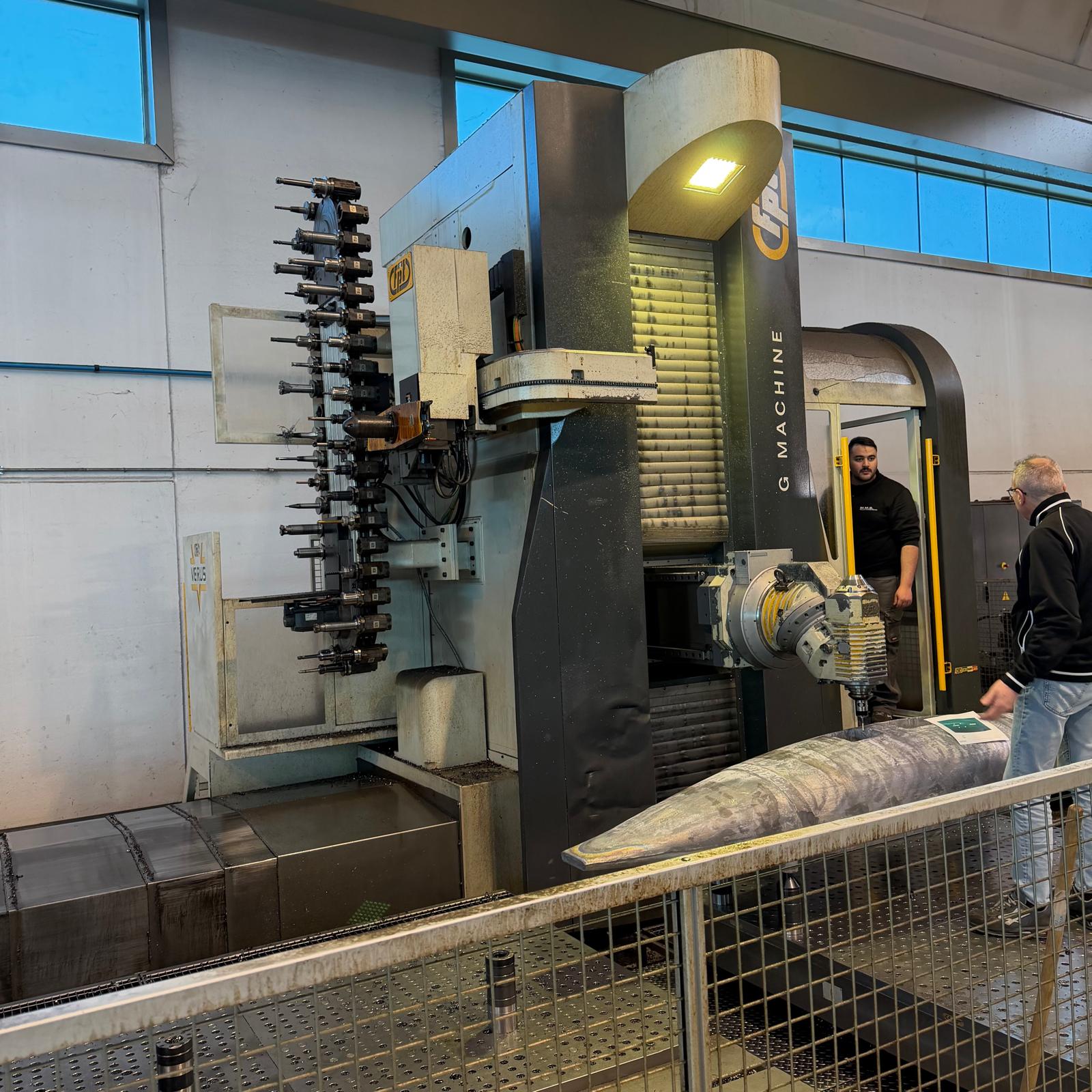

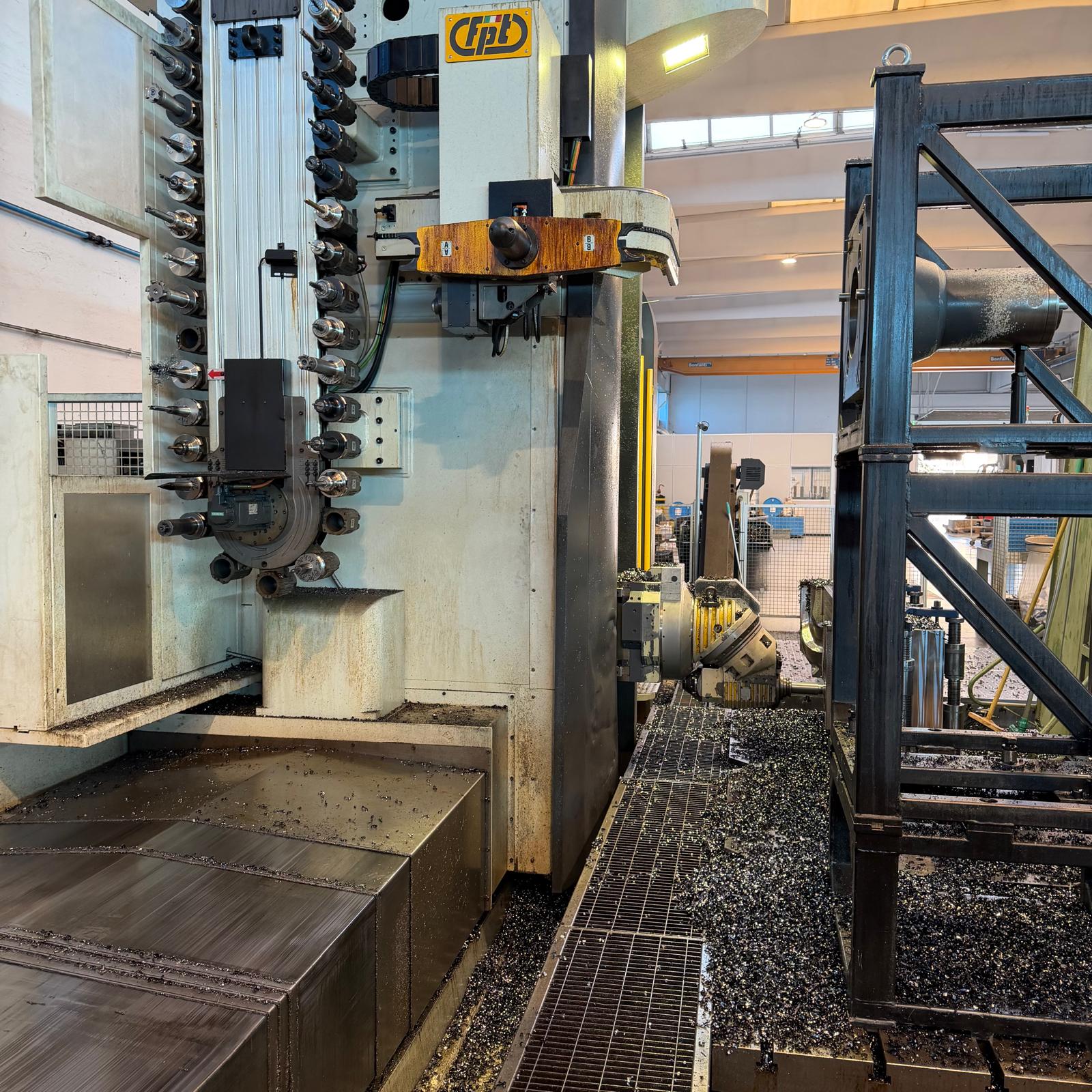

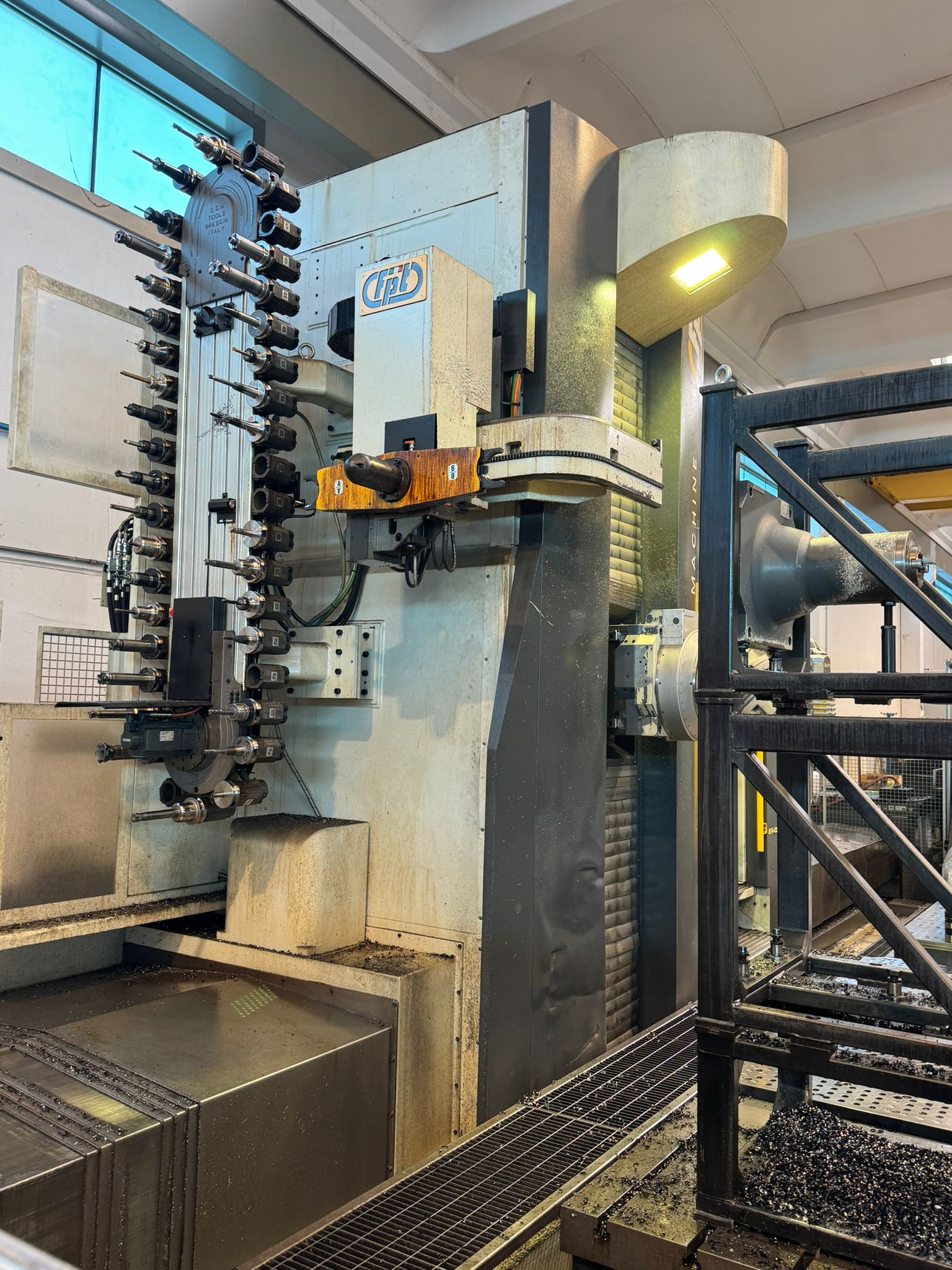

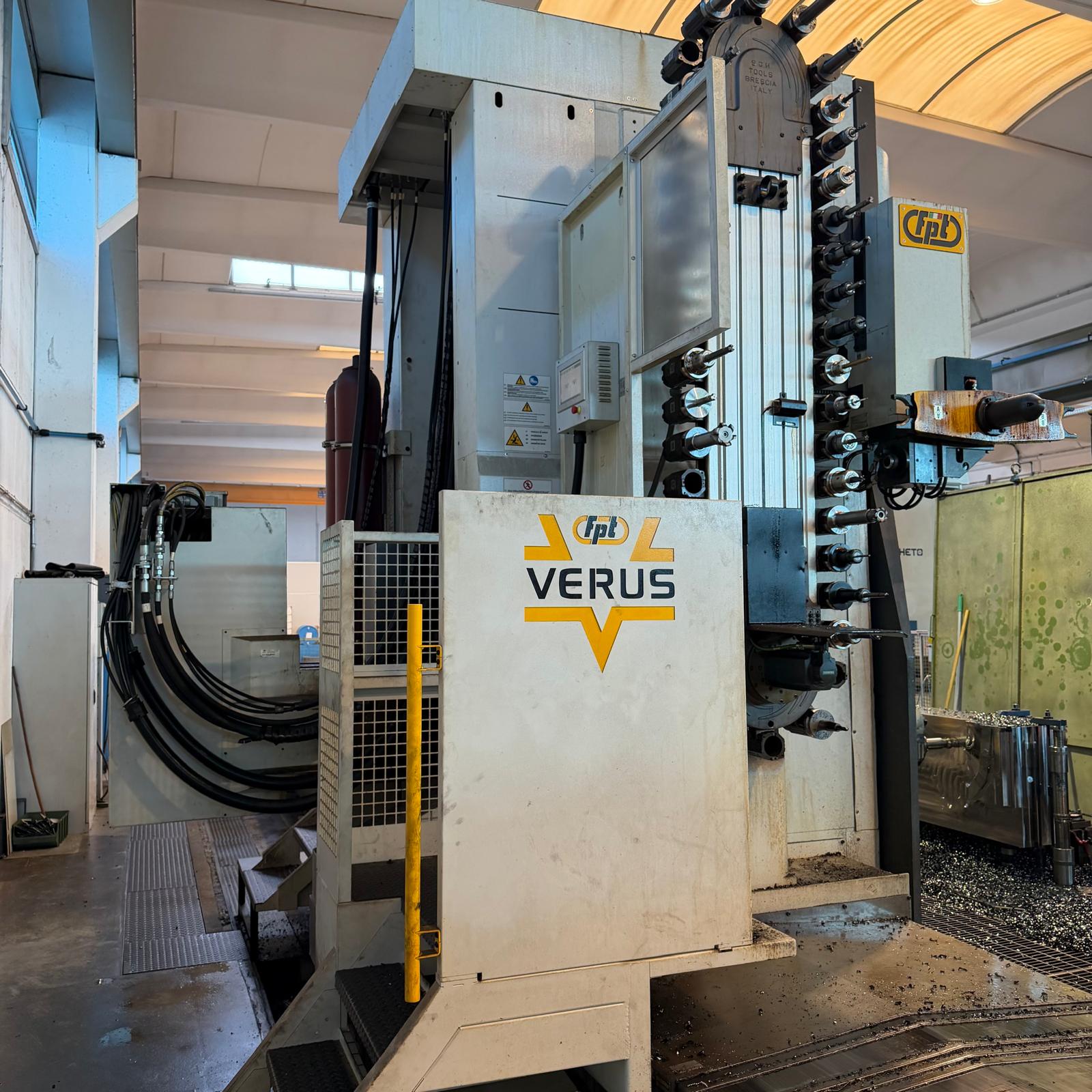

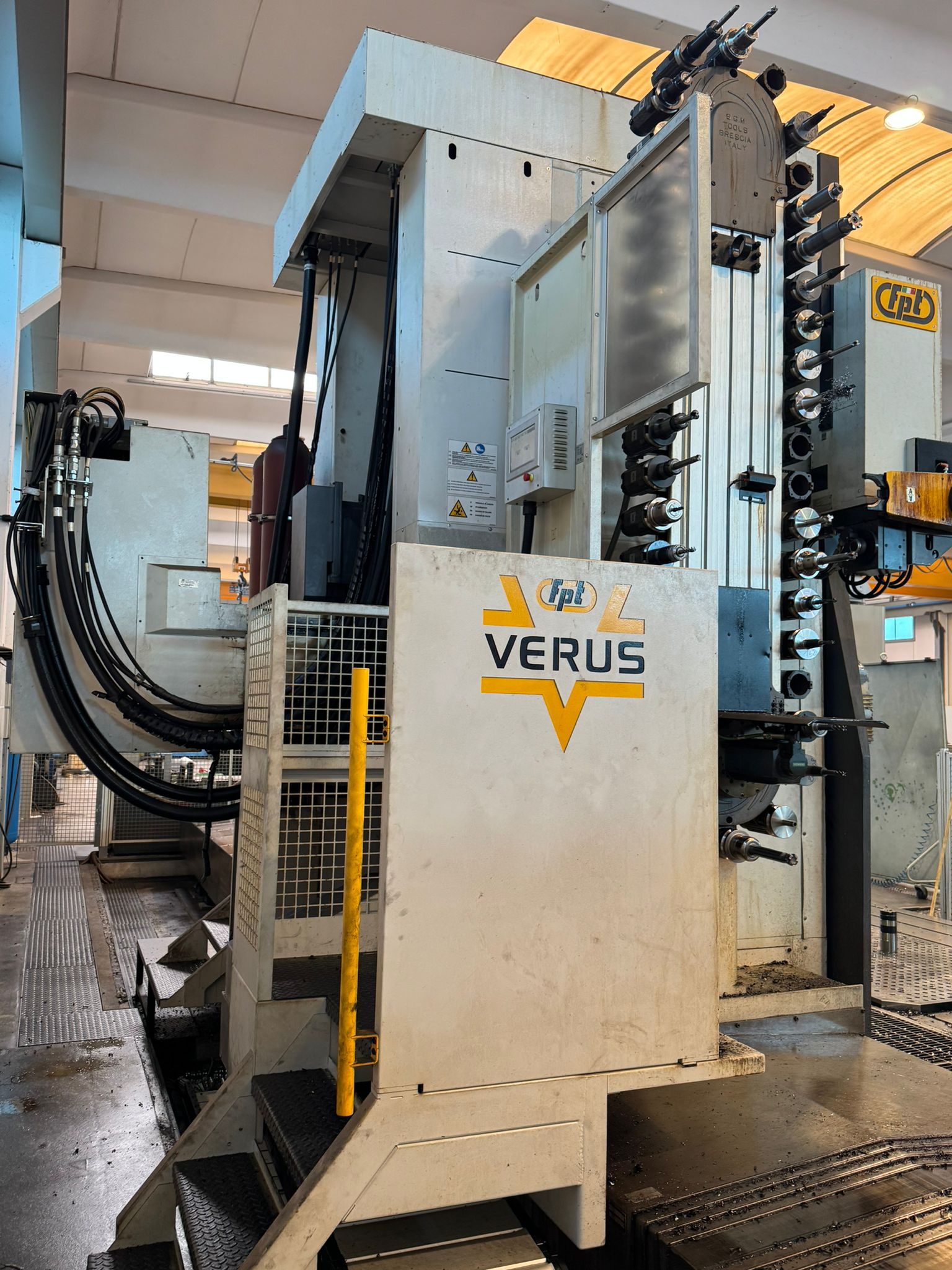

Chain-type tool magazine, 40 positions, ISO 50
High-pressure coolant system, external/internal through the tool, with paper filter
External pressure: 4 bar
Internal pressure: 20 bar
Through-tool compressed air coolant

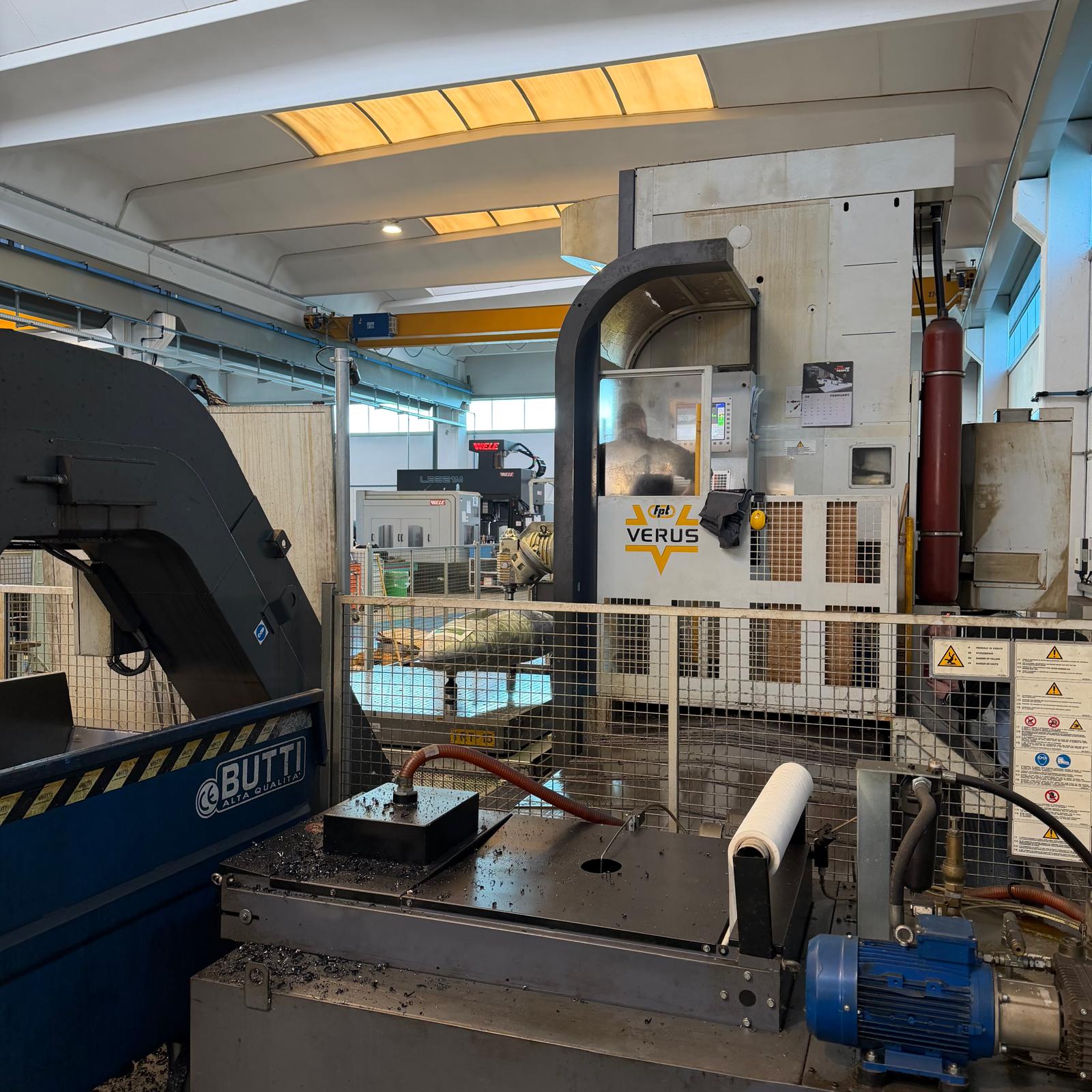

Chip conveyor with right-side discharge
Remote control panel
Table mm. : 2000x2000
X,Y,Z Travels : 6000x1250x2000
ISO :
Tools : 40
Spindle speed : 5000
Motor power : 34
