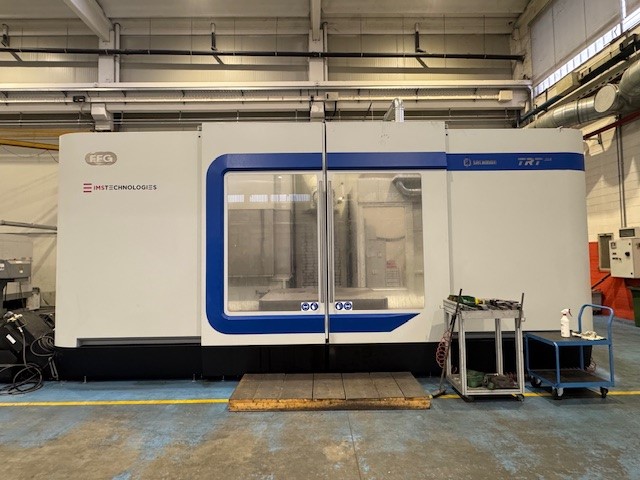

Type: Milling machine Moving column
Brand: JOBS
Model: SACHMAN TRT3 I4HS
Year: 2022

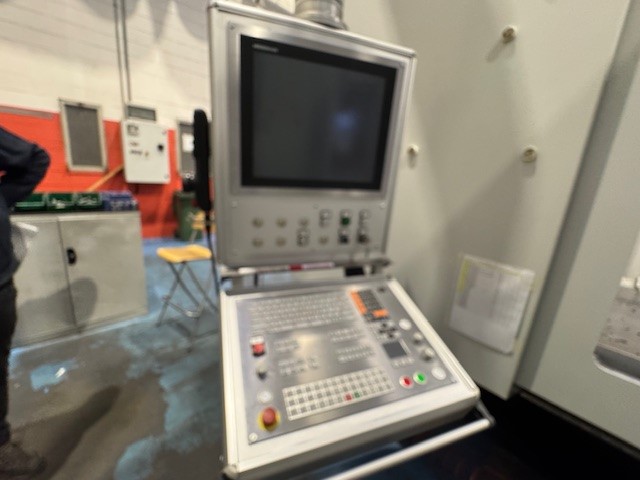

C.N.C: HEINDENHAIN TNC640 HSCI
Specifications

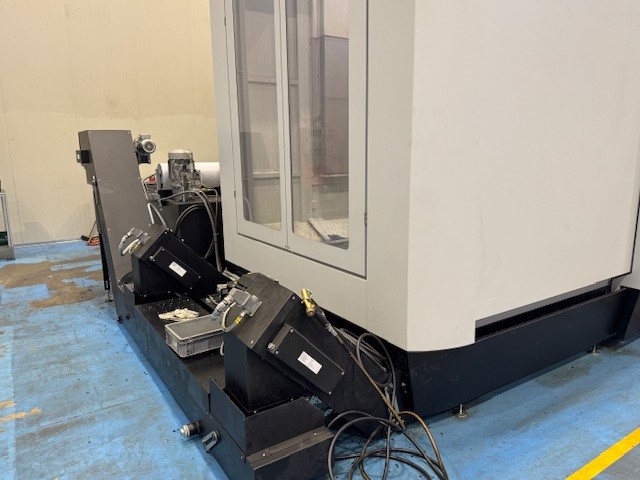

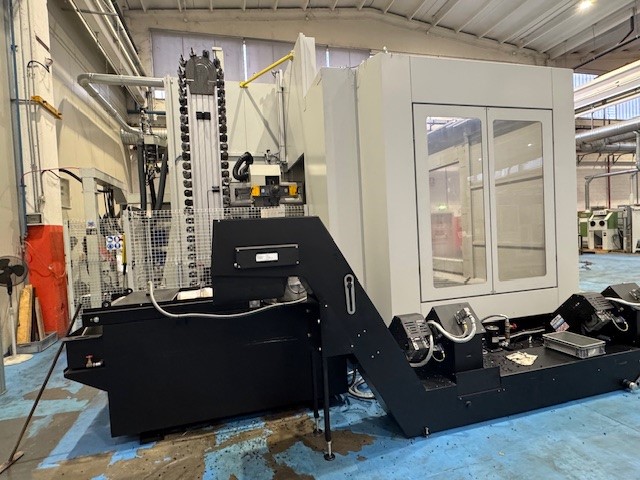

Complete with accessories for setup and tooling, 40-bar coolant system, Two belt-type chip conveyors, Spindle air blow, Fixed Blum laser presetting station, Renishaw RMP60 probe, 3D model, Fully enclosed guarding on all four sides with sliding doors.

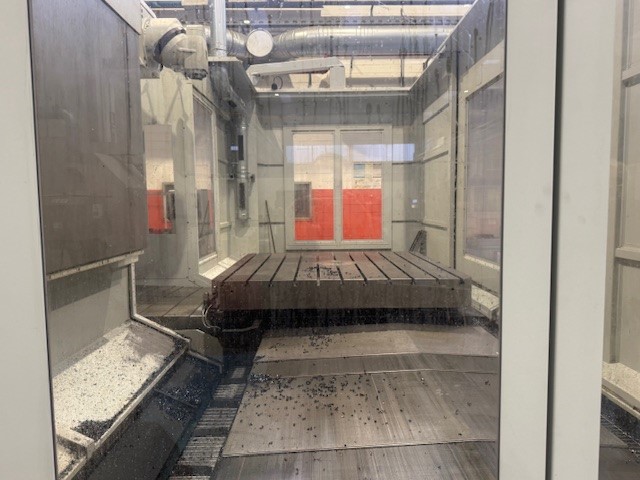

Table
Turning capacity
Head
Specific properties
X-Axis Travel:
T-slots 22h8 (Central slot 22H7)
Maximum thrust on the axis: 2200 kg
Rapid feed rate: 24 m/min
Ball screw with preloaded nut Ø 80, pitch 20
Measuring system: Heidenhain linear scale
Y-Axis (Transversal) 1600 mm:
Rapid feed rate: 24 m/min
Maximum thrust on the axis: 1300 kg
Ball screw with preloaded nut Ø 63, pitch 20
Z-Axis:
Travel: 2000 mm
Rapid feed rate: 24 m/min
Maximum thrust on the axis: 1600 kg
Ball screw with preloaded nut Ø 50, pitch 20

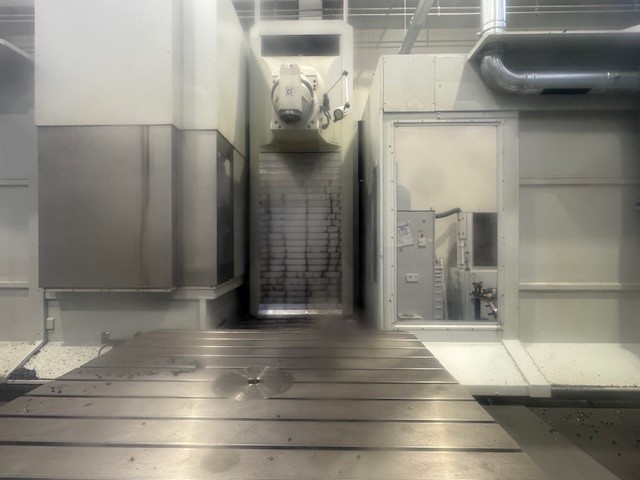

KOSMO3 Head (Bi-centesimal Indexing):
Universal head allowing positioning at any angular position
Enables positioning on both rotation planes with a resolution of 0.02° using a double Hirth coupling
Software-assisted calculation for programming values on two planes to achieve desired angles
Spindle:
ISO 50 Big Plus taper
Maximum speed: 5000 rpm
Torque: 850 Nm

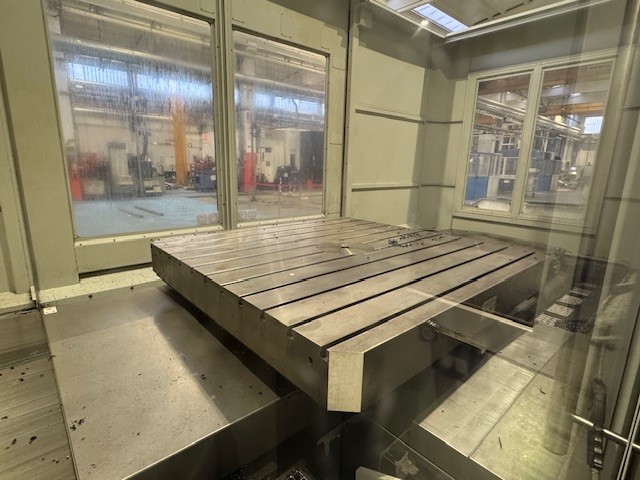

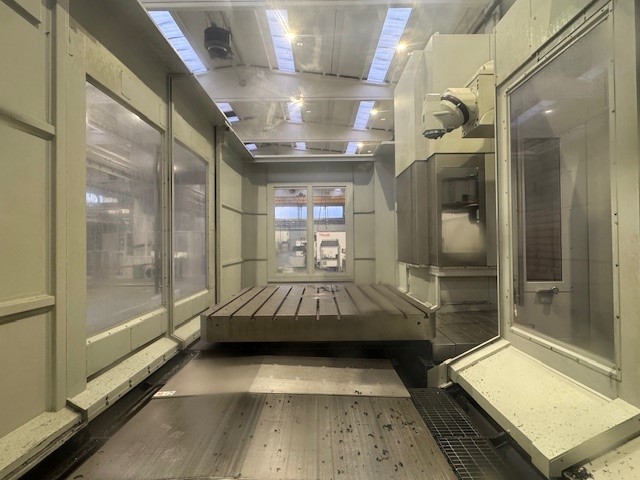

Table mm. : 1950x2000
X,Y,Z Travels : 3500x1600x2000
ISO : 50

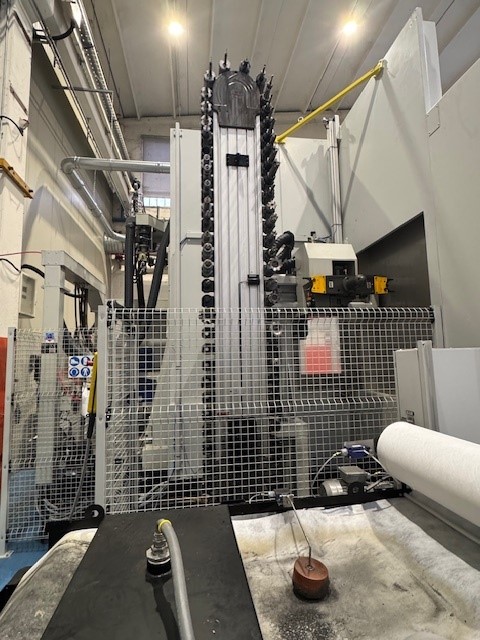

Tools : 60
Spindle speed : 5000
Motor power : 43
