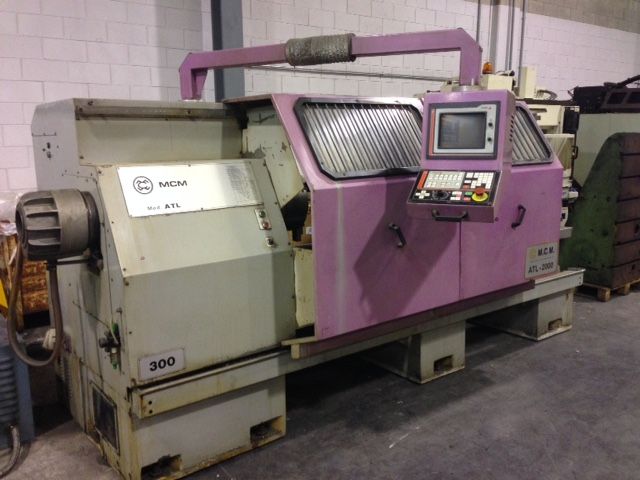

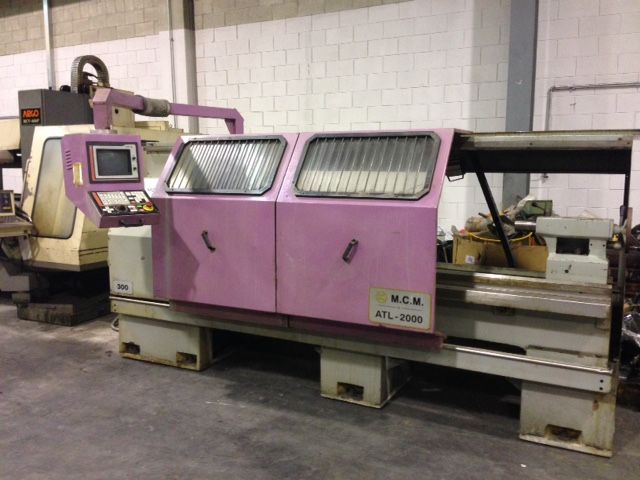

MCM
MADAR ATL 300X2000
Sold
Type: Tech-in lathe Parallel teach in lathe
Brand: MCM
Model: MADAR ATL 300X2000
Year: 1996
C.N.C: FAGOR 800 T
Technical information
Specifications
With hydraulic chuck diam. 315 mm, automatic turrett with 8 positions, bar capacity 105 mm.
Machining capacitiy
- Centre heigths: 300 mm
- Centre distance: 2000 mm
Spindle
- Spindle nose: 8 ISO
- Spindle bore diameter: 105 mm
- Spindle speed: 2000 giri/min
- Motor power: 15 Kw
Turrett
- Turret type: VDI 40
- Tools holder: 8 nr.
Centre heigths : 300 mm
Centre distance : 2000 mm
Rpm : 2000
Motor power : 15 kw
Spindle nose : 8 ISO
Spindle bore diameter : 105 mm
