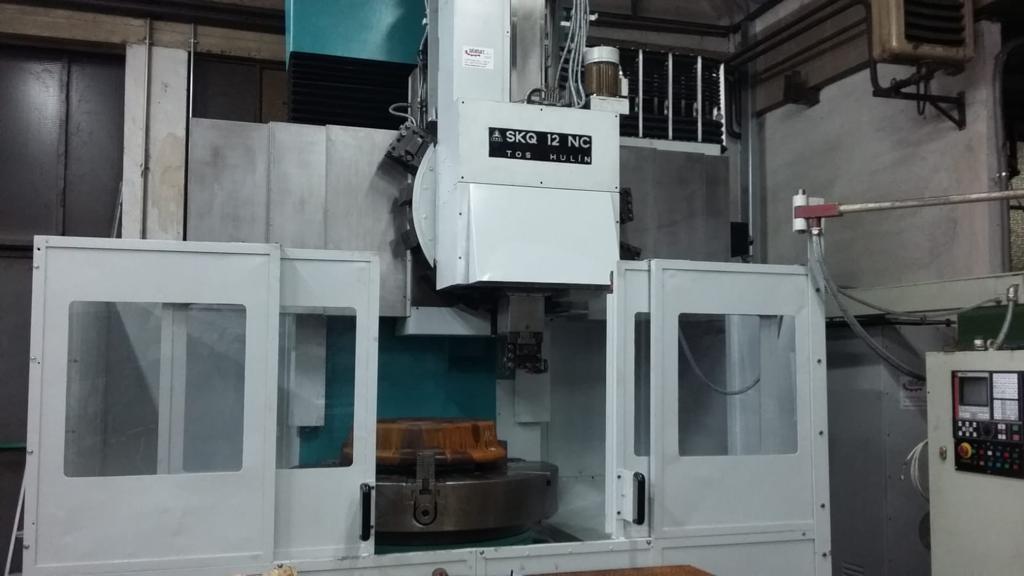

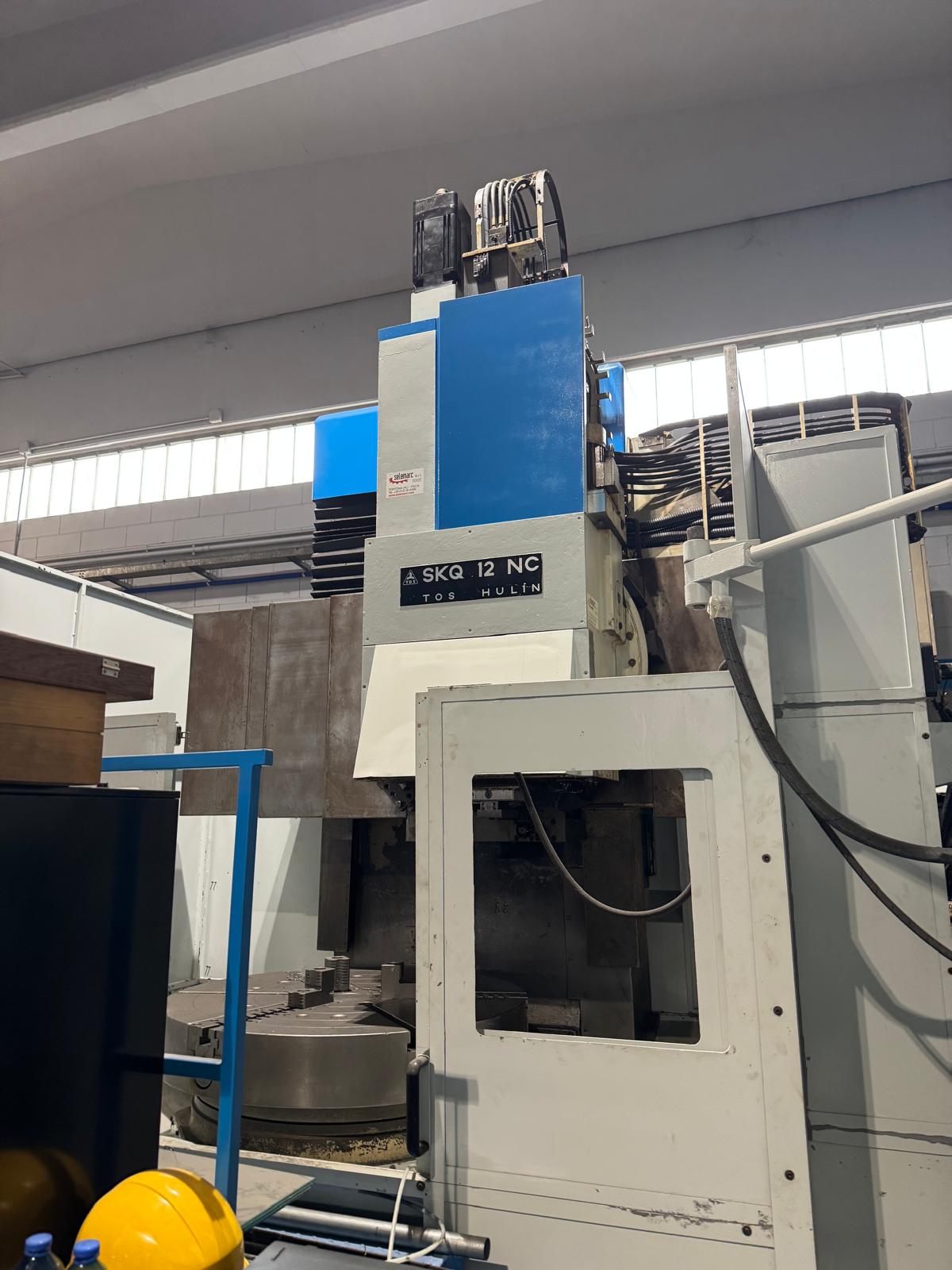

TOS
SKQ 12 NC

Type: Vertical lathe/Turning mill Single-spindle

Brand: TOS

Model: SKQ 12 NC

Year: Retrofit 2017

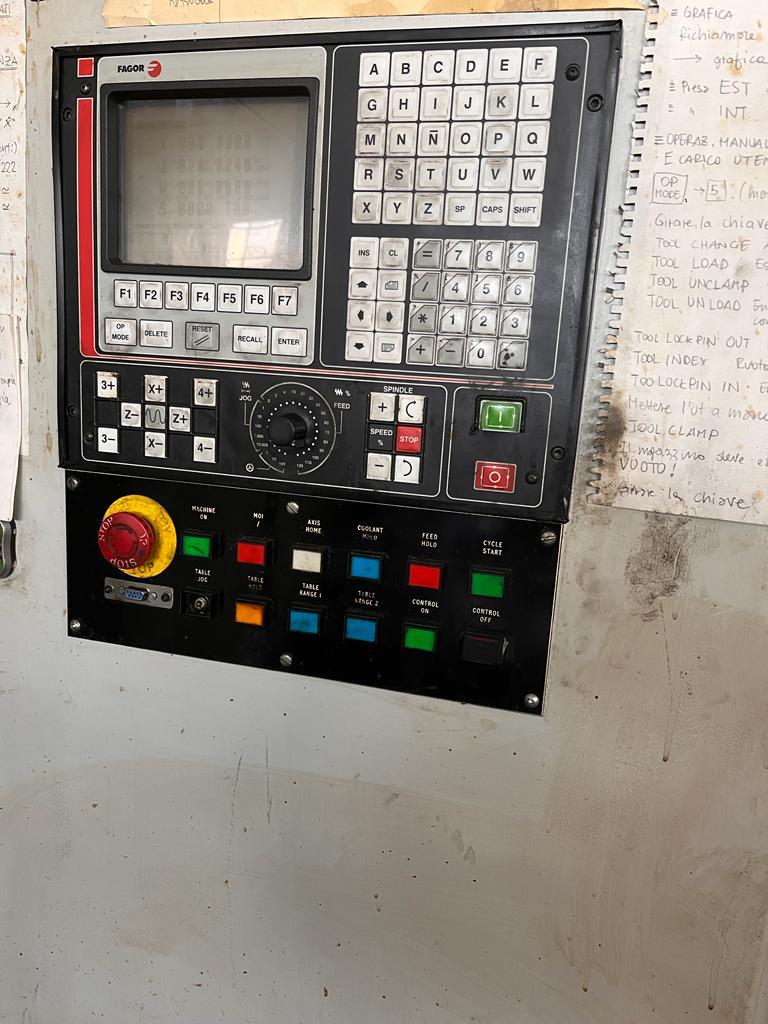

C.N.C: FAGOR 8025 T, TS

Technical information

Specifications

With chip conveyor, 15 toolholders, electric cabinet, hydraulic power unit, 11 levelling feets, cabin protection.

Machine retrofitted in 2017.

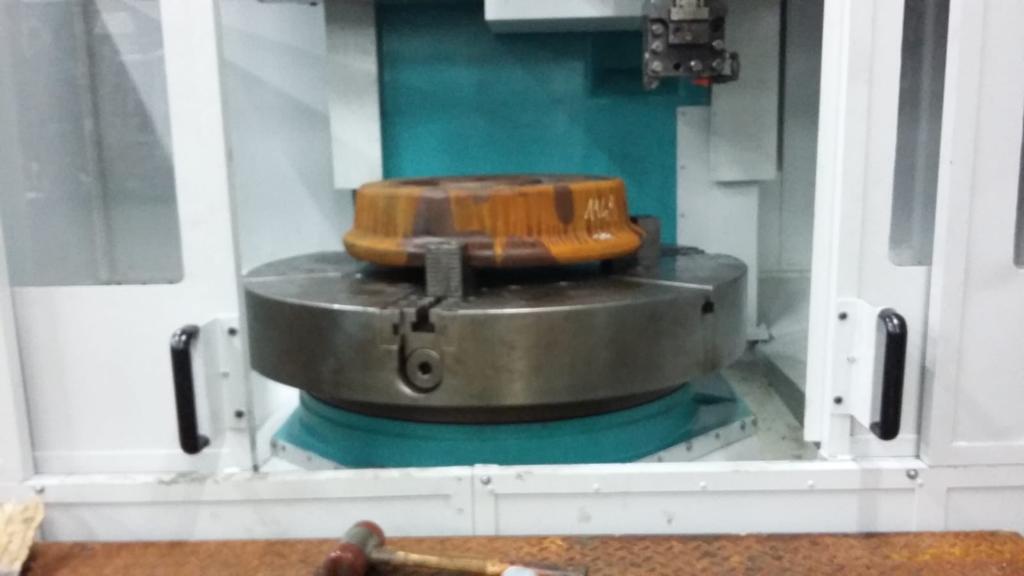

Hydraulic chuck 1250 mm

Turning diameter 1500 mm

Max piece heigth 1335 mm

Max loas capacity 12 ton

RAM Stroke 1000 mm

RAM section 180 x 200 mm

Vertical travel of the cross 800 mm

Spindle motor power 40 kw

Spindle speed 400 rpm

2 ranges

15 positions toolholders

Chuck diameter :

Turning Ø :

Turning height :

Tools holder :

Spindle speed :

Motor power :
