Home Used Vertical machining center AWEA BM-1600

AWEA
BM-1600

Type: Vertical machining center Vertical

Brand: AWEA

Model: BM-1600

Year: 10-2006

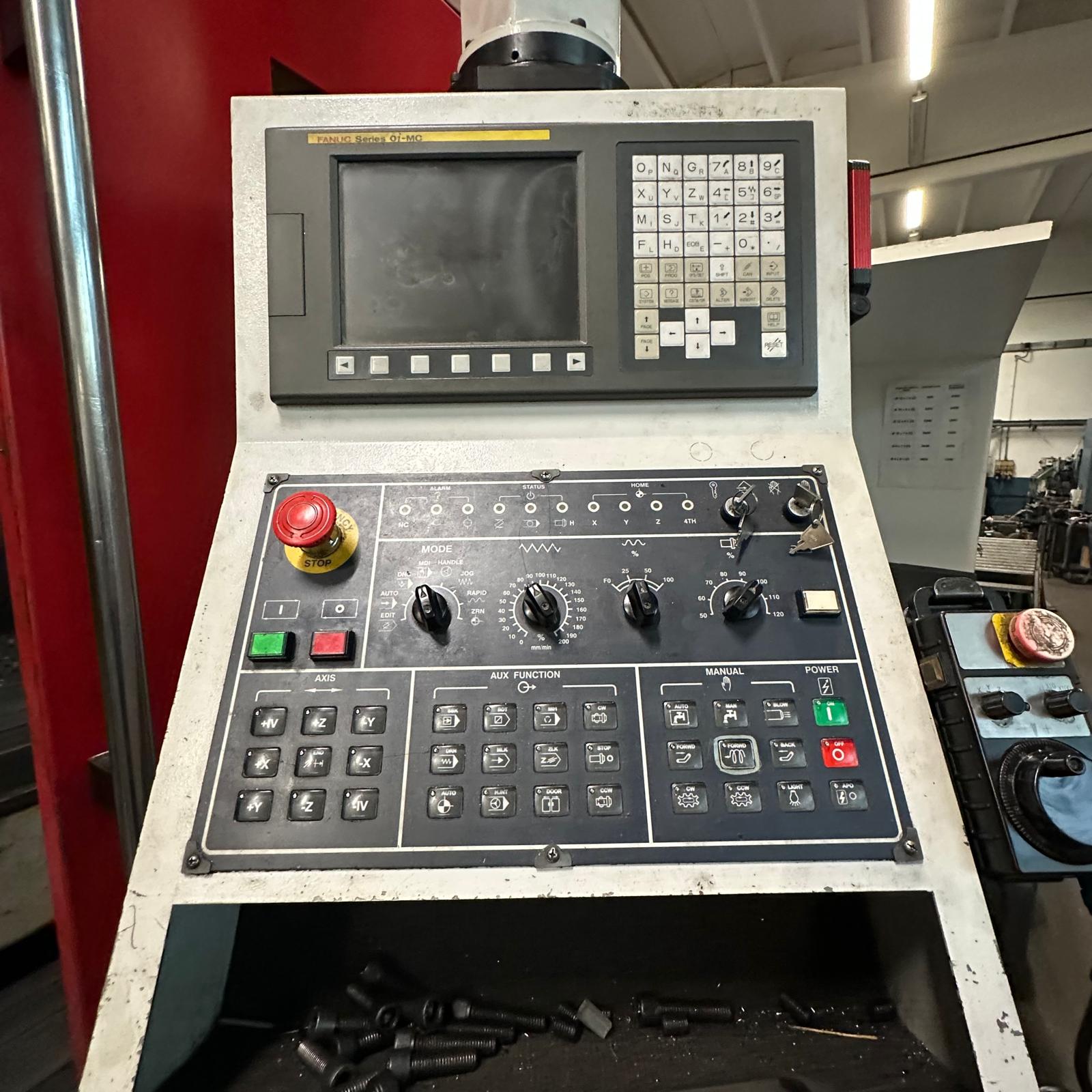

C.N.C: Fanuc 0iMC

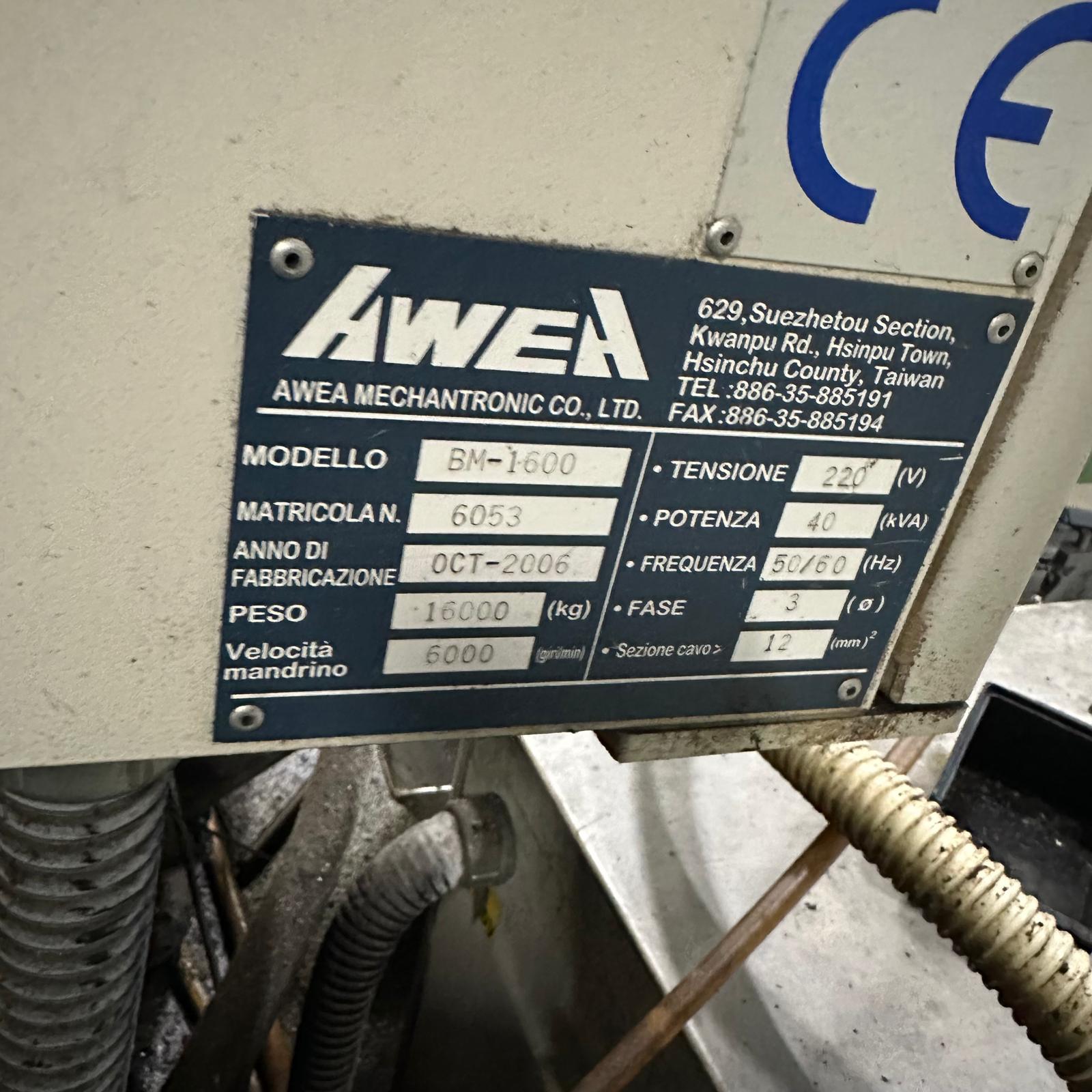

Serial number: 6053

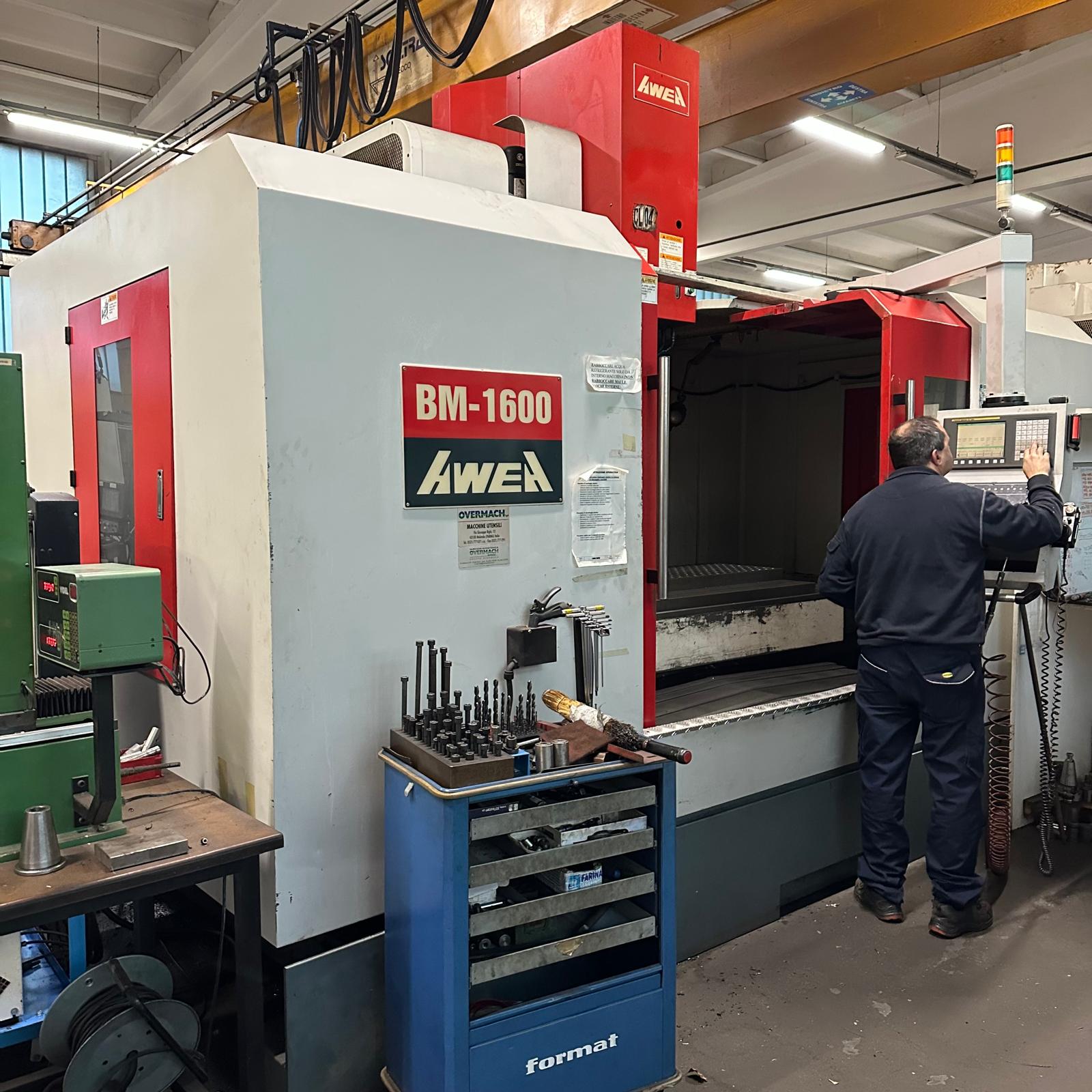

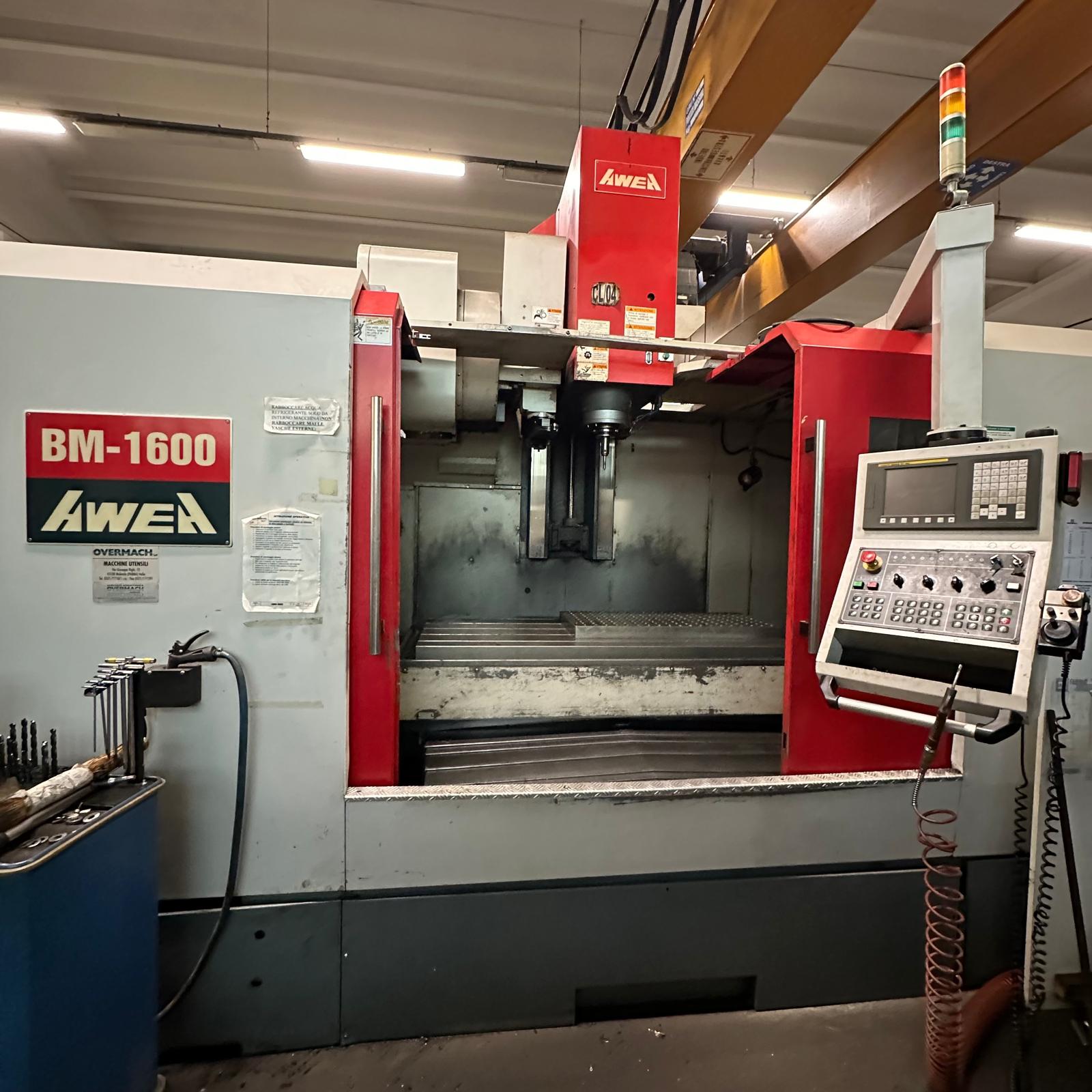

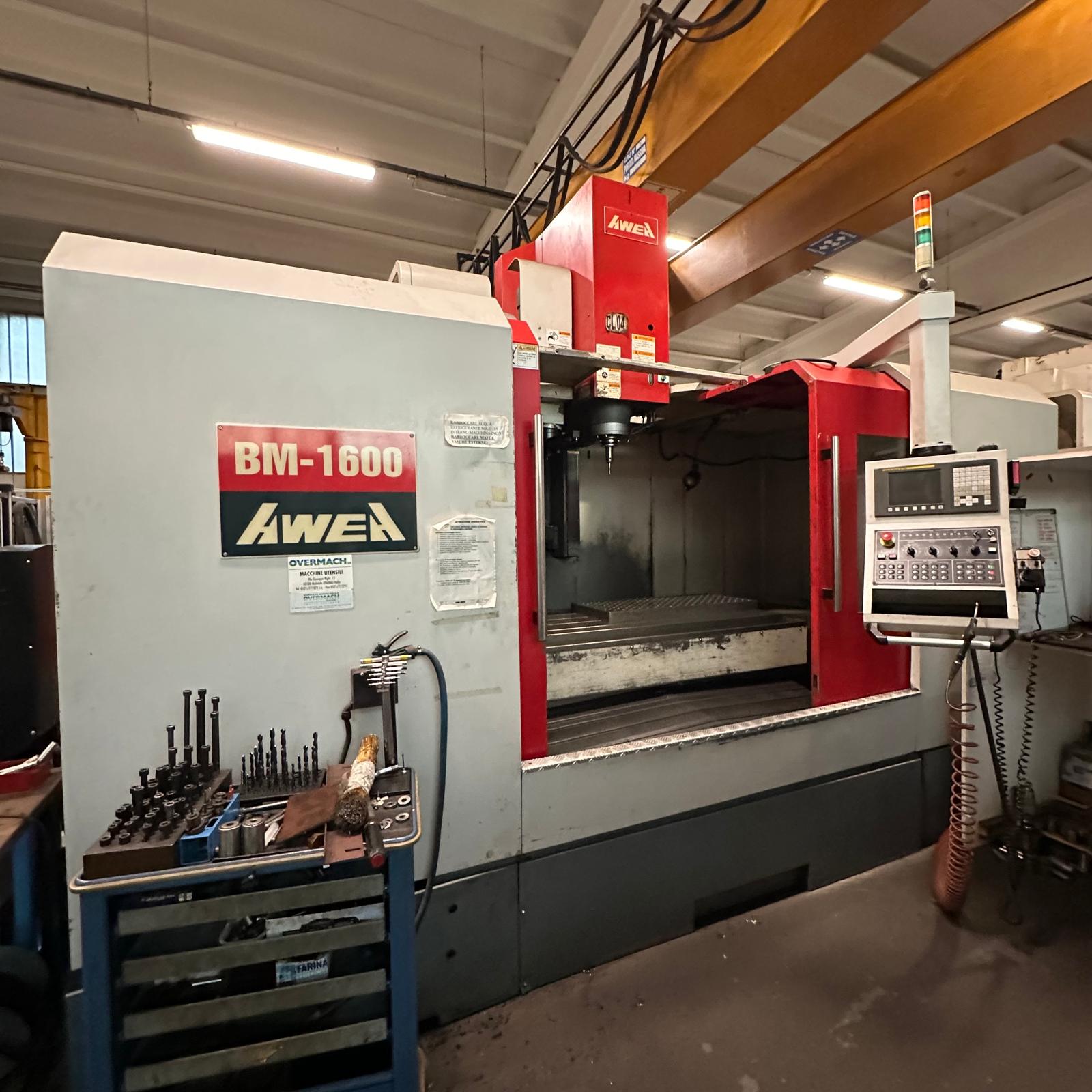

Vertical machining center AWEA BM-1600
Vertical machining center AWEA BM-1600
Vertical machining center AWEA BM-1600
Vertical machining center AWEA BM-1600
Vertical machining center AWEA BM-1600
Vertical machining center AWEA BM-1600
Vertical machining center AWEA BM-1600
Vertical machining center AWEA BM-1600
Vertical machining center AWEA BM-1600
Vertical machining center AWEA BM-1600

Technical information

Specifications

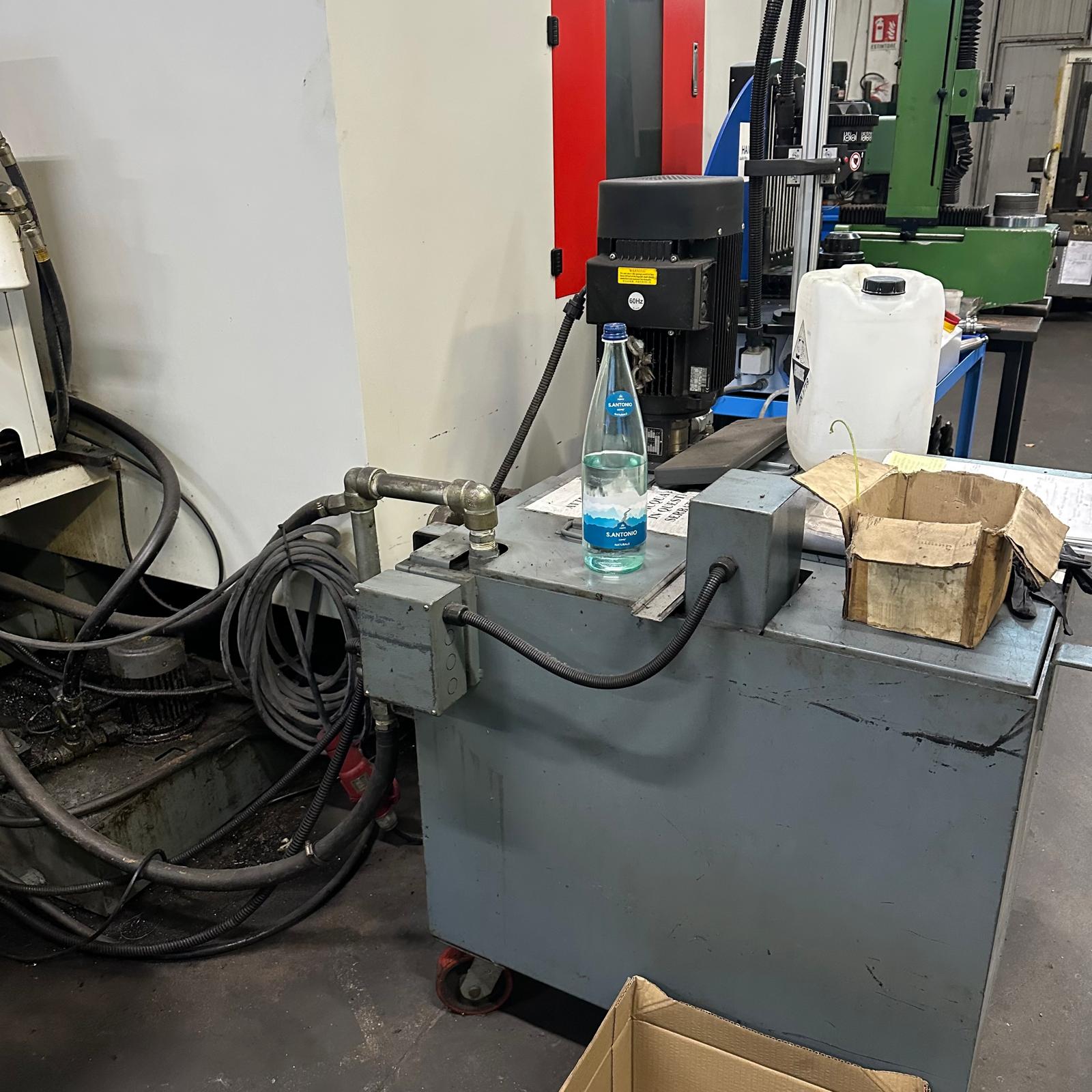

With chip conveyor, high pressure pump, tool holders.



Table

  • Table dimensions: 2000x800 mm

Capacity

  • Longitudinal X-travel: 1600 mm
  • Cross Y-travel: 800 mm
  • Vertical Z-travel: 800 mm

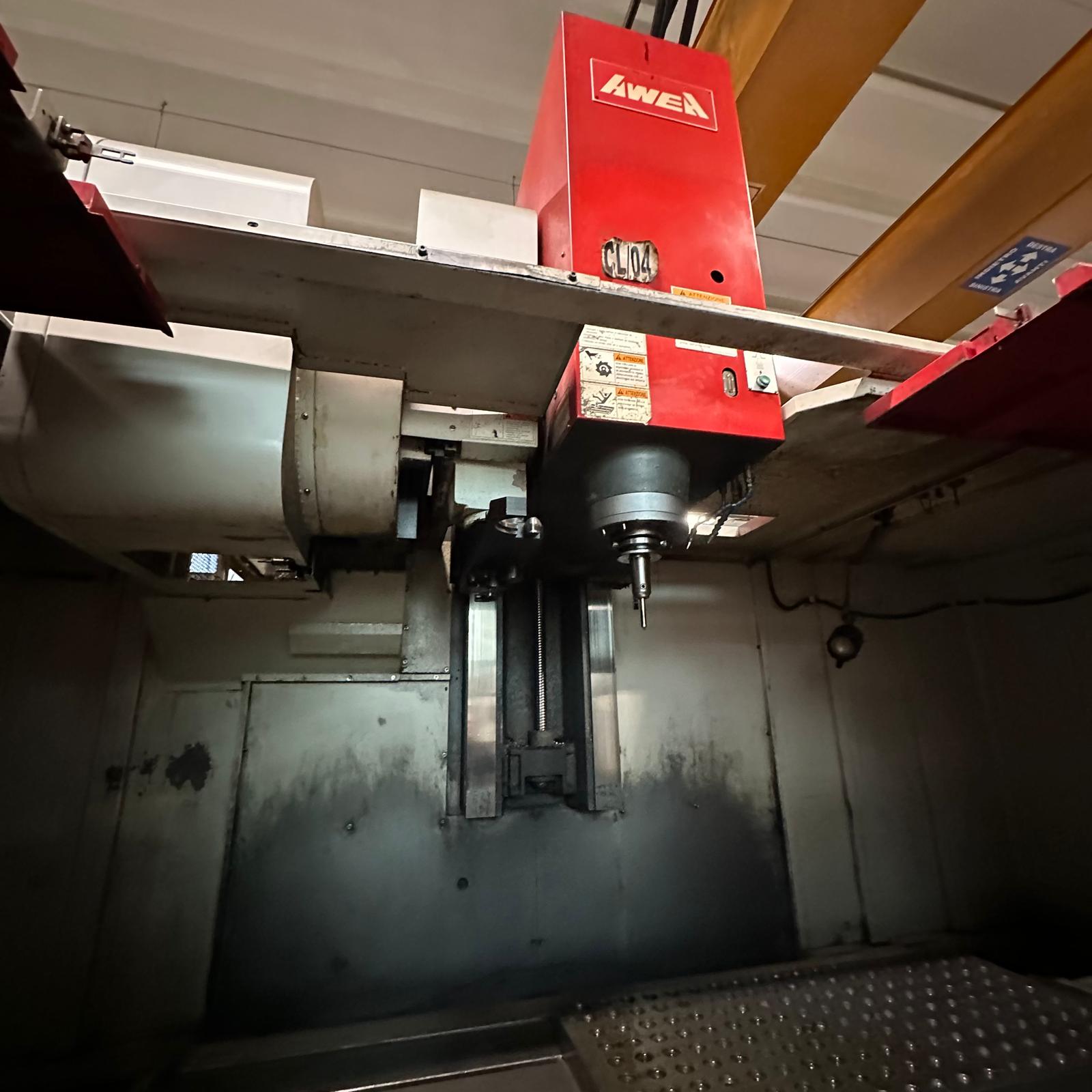

Spindle

  • Spindle nose: 50 ISO
  • Spindle speed: 30-6000 rpm.
  • Motor power: 15/18 Kw

Advances

  • Rapid X,Y,Z axis: 20,20,18 mm/min

Tool Warehouse

  • Tool Stations: 30 no.

Specific properties

Distance spindle nose- table: 200-1000 mm

Distance spindle center – column 820 mm

2 gear range speed

Ø Max tool space occupied 125 mm

Max tool length 350 mm

Max tool weigth 15 kg

Machine weigth 16.000 kg

Table mm. : 2000x800

X,Y,Z strokes mm. : 1600x800x800

RPM : 6000

Power Kw : 15/18

ISO : 50

Tools : 30
