Home Used Vertical machining center DART VMC 1000A TWIN SPEED

DART
VMC 1000A TWIN SPEED

Sold

Type: Vertical machining center Vertical

Brand: DART

Model: VMC 1000A TWIN SPEED

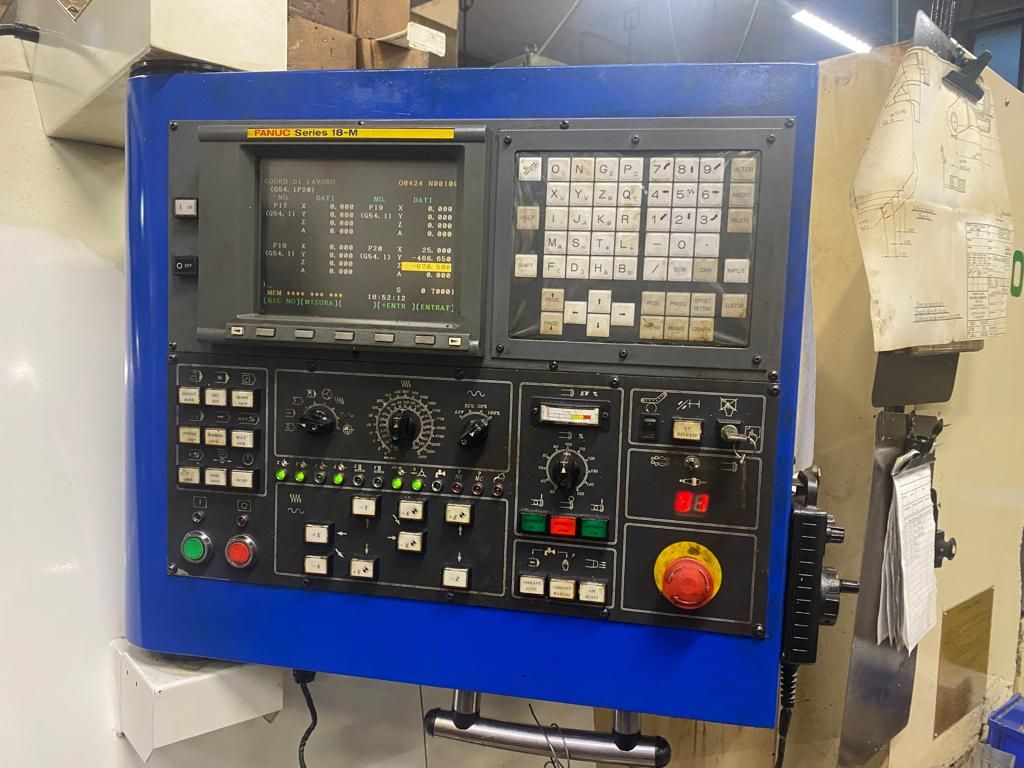

C.N.C: Fanuc 18M

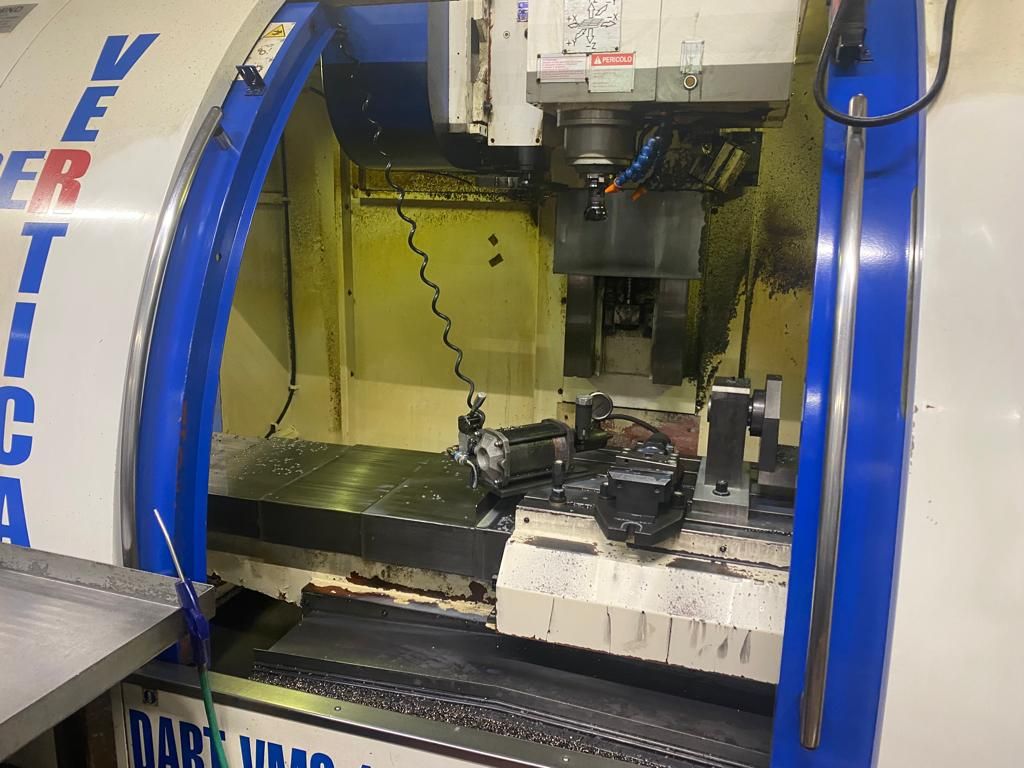

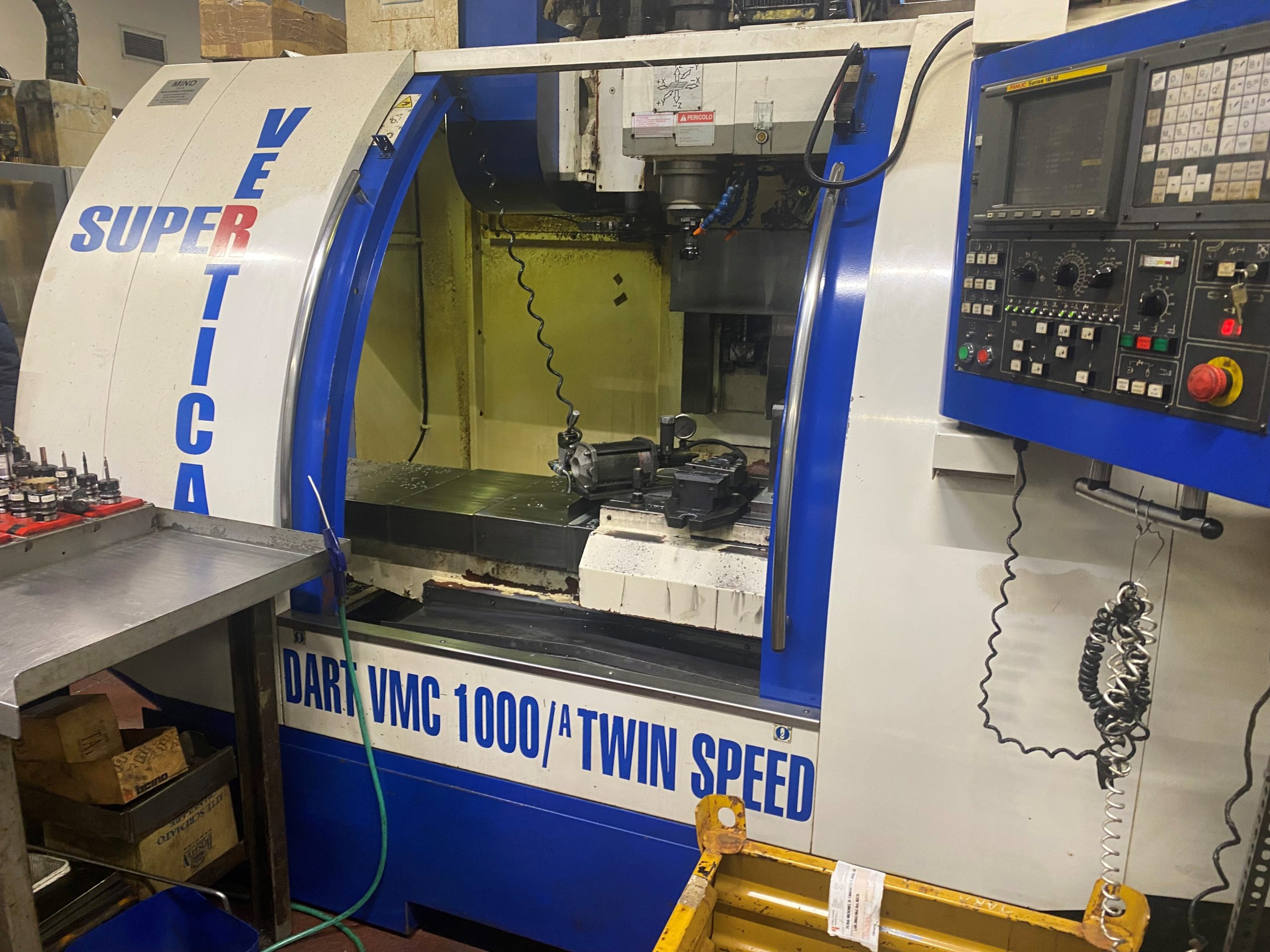

Vertical machining center DART VMC 1000A TWIN SPEED
Vertical machining center DART VMC 1000A TWIN SPEED
Vertical machining center DART VMC 1000A TWIN SPEED

Technical information

Table

  • Table dimensions: 1220x500 mm
  • Max weight allowed: 1500 kg

Capacity

  • Longitudinal X-travel: 1050 mm
  • Cross Y-travel: 539 mm
  • Vertical Z-travel: 640 mm

Spindle

  • Spindle nose: 40 ISO
  • Spindle speed: 8000 rpm.
  • Motor power: 7,5-11 Kw

Tool Warehouse

  • Tool Stations: 24 no.

Table mm. : 1220x500

X,Y,Z strokes mm. : 1050x530x640

RPM : 8000

Power Kw : 7,5-11

ISO : 40

Tools : 24
