Home Used Vertical machining center KENT BKV20-42

KENT
BKV20-42

Type: Vertical machining center Gantry

Brand: KENT

Model: BKV20-42

Year: 2015

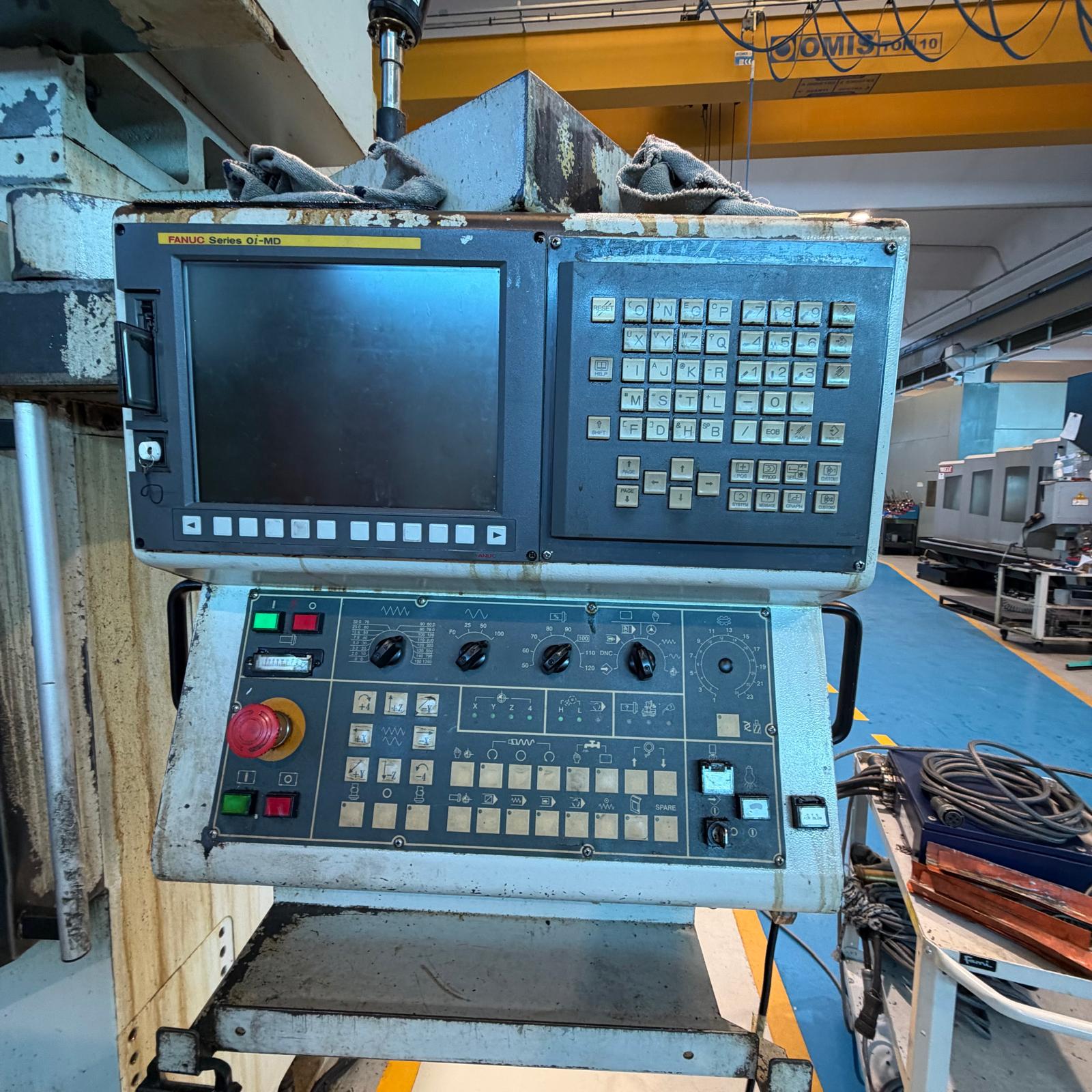

C.N.C: Fanuc 0iMD

Serial number: 2667031

Watch the video

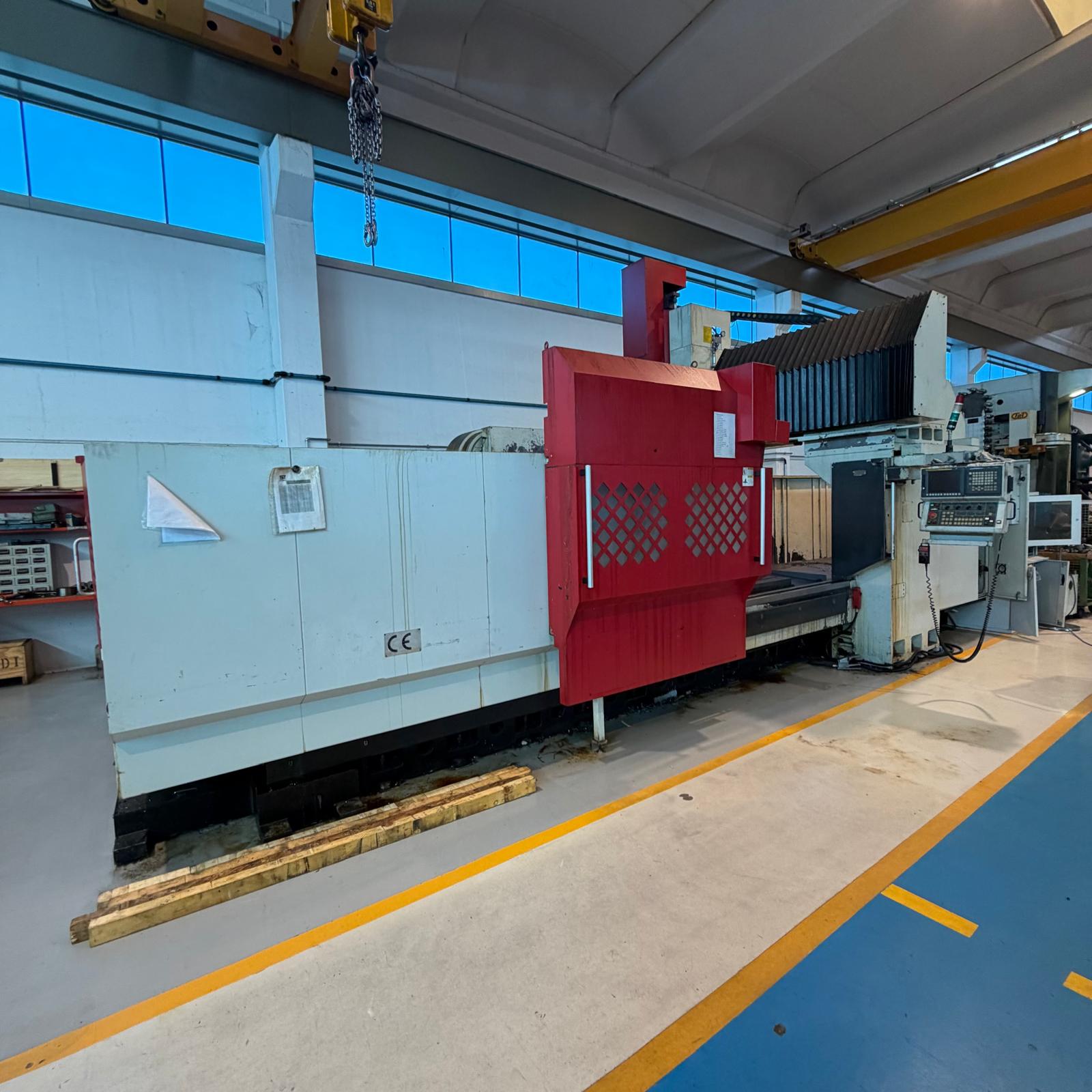

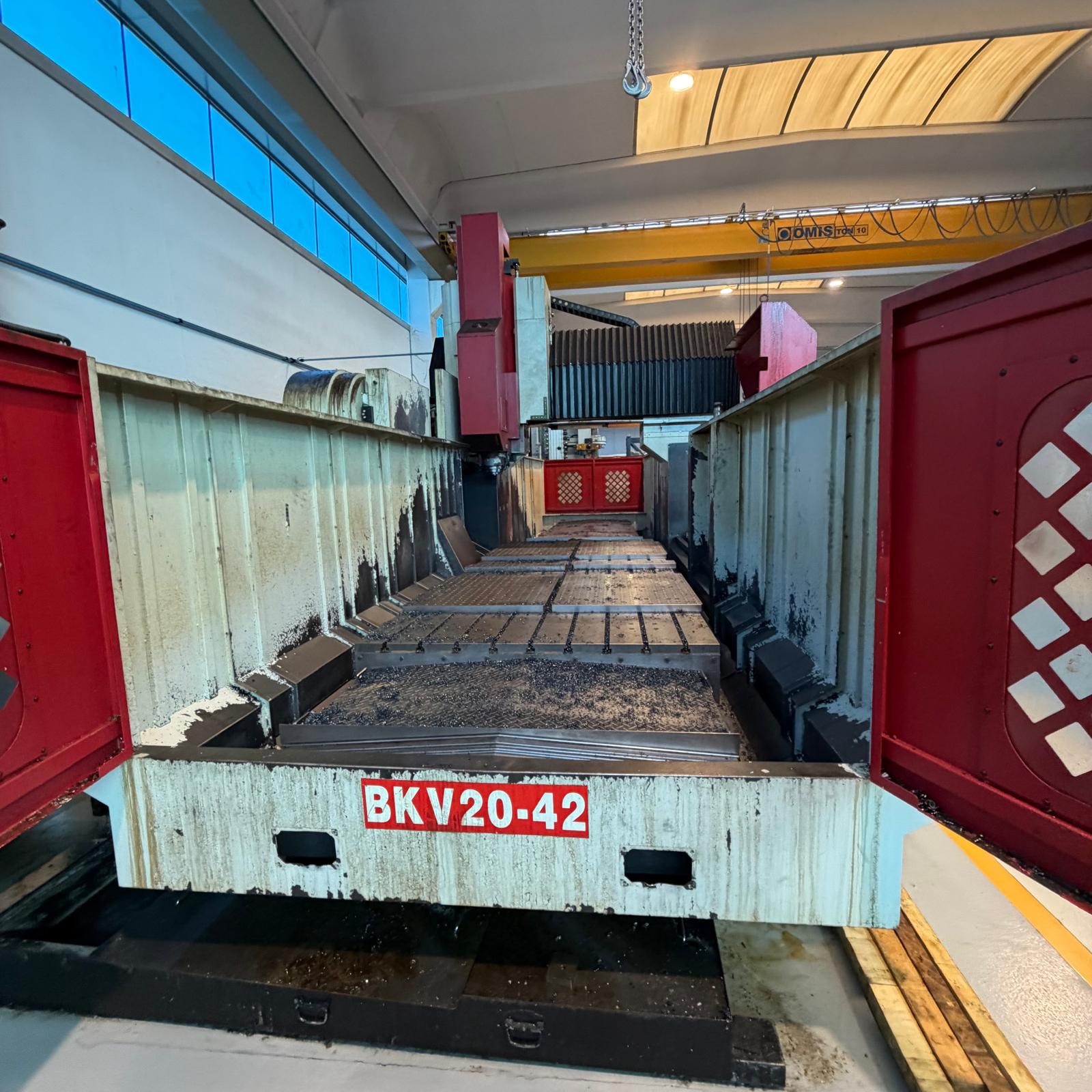

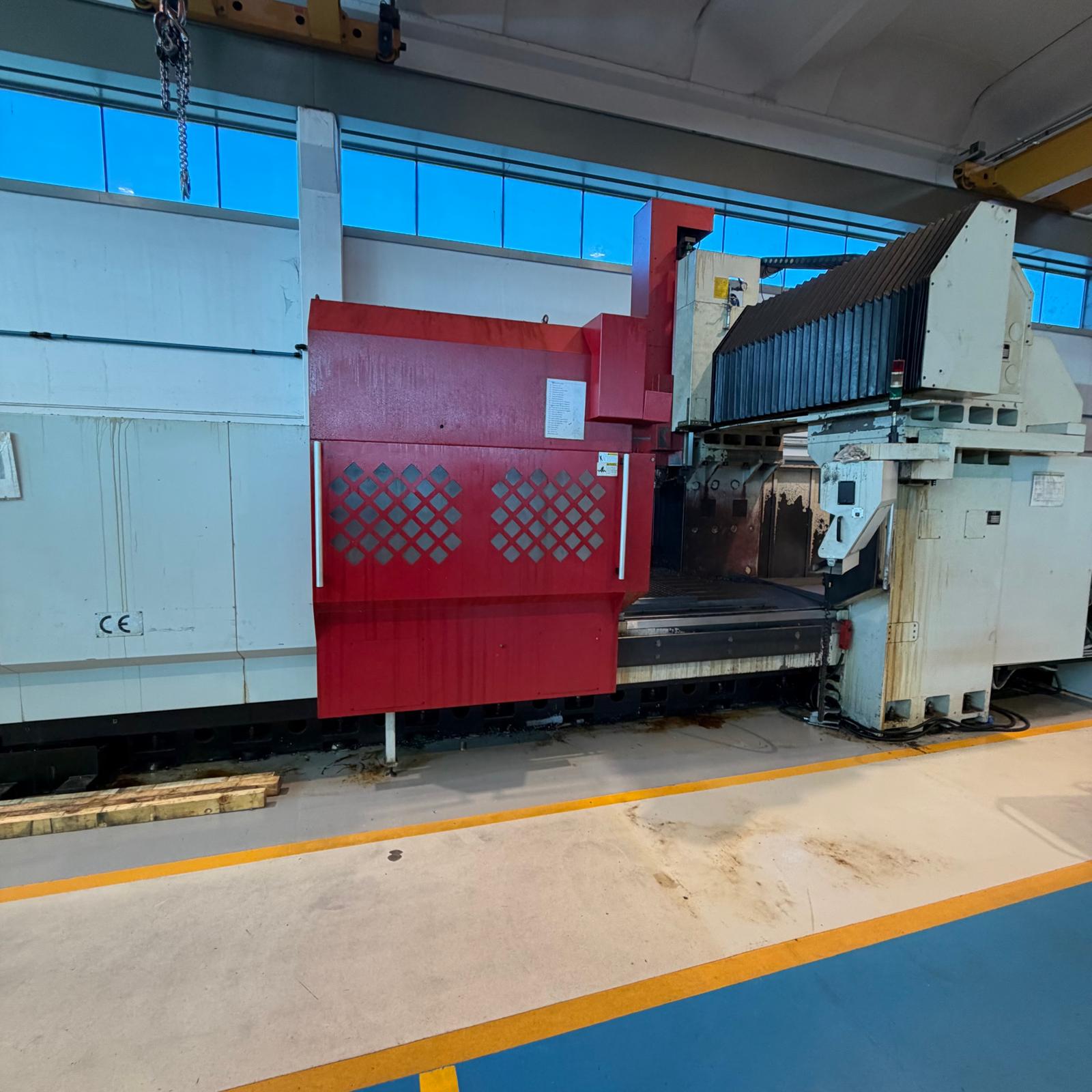

Vertical machining center KENT BKV20-42
Vertical machining center KENT BKV20-42
Vertical machining center KENT BKV20-42
Vertical machining center KENT BKV20-42
Vertical machining center KENT BKV20-42
Vertical machining center KENT BKV20-42
Vertical machining center KENT BKV20-42

Technical information

Specifications

Column rise: 200 mm



Table

  • Table dimensions: 4200x1650 mm
  • T-slot/pitch size: 22x9x170 mm
  • Max weight allowed: 9000 kg

Capacity

  • Longitudinal X-travel: 4200 mm
  • Cross Y-travel: 2000 mm
  • Vertical Z-travel: 900 mm

Spindle

  • Spindle nose: BT50 ISO
  • Spindle speed: 30-4500 rpm.
  • Motor power: 18.5-22 Kw

Advances

  • Rapid X,Y,Z axis: 10000/12000/12000 mm/min

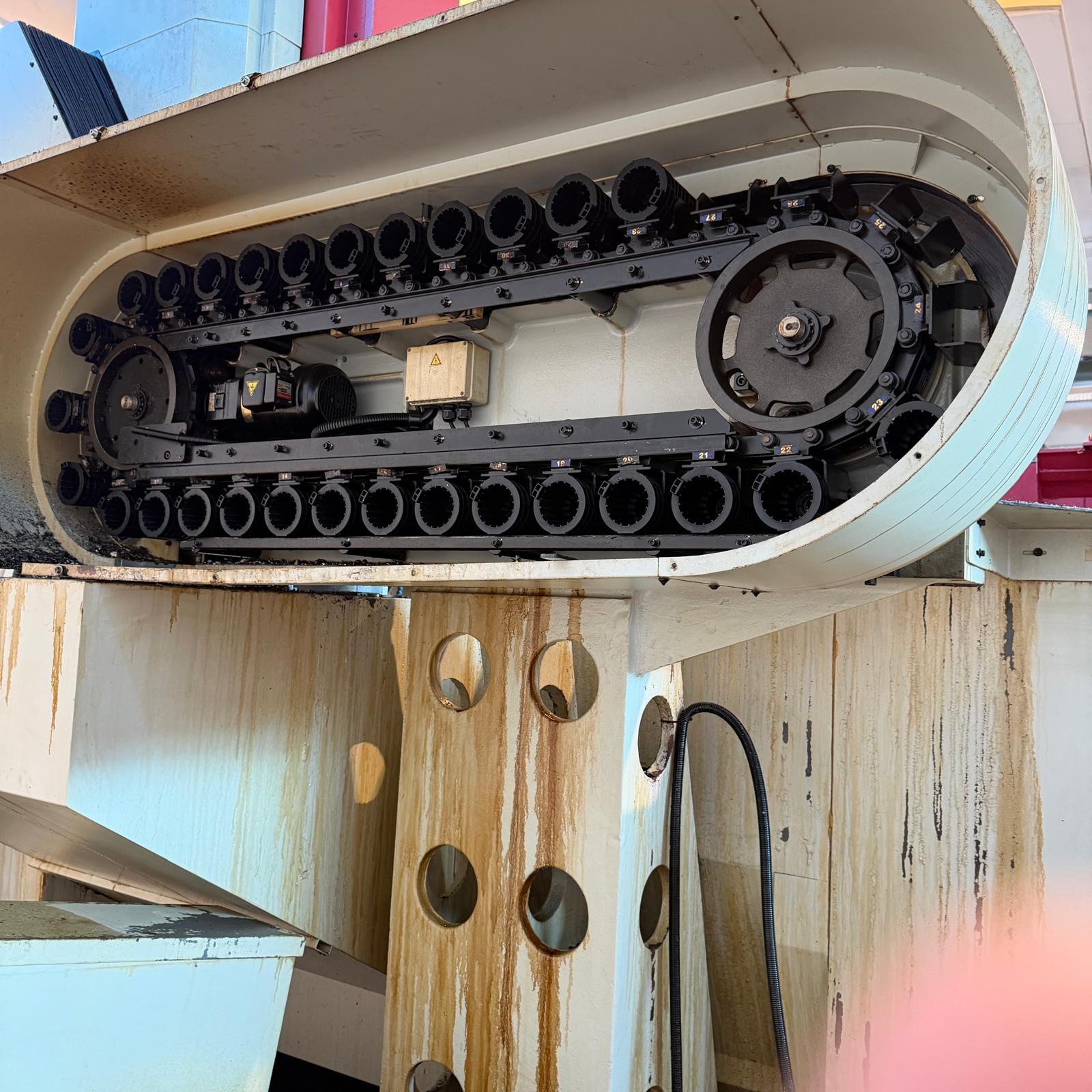

Tool Warehouse

  • Tool Stations: 32 no.

Specific properties

Distance between colums: 2000 mm

Distance from spindle nose to table: 40-940 +200 mm

Increased heigth: 200 mm

Machine dimension: 10.443x4330x4518 mm

Machine weigth: 42.500 kg

Table mm. : 4200x1650

X,Y,Z strokes mm. : 4200x2000x900

RPM : 6000

Power Kw : 18.5/22

ISO : BT50

Tools : 32
