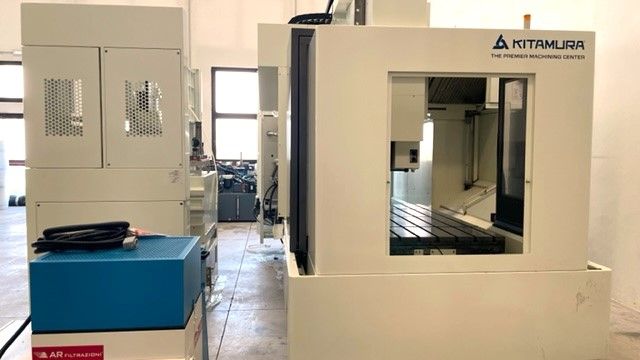

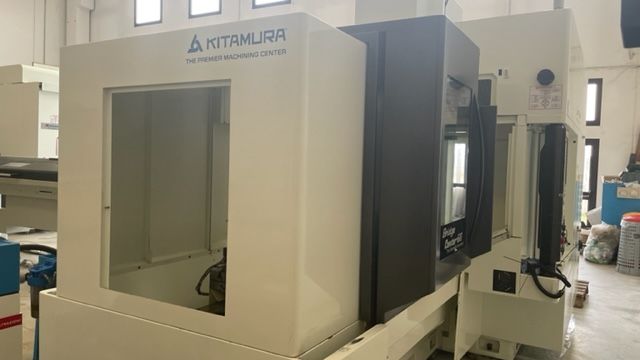

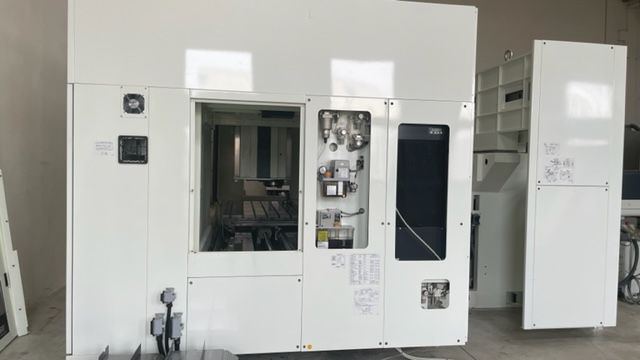

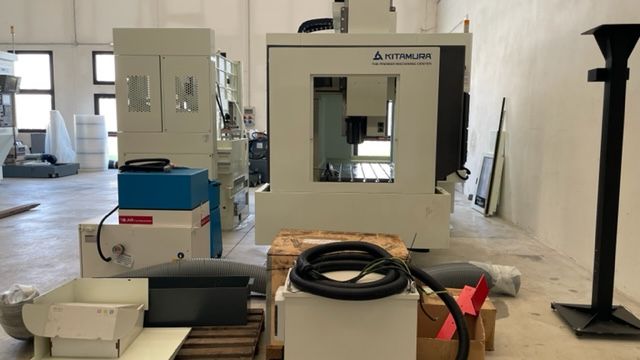

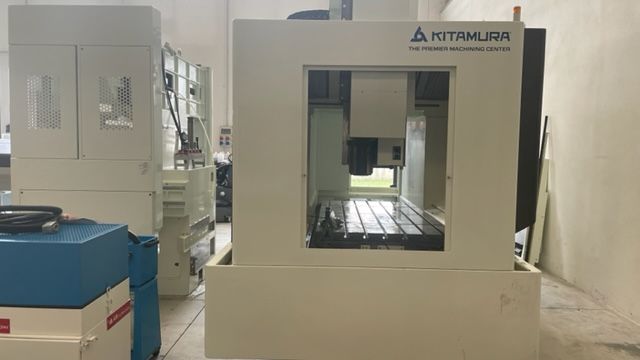

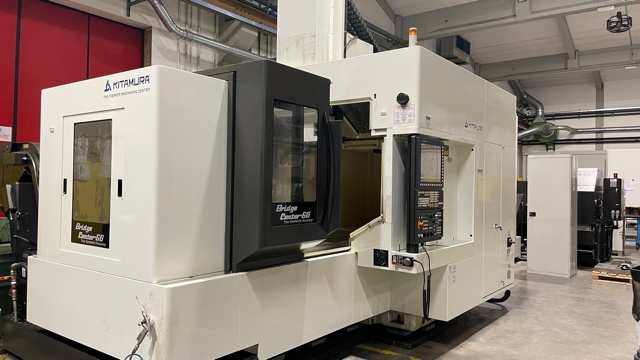

KITAMURA
Bridgecenter 6G
Sold
Type: Vertical machining center Gantry
Brand: KITAMURA
Model: Bridgecenter 6G
Year: 2016

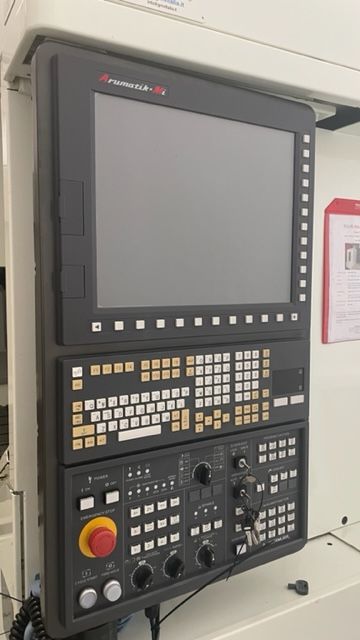

C.N.C: ARUMATIK Mi
Technical information
Table
- Table dimensions: 900x1800 mm
- T slots width/ pitch: 18x7 mm
- Max table load: 3000 kg
Turning capacity
- Longitudinal X-travel: 1530 mm
- Cross Y-travel: 1095 mm
- Vertical Z-travel: 710 mm

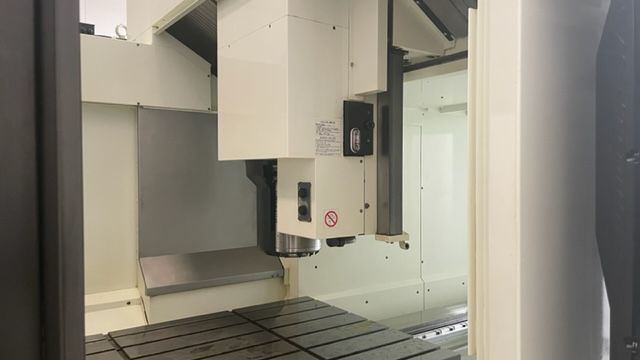

Spindle
- Spindle nose: hsk100 ISO
- Spindle speed: 12000 giri/min.
- Motor power: 40 Kw
Feed rates
- Rapid feedrate axis X,Y,Z: 24000 mm/min

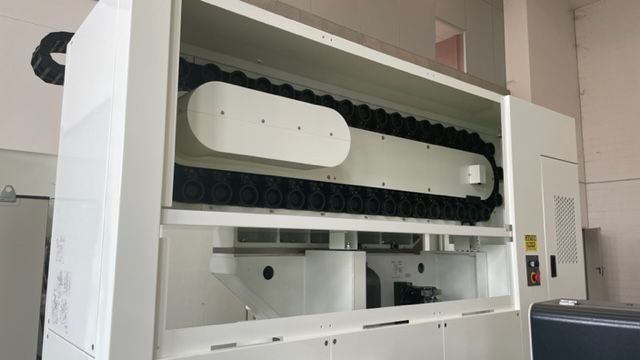

Tool magazine
- Tools holder: 40 nr.
Table mm. : 900x1800
X,Y,Z travels mm. : 1530x1095x710
Rpm : 12000
Motor power Kw : 40
ISO : HSK 100
Tools : 40
