Home Used Vertical machining center MIKRON MILL E 700 U

MIKRON
MILL E 700 U

Type: Vertical machining center 5 axes

Brand: MIKRON

Model: MILL E 700 U

Year: 2022

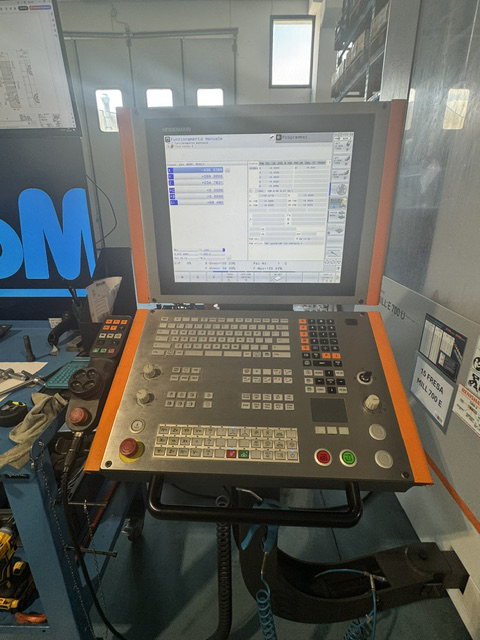

C.N.C: HEIDENHAIN TNC 640

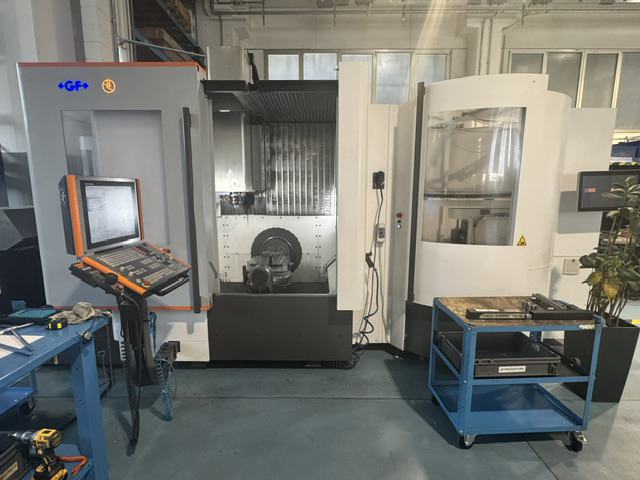

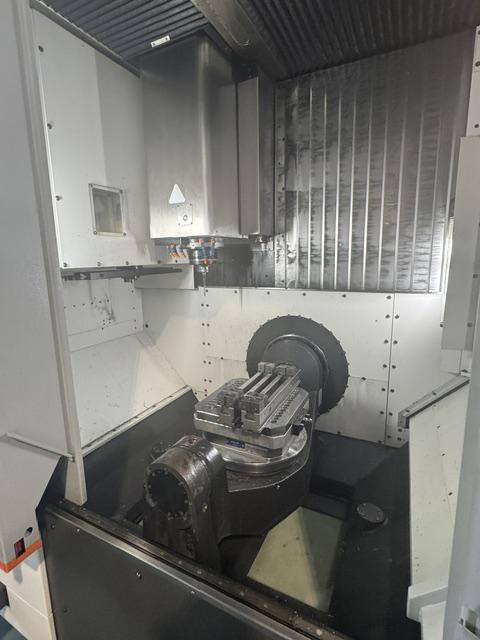

Vertical machining center MIKRON MILL E 700 U
Vertical machining center MIKRON MILL E 700 U
Vertical machining center MIKRON MILL E 700 U
Vertical machining center MIKRON MILL E 700 U
Vertical machining center MIKRON MILL E 700 U
Vertical machining center MIKRON MILL E 700 U
Vertical machining center MIKRON MILL E 700 U
Vertical machining center MIKRON MILL E 700 U
Vertical machining center MIKRON MILL E 700 U

Technical information

Table

  • Table dimensions: Ø 630 mm
  • Max weight allowed: 450 kg

Capacity

  • Longitudinal X-travel: 700 mm
  • Cross Y-travel: 600 mm
  • Vertical Z-travel: 500 mm

Spindle

  • Spindle nose: hsk 63 ISO
  • Spindle speed: 20000 rpm.
  • Motor power: 23/36 Kw

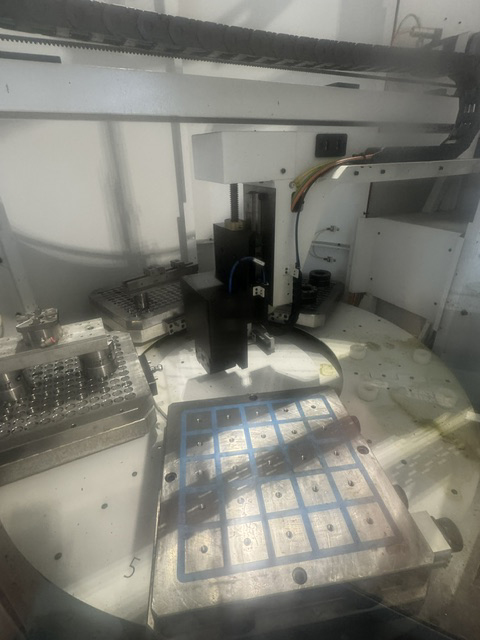

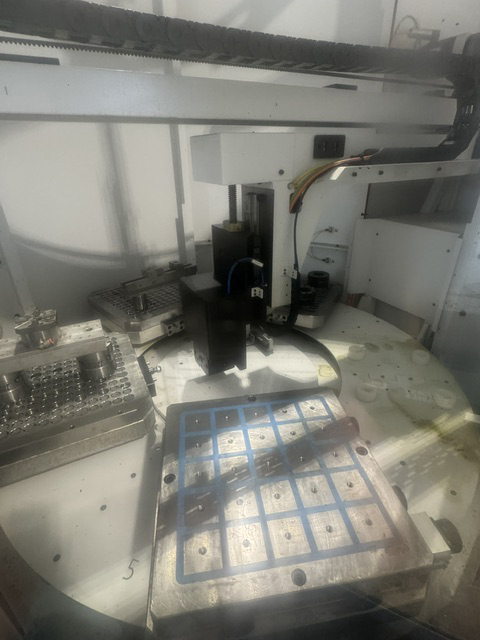

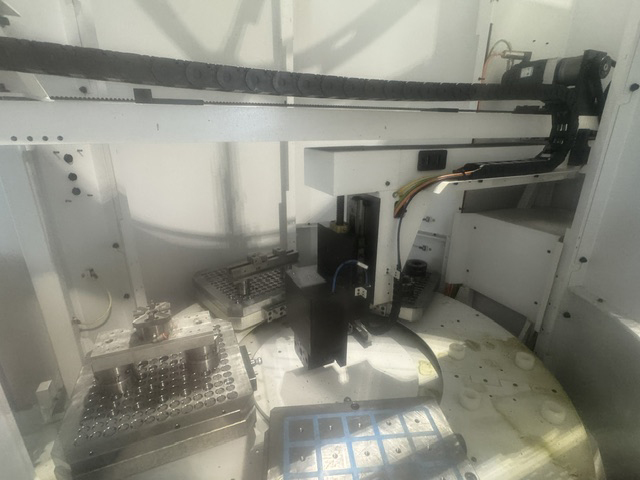

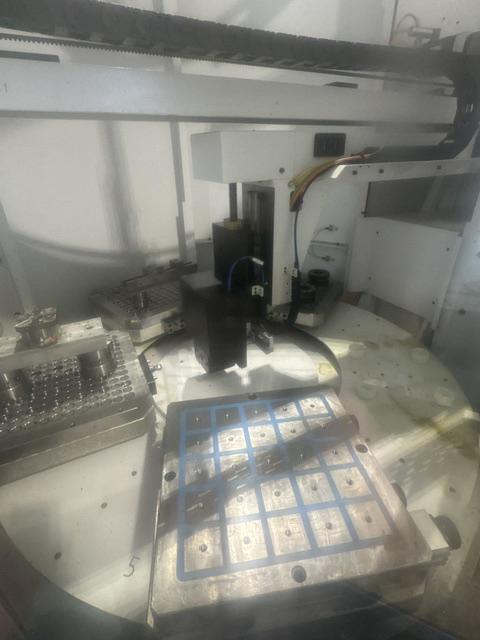

Tool Warehouse

  • Tool Stations: 60 no.

Table mm. : 630

X,Y,Z strokes mm. : 700x600x500

RPM : 20.000

Power Kw :

ISO :

Tools :
