Home Used Vertical machining center NIKKEI VH-1010

NIKKEI
VH-1010

Type: Vertical machining center Vertical

Brand: NIKKEI

Model: VH-1010

Year: 2008

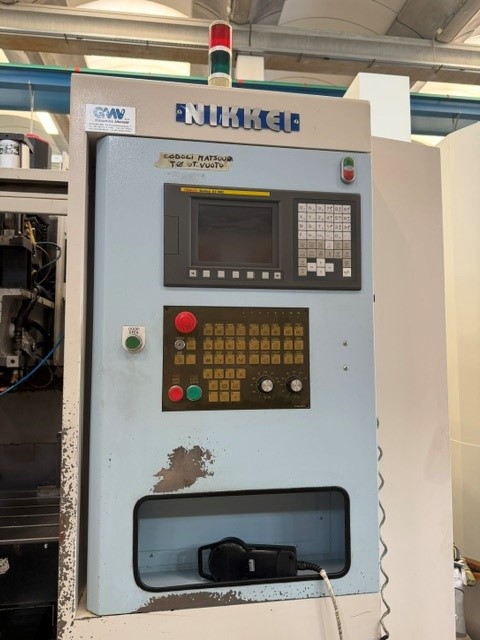

C.N.C: FANUC 0iMD

Serial number: V0707356

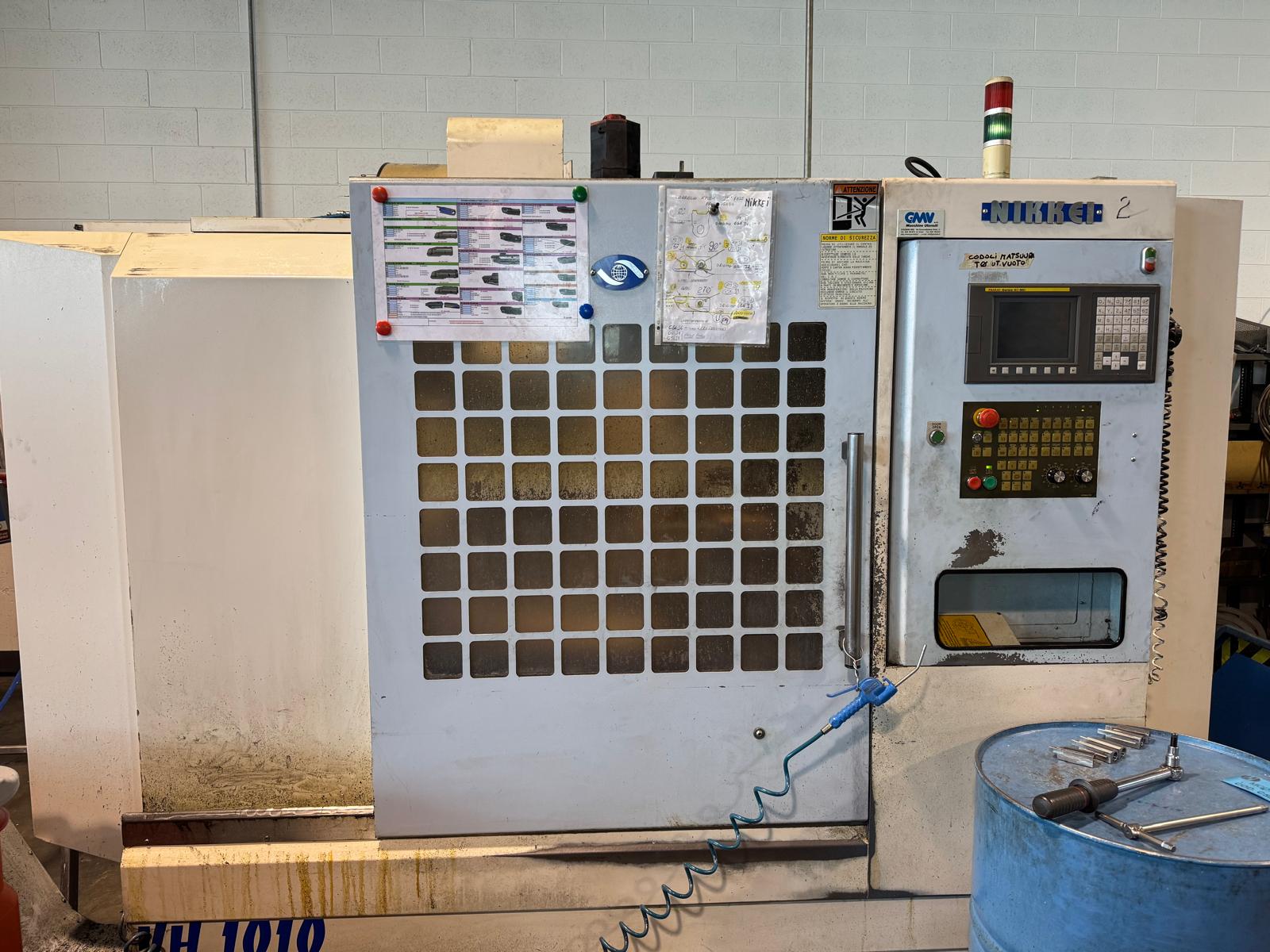

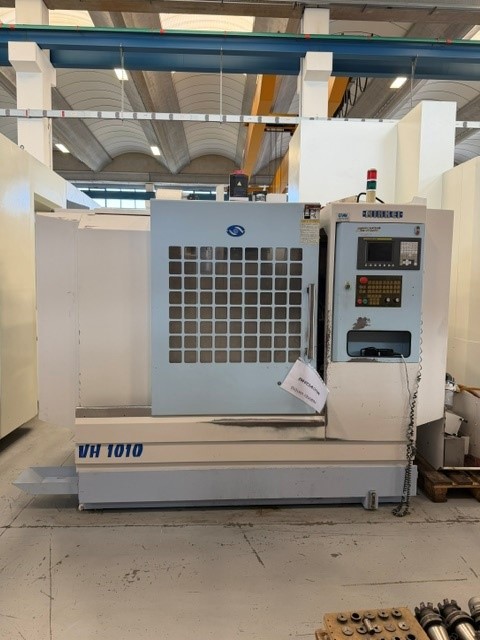

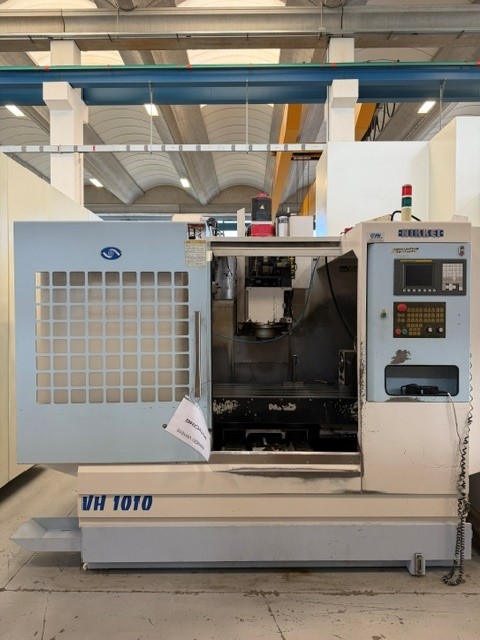

Vertical machining center NIKKEI VH-1010
Vertical machining center NIKKEI VH-1010
Vertical machining center NIKKEI VH-1010

Technical information

Specifications

Coolant for spindle line, high pressure through spindle 20 bars, cabin washing, chip conveyor.

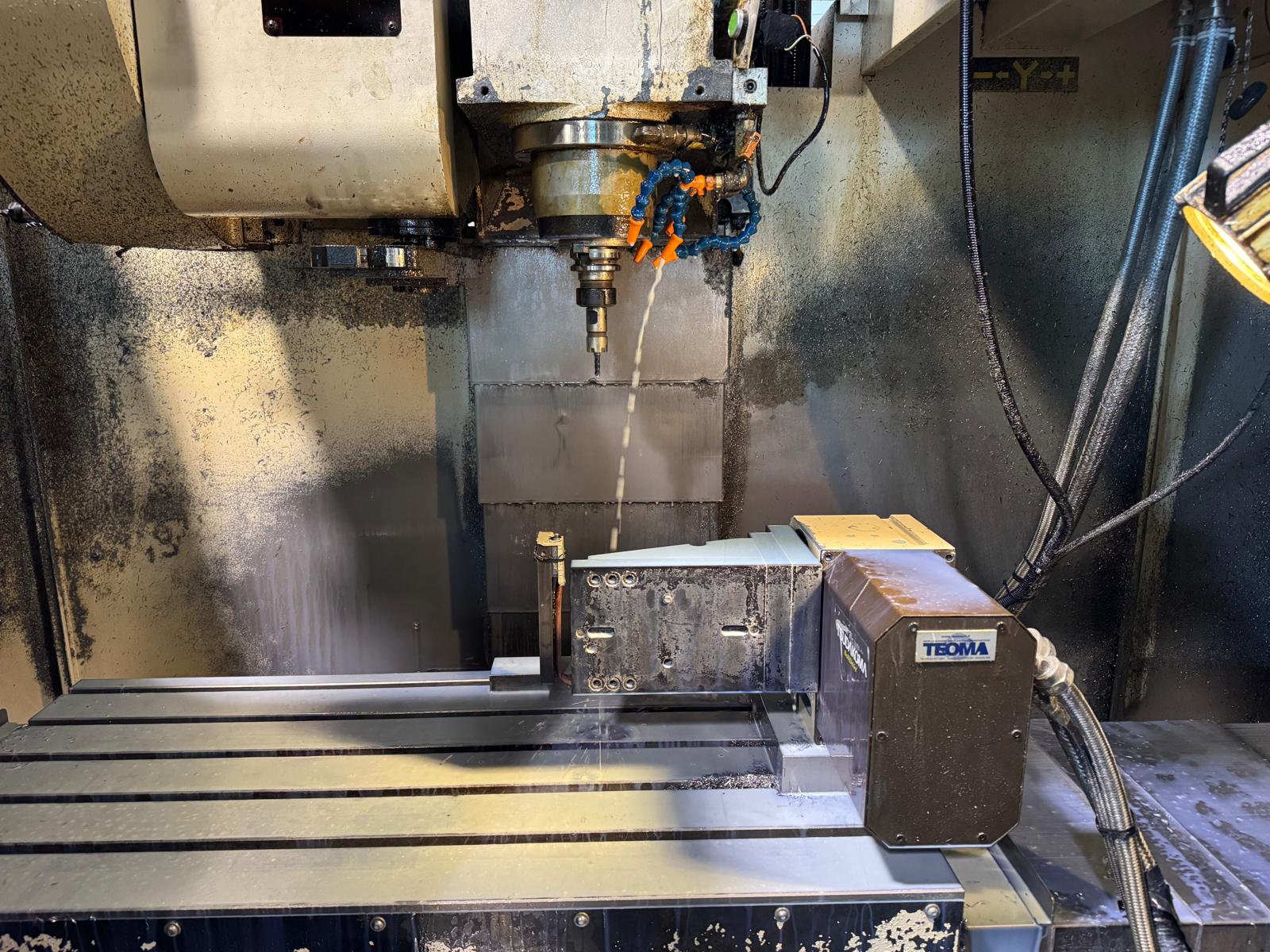

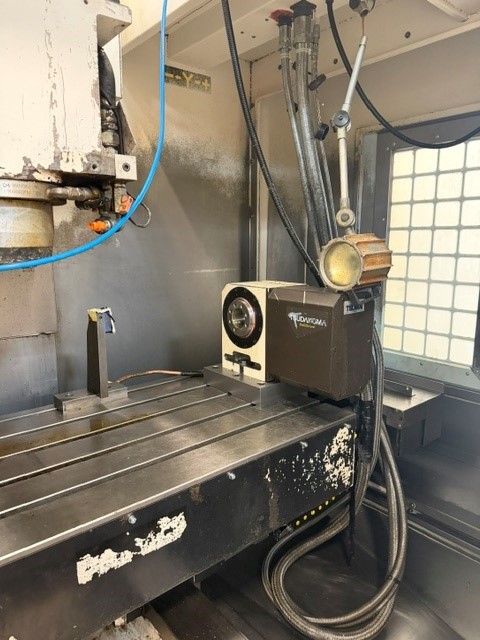

4th axis table Tsudakoma



Table

  • Table dimensions: 1200x450 mm
  • T-slot/pitch size: 3/125 mm
  • Max weight allowed: 850 kg

Capacity

  • Longitudinal X-travel: 1010 mm
  • Cross Y-travel: 500 mm
  • Vertical Z-travel: 520 mm

Spindle

  • Spindle nose: BT40 ISO
  • Spindle speed: 10.000 rpm.
  • Motor power: 11-15 Kw

Advances

  • Rapid X,Y,Z axis: 24000/24000/10000 mm/min

Tool Warehouse

  • Tool Stations: 24 no.

Table mm. : 1200x450

X,Y,Z strokes mm. : 1010x500x520

RPM : 10000

Power Kw :

ISO :

Tools : 24
