REMA CONTROL
NEWTON RCV 1.8

Sold

Type: Vertical machining center Moving column

Brand: REMA CONTROL

Model: NEWTON RCV 1.8

Year: 2002

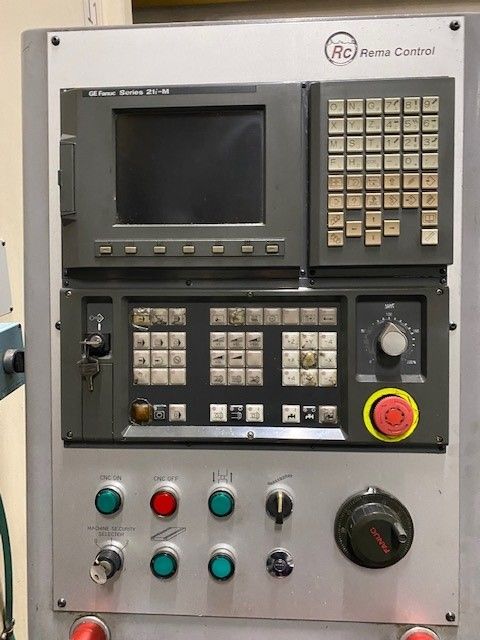

C.N.C: FANUC 21i

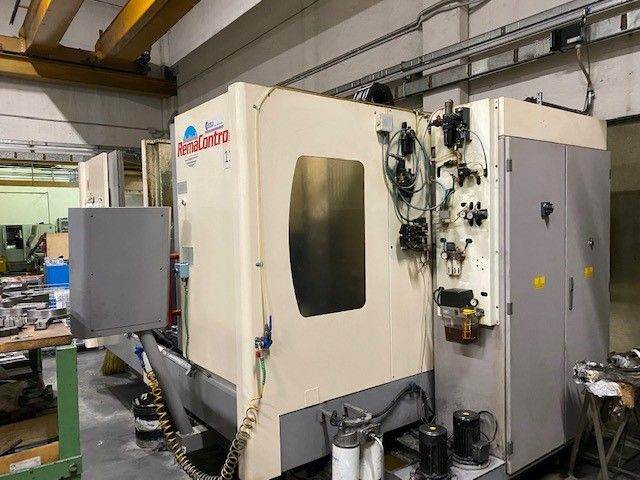

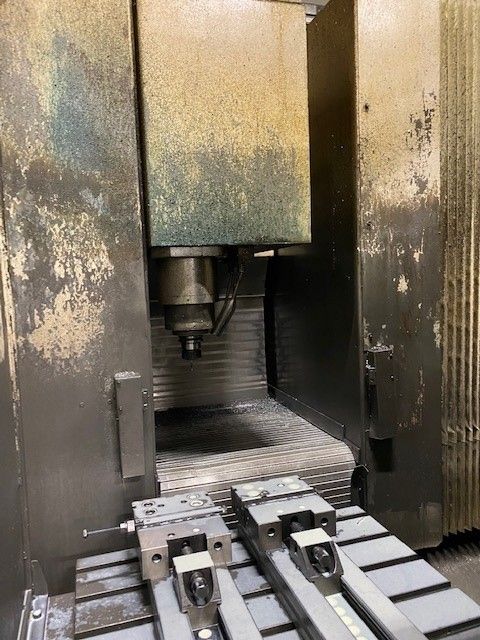

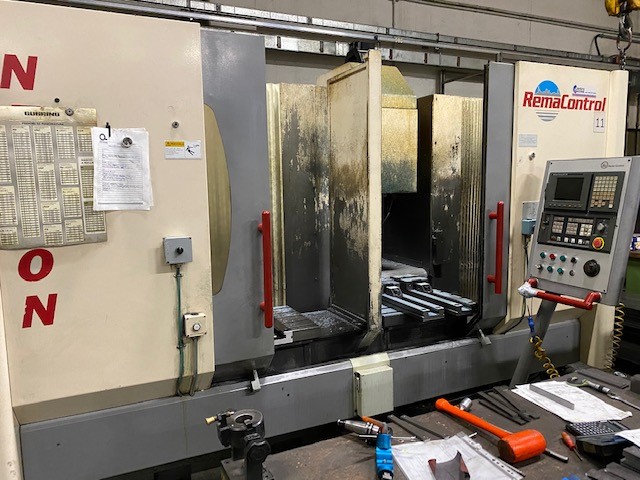

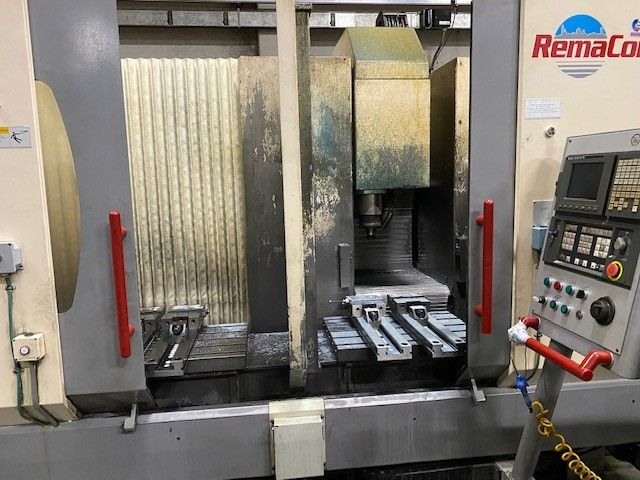

Vertical machining center REMA CONTROL NEWTON RCV 1.8

Vertical machining center REMA CONTROL NEWTON RCV 1.8

Vertical machining center REMA CONTROL NEWTON RCV 1.8

Vertical machining center REMA CONTROL NEWTON RCV 1.8

Vertical machining center REMA CONTROL NEWTON RCV 1.8

Technical information

Table

Table dimensions: 2x700x500 mm
T-slot/pitch size: 18x5x100 mm
Max weight allowed: 2x600 kg

Capacity

Longitudinal X-travel: 1800 mm
Cross Y-travel: 550 mm
Vertical Z-travel: 500 mm

Spindle

Spindle nose: 40 ISO
Spindle speed: 10.000 rpm.
Motor power: 11/7.5 Kw

Advances

Rapid X,Y,Z axis: 50.000 mm/min

Tool Warehouse

Tool Stations: 20 no.

Specific properties

Torque: 48 Nm
Machine dimension: 2400x3910x2470 mm
Weight: 6300 kg

Table mm. : 2x700x500

X,Y,Z strokes mm. : 1800x550x500

RPM : 10.000

Power Kw : 11/7.5

ISO : 40

Tools : 20
