WELE
AA1680#50

Type: Vertical machining center

Brand: WELE

Model: AA1680#50

Year: 2009

C.N.C: FANUC 18iM

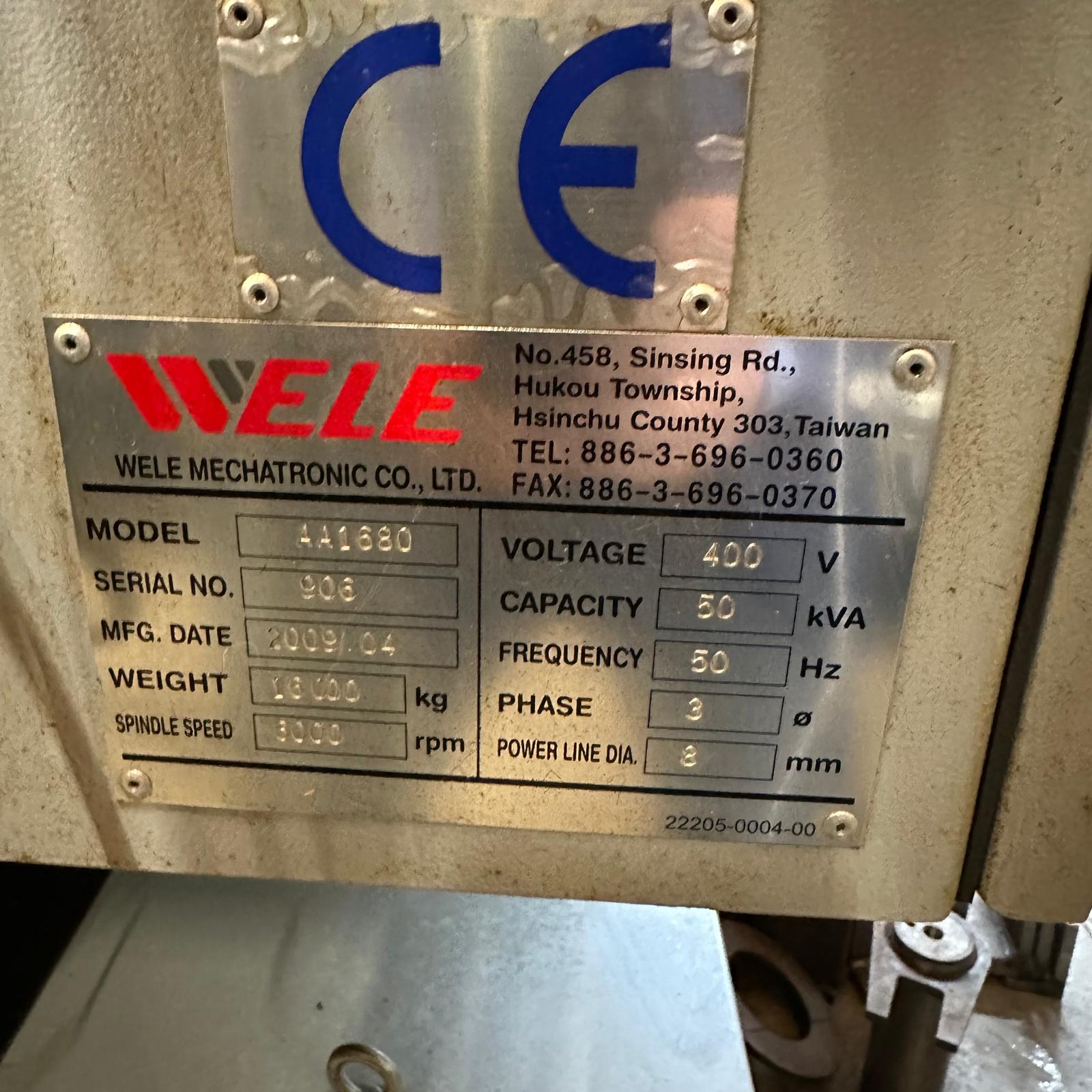

Serial number: 906

Request a quote

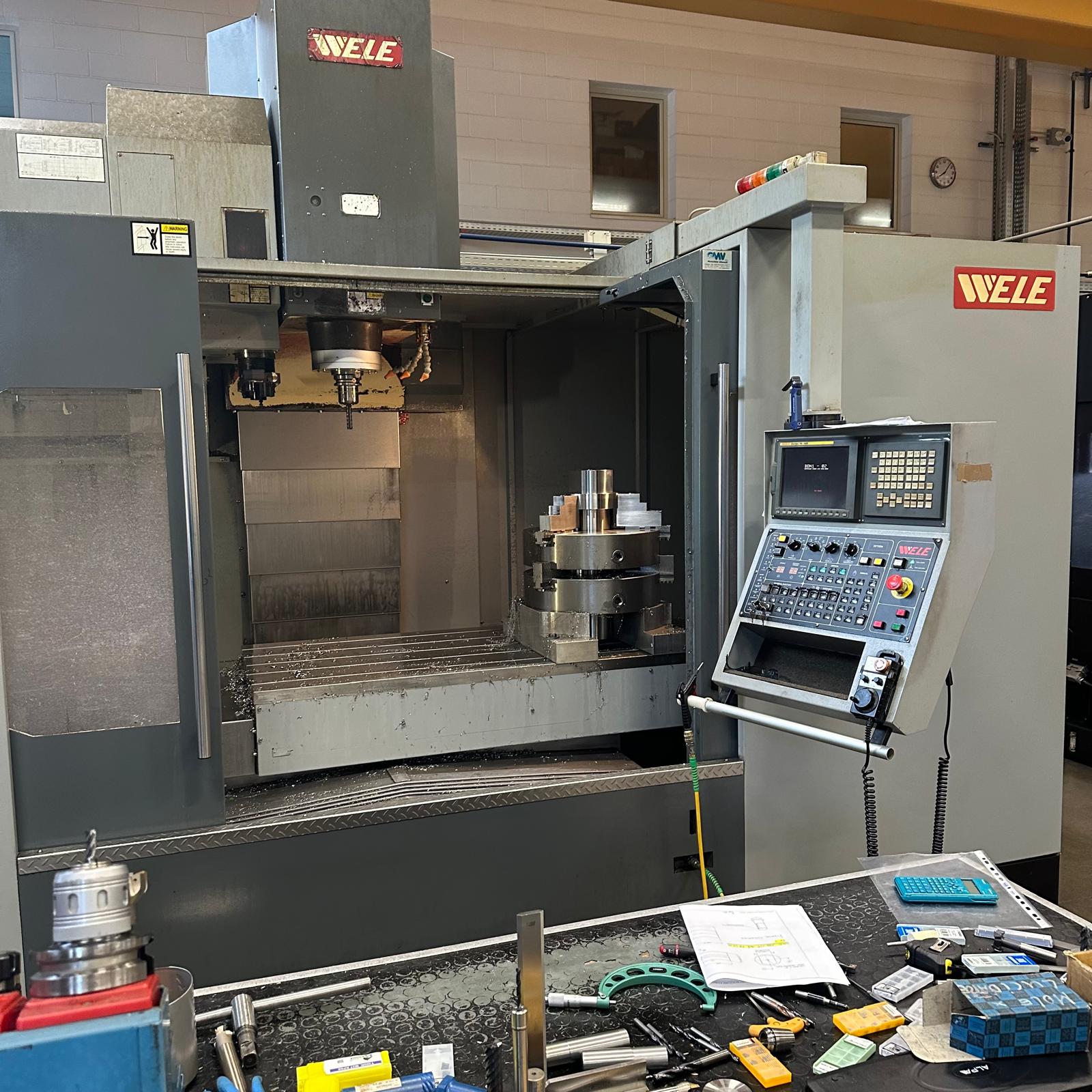

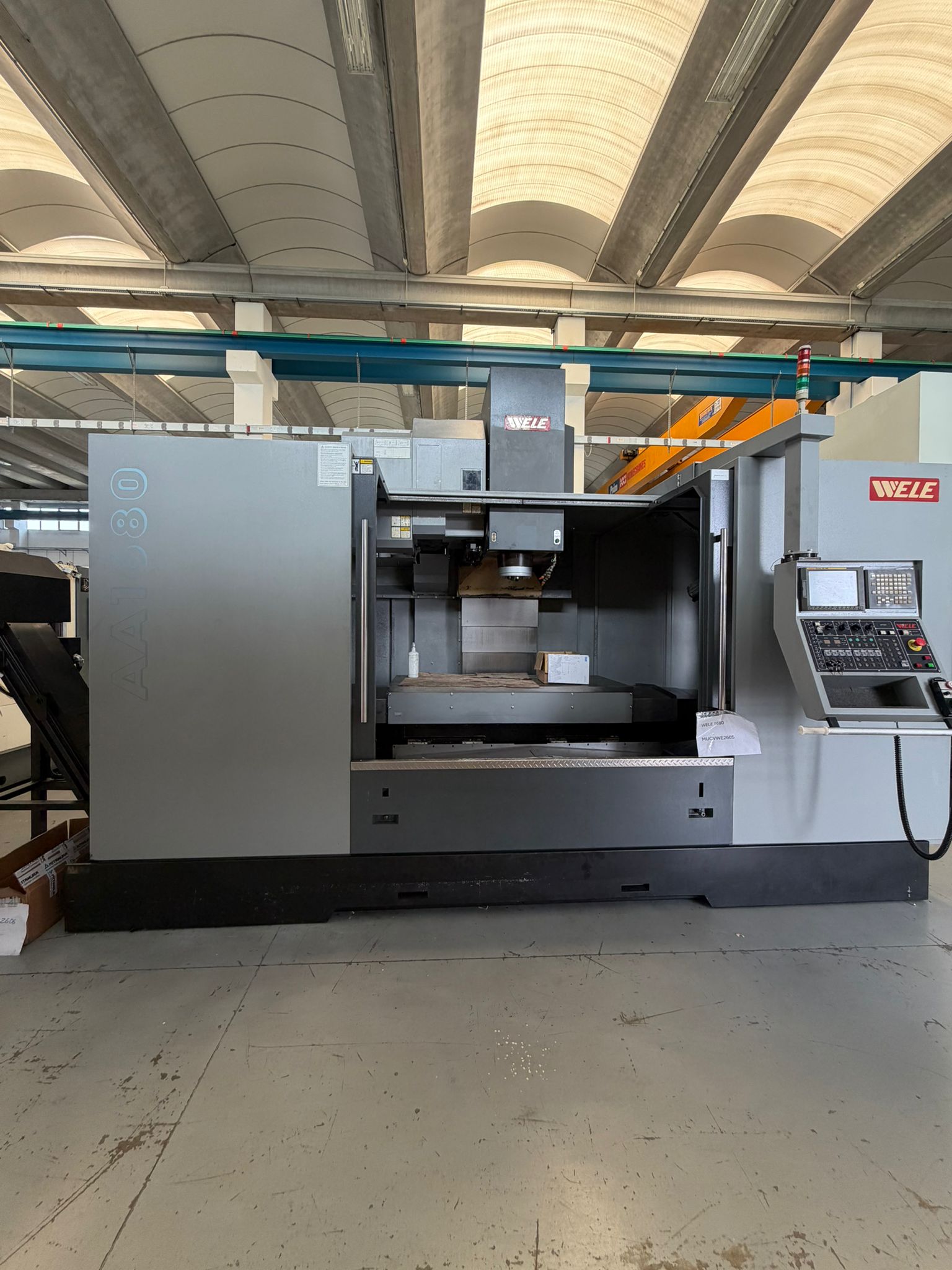

Vertical machining center WELE AA1680#50

Vertical machining center WELE AA1680#50

Vertical machining center WELE AA1680#50

Vertical machining center WELE AA1680#50

Technical information

Table

Table dimensions: 1750x800 mm
Max weight allowed: 2000 kg

Capacity

Longitudinal X-travel: 1600 mm
Cross Y-travel: 800 mm
Vertical Z-travel: 800 mm

Spindle

Spindle nose: 50 ISO
Spindle speed: 6000 rpm.
Motor power: 18-22 Kw

Advances

Rapid X,Y,Z axis: 24000/24000/20000 mm/min

Tool Warehouse

Tool Stations: 30 no.

Specific properties

Machine dimension 4300x3100x3100 mm

Distance from table to spindle nose 200-1000 mm

Distance from table to floor 1050 mm

Table mm. : 1750x800

X,Y,Z strokes mm. : 1600x800x800

RPM : 6000

Power Kw : 18-22

ISO : 50

Tools : 30
