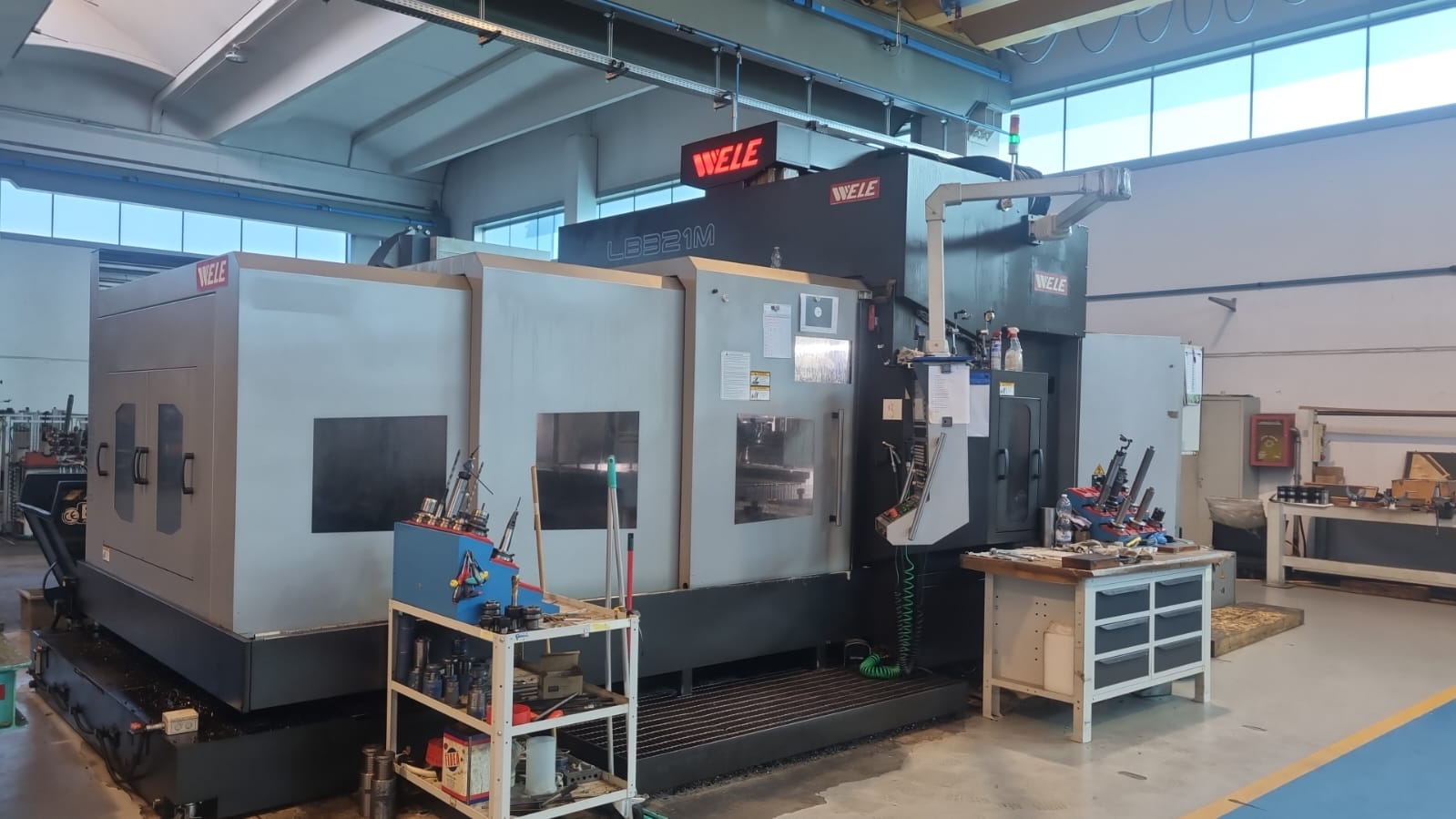

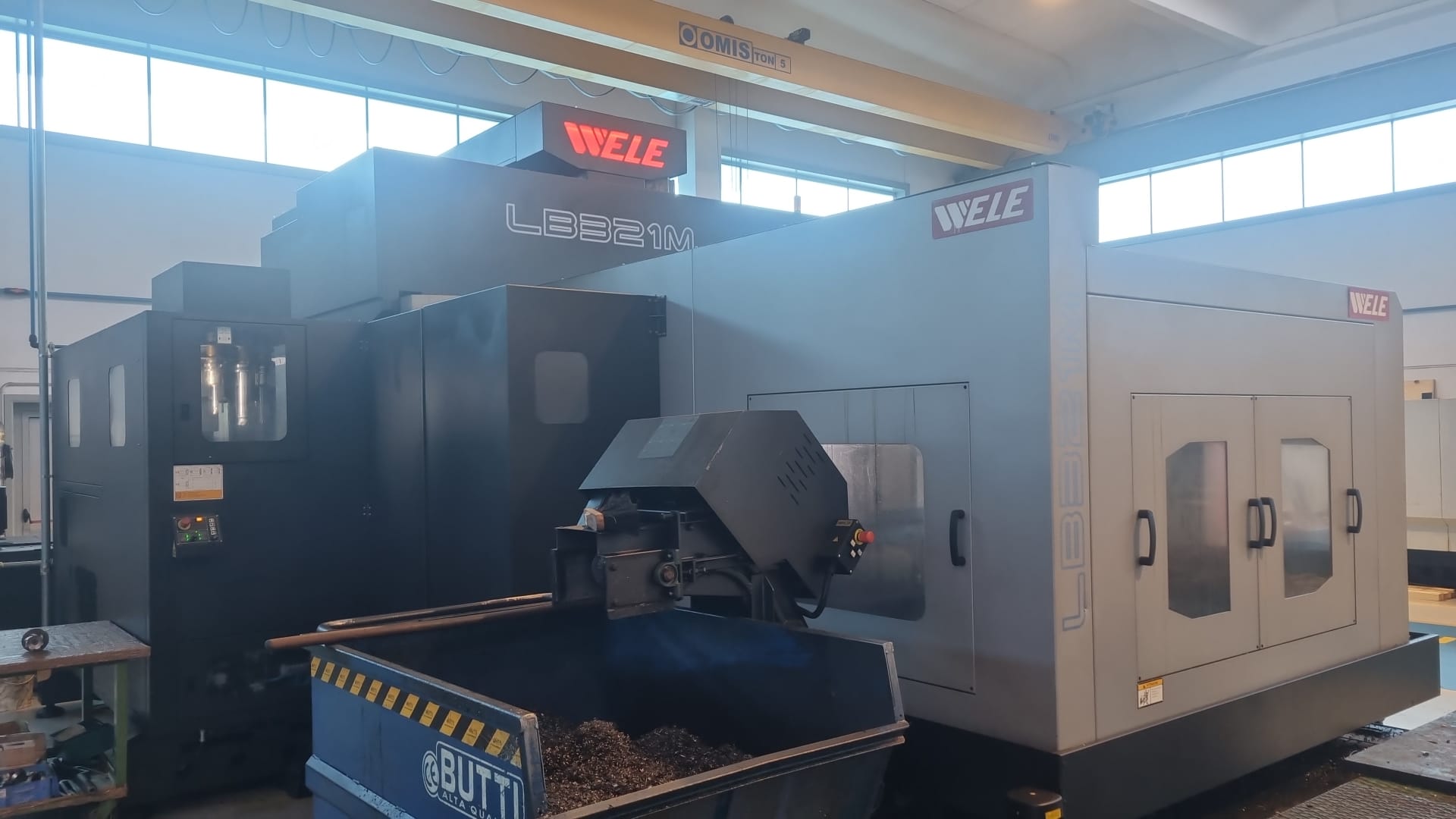

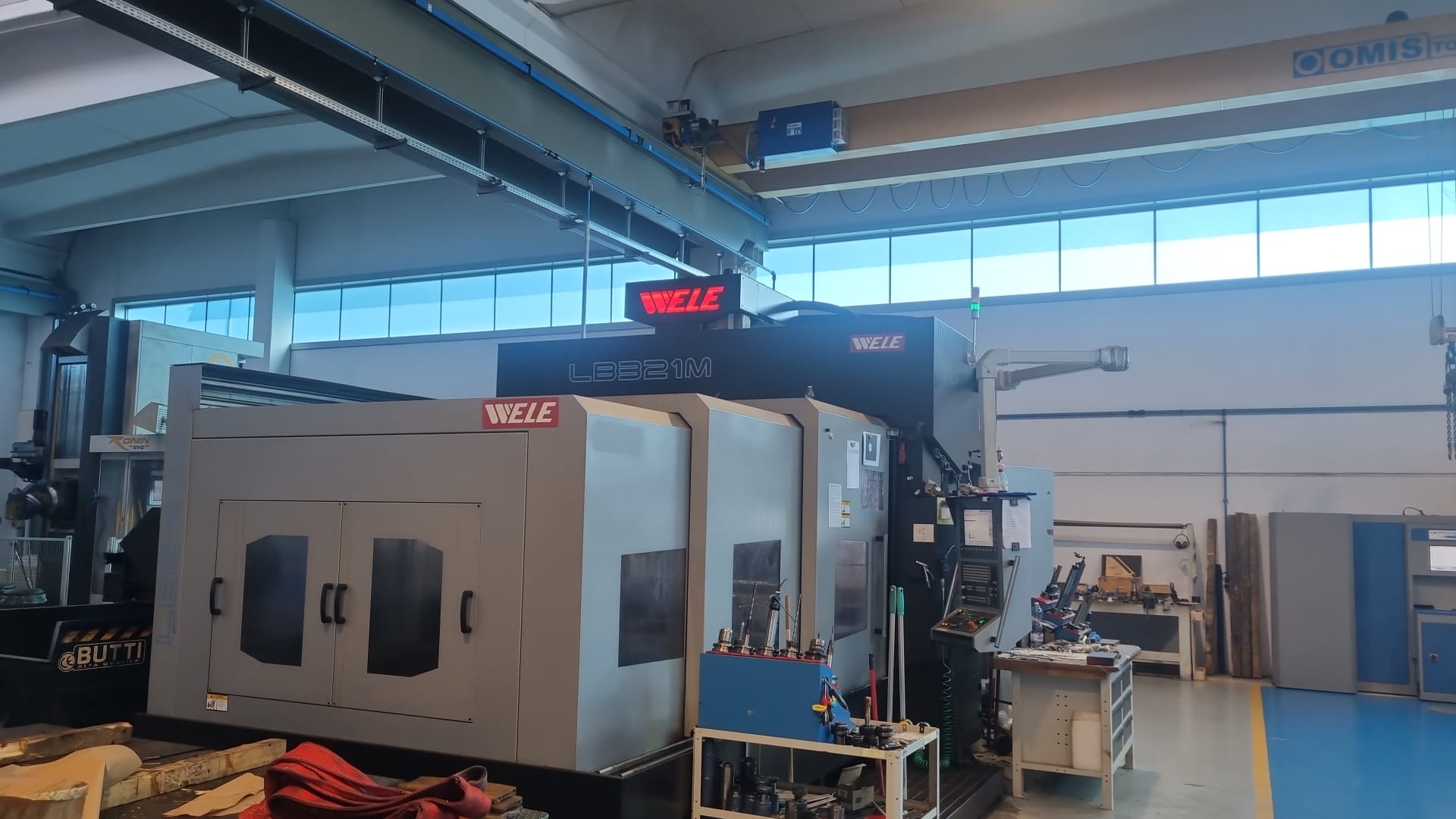

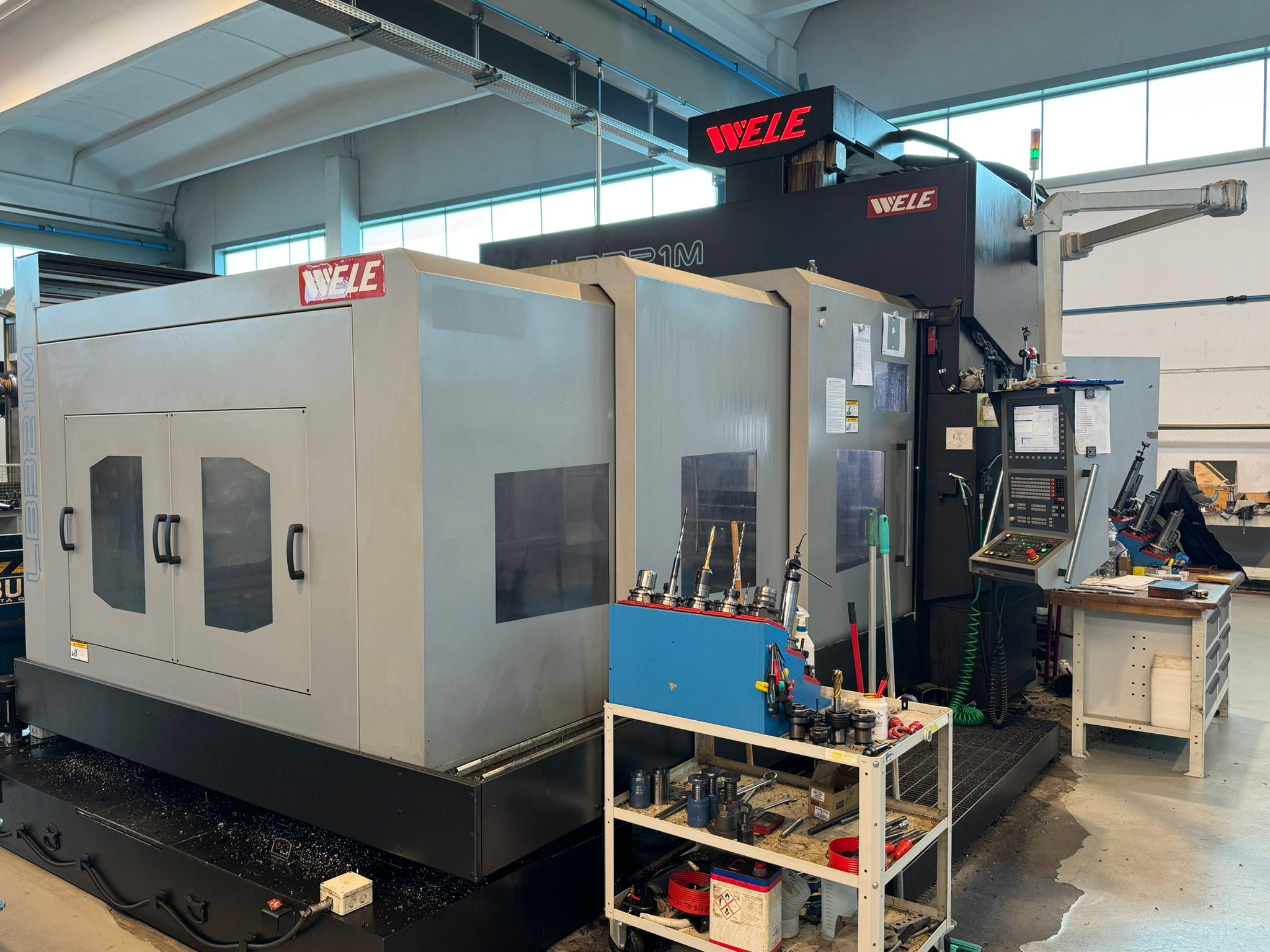

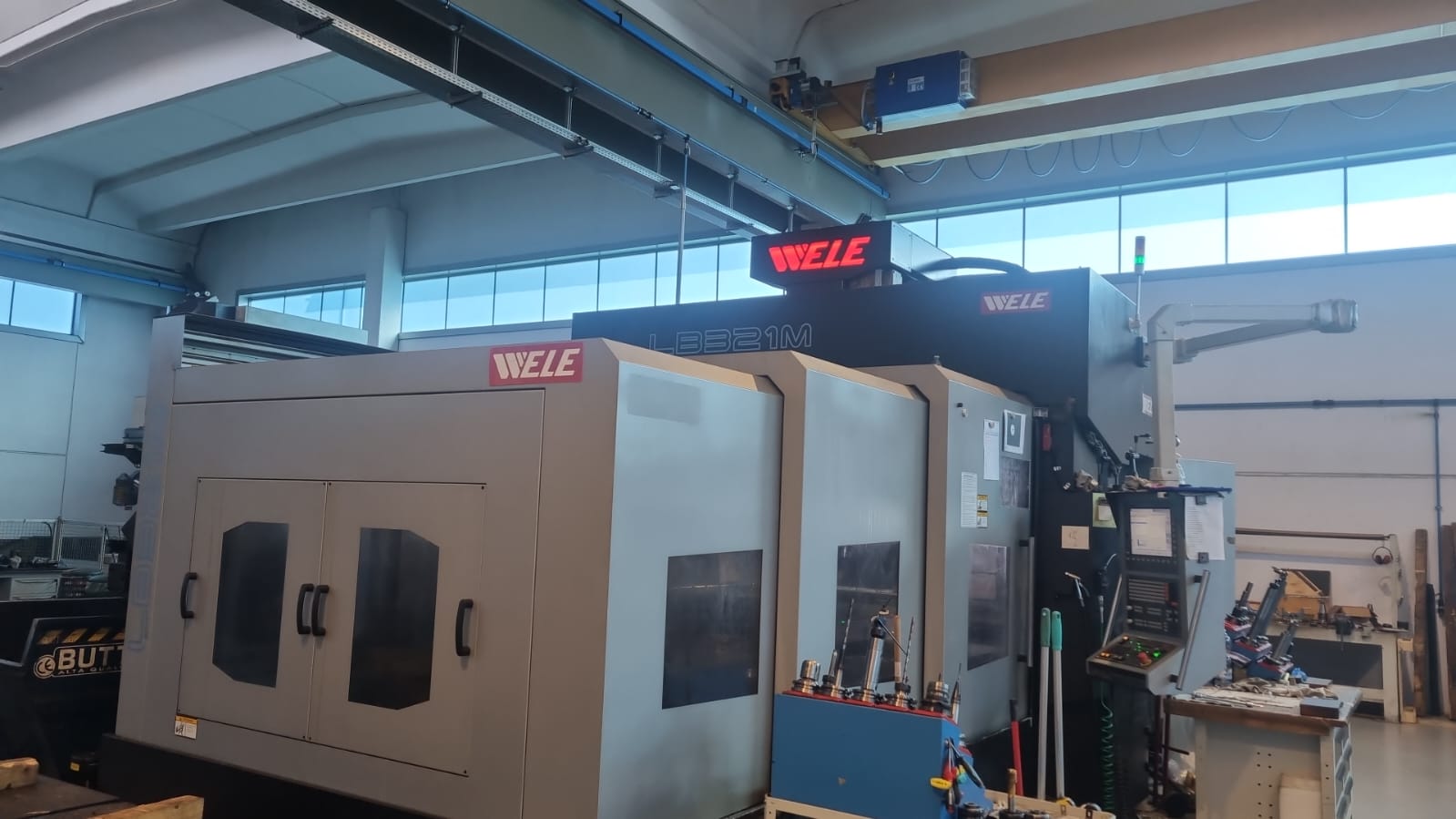

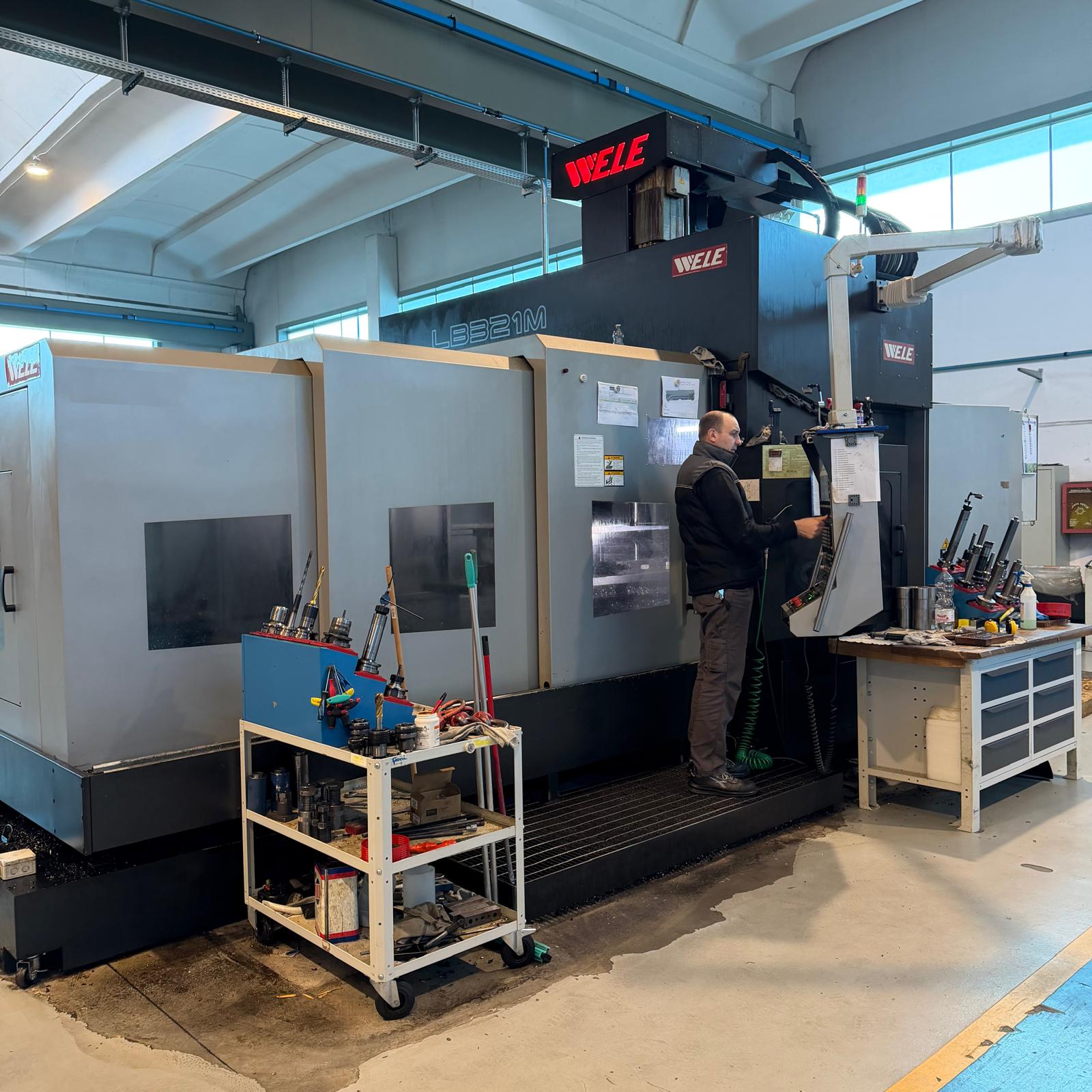

Type: Vertical machining center Gantry
Brand: WELE
Model: LB-321
Year: 2020

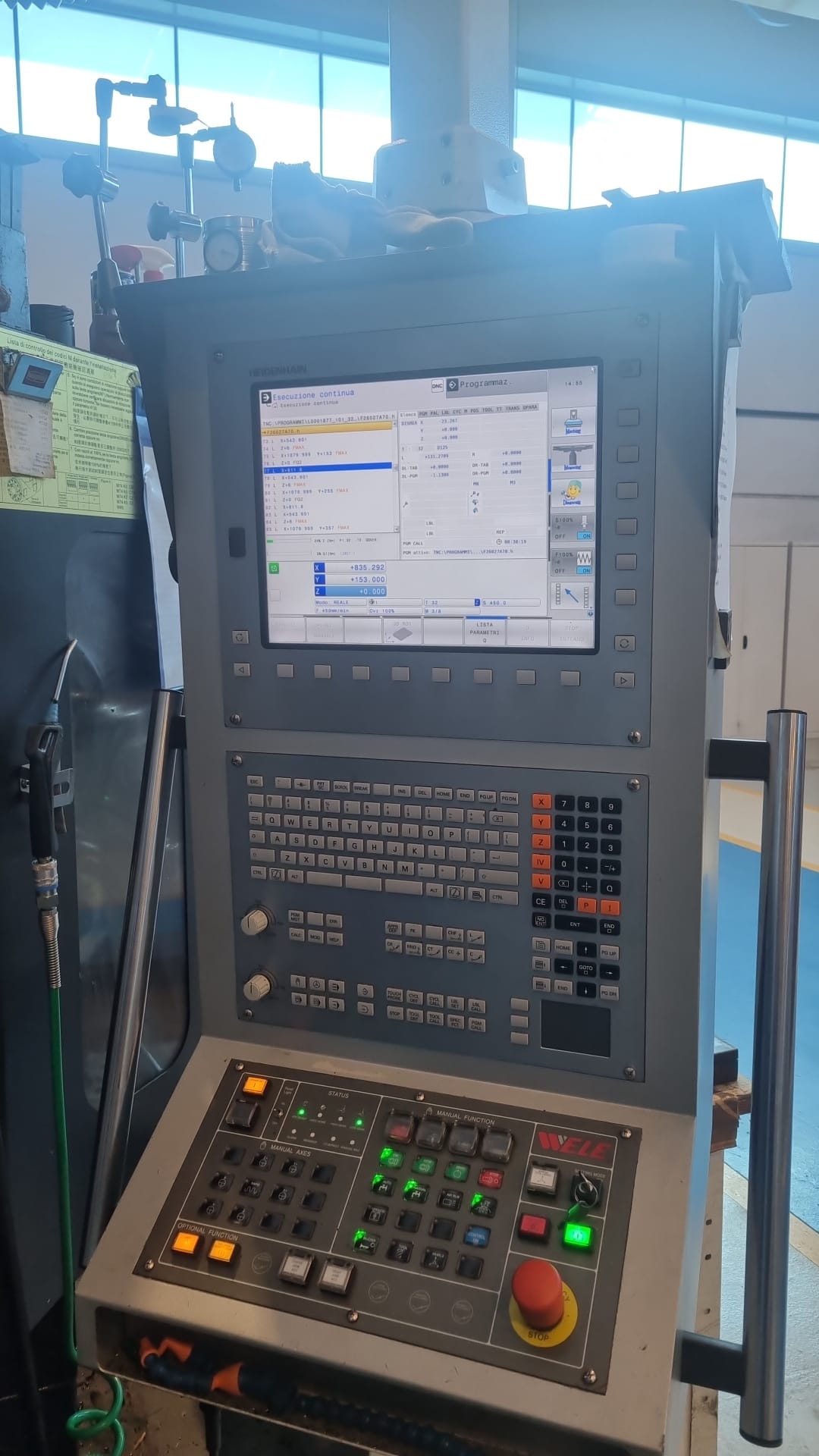

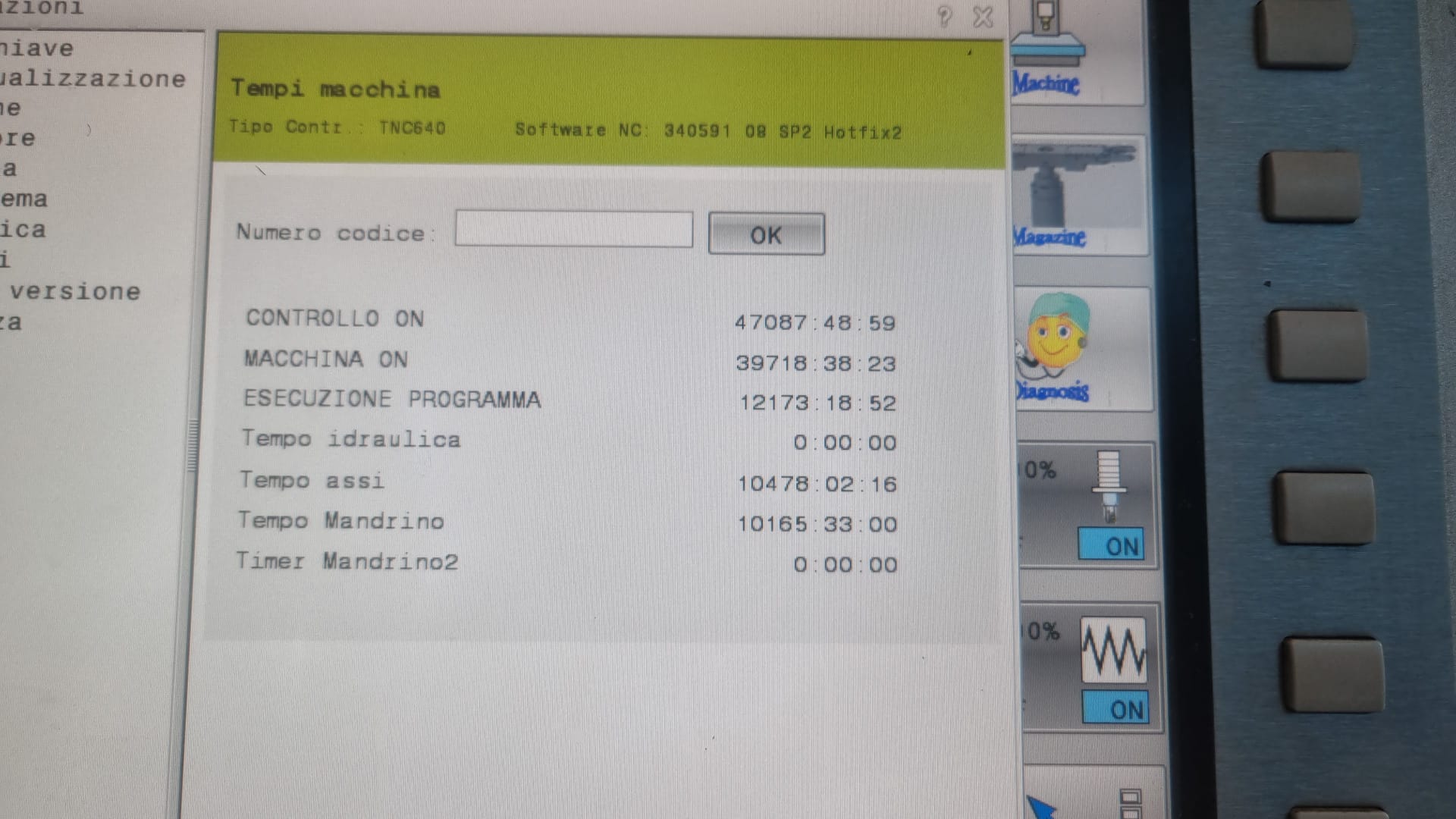

C.N.C: HEIDENHAIN ITNC 530
Serial number: 20544
Specifications
Rigid tapping and helical interpolation, Gear-driven spindle head, High-pressure system: 20 bar, Column extension: 200 mm, Full enclosure, optical scales on X, Y, Z axes, Belt-type chip conveyor, Air through the spindle.
90° orthogonal head for 5-face machining, Automatic tool change in vertical position, Horizontal speed: 2400 rpm, Automatic indexing every 5°, With high-pressure coolant through the head, 3D software
Table
Capacity
Spindle
Advances

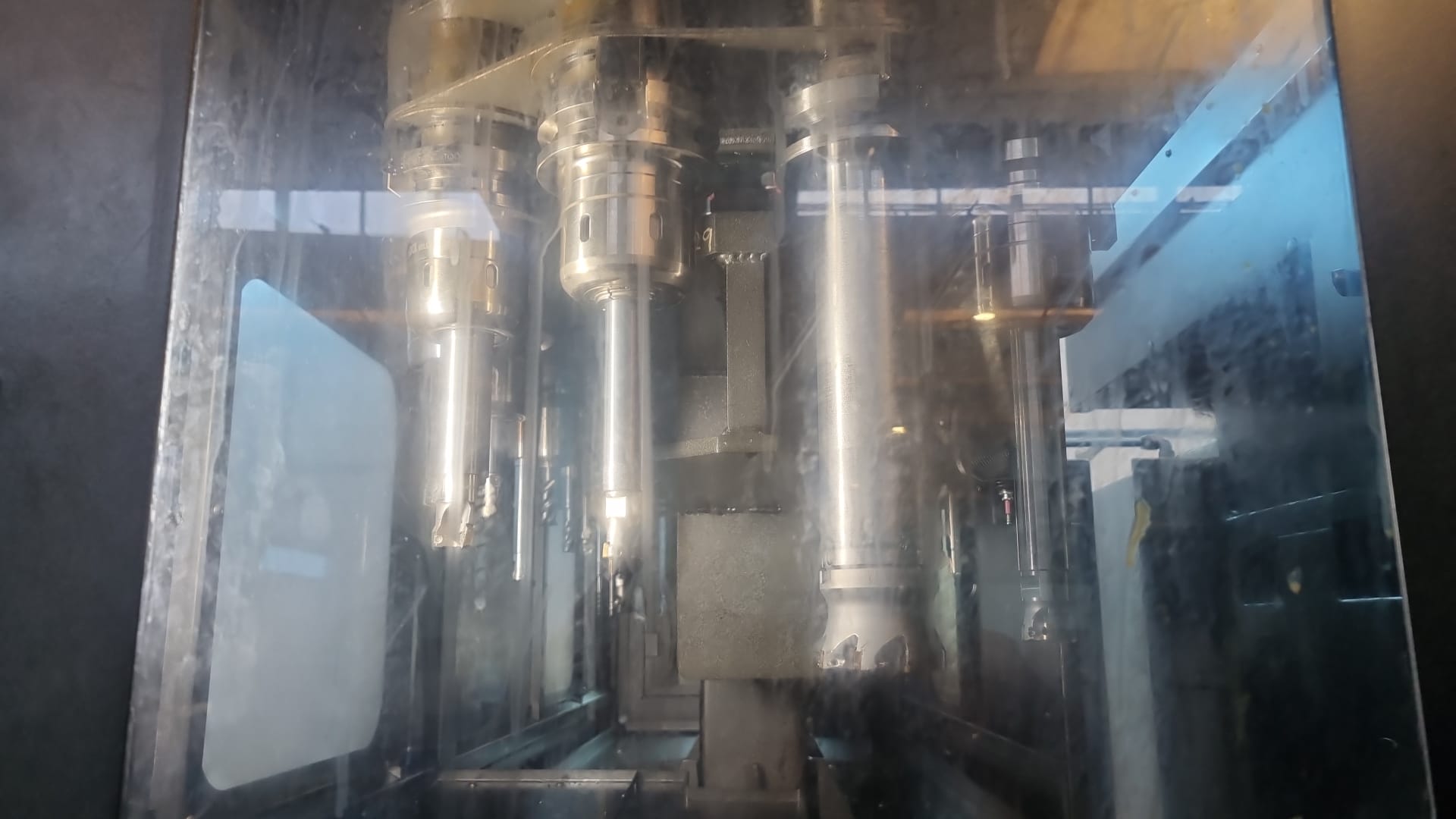

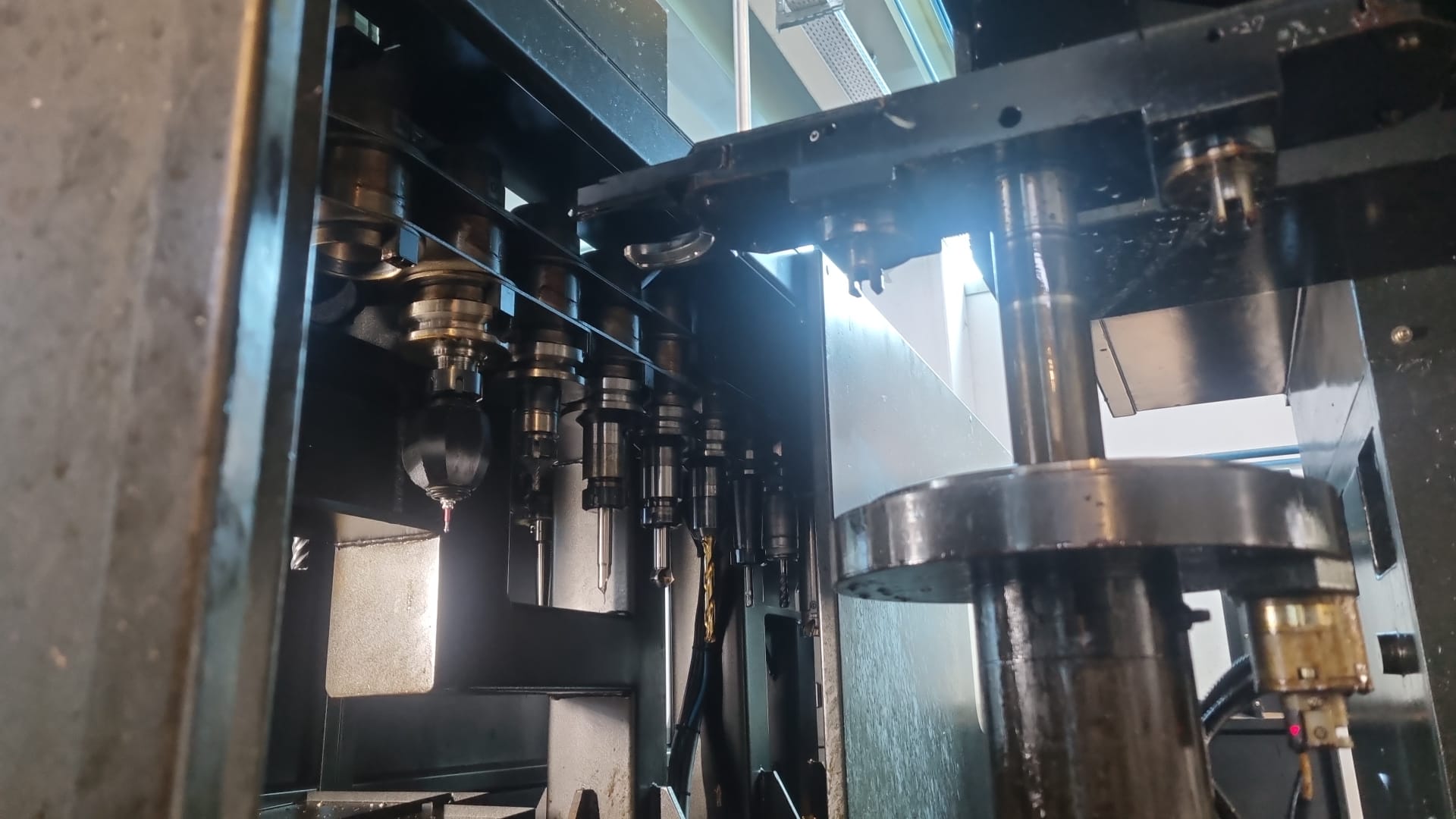

Tool Warehouse
Specific properties
Distance between table surface and spindle nose: 400 – 1200 mm
Distance between columns: 2300 mm
Positioning accuracy: ± 0.005 mm
Repeatability: ± 0.003 mm
Machine dimensions: 8365 × 4550 × 4350 mm
Machine weight: 33,000 kg

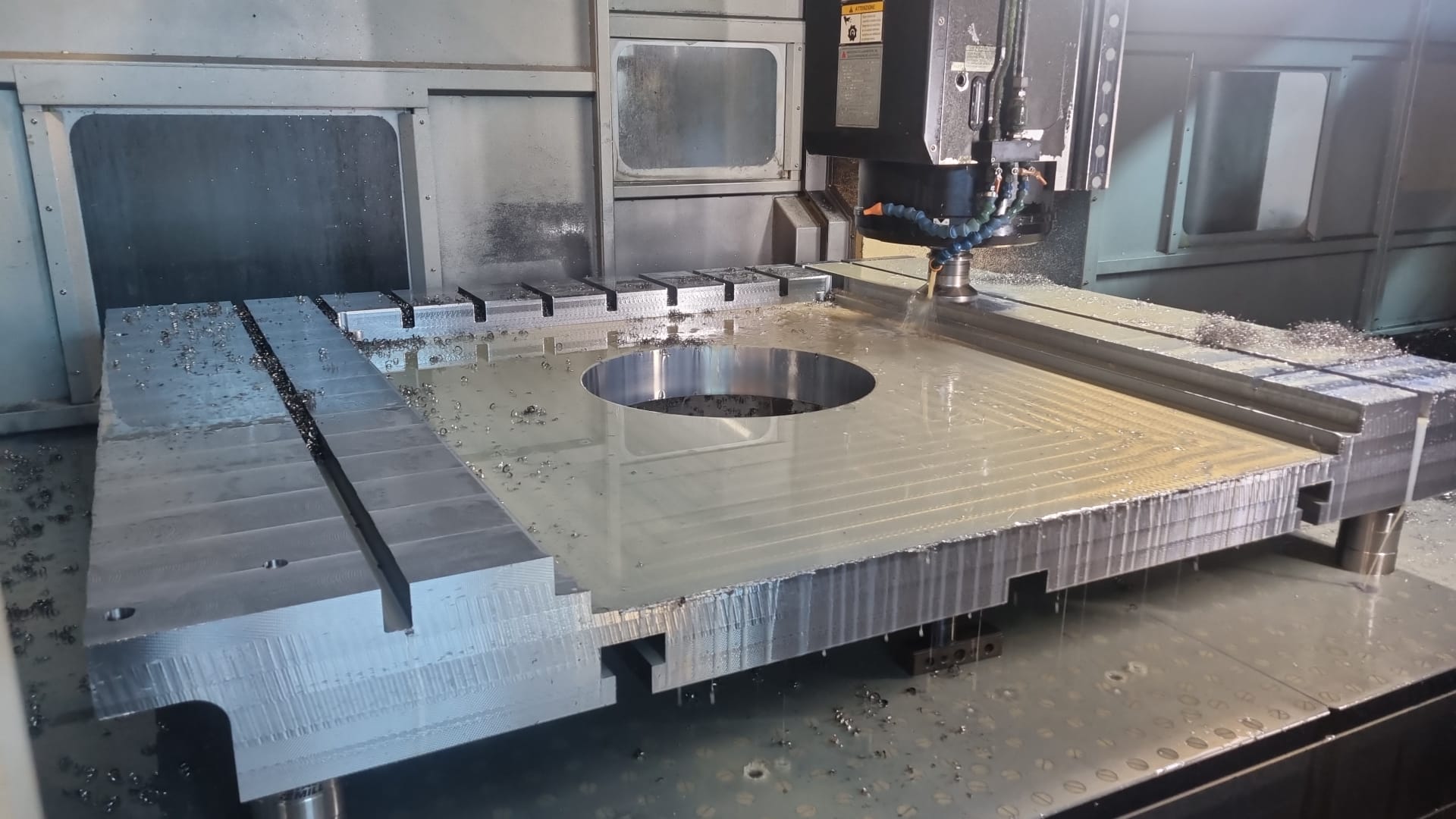

Table mm. : 3000x2000
X,Y,Z strokes mm. : 3060x2150x800
RPM : 10-6000
Power Kw : 22-26
ISO : BT50
Tools : 32
