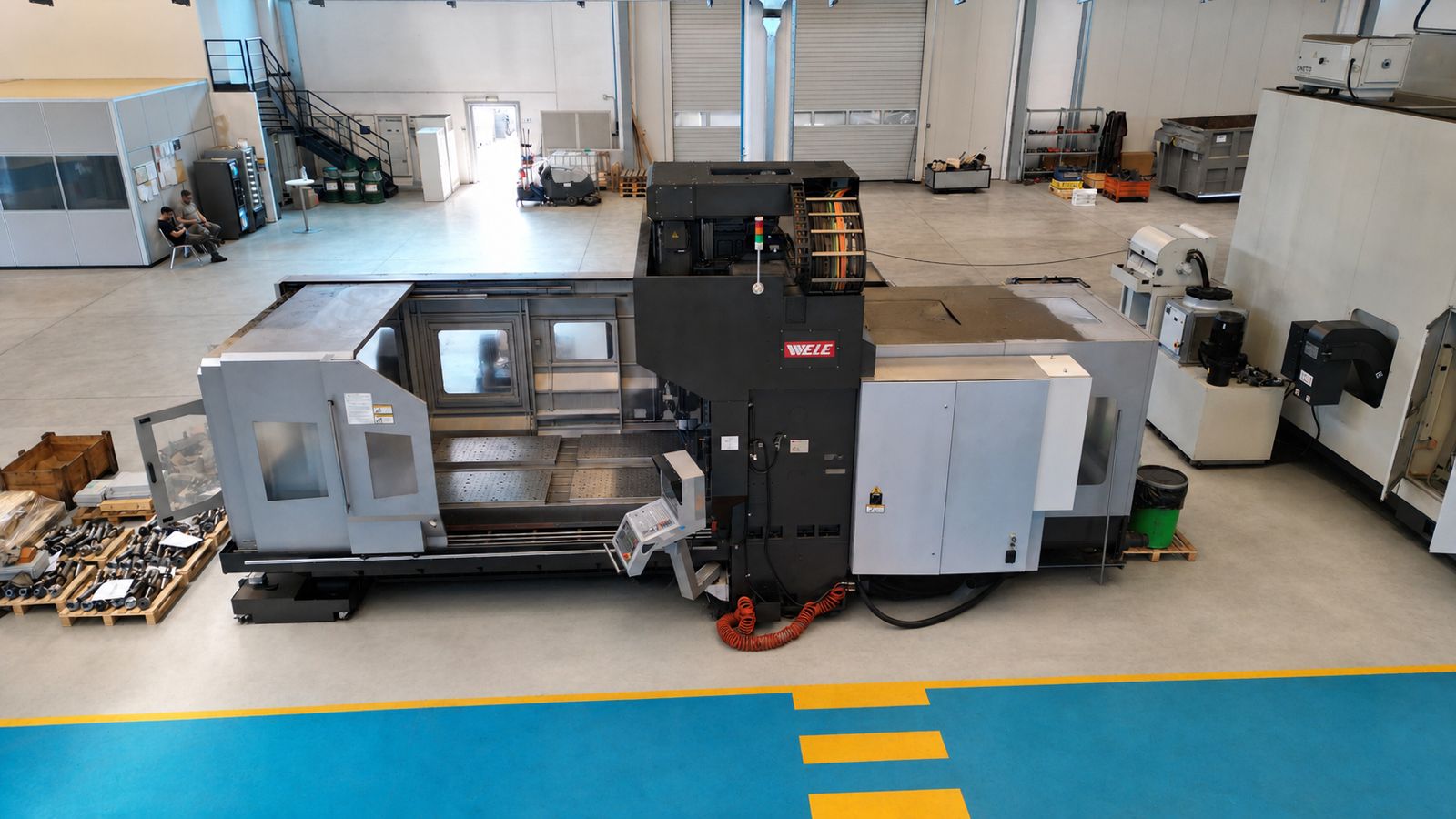

WELE
SB-316

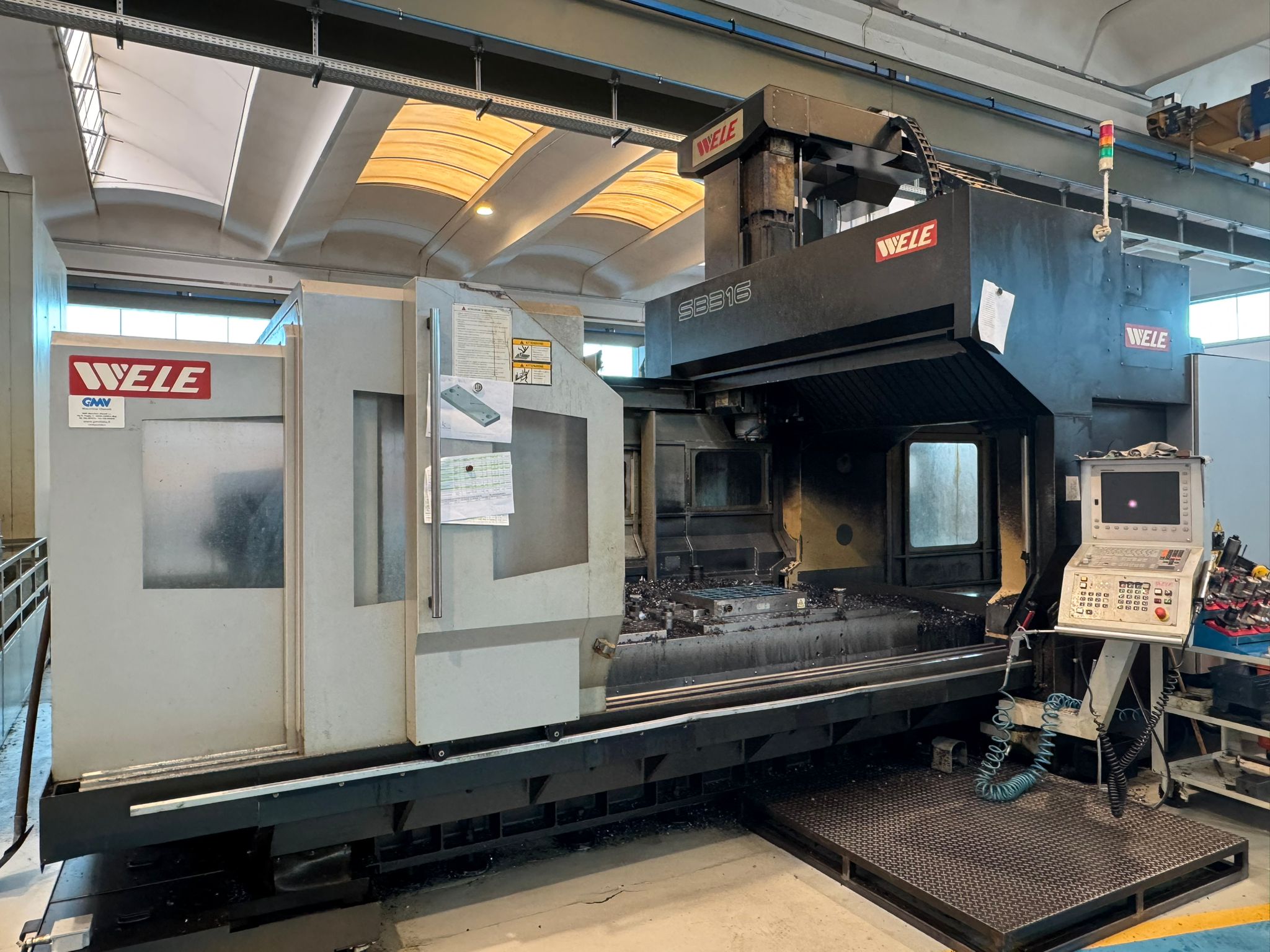

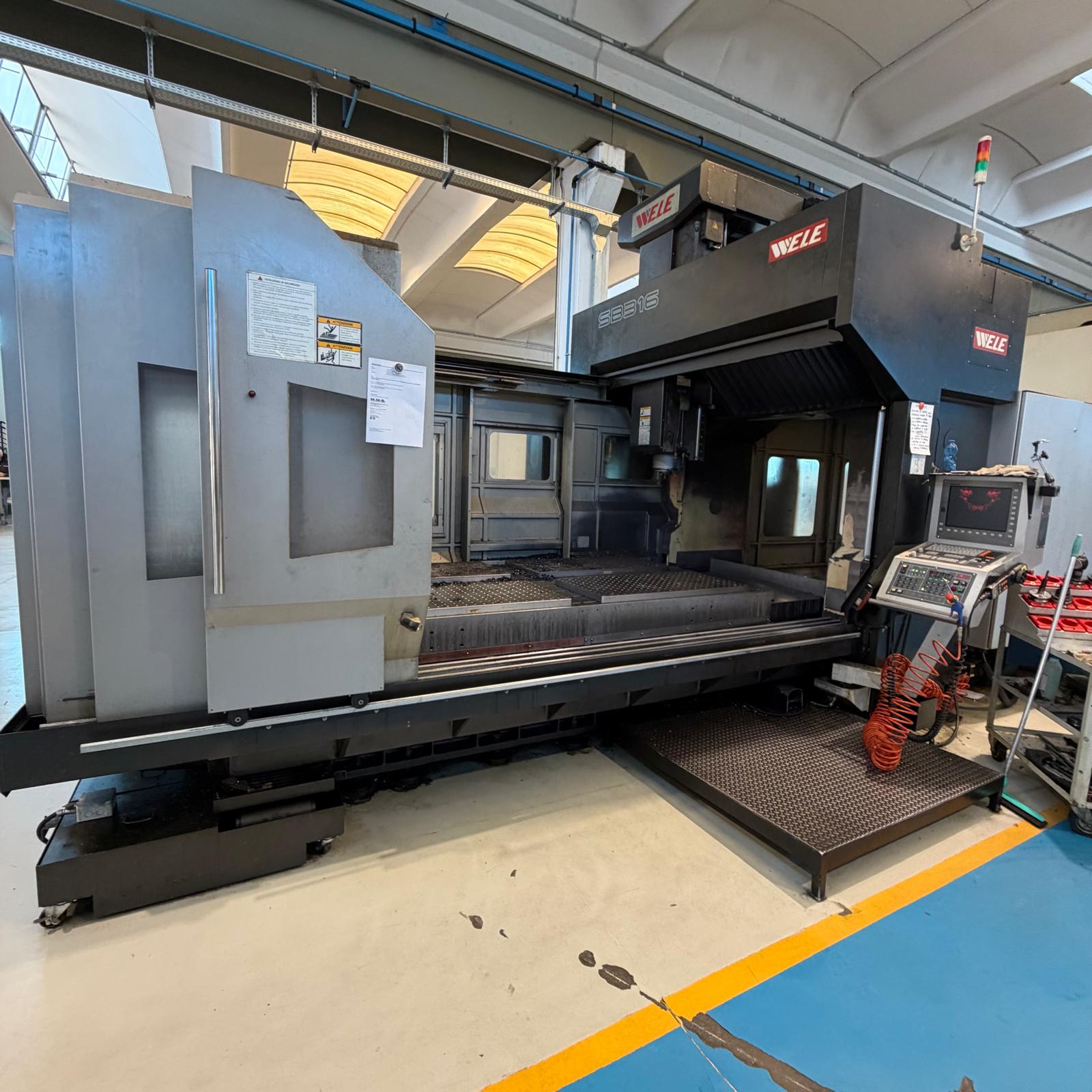

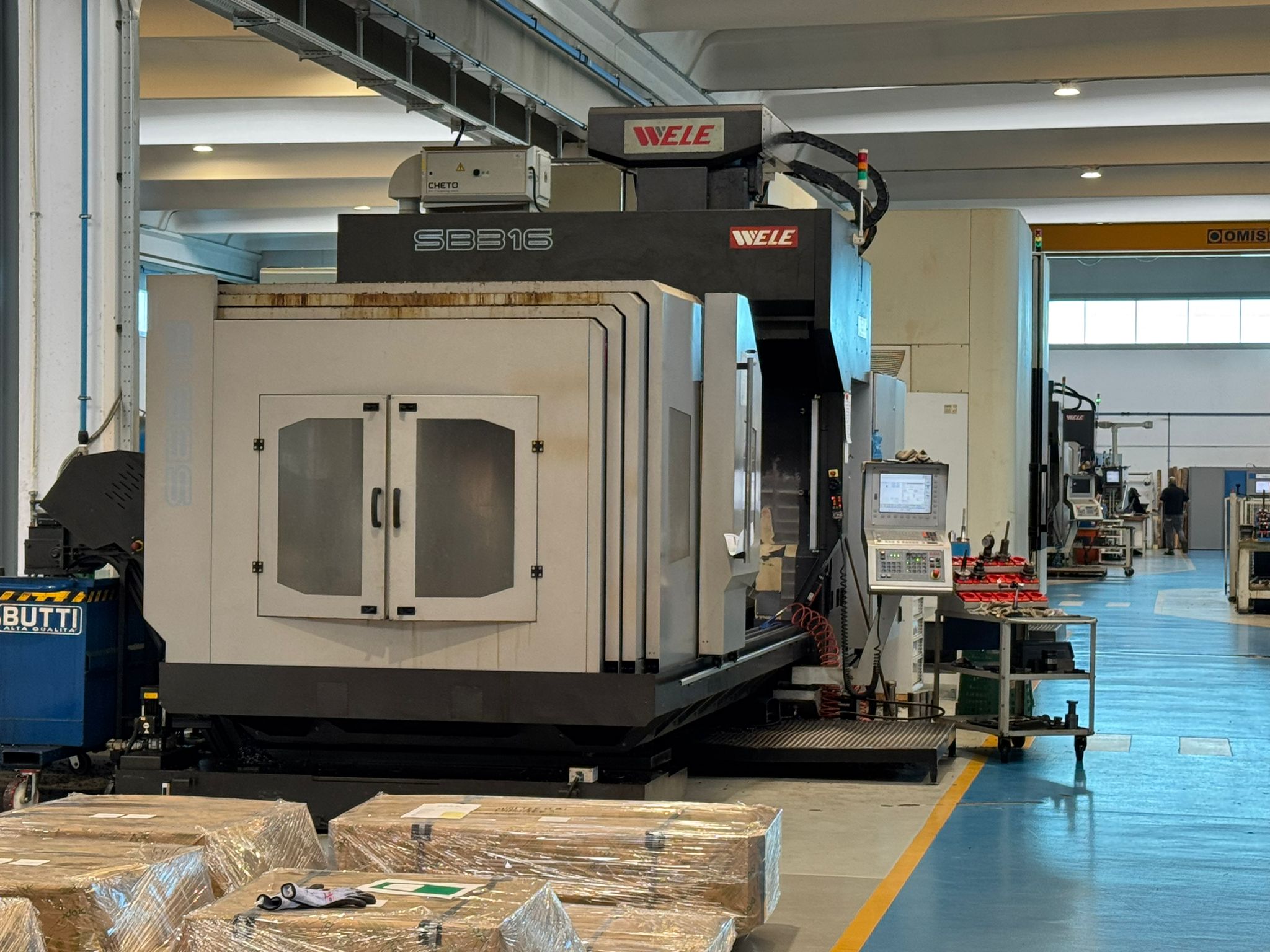

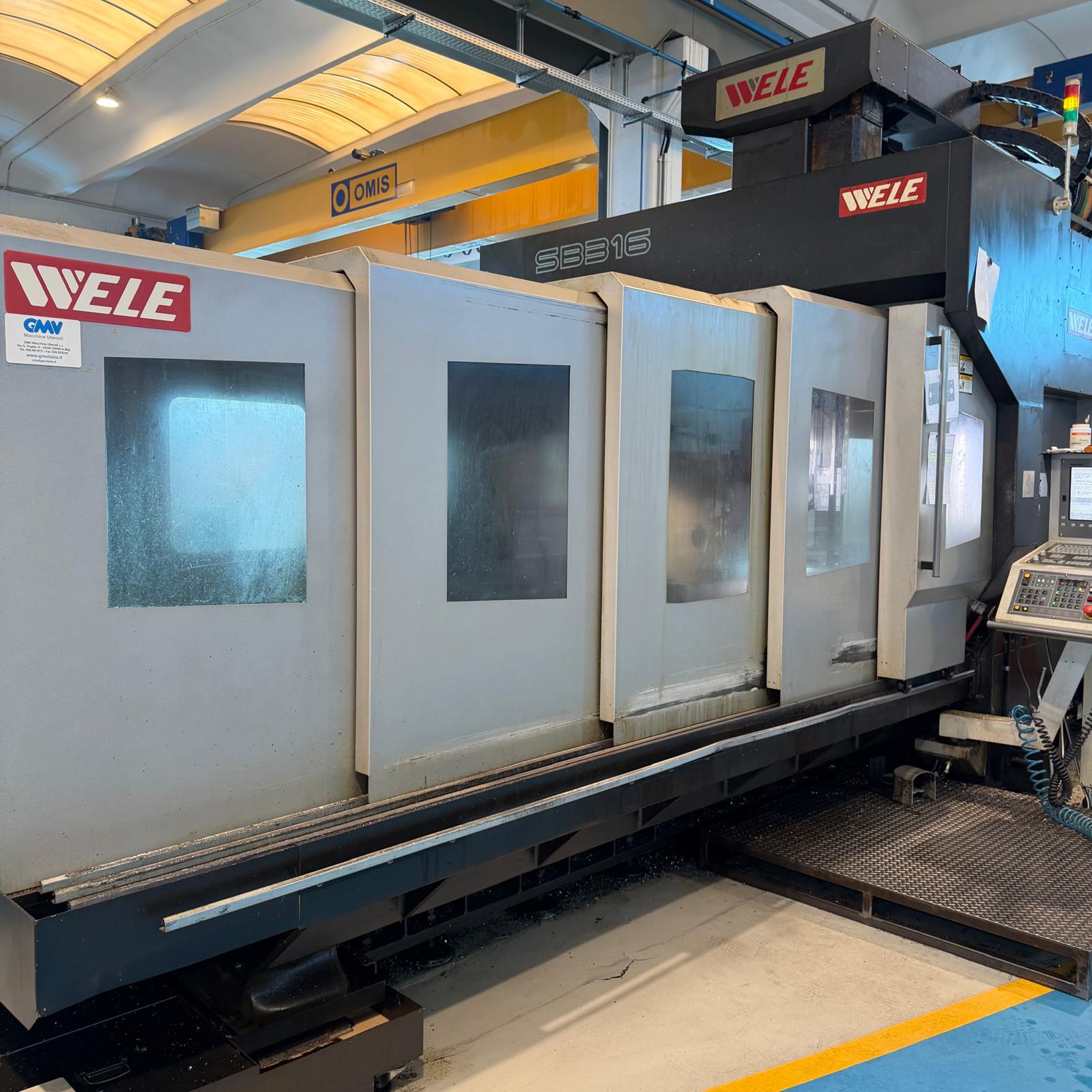

Type: Vertical machining center Gantry

Brand: WELE

Model: SB-316

Year: 2017

C.N.C: HEIDENHAIN ITNC 530

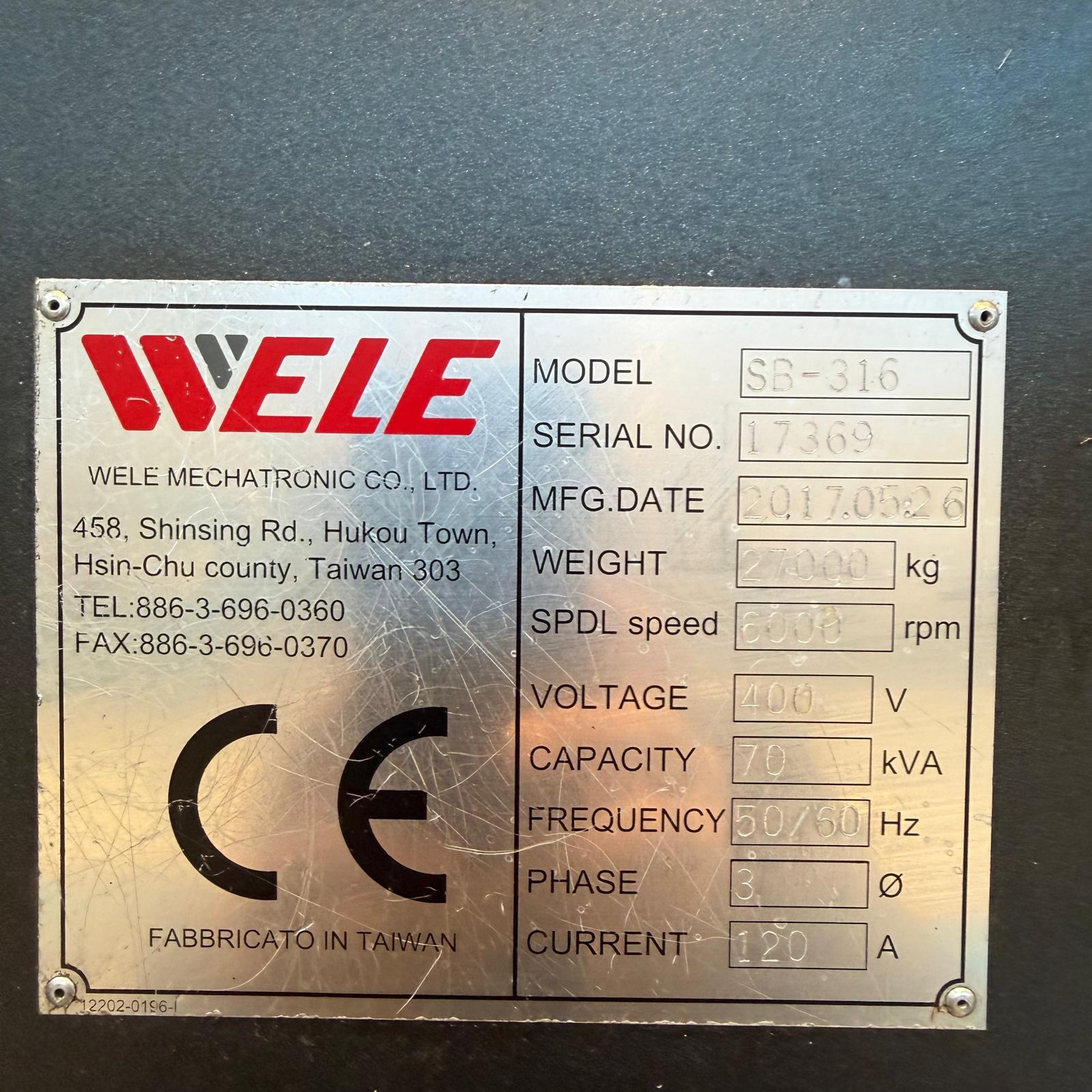

Serial number: 17369

Request a quote

Data sheet

Watch the videos

Technical information

Specifications

200 mm column extension. Rigid tapping and helical interpolation. Gear-driven spindle head. 20-bar high-pressure coolant system. Full enclosure. XYZ linear scales. Belt-type chip conveyor. Through-spindle air.

Table

Table dimensions: 3000x1500 mm
T-slot/pitch size: 22x170x9 mm
Max weight allowed: 10000 kg

Capacity

Longitudinal X-travel: 3060 mm
Cross Y-travel: 1600 mm
Vertical Z-travel: 800 mm

Spindle

Spindle nose: BT50 ISO
Spindle speed: 10-6000 rpm.
Motor power: 22-26 Kw

Advances

Rapid X,Y,Z axis: 24000/24000/10000 mm/min

Tool Warehouse

Tool Stations: 32 no.

Specific properties

Distance between table surface and spindle nose: 400–1200 mm

Distance between columns: 1700 mm

Positioning accuracy: ±0.005 mm

Repeatability: ±0.003 mm

Machine dimensions: 8310 × 3790 × 4350 mm

Machine weight: 27,000 kg (27 tonnes)

Table mm. : 3000x1500

X,Y,Z strokes mm. : 3060x1600x800

RPM : 10-6000

Power Kw : 22-26

ISO : BT50

Tools : 32
