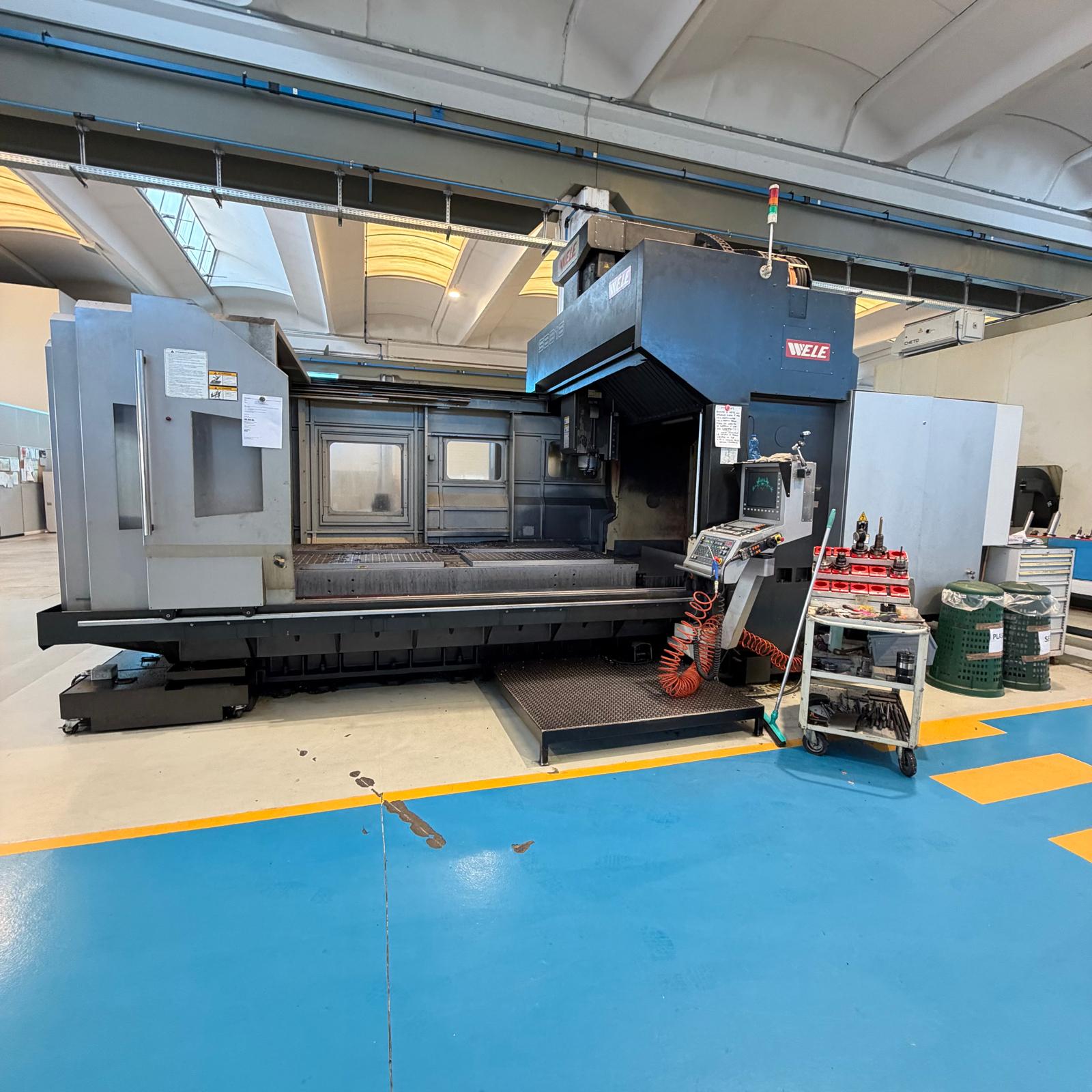

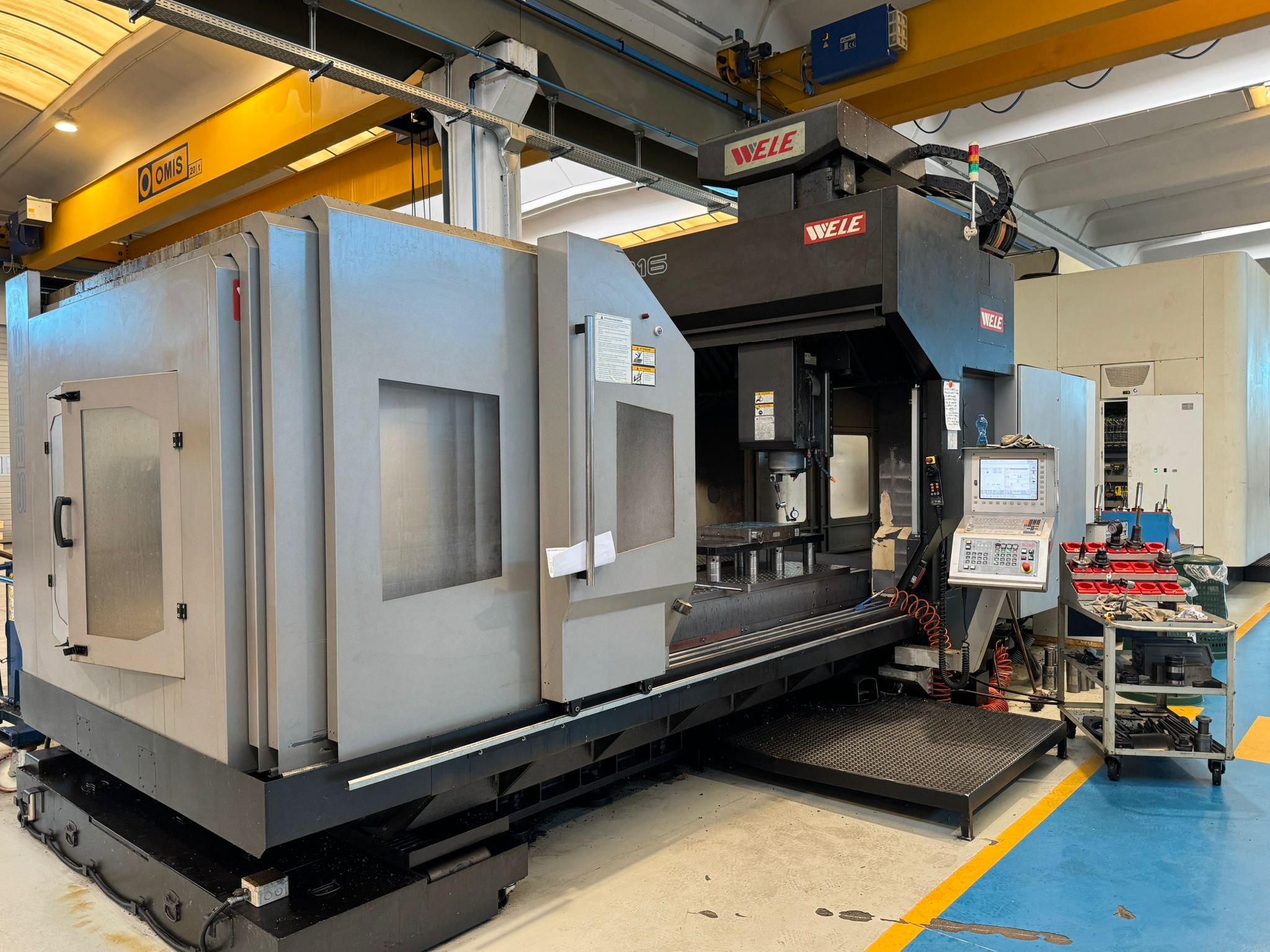

Type: Vertical machining center Gantry
Brand: WELE

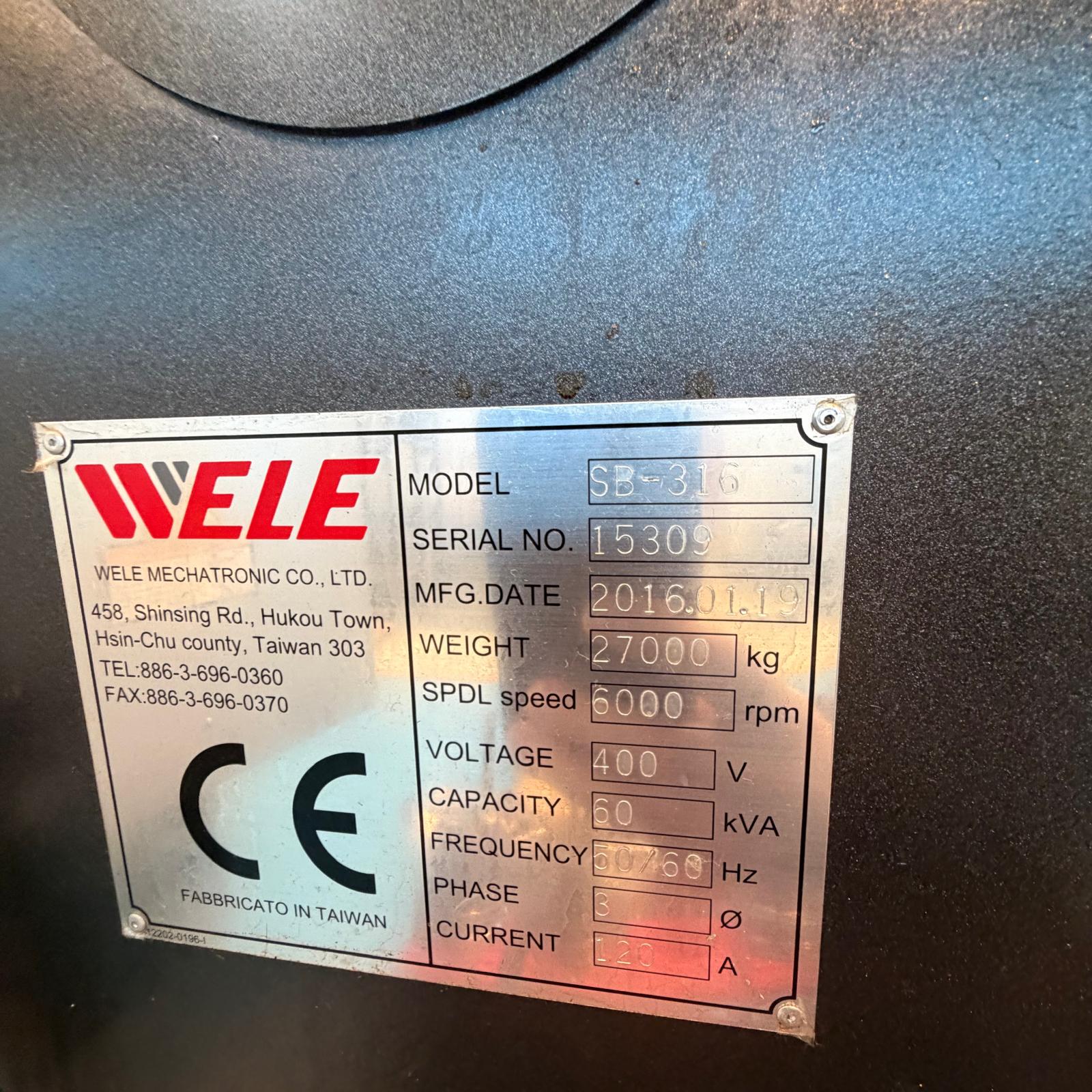

Model: SB-316
Year: 2016
C.N.C: HEIDENHAIN ITNC530
Serial number: 15309
Specifications
Rigid tapping and helical interpolation, Gear-driven spindle head, High-pressure system: 20 bar, Full enclosure, Optical scales on X, Y, Z axes, Belt-type chip conveyor.
Table
Capacity
Spindle
Advances
Tool Warehouse
Specific properties
Distance between table surface and spindle nose: 200 – 1000 mm
Distance between columns: 1700 mm
Positioning accuracy: ± 0.005 mm
Repeatability: ± 0.003 mm
Machine dimensions: 8310 × 3790 × 4350 mm
Machine weight: 27,000 kg
Table mm. : 3000x1500
X,Y,Z strokes mm. : 3060x1600x800
RPM : 10-6000
Power Kw : 22-26
ISO : BT50
Tools : 32
