WELE
HB 1620/13

Type: Boring machine

Brand: WELE

Model: HB 1620/13

C.N.C: Fanuc / Heidenhain

Request a quote

Watch the video

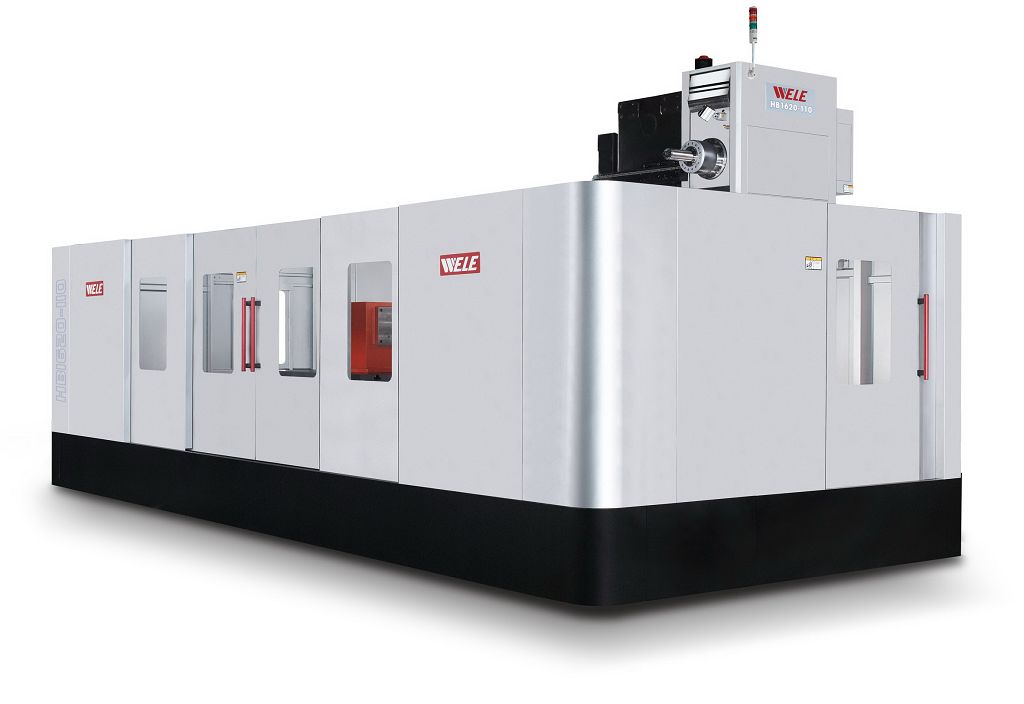

Boring machine WELE HB 1620/13

Technical information

Table

Table dimensions: 2000x1600 mm
Table rotation: 0.001 gradi
Table load capacity: 12000 kg

Machining capacity

Longitudinal X-travel: 3000 mm.
Vertical Z-travel: 2100 mm.
Z axis stroke upright: 1500 mm.

Spindle

Spindle nose: 50 ISO
Ø quill: 130 mm.
Spindle speed: 1 - 2500 giri/min.
Motor power: 22 / 26 Kw.

Tool magazine

Tools holder: 40 Nr.

Specific properties

W travel: 700 mm

Table mm. : 2000x1600

X,Y,Z travels mm. : 3000x2100x1500

Ø quill : 130

Tools : 40

Rpm : 1 - 2500

Potenza KW : 22 / 26
