WELE

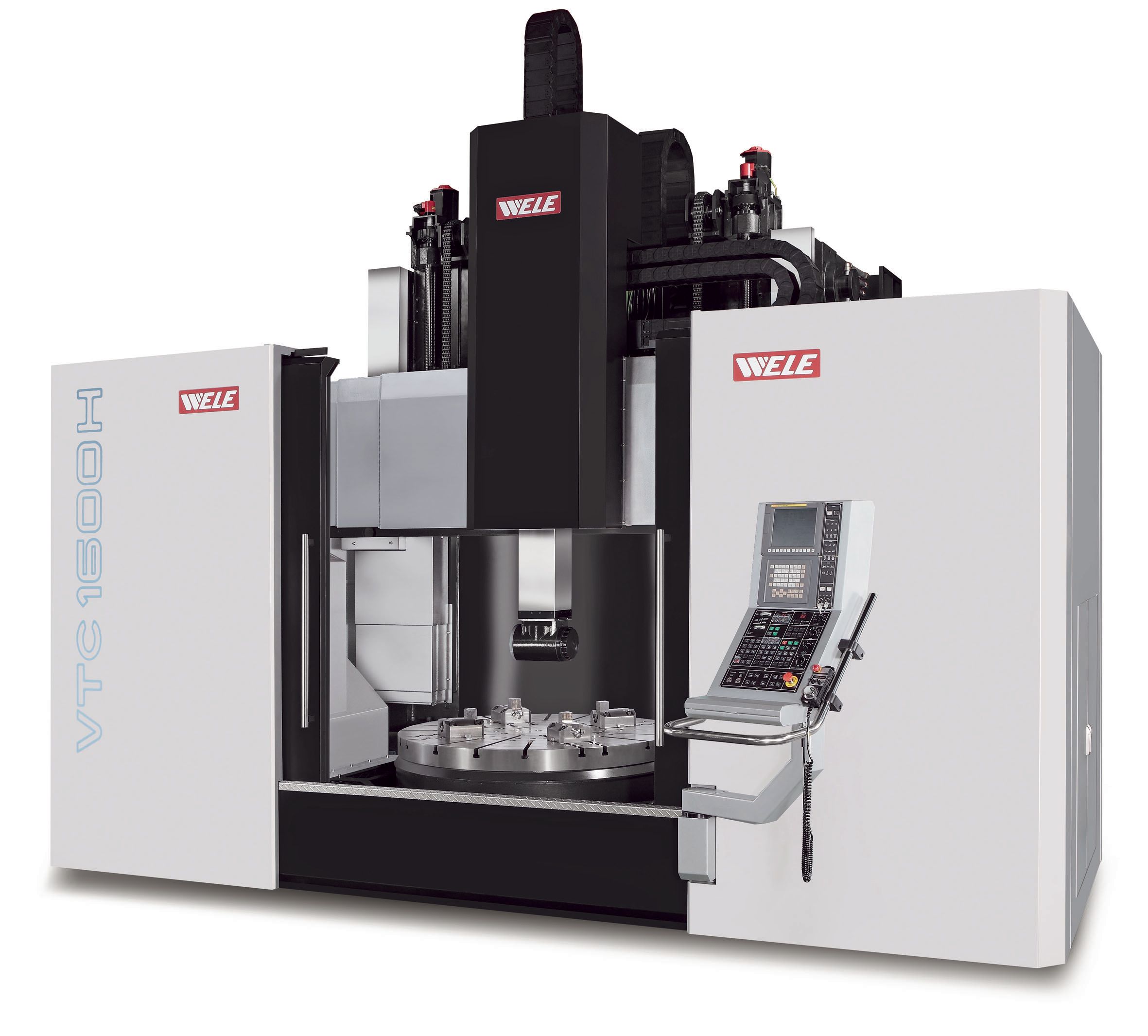

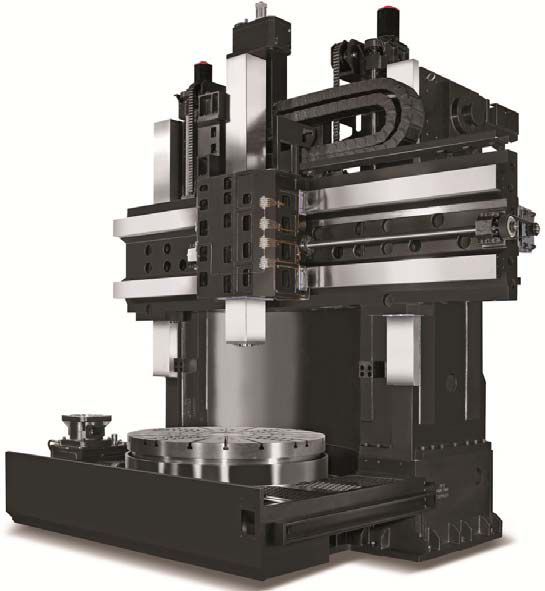

VTC 1612-20/1616-20
Type: Vertical lathe multi-tasking
Brand: WELE
Model: VTC 1612-20/1616-20
C.N.C: Fanuc / Siemens
Watch the video
Technical information
Turning capacity
- Table size: 1600 mm
- Max. turning diameter: 2000 mm
- Max. turning height: 1200/1600 mm
Table
- Table speed: 2 - 260 rpm
- Motor power: 37 / 45 Kw
Milling spindle
- Ram section: 226 mm
- Motor power: 11 / 15 Kw
- Spindle speed: 1600 Giri/min

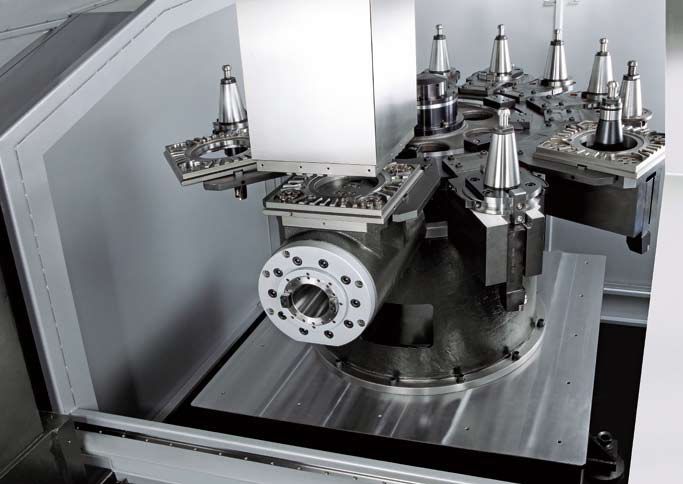

Tool magazine
- Tools: 16/20/32 nr.
Machine dimension
- Machine dimension: 5500x3800x5175 mm
- Weight: 28.000/32000 Kg
Table size : 1600
Max. turning diameter : 2000
Max. turning height : 1200/1600
Table speed : 2 - 260
Tool magazine : 16/20/32
