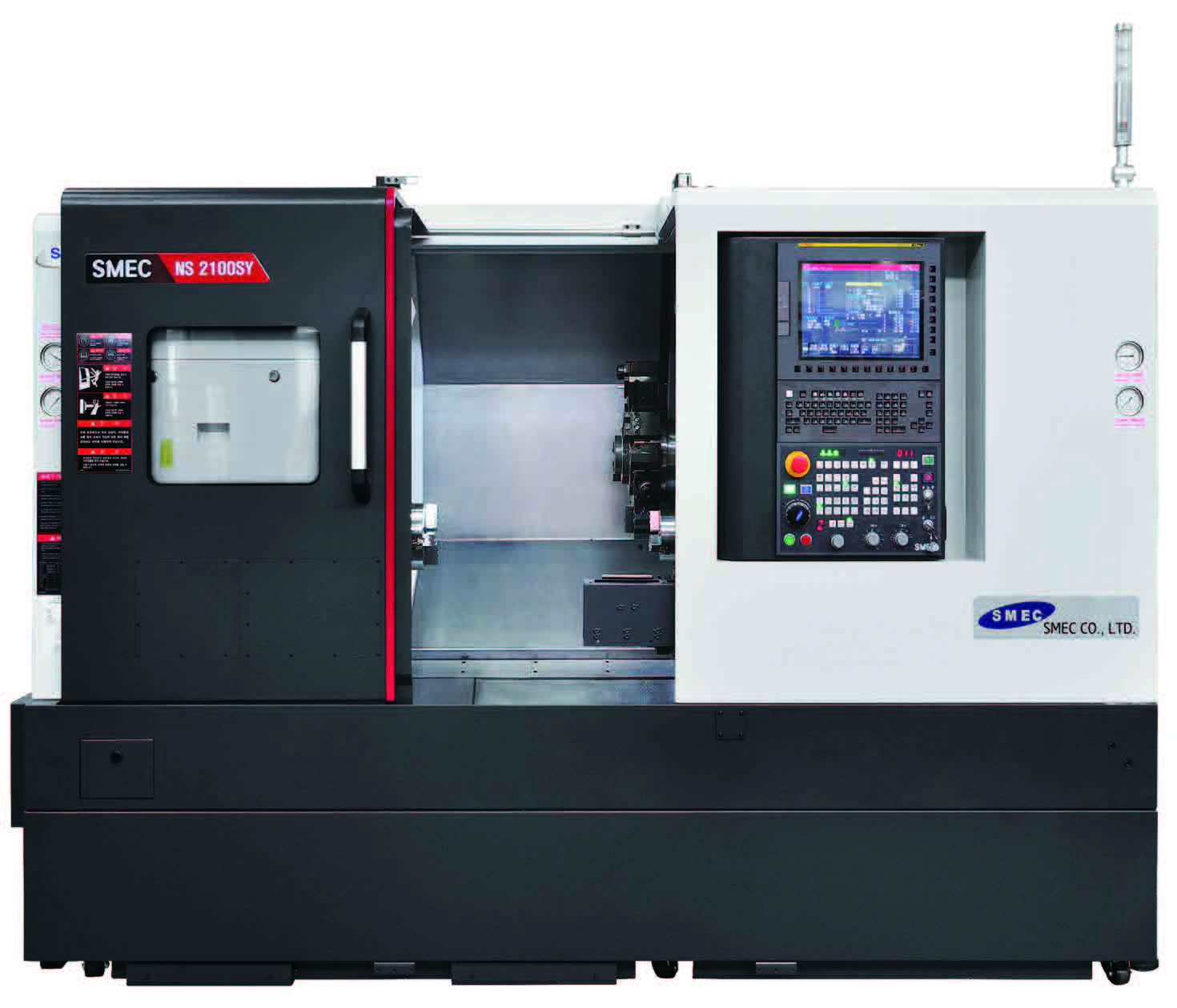

SMEC
NS2100 ASY-BSY
Type: Cnc lathe
Brand: SMEC
Model: NS2100 ASY-BSY
C.N.C: Fanuc 0iTF PLUS
Technical information
Capacity
- Turning Ø: 378 mm
- Turning length: 520/490 mm

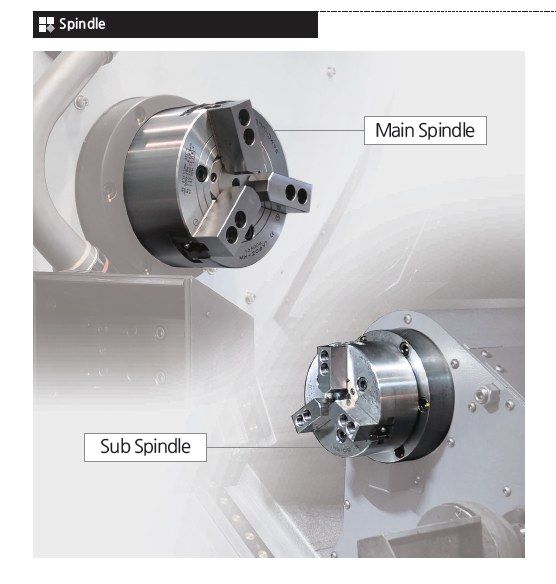

1st Spindle
- Spindle nose: A2-8 ASA
- Bar capacity: 51 (A)/67 (B) mm
- Spindle speed: 4500 rpm
- Motor power: 11/18.5 Kw
2nd Spindle
- Spindle nose: A2-5 ASA
- Bar capacity: 61-43 (A) / 76-43 (B) mm
- Spindle speed: 6000 (A) 4500 (B) rpm
- Motor power: 7.5-11 Kw

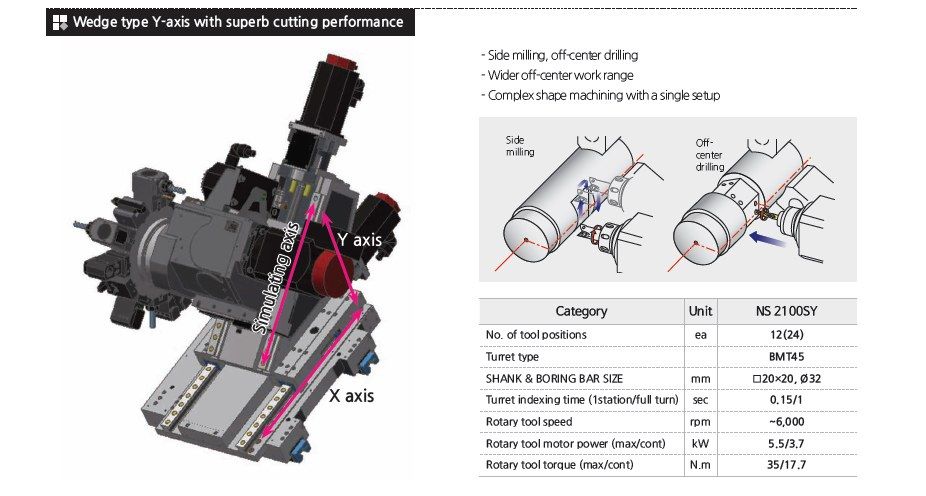

1st Turret
- Tool Stations: 12
- Power turret: 12
- Motorized tools:: 20x20
Specific properties
- X axis: 205 mm
- Y axis stroke: 110 mm
- Z axis: 590 mm
- X axis rapid traverse: 30 m/min
- Y axis rapid traverse: 10 m/min
- Z axis rapid traverse: 36 m/min
Turning Ø mm. : 378
Length. turnable mm. : 520/490
RPM. : 4500
Power kw. : 11-18,5
Capac.bar Ø : 51 (A) /67 (B)
Diameter Rotation :
Distance between centers :
Spindle speed I and II spindle : 6000 giri/min
