SMEC
SL 2500BX/ 2500BXM

Type: Cnc lathe

Brand: SMEC

Model: SL 2500BX/ 2500BXM

C.N.C: Fanuc Oi - TF

Request a quote

Watch the video

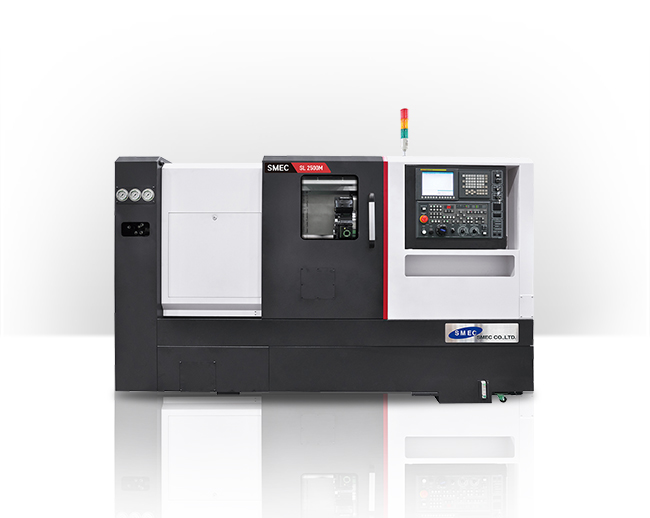

Cnc lathe SMEC SL 2500BX/ 2500BXM

Technical information

Capacity

Turning Ø: 430/ 405 mm
Turning length: 830/8 00 mm

1st Spindle

Spindle nose: A2-8 ASA
Bar capacity: 77 mm
Spindle speed: 3500 rpm
Motor power: 18,5/ 15 Kw

2nd Spindle

Spindle nose: A2-8 ASA
Bar capacity: 77 mm
Spindle speed: 3500 rpm
Motor power: 18,5/ 15 Kw

1st Turret

Tool Stations: 12

Specific properties

Weight: 5800 Kg

Turning Ø mm. : 430/405

Length. turnable mm. : 830/800

RPM. : 3500

Power kw. : 18,5/ 15

Capac.bar Ø : 77

Diameter Rotation :

Distance between centers :

Spindle speed I and II spindle :
