SMEC
SL 6500 L -M -LM

Type: Cnc lathe

Brand: SMEC

Model: SL 6500 L -M -LM

C.N.C: Fanuc 0iTF

Request a quote

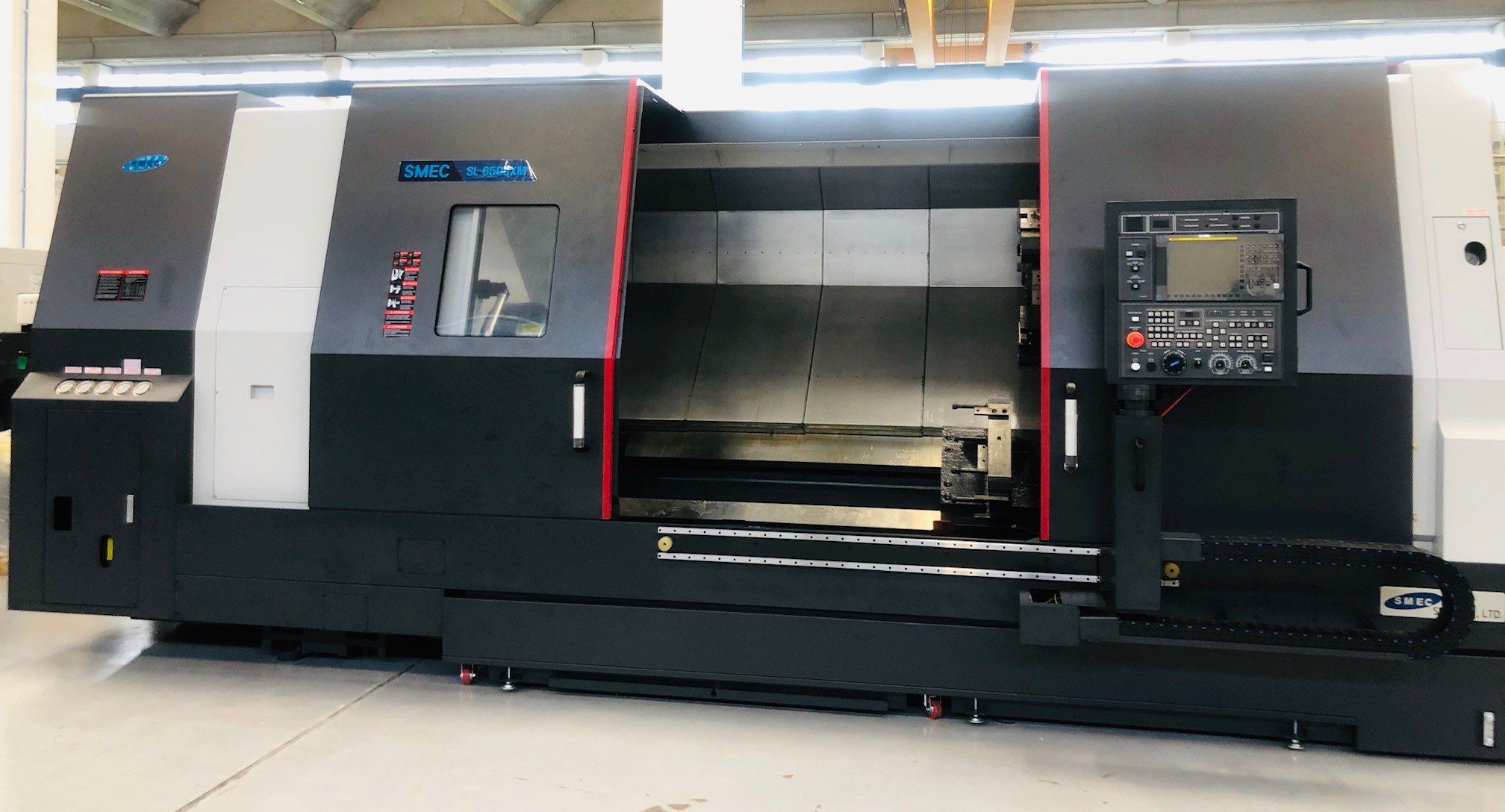

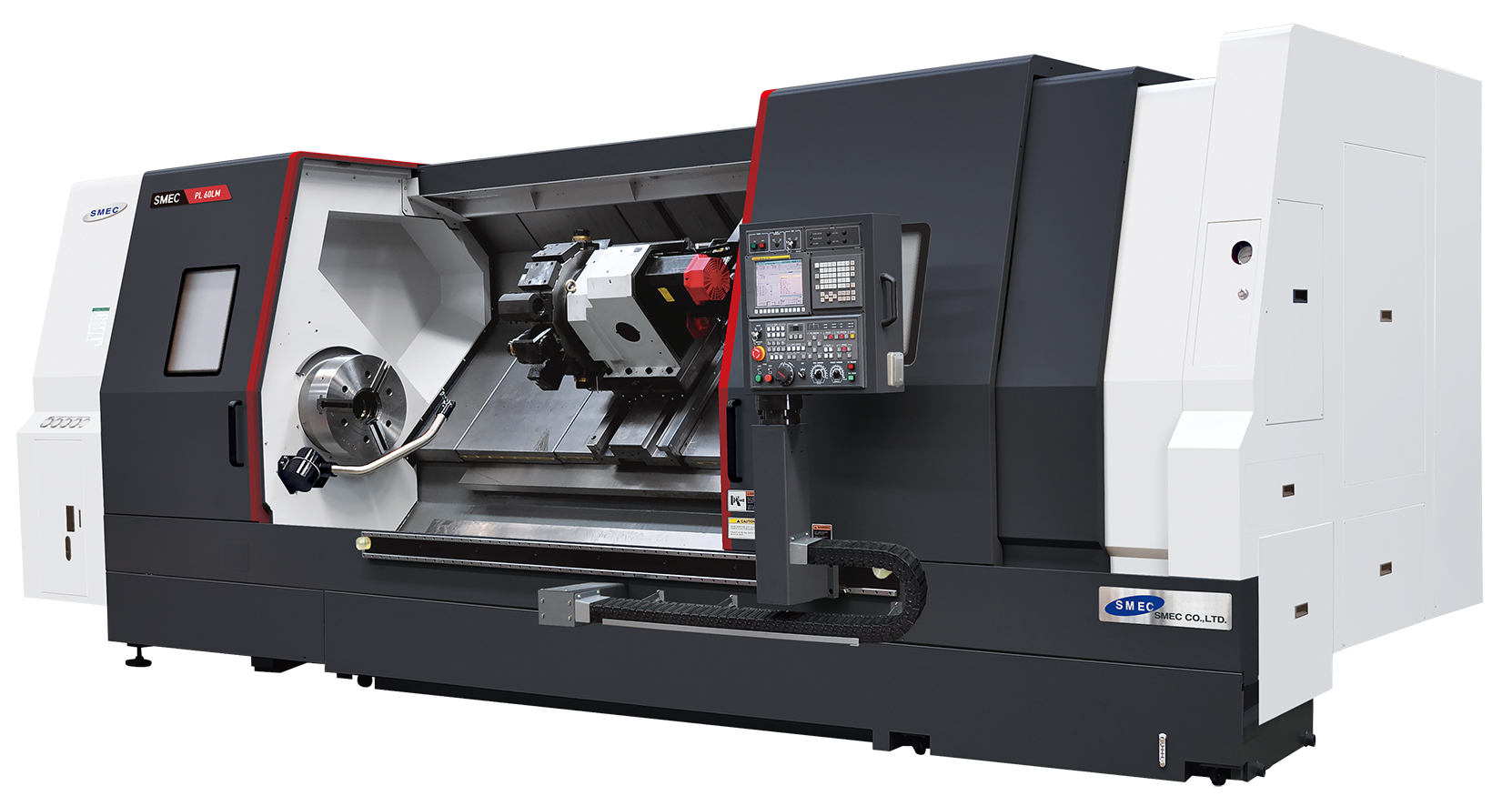

Cnc lathe SMEC SL 6500 L -M -LM

Cnc lathe SMEC SL 6500 L -M -LM

Cnc lathe SMEC SL 6500 L -M -LM

Technical information

Turning capacity

Turning ø: 800 mm
Turning lenght: 1000/3200 mm

I° Spindle

Spindle taper: A2-15 ASA
Bar capacity: 140 mm
RPM: 1500 giri/min
Motor power: 37/45 Kw

I° Turret

Tools holder: 12
Live tool turrett: 12

Tailstock

Taper: 6 BUILT-IN CM

Turning Ø mm. : 800

Turning lenght : 1000 / 3200

Rpm : 1500

Power Kw. : 37 / 45

Bar Ø capacity : 140

Turning diameter :

Distance between centers :

Turning speed (I and II spindle) :
