PALMARY
OCD 4240/ 4260

Type: Cylindrical grinder Cylindrical CNC

Brand: PALMARY

Model: OCD 4240/ 4260

C.N.C: Fanuc Oi - TF

Request a quote

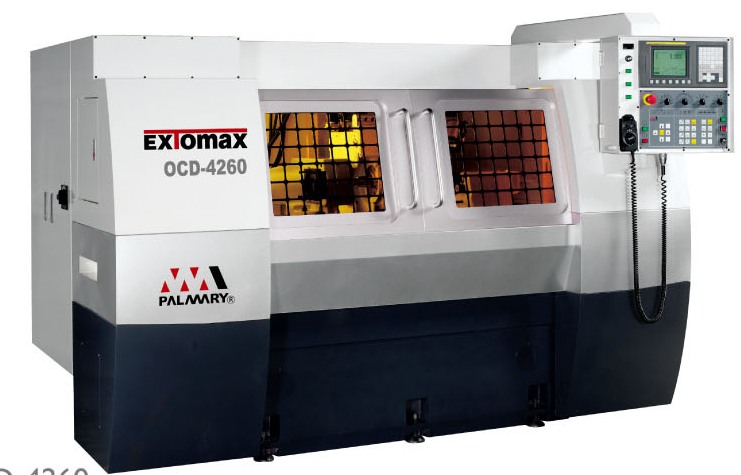

Cylindrical grinder PALMARY OCD 4240/ 4260

Technical information

CAPACITY

Distance between centers: 400/ 600 mm
Center height: 210 mm
Maximum grinding diameter: 400 mm
Maximum weight between centers: 150 Kg
Wheel dimensions: 405x50/75x127 mm
Wheel motor power: 5.5 Kw

MACHINE DIMENSIONS

Weight: 3500/ 3800 Kg

Distance between centers : 400/ 600 mm

Center height : 210 mm

Max job weight : 150 Kg

Wheel dimensions : 405x50/75x127 mm

Weight : 3500/ 3800 Kg
