PALMARY

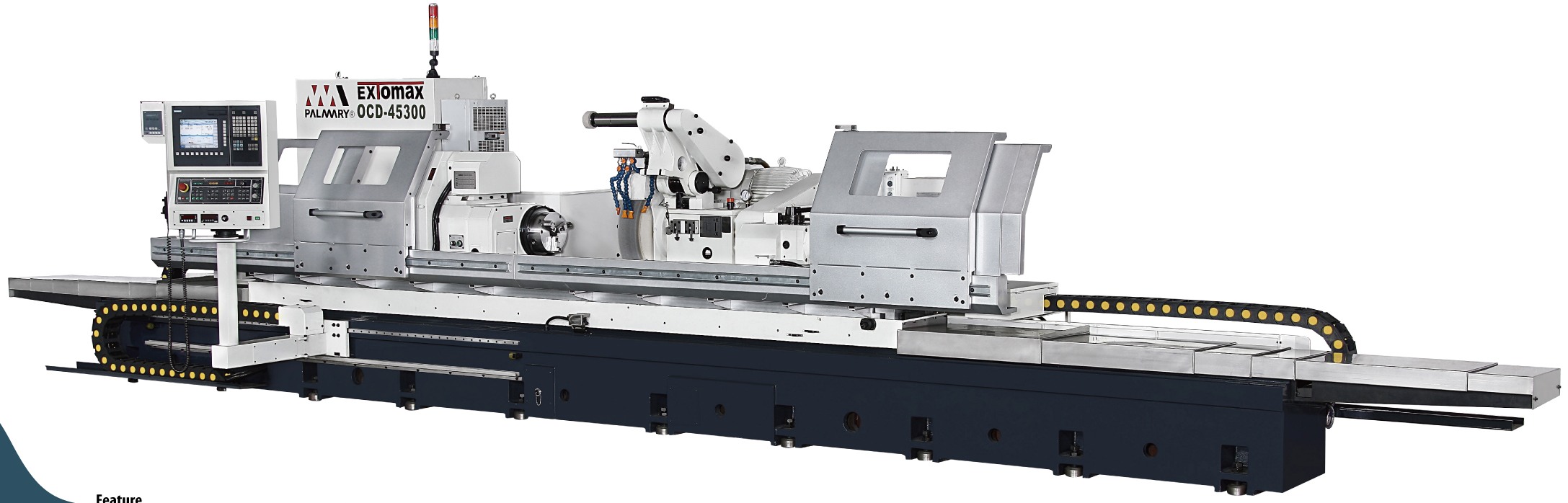

OCD 65150/ 65220/ 65300/ 65400
Type: Cylindrical grinder Cylindrical CNC
Brand: PALMARY
Model: OCD 65150/ 65220/ 65300/ 65400
C.N.C: FANUC
Technical information
CAPACITY
- Distance between centers: 1500/ 2200/ 3000/ 4000 mm
- Center height: 225 mm
- Maximum grinding diameter: 620 mm
- Maximum weight between centers: 800 Kg
- Wheel dimensions: 510x125x152.4 mm
- Wheel motor power: 11 Kw
MACHINE DIMENSIONS
- Weight: 12000/ 14000/ 16000/ 19000 Kg
Distance between centers : 1500/ 2200/ 3000/ 4000 mm
Center height : 225 mm
Max job weight : 800/ 2000 Kg
Wheel dimensions : 510x125x152.4 mm
Weight : 12000/ 14000/ 16000/ 19000 Kg
