PALMARY
PSG D4080 AH

Type: Edgeweel grinding Hydraulic NC

Brand: PALMARY

Model: PSG D4080 AH

Request a quote

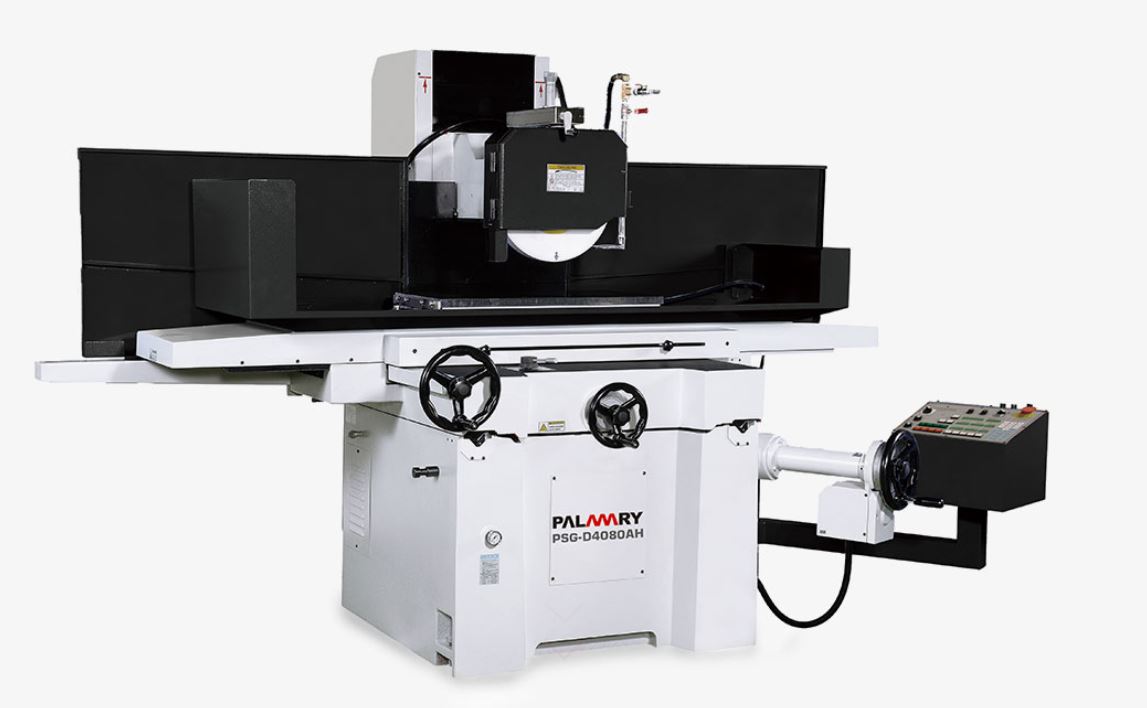

Edgeweel grinding PALMARY PSG D4080 AH

Technical information

Table

Max longitudinal travers: 400X800 mm
Max. distance between spindle center and table: 550 mm

Wheel

Wheel size: 406X50X127
Motor power: 5 HP

Machine dimensions

Machine dimension: 3450X2000 mm
Weight: 3250 Kg

Max longitudinal travers : 400X800 mm

Max longitudinal traverse :

Max cross travers :

Wheel : 406X50X127 mm

Max distance between spindle centre/table : 550 mm

Wheel diameter x length/bore :

Machine dimension : 3450X2000 mm
