PALMARY
PSG 2550 AH

Type: Edgeweel grinding

Brand: PALMARY

Model: PSG 2550 AH

Request a quote

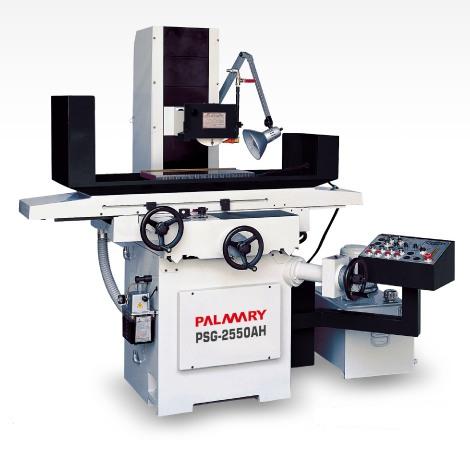

Edgeweel grinding PALMARY PSG 2550 AH

Technical information

Table

Max longitudinal travers: 250x500 mm
Max. distance between spindle center and table: 500 mm

Wheel

Wheel size: 180x13x31.75 (max 200x20x31.75)
Motor power: 2 HP
Wheel diameter X width X bore: 200x20x31.7 mm

Machine dimensions

Machine dimension: 2450x1550 mm
Weight: 1350 Kg

Max longitudinal travers : 250x500 mm

Max longitudinal traverse :

Max cross travers :

Wheel : 180X13X31.75 mm

Max distance between spindle centre/table : 500 mm

Wheel diameter x length/bore : 200x20x31.75 mm

Machine dimension : 2450x1550 mm
