PALMARY
PSG C50100/ 60100/ 70100 AHR

Type: Edgeweel grinding Hydraulic NC

Brand: PALMARY

Model: PSG C50100/ 60100/ 70100 AHR

Request a quote

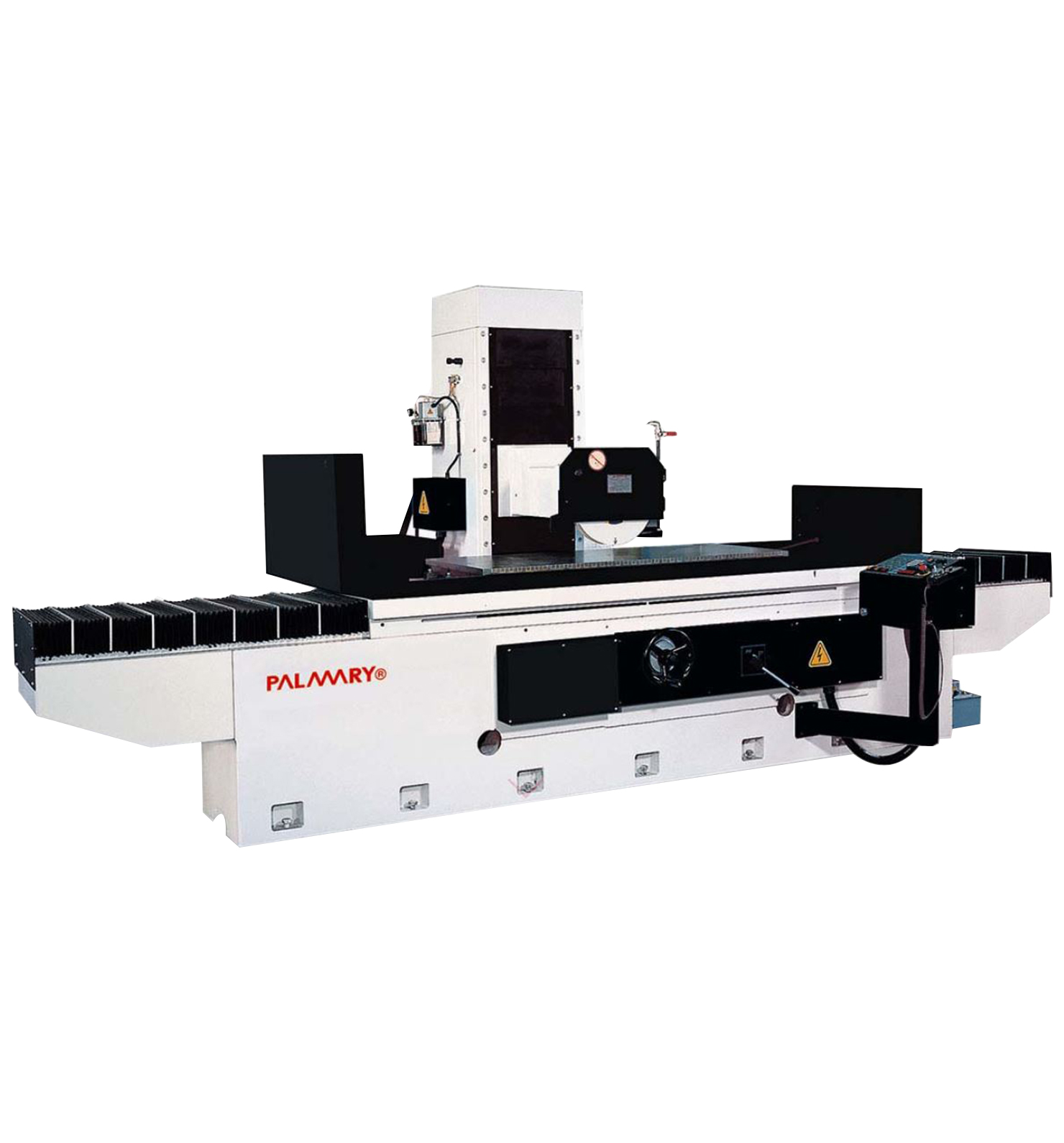

Edgeweel grinding PALMARY PSG C50100/ 60100/ 70100 AHR

Technical information

Table

Max longitudinal travers: 500/600/700x1020 mm
Max. distance between spindle center and table: 600/600/700 (OPZIONE 800 E 1000) mm

Wheel

Wheel size: 406x50x127
Motor power: 10 (OPZIONE 15) HP

Machine dimensions

Machine dimension: 4600x2300x2200 mm
Weight: 6000/6300/6600 Kg

Max longitudinal travers : 500x1020/600x1020/700x1020

Max longitudinal traverse :

Max cross travers :

Wheel : 406x50x127

Max distance between spindle centre/table : 600/600/700

Wheel diameter x length/bore : 406x50x127

Machine dimension : 4600x2300x2200
