PALMARY
OCD 3240- 3260- 4260 -32100 CAM

Type: Cylindrical grinder Cylindrical CNC

Brand: PALMARY

Model: OCD 3240- 3260- 4260 -32100 CAM

C.N.C: NUM

Request a quote

Watch the videos

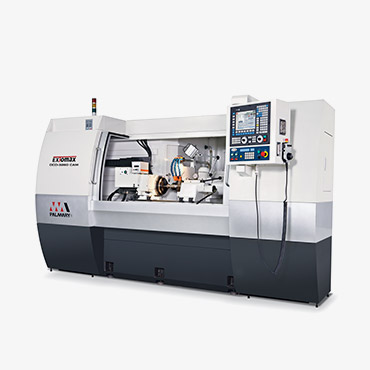

Cylindrical grinder PALMARY OCD 3240- 3260- 4260 -32100 CAM

Cylindrical grinder PALMARY OCD 3240- 3260- 4260 -32100 CAM

Cylindrical grinder PALMARY OCD 3240- 3260- 4260 -32100 CAM

Cylindrical grinder PALMARY OCD 3240- 3260- 4260 -32100 CAM

Cylindrical grinder PALMARY OCD 3240- 3260- 4260 -32100 CAM

Cylindrical grinder PALMARY OCD 3240- 3260- 4260 -32100 CAM

Cylindrical grinder PALMARY OCD 3240- 3260- 4260 -32100 CAM

Technical information

CAPACITY

Distance between centers: 250/ 400/ 600/ 1000 mm
Maximum grinding diameter: 320/420 mm
Maximum weight between centers: 150 Kg
Wheel dimensions: 510x50x125 mm
Wheel motor power: 5.5 Kw

MACHINE DIMENSIONS

Weight: 3400/ 3400/ 4250/ 5300 Kg

Distance between centers : 400/ 600/ 1000 mm

Center height :

Max job weight : 150 Kg

Wheel dimensions : 510x50x127 mm

Weight : 3400/ 4250/ 5300 Kg
