PALMARY
PSG DS3060AH / DL3060AH

Type: Edgeweel grinding Hydraulic NC

Brand: PALMARY

Model: PSG DS3060AH / DL3060AH

Request a quote

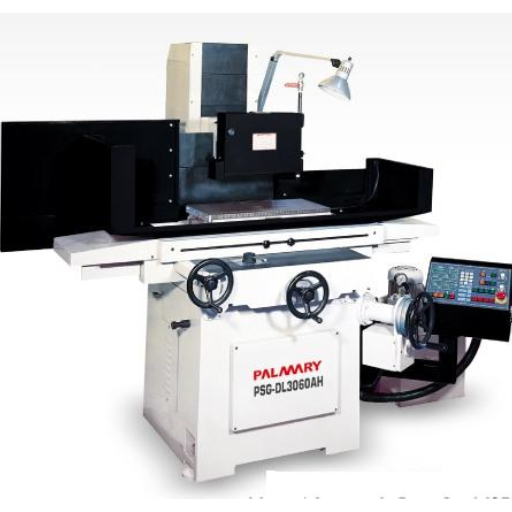

Edgeweel grinding PALMARY PSG DS3060AH / DL3060AH

Technical information

Table

Max longitudinal travers: 300x600 mm
Max. distance between spindle center and table: 500 mm (opzione 600) mm

Wheel

Wheel size: 180x13x31.75/355x38x127
Motor power: 2/5 HP

Machine dimensions

Machine dimension: 2600x1800 mm
Weight: 1700 Kg

Max longitudinal travers : 300x600

Max longitudinal traverse :

Max cross travers :

Wheel : 180x13x31.75/355x38x127

Max distance between spindle centre/table : 500

Wheel diameter x length/bore :

Machine dimension : 2600x1800
