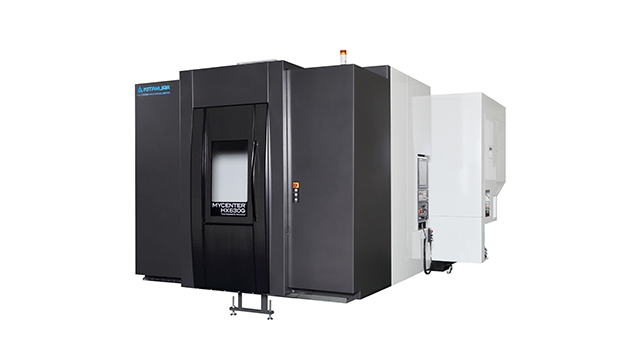

Home New Horizontal machining center KITAMURA HX630G

KITAMURA
HX630G

Type: Horizontal machining center

Brand: KITAMURA

Model: HX630G

C.N.C: Arumatik Mi

Horizontal machining center KITAMURA HX630G

Technical information

Table

  • Pallet dimensions: 630x630 mm
  • No. pallets: 2 nr.
  • Table rotation: 0,001-360 gradi

Turning capacity

  • Longitudinal X-travel: 1100 mm
  • Vertical y-travel: 920 mm
  • Cross z-travel: 1050 mm
  • Rapid feedrates: 60 mt./min.

Spindle

  • Spindle nose: 50 ISO
  • Spindle speed: 12000 giri/min.
  • Motor power: 22-40 Kw

Tool magazine

  • Tools holder: 62 nr.

Pallet mm. : 630x630

X,Y,Z travels mm. : 1100x920x1050

Rpm : 12000 (opz. 8000)

Motor power Kw : 22-40

ISO : 50

Tools : 62
