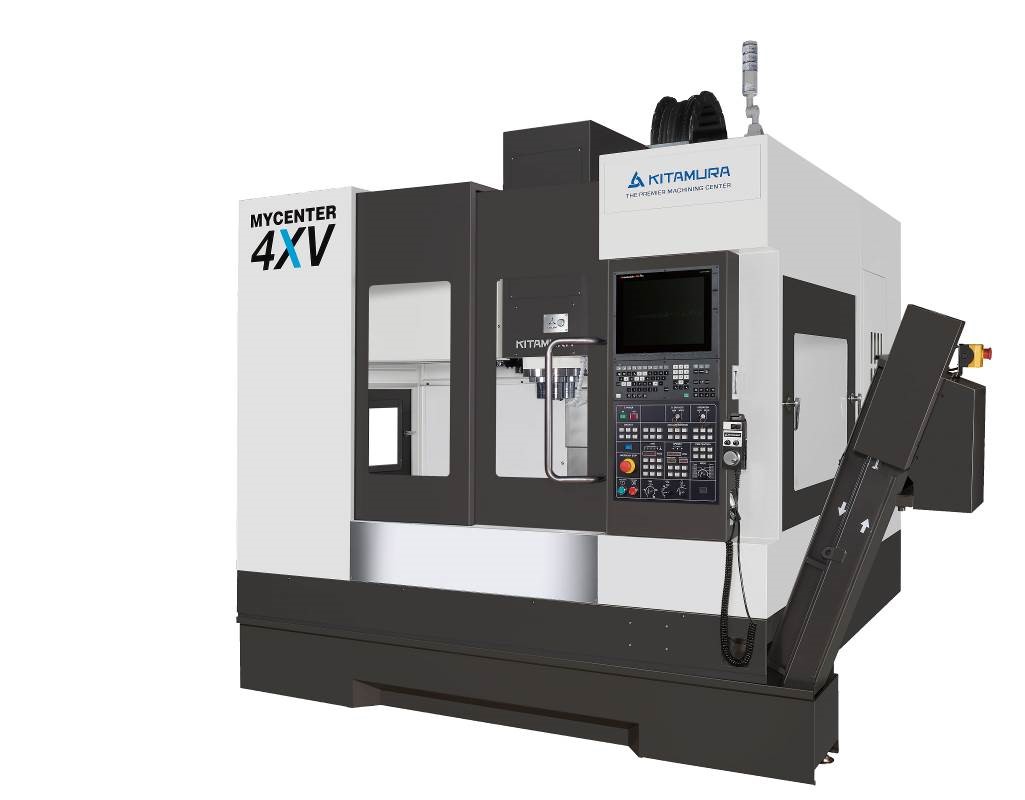

KITAMURA
MYCENTER M4XV
Type: Vertical machining center
Brand: KITAMURA
Model: MYCENTER M4XV
C.N.C: Arumatik Jr
Watch the video
Technical information
Table
- Table dimensions: 500x1120 mm
- T slots width/ pitch: 18x5 mm
- Max table load: 1200 kg
Turning capacity
- Longitudinal X-travel: 1020 mm
- Cross Y-travel: 510 mm
- Vertical Z-travel: 510 mm
Spindle
- Spindle nose: 40 ISO
- Spindle speed: 12000 giri/min.
- Motor power: 22/26 Kw
Feed rates
- Rapid feedrate axis X,Y,Z: 48.000-48.000-42.000 mm/min
Tool magazine
- Tools holder: 40 nr.
Table mm. : 500x1120
X,Y,Z travels mm. : 1020x510x510
Rpm : 12000
Motor power Kw : 22/26
ISO : 40 / 50
Tools : 40
