PALMARY
OIG 200D

Type: Internal grinder

Brand: PALMARY

Model: OIG 200D

C.N.C: Fanuc Oi - TF

Request a quote

Watch the video

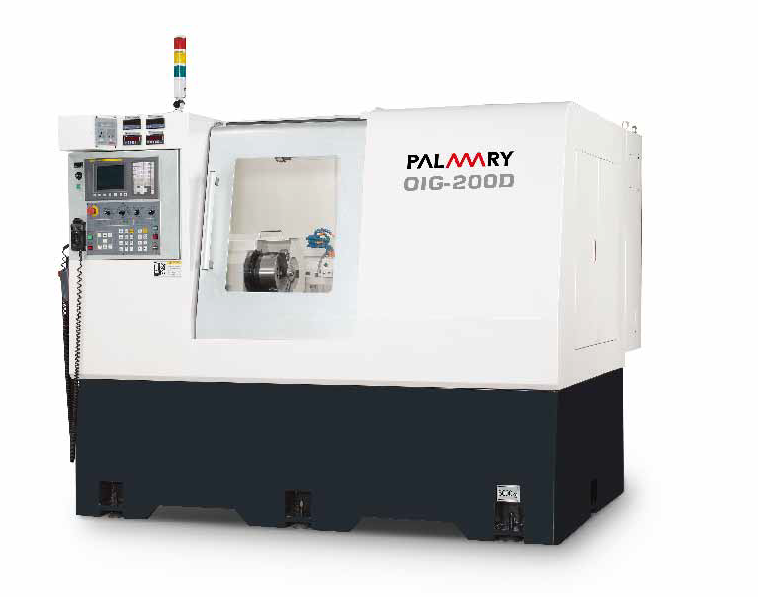

Internal grinder PALMARY OIG 200D

Technical information

CAPACITY

Grinding capacity: Da 6 a 200 mm
Max. workpiece lenght: 200 mm
Swivelling over table diam.: 400 mm
Workhead cover swivelling diam.: 280 mm
Max table traverse: 540 mm
Max table feedeing speed Z-axis: 5 m/min
Spindle speed: 0-500 min¯¹
Max X-axis feed speed: 5 m/min
X-axis minimum travel unit: 0.001 mm
Z-axis minimum travel unit: 0.001 mm

MACHINE DIMENSIONS

Machine gross weight: 5700 kg

Internal grinding Ø :

Internal grinding lenght :

Rpm :

Grinding capacity : Da 6 a 200 mm

Max workpiece lenght : 200 mm

Swivelling over table diam. : 400 mm

Machine gross weight : 5700 Kg
