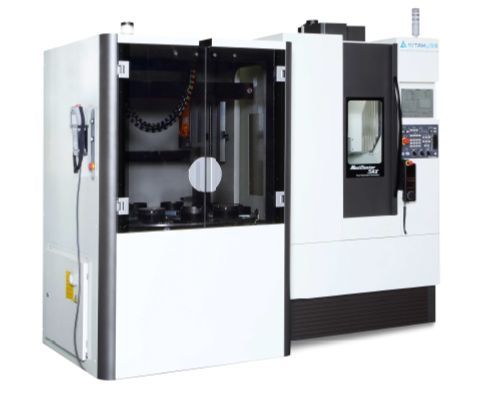

KITAMURA
MEDCENTER 5AX
Type: Vertical machining center 5 axes
Brand: KITAMURA
Model: MEDCENTER 5AX
C.N.C: Arumatik My
Technical information
Specifications
Ideale per il settore medicale ed elettronico, per la produzione di pezzi di piccole dimensioni.
Table
- Table dimensions: Diam. 170 mm
- T slots width/ pitch: 14 x 4 mm
- Max table load: 20 kg
Turning capacity
- Longitudinal X-travel: 254 mm
- Cross Y-travel: 330 mm
- Vertical Z-travel: 330 mm
Spindle
- Spindle nose: HSK.E40 ISO
- Spindle speed: 30.000 giri/min.
- Motor power: 18 Kw
Feed rates
- Rapid feedrate axis X,Y,Z: 60.000/60.000/50.000 mm/min
Tool magazine
- Tools holder: 40 nr.
Specific properties
- Maximum work size (diam x heigth): 180/220 x 175 mm
- A travel: +/- 120 mm
- C travel: 0-360 gradi
- From table surface to spindle nose: 50-380 gradi
- Machine dimension: 2000x1200x2200 mm
Table mm. : diam. 170
X,Y,Z travels mm. : 254x330x330
Rpm : 30.000
Motor power Kw : 18
ISO : HSK.E40
Tools : 40
