Home New Horizontal machining center KITAMURA SUPERCELL 800G

KITAMURA
SUPERCELL 800G

Type: Horizontal machining center 5- Axis machining center

Brand: KITAMURA

Model: SUPERCELL 800G

C.N.C: ARUMATIK Mi

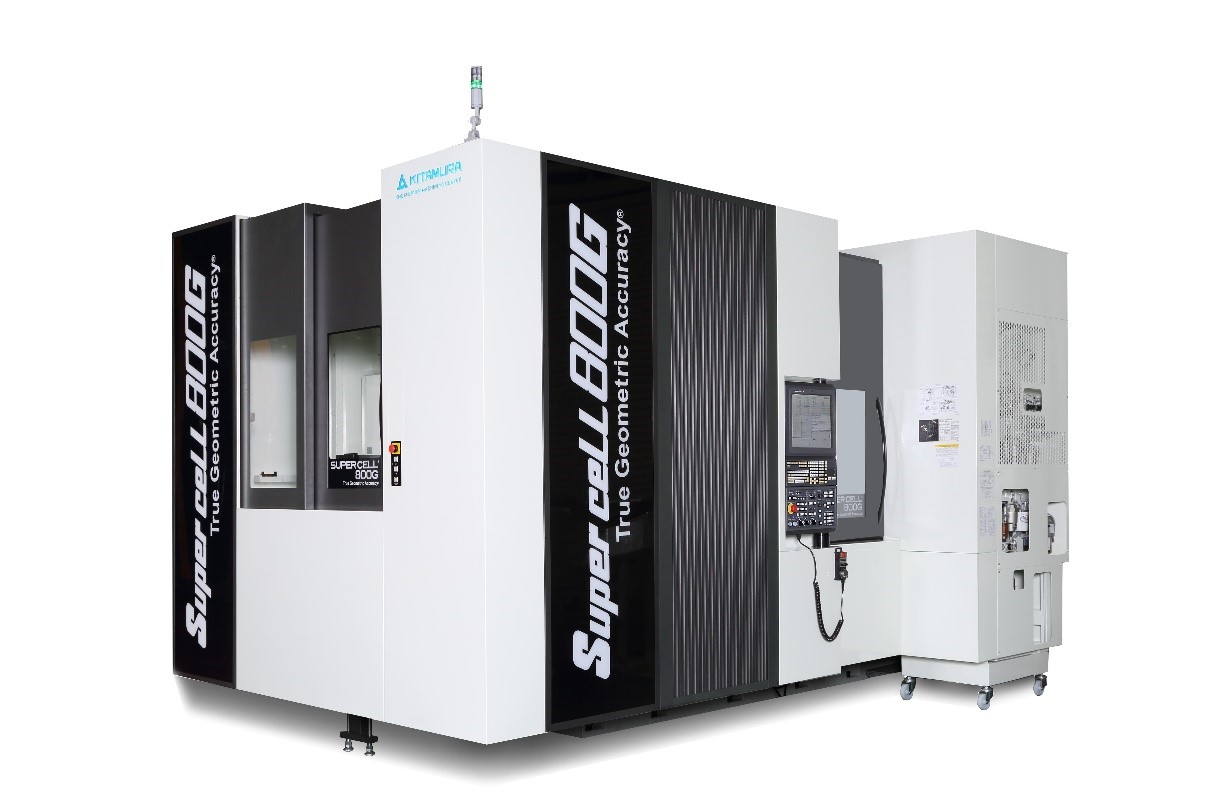

Horizontal machining center KITAMURA SUPERCELL 800G
Horizontal machining center KITAMURA SUPERCELL 800G
Horizontal machining center KITAMURA SUPERCELL 800G
Horizontal machining center KITAMURA SUPERCELL 800G
Horizontal machining center KITAMURA SUPERCELL 800G
Horizontal machining center KITAMURA SUPERCELL 800G

Technical information

Table

  • Pallet dimensions: 630x630 mm
  • No. pallets: 2 nr.
  • Table rotation: 0,001 gradi

Turning capacity

  • Longitudinal X-travel: 1100 mm
  • Vertical y-travel: 1100 mm
  • Cross z-travel: 1000 mm
  • Rapid feedrates: 60 mt./min.

Spindle

  • Spindle nose: 40 ISO
  • Spindle speed: 20.000 giri/min.
  • Motor power: 22 Kw

Tool magazine

  • Tools holder: 122 (174,230,258,314) nr.

Pallet mm. : 630x630

X,Y,Z travels mm. : 1100x1100x1000

Rpm : 20000

Motor power Kw : 22

ISO : 40

Tools : 122
