REMA CONTROL

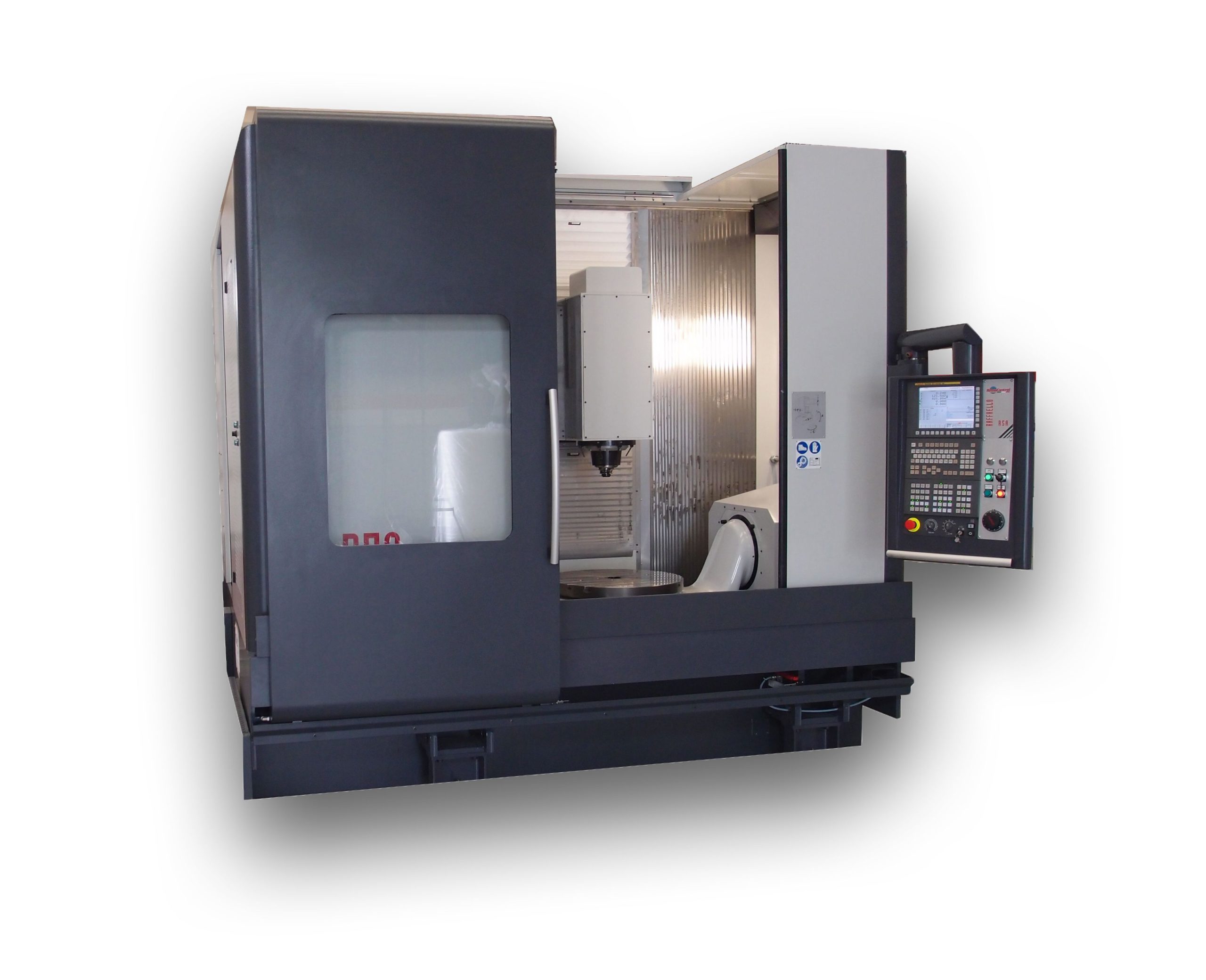

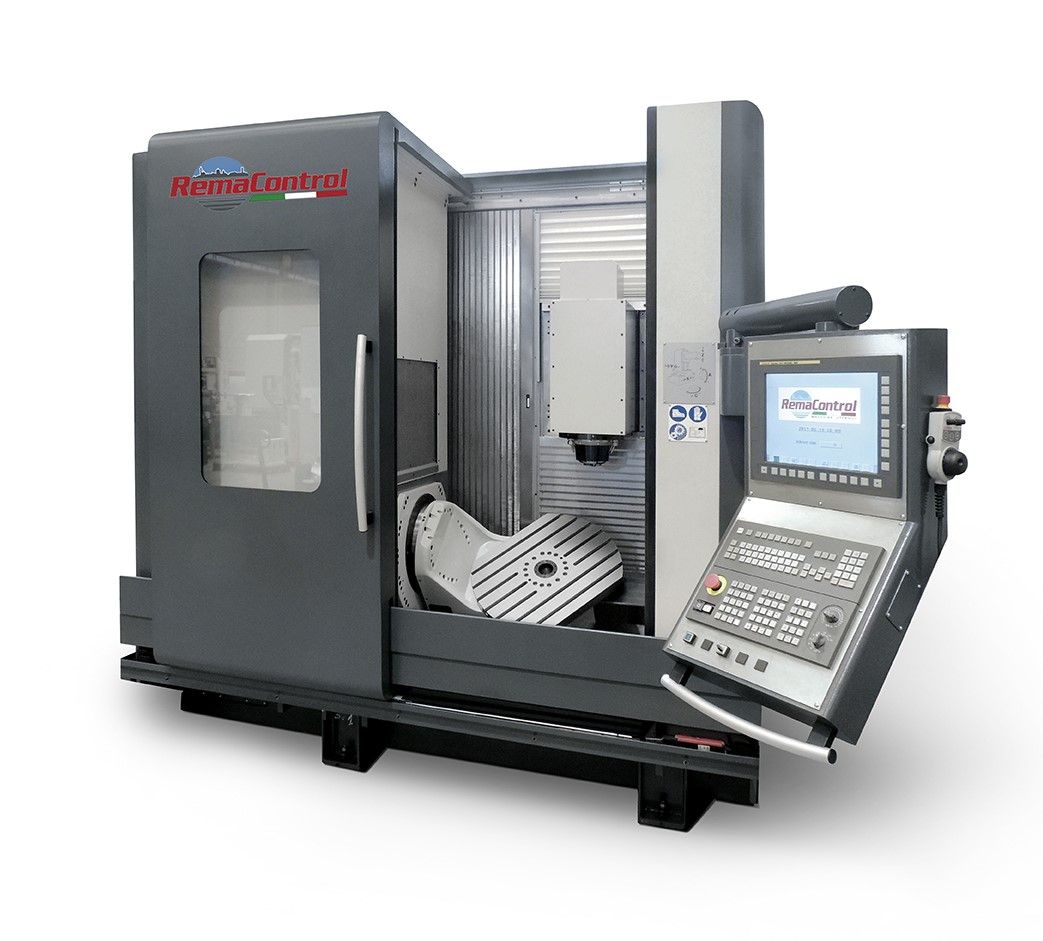

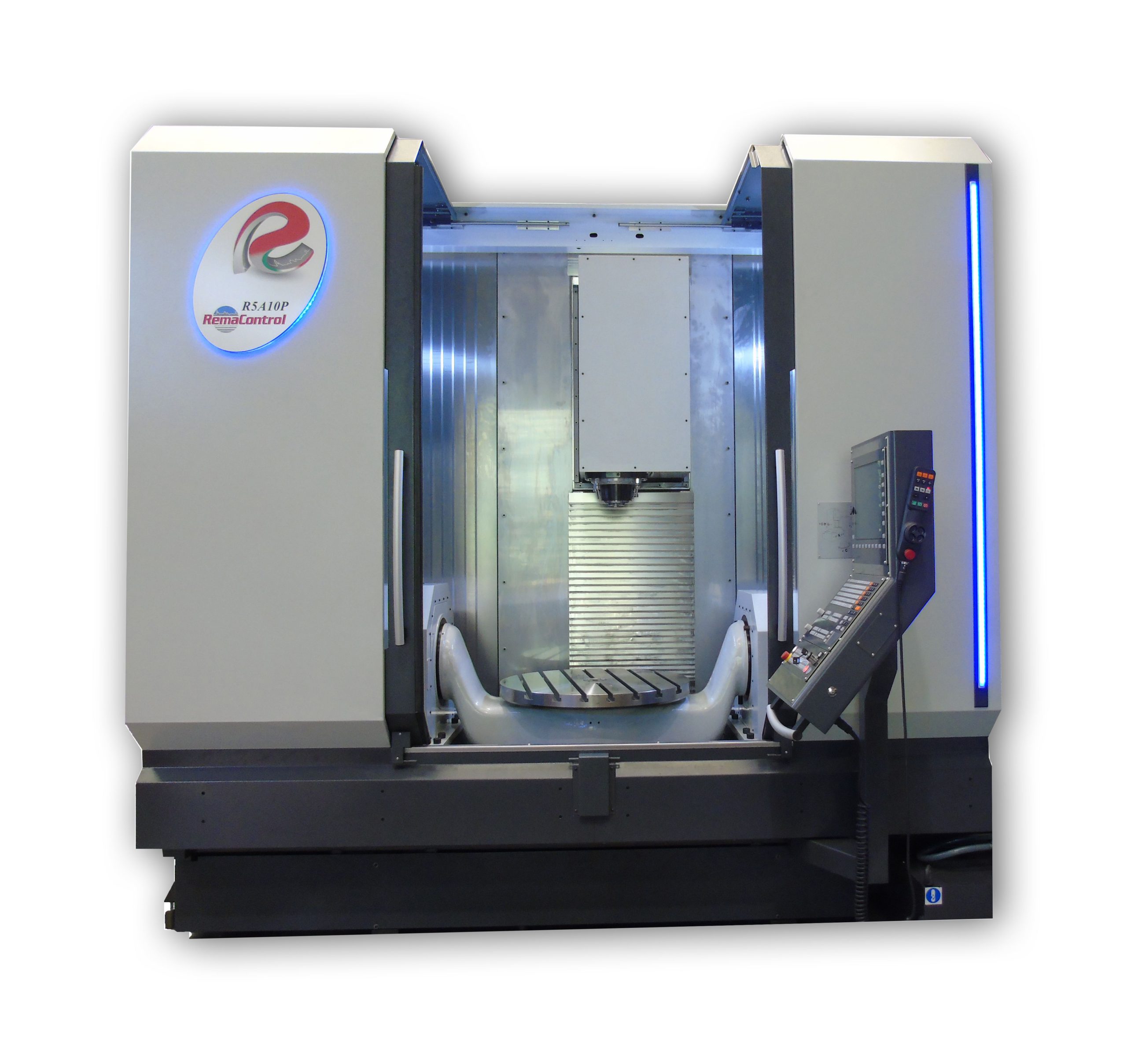

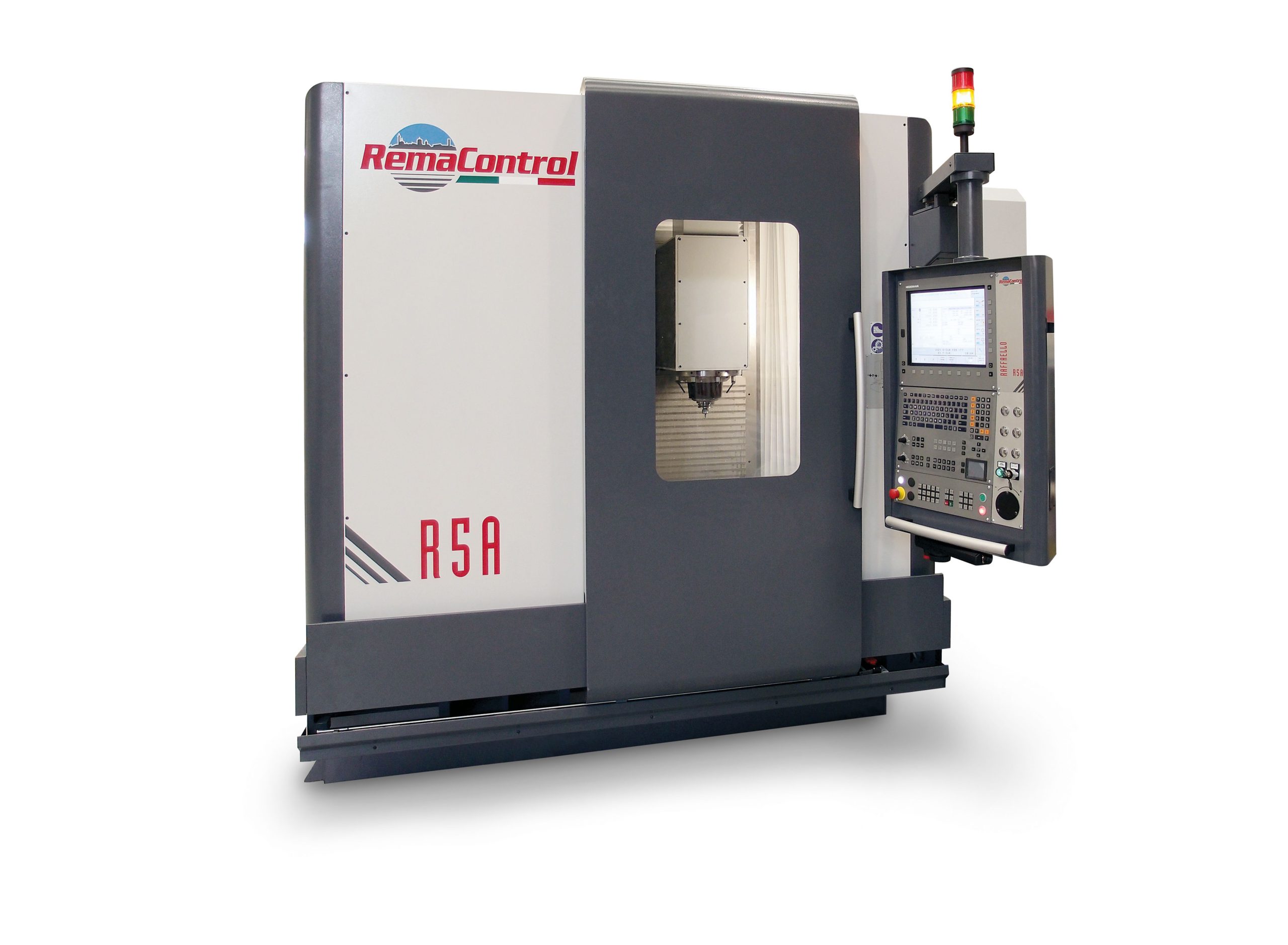

RAFFAELLO R5A.10/ R5A.14
Type: Vertical machining center Moving column
Brand: REMA CONTROL
Model: RAFFAELLO R5A.10/ R5A.14
C.N.C: Fanuc/Heidenhain/Siemens
Technical information
Table
- Table dimensions: 630x630 mm
- Max table load: 500 kg
Turning capacity
- Longitudinal X-travel: 1000-1400 mm
- Cross Y-travel: 700-850 mm
- Vertical Z-travel: 700-800 mm
Spindle
- Spindle nose: 40 ISO
- Spindle speed: 14.000-42.000 giri/min.
- Motor power: 19-38 Kw
Feed rates
- Rapid feedrate axis X,Y,Z: 50.000 mm/min
Tool magazine
- Tools holder: 30 (opz. 240) nr.
Specific properties
- A travel: ±120 gradi
- C travel: 360.0 gradi
Table mm. : 630x630
X,Y,Z travels mm. : 1000-1400x700-850x700-800
Rpm : 14.000
Motor power Kw : 19
ISO : 40
Tools : 30
