REMA CONTROL

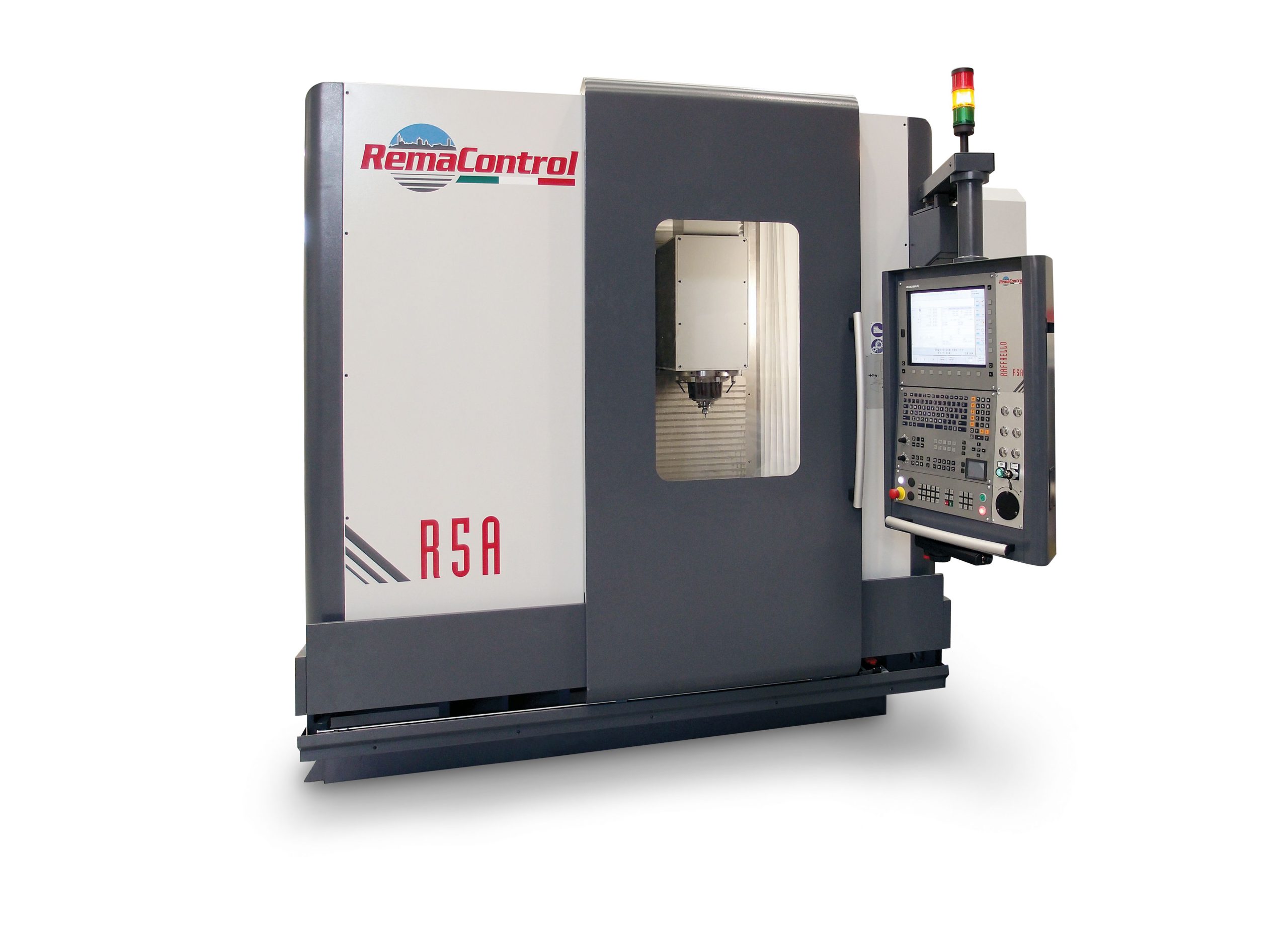

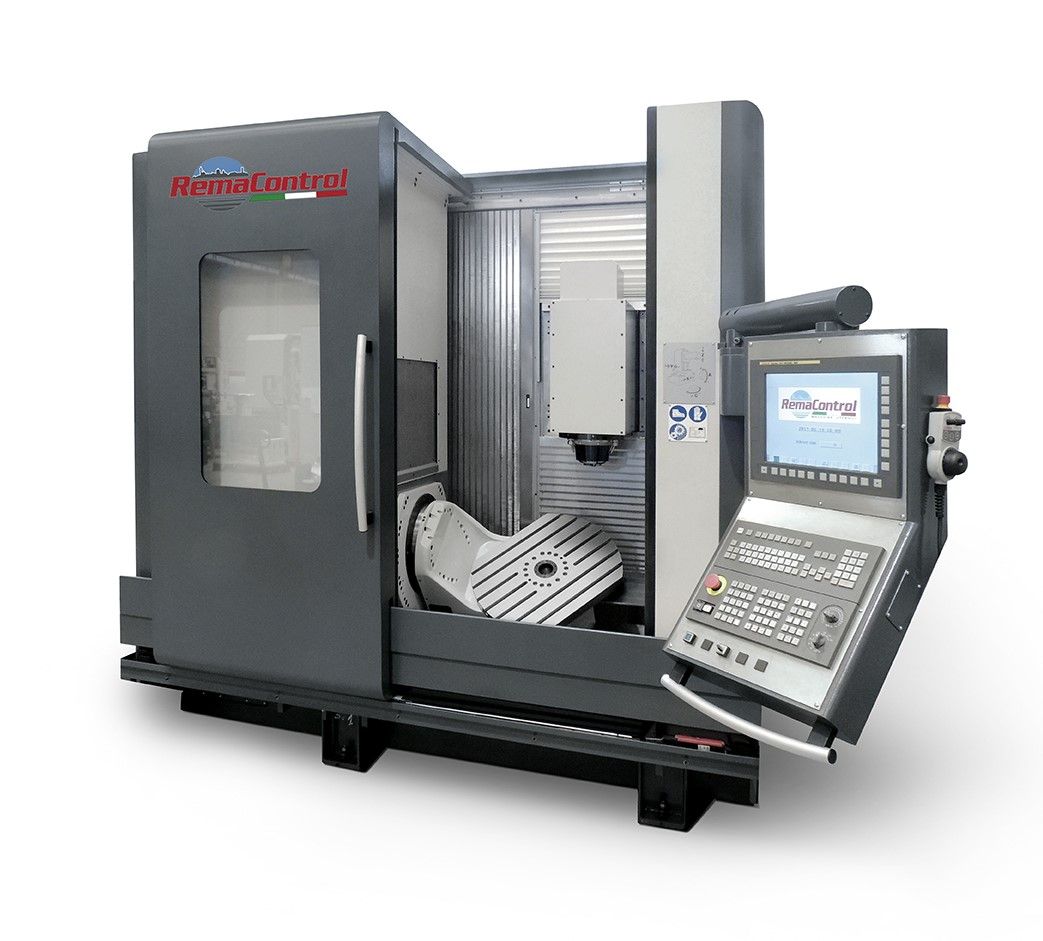

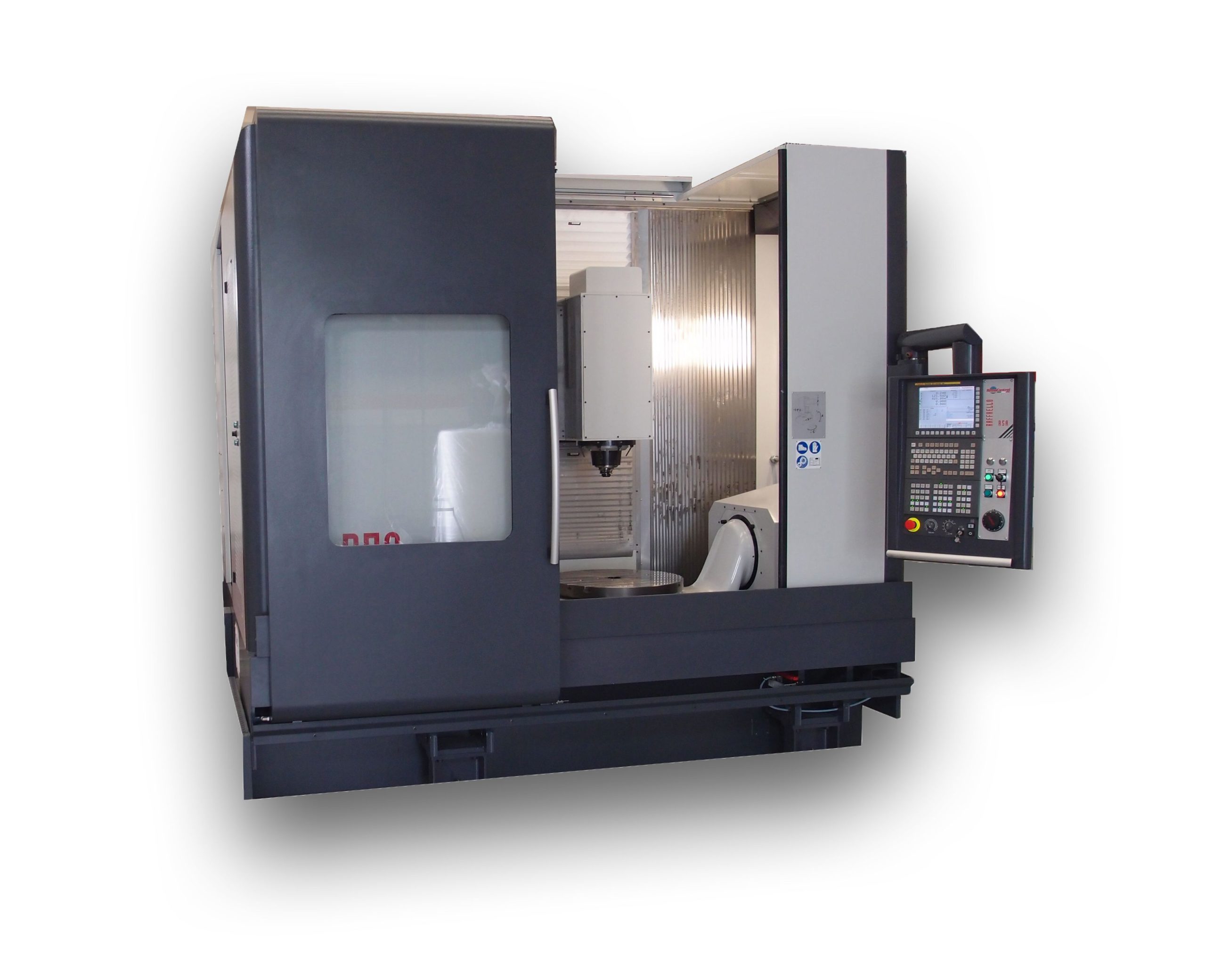

RAFFAELLO R5A.4/ R5A.6
Type: Vertical machining center Moving column
Brand: REMA CONTROL
Model: RAFFAELLO R5A.4/ R5A.6
C.N.C: Fanuc/Heidenhain/Siemens
Technical information
Table
- Table dimensions: 400x350/ 600x500 mm
- Max table load: 300 kg
Turning capacity
- Longitudinal X-travel: 400/600 mm
- Cross Y-travel: 400/600 mm
- Vertical Z-travel: 600/650 mm
Spindle
- Spindle nose: 40 ISO
- Spindle speed: 12.000/ 42.000 giri/min.
- Motor power: 19-38 Kw
Feed rates
- Rapid feedrate axis X,Y,Z: 50.000 mm/min
Tool magazine
- Tools holder: 30 (opz. 120) nr.
Specific properties
- A travel: ±100 gradi
- C travel: 360.000 degrees
Table mm. : 600x600
X,Y,Z travels mm. : 650x600x650
Rpm : 12.000
Motor power Kw : 20
ISO : 40
Tools : 20
